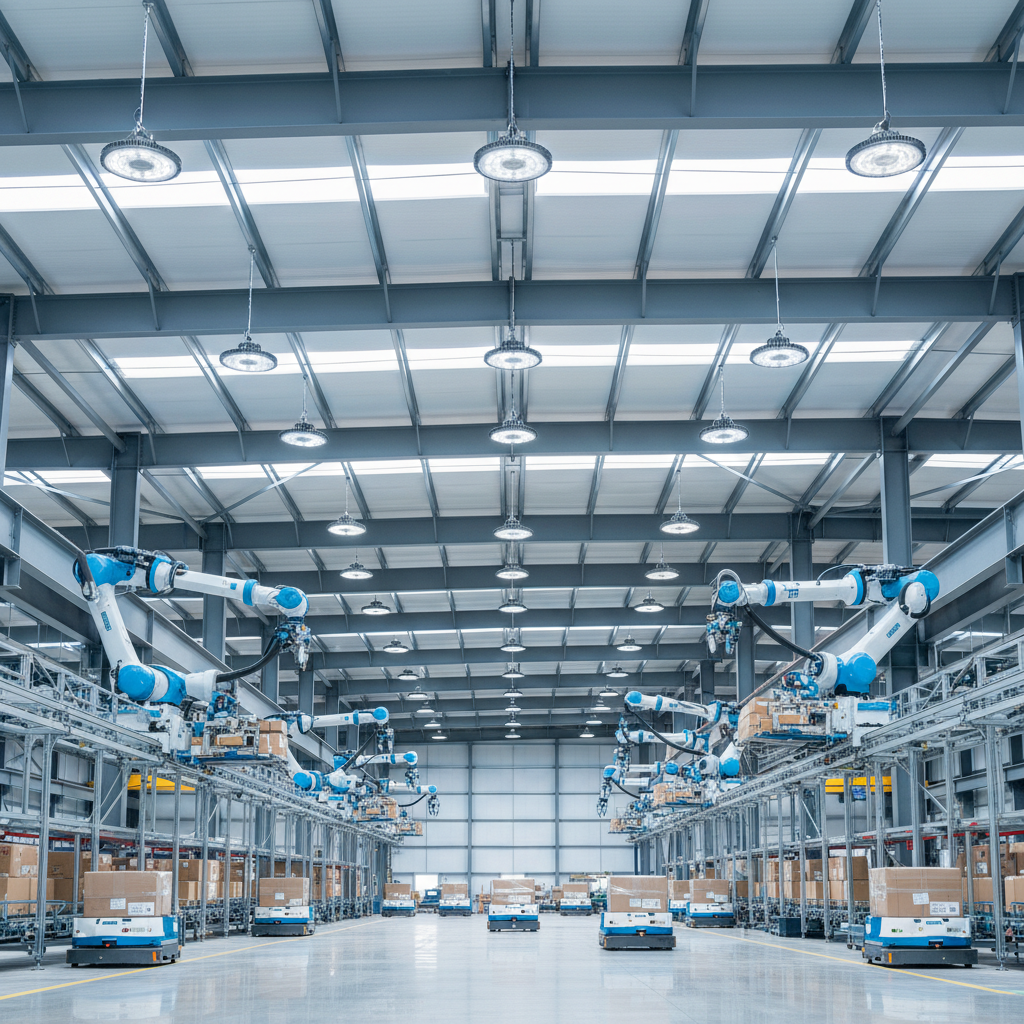

The New Eyes of the Warehouse: Why Glare is a Machine Performance Metric
In the traditional warehouse, lighting design was centered on the 95th percentile human worker. Today, the "eyes" interpreting your facility's light are just as likely to be CMOS (Complementary Metal-Oxide-Semiconductor) sensors, LiDAR (Light Detection and Ranging) scanners, and high-speed barcode imagers. For these automated systems, glare is not merely a "visual discomfort" issue—it is optical noise that can directly degrade system throughput.
Executive Summary: Designing for Automation
- Target UGR ≤ 19: Recommended as a design baseline for robotic picking zones to minimize CMOS sensor "blooming" (Field Experience/Heuristic).
- Vertical Illuminance ≥ 150 Lux: Suggested at the sensor plane to maintain the contrast required for 3D object identification (Industry Best Practice).
- The 2-Meter Rule: A practical heuristic to offset high-output fixtures from AGV navigation nodes to prevent infrared saturation (Field Rule of Thumb).
- Verifiable Compliance: System reliability should be anchored in LM-79/LM-80 reports and DLC Premium listings rather than manufacturer-only claims.
Achieving a Unified Glare Rating (UGR) of 19 or lower is increasingly viewed as a technical baseline for high-density automated picking modules. Excessive luminance ratios can cause "blooming" in machine vision cameras, potentially leading to depth accuracy errors. In some high-precision environments, our modeling suggests these errors can reach ±25μm—a variance derived from the relationship between pixel saturation and sub-pixel edge detection algorithms in 10-bit CMOS sensors.
This article provides the technical framework for calculating and mitigating glare in automated environments, grounded in IES RP-7-21: Lighting Industrial Facilities and real-world automation constraints. For a broader view of the shifting technical landscape, see the 2026 Commercial & Industrial LED Lighting Outlook.
The Sensor Paradox: Human UGR vs. Machine Vision
While the lighting industry relies on UGR to quantify glare for human comfort, machine vision systems operate on different physical principles. Human eyes have a logarithmic response to light, but digital sensors have a finite dynamic range that is easily overwhelmed by high-intensity "hot spots."
Specular Reflection and Structured Light
Most automated picking systems use structured light or "Time of Flight" (ToF) sensors. When a high-output LED fixture reflects off glossy packaging, it creates specular reflection that saturates the sensor's pixels. This saturation destroys the contrast required for the robotic arm to identify edges accurately.
Practical Guideline: For areas with fixed-position robotic arms, targeting a UGR of 19 or lower is a recommended baseline. We suggest ensuring vertical illuminance at the sensor plane is at least 150 lux—a heuristic used to maintain contrast in 3D picking under standard factory conditions.
LiDAR Interference and Navigation Nodes
Automated Guided Vehicles (AGVs) often use upward-facing LiDAR to navigate via ceiling landmarks. A common challenge in warehouse retrofits is placing high-bay fixtures directly above "navigation nodes"—points where AGVs pause to recalibrate. The direct intensity of a standard 120° beam can interfere with the infrared receiver.
The 2-Meter Rule (Heuristic): To reduce the risk of sensor interference, practitioners often offset high-bay fixtures by at least 2 meters from known AGV navigation nodal points.
- Field Verification: During commissioning, use a radiometer to check infrared intensity at the node or monitor the AGV’s signal-to-noise ratio (SNR) as it passes under the fixture. If an offset is not possible, specify asymmetric optics to throw light laterally.
Modeling the ROI: A 100,000 Sq. Ft. Fulfillment Center Case Study
To demonstrate the financial and technical trade-offs of low-glare design, we modeled a high-speed e-commerce fulfillment center. This scenario reflects a transition from legacy 1200W Metal Halide fixtures to premium-tier LED high bays with 90° glare-control optics.
Scenario Modeling: Method & Assumptions
- Modeling Type: Deterministic parameterized model for energy and photometric performance.
- Boundary Conditions: Results assume 24/7 operation and a utility rate of $0.16/kWh in a temperate climate.
| Parameter | Value | Unit | Rationale / Source |
|---|---|---|---|
| Target Illuminance | 40 | fc | IES Small Part Picking Standard |
| Mounting Height | 22 | ft | Standard clearance for 18ft robotic arms |
| Fixture Wattage | 300 | W | Premium LED High Bay |
| Beam Angle | 90 | deg | Narrower optics for UGR ≤ 19 |
| Annual Operation | 8,760 | hours | Continuous 24/7 fulfillment cycle |
Calculated Performance Estimates
Based on our scenario modeling, the transition yields the following estimated impacts (actual results may vary based on building envelope and local climate):
-
Net HVAC Impact: ~$769 annual benefit.
- Calculation: (Summer Cooling Savings of ~$1,485) - (Winter Heating Penalty of ~$716). Assumes a standard commercial COP of 3.2 and an interactive cooling factor of 0.33.
- Occupancy Sensor Savings: ~$10,512 annually in storage zones. This assumes a 30% reduction in "on-time" via wireless sensors, leading to a projected payback period of 0.57 years for the control system.
-
Carbon Reduction: ~65 metric tons of $CO_2e$ annually.
- Calculation: Based on estimated energy savings multiplied by a US average grid factor of ~0.38 kg CO2e/kWh (per US EPA eGRID).
Verification Standards: The Paper Trail of Reliability
In B2B procurement, reliability is verified by standardized documentation. When specifying fixtures for an automated facility, three documents are critical for technical due diligence.
1. IES LM-79-19: The Performance Report
The IES LM-79-19 report is the "performance report card" of the fixture. It provides measured data on total lumens and efficacy. Crucially, it includes the luminous intensity distribution required to verify UGR calculations in lighting software.
2. IES LM-80 and TM-21: The Longevity Duo
- LM-80: Measures the lumen depreciation of the LED chips over a minimum of 6,000 hours.
- TM-21: Uses LM-80 data to project the $L_{70}$ life.
- Verification Tip: Be cautious of "100,000-hour" claims that lack a TM-21 projection. Standards generally limit projections to 6 times the actual test duration.
3. DLC Premium Certification
For automated warehouses, the DLC Premium tier is often the target. It requires higher efficacy and stricter glare control than the standard tier. This certification is also the primary gateway to utility rebates, which can range from $130 to $275 per unit depending on the program (e.g., DCSEU).
Installation and Electrical Compliance: Avoiding EMI
Automated systems are sensitive to Electromagnetic Interference (EMI). Low-quality LED drivers can emit "noise" that may disrupt wireless communication between AGVs and the warehouse management system.
FCC Part 15 and UL 1598
All fixtures must comply with FCC Part 15 to ensure they do not emit unintended radio frequency interference. Furthermore, fixtures must be UL 1598 Listed for safety and insurance compliance. Verification can be performed via the UL Product iQ Database.
Dimming and Control Wiring
Modern automation often requires 0-10V dimming to integrate with occupancy sensors (as outlined in ASHRAE 90.1-2022).
- Common Pitfall: Mixing Class 1 and Class 2 wiring in the same conduit. Per the National Electrical Code (NEC), dimming leads must maintain circuit separation unless the cable is specifically rated for combined use.
Environmental Protection: IP and IK Ratings
- IP65 (Ingress Protection): Recommended for protecting the optical assembly from dust that can degrade UGR and light output over time. Per IEC 60529, IP65 ensures the fixture is dust-tight.
- IK08/IK10 (Impact Protection): In facilities with low-clearance robotic arms, the mechanical durability of the fixture is critical. An IK08 rating indicates the fixture can withstand a 5-joule impact (per IEC 62262).
Strategic Summary: From Lux to Logic
The shift toward automated warehousing requires a shift in how we specify light. We are providing the medium through which sensors perceive reality.
Key Technical Decision Matrix:
- Recommended UGR < 19: Target for robotic picking zones to prevent CMOS blooming.
- Vertical Illuminance > 150 Lux: Aim for this at the sensor plane to ensure contrast.
- 90° Beam Optics: Often more effective than 120° for controlling glare in high-bay applications (20ft+).
- Pre-Procurement Modeling: Use AGi32 or similar software to verify the layout against sensor field-of-view constraints.
Disclaimer: This article is for informational purposes only and does not constitute professional engineering or electrical advice. Always consult with a licensed electrical contractor and a qualified lighting designer to ensure compliance with local building codes and specific automation equipment requirements.
