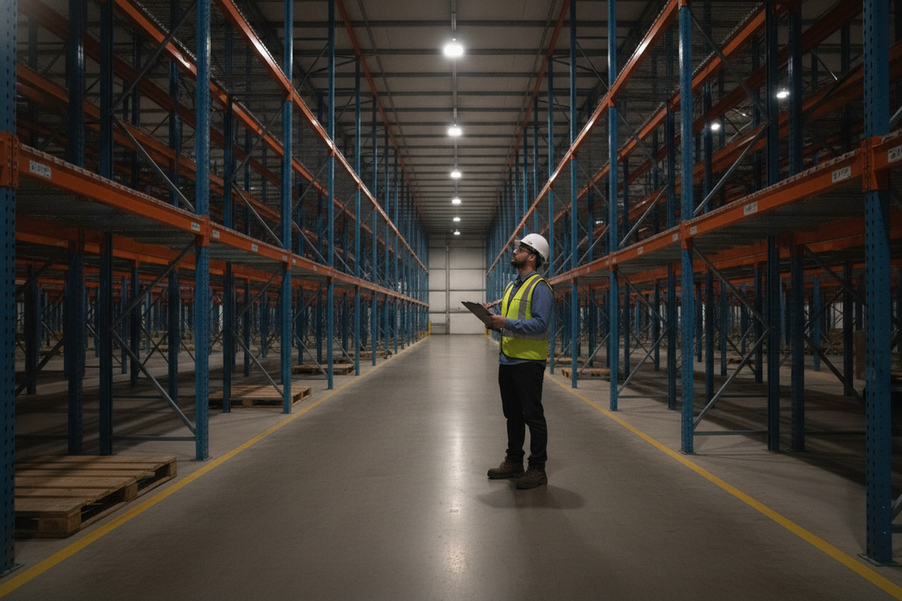

Test warehouse lighting in the same location through full-output, standby, re-entry, and override. Check both the floor or travel path and the vertical surface used for labels, scanning, picking, or inventory work. If a dimmed state makes the actual task difficult, treat that state as a problem for the responsible facilities team, even when the floor still looks usable. This pattern helps distinguish a state-specific control issue from a fixture, load, sensor, or compatibility question.
Test All Four Control States at the Work Surface First
Start with a repeatable comparison before changing any setting. Use the same fixture or representative group, the same observation point, and the same sequence: full-output baseline, standby, re-entry, then override. A state-by-state test at the relevant work surface is more useful than a single impression from the aisle, as representative task-surface testing recommends.
Check the Floor and Travel Path
The floor check shows whether circulation, aisle transitions, shadows, and nearby obstructions remain visible in each state. Observe from the normal operating position and record the exact location and control state instead of relying on memory.
Use this short sequence for each state:
- Note the aisle or travel-path location, fixture or group, and control state.
- Observe walking paths, floor transitions, shadows, and obstructions.
- Compare the standby and re-entry views with the full-output baseline.
- Record whether one fixture or several fixtures show the same result.
Record whether each state is usable for the work being performed, rather than whether it matches an assumed universal dimming percentage or light-level threshold. If the result changes by surface, the affected task surface determines the next decision.
For re-entry, record whether the lights return as expected when occupancy is detected. A functional test should compare down-level and return behavior with the applicable project documents and manufacturer instructions, rather than assume that one timing or output value applies everywhere. The controlled re-entry behavior is part of that comparison.
If the floor remains usable but a work target does not, the floor result is not enough to accept the dimmed state.
Check Vertical Task Surfaces
Inspect the surface where the task actually happens. Depending on the operation, that may include rack faces, labels, barcode targets, inventory locations, workbenches, or signs viewed at a particular height and angle.
- Use the same representative rack face, label, or work surface in all four states.
- View it from the normal picking, scanning, or inventory position.
- Record contrast, shadows, glare, and whether the target can be used without changing the task position.
- Keep the vertical result separate from the floor result.
A passable travel path can coexist with poor visibility on a label or barcode target. That surface-specific difference determines the next decision for the task. It is a visibility observation, not proof of OSHA, code, or workplace-illumination compliance.
If a control page or remote is used to review existing values, review PIR sensor settings only as a documentation and navigation aid. The linked product does not establish compatibility with the installed system.
Read the Warehouse Lighting Failure Pattern Across States and Surfaces
Compare the failing state with full-output and override, then compare the affected fixture with neighboring fixtures in the same group. These comparisons indicate whether the next review should start with shared control behavior, a local equipment path, or the fixture and control compatibility record. They suggest a diagnostic direction, not a confirmed root cause.
A sensor review should account for competing causes such as misconfiguration, placement, obstructions, and sensor limitations. The multiple causes of poor sensor performance make the single-fixture and group comparison important.
| Pattern | More likely direction | Next non-invasive check |
|---|---|---|
| Low output appears only in standby or re-entry | Control value, timing, grouping, or sensor behavior may be involved | Compare the documented low-output and return behavior with the applicable control and fixture instructions. |
| Re-entry is slow or incomplete | Re-entry behavior, sensor detection, placement, or obstruction may be involved | Record the entry condition, affected group, return behavior, and relevant sensor application guidance. |
| Full-output and override are also weak | The issue extends beyond an aggressive standby setting | Review fixture, driver, control method, load information, and manufacturer pairing guidance. |
| One fixture differs from its group | A local fixture, driver, sensor path, or load may be involved | Preserve the neighboring-fixture comparison and route the local result for technical review. |
| Output flickers or changes unpredictably | Control method, driver, load, or compatibility may be involved | Keep the original record and seek documentation or qualified support instead of repeatedly changing settings. |
For warehouse applications, record sensor type, mounting context, line of sight, and obstructions. High-bay sensor application guidance notes that high ceilings and application conditions can change how occupancy sensors perform. The guide does not establish a universal mounting height or detection range for the installed system.
If full-output and override are weak, flickery, or inconsistent, stop treating the complaint as only a low standby setting. Drivers and controls can use different dimming methods and ranges, so driver and control compatibility should be reviewed against the installed equipment and control method. A product name, voltage label, or control label alone does not prove compatibility.
For background on the control side of a high-bay retrofit, high-bay control integration provides additional context. It is not a substitute for the installed fixture, driver, sensor, and control documentation.
Record the Test So the Next Check Is Reproducible
Write down the result before changing settings. A clear record lets another facilities, controls, fixture, or support contact repeat the comparison without guessing which state, surface, or fixture produced the complaint.
- Identify the equipment and scope. Record the warehouse area, fixture type, fixture or driver identifier, installed sensor and control, sensor group, and whether the test covered one fixture or the affected group.
- Capture documented control values. Note the displayed or documented low-output value, timing, control method, and any available group or zone information. Record these as observed values, not as proof that the settings are correct. Record total load only when it is available from qualified personnel or reliable system documentation.
- Label all four states. Mark the observation as full-output, standby, re-entry, or override. Describe how each state was produced and whether re-entry returned the lights completely, slowly, unevenly, or not at all.
- Record both surfaces and repeatability. For each state, note the floor or travel-path result, the vertical task-surface result, the fixture or group tested, neighboring-fixture behavior, shadows, flicker, and any isolated outlier. Repeat the observation when practical so the record shows whether the result is consistent.
- Attach the relevant documentation and action boundary. Include fixture, driver, sensor, control, installation, and manufacturer documents. Note whether the issue is state-limited, group-wide, local, weak in every state, or unresolved. If visibility remains inadequate or a missed-hazard condition is possible, keep the area within the responsible facilities or safety process while the issue is reviewed.
For organizing repeated incidents, commercial failure records can serve as a follow-up resource. Its presence here does not diagnose the warehouse lighting problem or establish a repair decision.
Choose the Next Action From the Recorded Result
Use the recorded pattern to choose the least disruptive next review. A state-limited result supports a documented, authorized control-setting review. A weak or unstable result across the system supports an equipment or compatibility review. An unresolved visibility result belongs with the responsible facilities or safety process.
When only standby or re-entry fails while full-output and override are usable, compare the documented low-output and timing behavior with the applicable fixture and control instructions. An authorized team can then make a controlled adjustment and repeat the same four-state, two-surface test. Treat the change as a test, not a guaranteed fix.
When full-output or override is weak, flickery, or incomplete, prioritize the fixture, driver, load, control method, sensor context, and compatibility documentation. This pattern is broader than excessive sensor dimming, so repeated changes to a standby value can obscure the original evidence.
When one high bay is the outlier, preserve the comparison with adjacent fixtures and direct the next review toward the local fixture, driver, sensor path, or load. When the whole group behaves the same way, shared settings, sensor behavior, control method, or compatibility become the more useful review direction.
A visual walkthrough can identify a visibility problem, but it does not establish compliance with every applicable illumination requirement. For example, the construction illumination standard applies to the specific scope of that construction standard, not as a universal acceptance threshold for every warehouse task or dimmed state. Use the applicable project documents and responsible safety authority for that determination.
After an authorized adjustment or technical review, repeat the documented test at the same location and surfaces. The next action is complete only when the team can identify which state changed, whether the actual task surface is usable, and whether the result belongs to one fixture or the wider group.
FAQs
Use these questions to interpret the recorded visibility test and choose the next review without treating a single visual impression as a universal pass or fail.
Why do warehouse lights dim too much in standby or re-entry?
When low output appears only in standby or re-entry, start with the documented low-output value, timing, return behavior, and sensor grouping. If full-output or override is also weak, unstable, or incomplete, shift the review toward the fixture, load, driver, control method, or compatibility instead of treating the issue as a standby setting alone.
How should I set occupancy sensors for warehouse lighting?
There is no universal setting that fits every task and installation. Compare the documented low-output and timing values with the actual floor and vertical-surface results, the project requirements, and the manufacturer guidance, then repeat the same test after any authorized change. A motion sensor light for warehouse collection can help with category research, but it does not prove that a product matches an installed system.
Can dimmed high bays provide enough visibility for warehouse work?
A dimmed state can be treated as usable for a specific task only when the tested floor and relevant vertical task surface remain usable in that state. A visual impression alone does not establish regulatory compliance. If labels, rack faces, scanning targets, or work surfaces remain difficult to use, keep that state in the problem category and route the result for review.
What should I check when one high bay is dimmer than the others?
Compare the outlier with adjacent fixtures in the same state and sensor group, then record the difference. An isolated result directs the next review toward the local fixture, driver, sensor path, load, or compatibility rather than changing the whole zone first.
