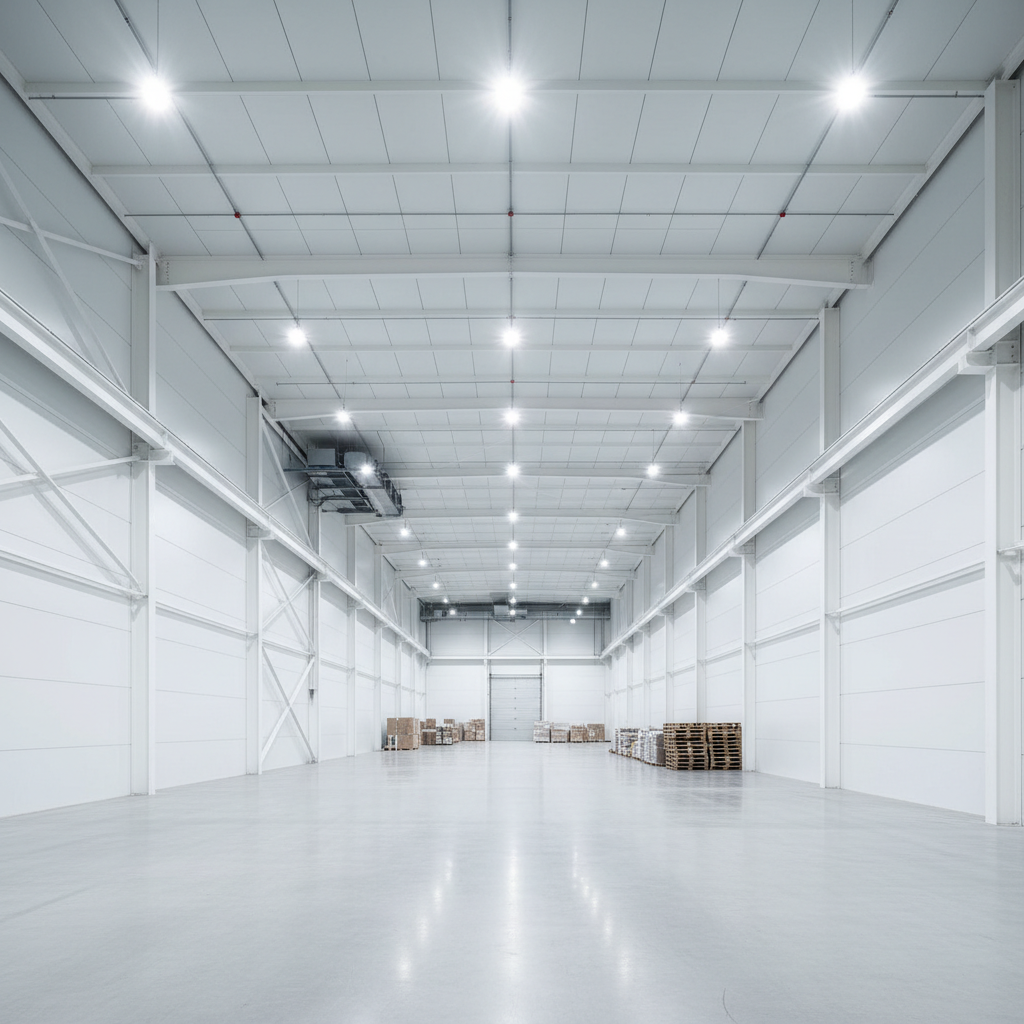

The Impact of Surface Reflectance on Industrial Lighting Performance
In high-performance warehouse design, the interaction between light sources and environmental surfaces is often the deciding factor between a compliant, productive workspace and one plagued by debilitating glare. A common oversight in industrial retrofits is the failure to adjust lighting layouts when facility walls are repainted or when moving from a dark-walled manufacturing plant to a bright-walled distribution center.
High-reflectance surfaces—specifically white-painted walls with a Light Reflectance Value (LRV) of 80% or higher—can increase effective ambient illuminance by 15% to 20%. While this sounds like a benefit for energy efficiency, it frequently pushes the Unified Glare Rating (UGR) beyond the acceptable threshold of 22 for general warehouse areas. To maintain visual comfort and safety, lighting designers must calibrate fixture spacing and lumen output based on the specific reflectance profiles of the facility’s ceiling, walls, and floors.
Understanding Reflectance and the LRV Scale
Surface reflectance, or LRV, measures the percentage of light a surface reflects versus the amount it absorbs. In a warehouse environment, every surface acts as a secondary light source. According to the IES LM-79-19 Standard, which defines the optical and electrical measurement of solid-state lighting, the performance of a luminaire is measured in a controlled environment. However, in situ (in-place) performance is heavily dictated by the room's geometry and surface finishes.
Typical Reflectance Values for Industrial Finishes
| Surface Material | Typical Reflectance (LRV) | Impact on Lighting Design |
|---|---|---|
| Polished Concrete Floor | 20% – 30% | Moderate floor-to-ceiling bounce |
| Unfinished CMU (Concrete Block) | 20% – 35% | High absorption; requires higher lumens |
| Painted White Drywall/Steel | 80% – 85% | High bounce; risk of excessive UGR |
| Stainless Steel / Aluminum Panels | 50% – 70% | High specular reflection; risk of "hot spots" |
| Middle Gray (Benchmark) | 18% | Standard reference for neutral absorption |
Logic Summary: The "Middle Gray" benchmark of 18% reflectance (based on standard photographic and printing definitions) serves as a baseline for understanding how much light is "lost" to a surface. In industrial settings, we treat anything above 50% as a "high-reflectance" surface that requires active compensation in the photometric layout.
The "White Wall Effect": Why Brighter Isn't Always Better
When a facility manager decides to refresh a warehouse by painting the interior walls white, the primary goal is usually to make the space feel "cleaner" and "brighter." However, this change alters the room cavity ratio and the distribution of light.
As noted in our 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights, project-ready designs must account for the cumulative effect of reflected light. High reflectance areas soften shadows, which is generally positive for visibility in racking aisles. Conversely, low reflectance surfaces accentuate shadows, making it difficult to read labels on lower shelves.
The UGR Limitation
It is critical to understand that the Unified Glare Rating (UGR) method primarily accounts for direct glare from luminaires. It often excludes reflected glare caused by reflections on surfaces. This means a lighting plan might show a "safe" UGR on paper, but the real-world experience for a forklift operator looking toward a white-painted wall could be one of significant visual fatigue.
Modeling Note (Scenario Analysis):
- Scenario A (Standard): A warehouse with gray CMU walls (30% reflectance).
- Scenario B (High Reflectance): The same warehouse after painting walls white (80% reflectance).
In Scenario B, we observe a ~15% increase in ambient light. To maintain the same visual comfort level as Scenario A, a designer should theoretically reduce the planned lumen output per fixture by 10-15% or increase the spacing between fixtures by approximately 10%.
Specialized Environments: Cold Storage and Glossy Surfaces
Cold storage and freezer facilities present a unique challenge. These environments often use white insulated metal panels (IMPs) which are not only high-reflectance but also have a glossy finish. This creates "veiling reflections"—a type of glare that acts like a veil over an object, reducing contrast and making it nearly impossible to see details.
In these cases, standard wide-beam optics often fail. According to the ANSI/IES RP-7 - Lighting Industrial Facilities, specialized distribution is required for high-rack environments. Designers should prioritize:
- Asymmetric Optics: These direct light specifically onto the vertical faces of the racks rather than allowing it to bounce off the glossy walls and ceiling.
- Deep-Cell Shielding: Using fixtures with recessed light sources or parabolic louvers helps cut off the light at high angles, preventing the light from hitting the walls directly at the operator's eye level.
- Low-Glare Lens Materials: Frosted or prismatic lenses can diffuse the light source, reducing the intensity of the "hot spots" reflected on glossy IMPs.
For further reading on how different optics handle these challenges, see our guide on Aisle Glare Control: Comparing UFO vs. Linear Optics.
Strategic Layout Adjustments: The Pro-Grade Heuristic
To bridge the gap between theoretical photometrics and real-world installation, we use a set of practical heuristics derived from patterns observed in facility audits and contractor feedback.
The 10% Rule for High-Reflectance Retrofits
When upgrading to LED high bays in a facility with high-reflectance walls (LRV > 75%), follow these adjustment steps:
- Step 1: Reduce Lumen Density. If your initial calculation suggests 20,000-lumen fixtures, consider dropping to 18,000 lumens. The "lost" light will be recovered through surface bounce.
- Step 2: Increase Mounting Height. If the ceiling allows, mounting fixtures 2-3 feet higher can help spread the light more uniformly before it hits the walls, reducing the intensity of reflected glare.
- Step 3: Check the IES Files. Ensure you are using the latest .ies files (LM-63-19 Standard) in software like AGi32. These files contain the precise distribution data needed to model surface interactions accurately.
Compliance and Energy Standards
Modern energy codes, such as ASHRAE Standard 90.1-2022 and California Title 24, place strict limits on Lighting Power Density (LPD). By leveraging high surface reflectance, you can often meet these LPD requirements using lower-wattage fixtures, which also makes the project more likely to qualify for DLC Premium rebates.
Verification and Quality Assurance
Before finalizing a large-scale warehouse lighting purchase, professional contractors should verify the following:
- LM-79 and LM-80 Reports: Verify the "performance report card" of the fixture. High-quality fixtures will maintain their color consistency (CCT) over time, which is vital for maintaining the intended visual environment. ANSI C78.377-2017 ensures that "5000K" light remains consistent across all fixtures in a large room.
- Safety Certifications: Ensure fixtures are UL 1598 listed for general luminaires and UL 8750 for LED components.
- In Situ Testing: If possible, install a small "mock-up" section in the corner of the warehouse where wall reflectance is highest to observe the glare levels during a night shift.
Methodology Note: Analysis and Assumptions
Our recommendations for adjusting lighting layouts based on reflectance are based on deterministic parameterized modeling commonly used in industrial lighting design.
- Assumed Ceiling Height: 20 – 35 feet.
- Target Illuminance: 30 – 50 foot-candles (FC) at task level.
- Reflectance Shift: Modeling assumes a transition from 30% (CMU) to 80% (White Paint) wall reflectance.
- Boundary Conditions: These heuristics may not apply to facilities with ceiling heights under 15 feet or those with significant skylighting, where daylighting controls (as required by IECC 2024) will override static layout calculations.
Implementing a Reflectance-Aware Design
Designing for a warehouse is not just about choosing the fixture with the highest lumens per watt. It is about understanding how those lumens will behave when they hit the floor, the racks, and the walls. By accounting for surface reflectance early in the design phase, facility managers can avoid the costly mistake of over-lighting a space, which leads to higher energy bills and a less comfortable work environment.
For those planning a new layout, utilizing layout planning tools that incorporate reflectance data is the most reliable way to ensure a "project-ready" outcome. Whether you are dealing with a standard dry storage area or a specialized cold-storage facility, the goal remains the same: high-visibility, low-glare, and maximum efficiency.
Disclaimer: This article is for informational purposes only and does not constitute professional engineering or electrical advice. Always consult with a licensed electrical contractor or lighting designer to ensure compliance with local building codes and National Electrical Code (NEC) standards.
References
- DesignLights Consortium (DLC) Qualified Products List
- IES LM-79-19: Optical and Electrical Measurements of Solid-State Lighting Products
- ASHRAE Standard 90.1-2022: Energy Standard for Buildings
- ERCO Lighting Knowledge: UGR Method and Reflected Glare
- ANSI/IES RP-7-21: Recommended Practice: Lighting Industrial Facilities
