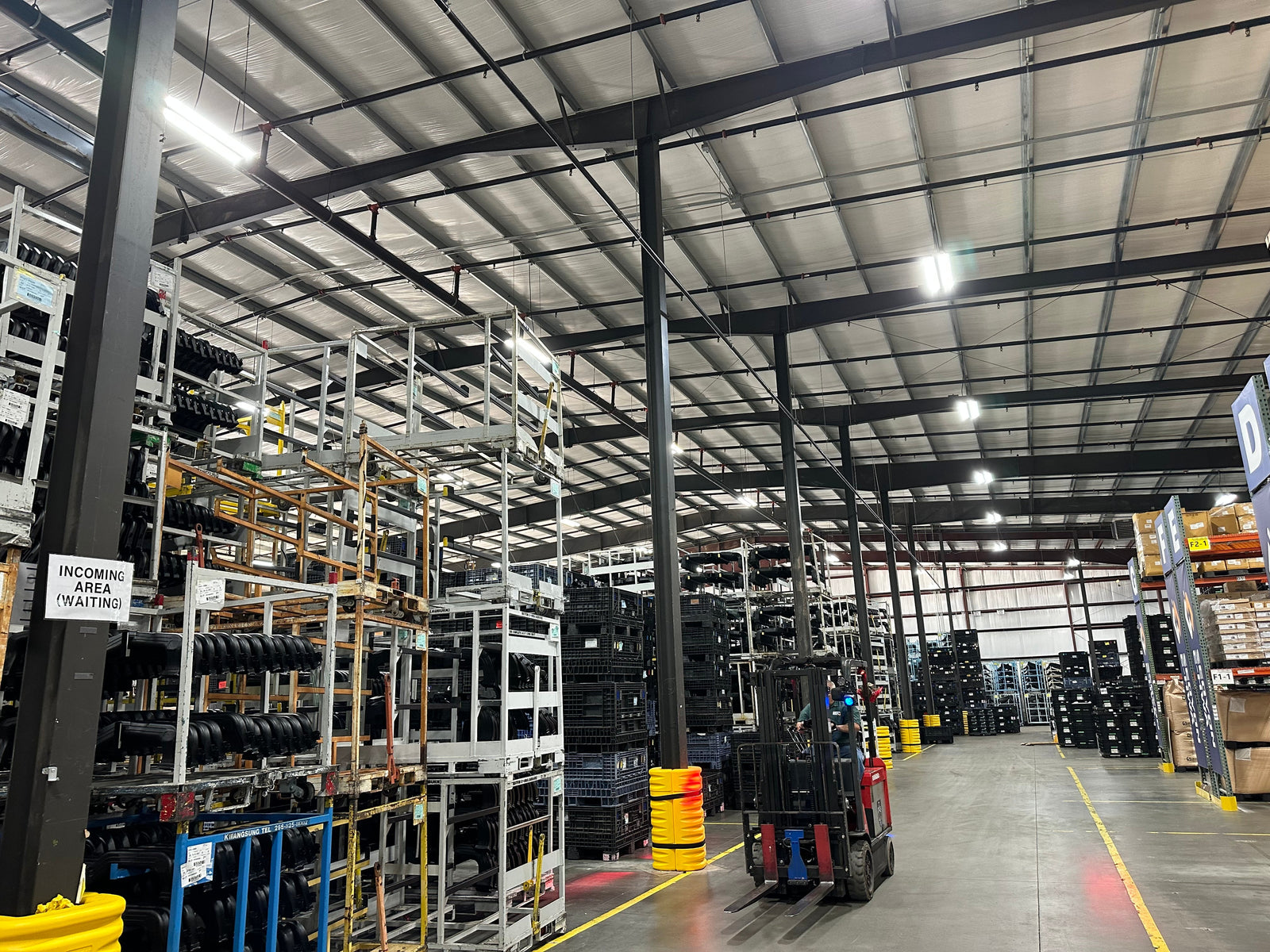

The Critical Link Between Beam Angle and Lighting Performance
Choosing the right linear high bay fixture involves more than just picking the brightest option. In fact, one of the most critical specifications—and one that is frequently overlooked—is the beam angle. Not all beam patterns are created equal. A common misstep I often see in the field is defaulting to a wide 110° beam for every application, from open floors to narrow aisles. This "one-size-fits-all" approach leads to significant energy waste, poor light uniformity, and frustrating glare, ultimately compromising both safety and operational efficiency.
This article demystifies how different beam angles on linear high bay fixtures directly impact light distribution and uniformity across your facility floor. Understanding this relationship is the key to moving from simply illuminating a space to strategically designing a high-performance lighting system that works for you, not against you.
What Exactly is a Beam Angle?
In technical terms, the beam angle is the angle of the cone of light emitted by a luminaire, measured between the two points on opposite sides of the beam's center where the light intensity drops to 50% of its maximum. This is known as the Full Width at Half Maximum (FWHM).
Think of it like the nozzle on a garden hose. A wide spray (a wide beam angle) covers a large area up close but loses its force (intensity) quickly over distance. A narrow, focused jet (a narrow beam angle) travels much farther and delivers a concentrated stream, but covers a tiny area. For lighting professionals, mastering the interplay between beam angle, mounting height, and fixture spacing is fundamental to achieving an effective and efficient layout.
Comparing Common Beam Spreads
The choice of beam angle directly dictates fixture placement and the resulting quality of light on the ground. A wider beam allows for greater spacing between fixtures, but this comes at the cost of lower light intensity at floor level, especially from high ceilings. Conversely, a narrower beam requires tighter spacing but delivers more focused, intense light.
Here’s a practical breakdown of how common beam angles translate to application, based on established industry heuristics:
| Beam Angle | Typical Spacing-to-Mounting-Height (S/MH) Ratio | Best-Fit Applications & Characteristics |
|---|---|---|
| 110° (Wide) | ~1.0 – 1.2 | Open Production Floors, General Warehousing: Covers the largest area. Ideal for lower mounting heights or spaces without tall obstructions. Prone to light loss and poor vertical illumination in racked aisles. |
| 90° (Standard) | ~1.2 – 1.5 | Medium-Height Open Areas, Retail: A balanced option offering good coverage with better intensity than 110°. A versatile choice for many commercial spaces. |
| 60° (Narrow) | Varies; requires tighter spacing | High-Ceiling Warehouses (>30 ft), Focused Task Areas: Concentrates light downward, punching it to the floor from significant heights. Minimizes light spill and is excellent for highlighting specific zones. |
| Asymmetric (Aisle Optic) | ~0.6 – 0.9 | Warehouse Aisles with Pallet Racking: Shapes light into a long, narrow rectangle, pushing light onto vertical rack faces and the floor, not the tops of racks. The gold standard for aisle efficiency. |
This table illustrates a crucial trade-off: coverage area versus light intensity. The key is to select the optic that directs lumens precisely where they are needed.
Matching the Optic to the Application
Deploying the correct beam angle is about precision and efficiency. Using the wrong optic is like trying to water a long, narrow garden bed with a wide, circular sprinkler—most of the water is wasted. Let's explore the scenarios where each type excels.
Open Areas: The Case for 90° to 110° Beams
For large, open spaces like manufacturing floors, assembly areas, or bulk storage zones without tall racks, wide beam angles of 90° or 110° are often suitable. Their broad distribution allows for greater spacing between fixtures, potentially reducing the total number of luminaires required.
However, this is where the Spacing-to-Mounting-Height (S/MH) ratio becomes critical. This ratio is a guideline for how far apart fixtures can be placed relative to their height above the work surface. For a fixture with a 110° beam mounted at 20 feet, a typical S/MH ratio of 1.2 suggests a maximum spacing of 24 feet (20 ft x 1.2). Exceeding this can create dark spots, leading to poor uniformity, which can be a safety hazard. For a deeper dive into layout safety, consider reviewing best practices for designing a high bay layout for warehouse safety.
A Practical Guide to Calculating Fixture Spacing
Using the S/MH ratio is straightforward. Here’s a simplified step-by-step process to get a baseline for your layout:
- Identify Mounting Height (MH): Measure the vertical distance from the floor (or work surface, e.g., the top of a workbench) to the bottom of the light fixture.
- Find the S/MH Ratio: Check the fixture’s spec sheet for its S/MH ratio. This may be listed as a single number or as two separate numbers for along and across the fixture axis. For a general estimate, you can use the values from our table above.
-
Calculate Maximum Spacing: Multiply the mounting height by the S/MH ratio.
Maximum Spacing = MH × S/MH Ratio. This gives you the maximum recommended on-center distance to the next fixture to maintain good uniformity.
Here is a sample calculation table for different heights and beam angles to guide your initial layout planning. Remember, these are starting points that must be verified with a photometric simulation.
| Mounting Height (MH) | Beam Angle | S/MH Ratio (Typical) | Maximum On-Center Spacing |
|---|---|---|---|
| 20 ft | 110° | 1.2 | 24 ft |
| 25 ft | 90° | 1.3 | 32.5 ft |
| 30 ft | 90° | 1.3 | 39 ft |
| 35 ft | 60° | 0.8 | 28 ft |
Warehouse Aisles: The Power of Asymmetric Aisle Optics
This is where the most common and costly lighting mistakes are made. When standard wide-angle fixtures are installed down the center of an aisle lined with tall pallet racks, a huge portion of the light is wasted by illuminating the tops of the racks. This not only wastes energy but also fails to properly light the vertical faces of the products, where workers need to identify labels and pick items.
The solution is an asymmetric or "aisle" optic. These specialized lenses shape the light into an elongated rectangle, directing it down into the aisle and outward onto the rack faces. My field experience confirms that a simple switch to aisle optics can dramatically improve vertical foot-candles with no change in fixture wattage. For a detailed comparison, our guide on aisle-optic vs. standard linear high bays for racks provides a comprehensive analysis.
A useful field technique is to apply a slight 10-15° tilt to the fixture, aiming it toward the primary working plane in the pallet aisle. This can reduce specular glare off the upper racks and further improve the illuminance on the lower rack faces.
Debunking a Common Myth: Why Beam Angle Isn't Everything
The Myth: "As long as I choose the right beam angle, my layout will be perfect."
The Reality: Beam angle is just one piece of the puzzle. The true distribution pattern of a luminaire is far more complex than a single number can describe. Two fixtures both listed with a "90° beam" can have vastly different light distribution characteristics—one might have a soft, feathered edge while the other has a sharp cutoff. This is why professionals never rely on beam angle alone for a final design.
The Indispensable Role of IES Files
To design a layout with predictable, verifiable results, you must use photometric data files. The industry standard format for this data is the IES file, defined by the Illuminating Engineering Society (IES) LM-63 standard. An IES file is the digital fingerprint of a luminaire, containing thousands of data points that precisely describe how it emits light in every direction.
Lighting design software, such as AGi32, uses these files to create accurate 3D simulations of a space. A designer can import the IES file for a specific fixture, place it within a virtual model of your building, and calculate the exact illuminance (foot-candle) levels on every surface. This process is essential for:
- Ensuring Uniformity: A simulation can predict the ratio of maximum to minimum light levels. According to the ANSI/IES RP-7 for industrial facilities, specific illuminance levels and uniformity ratios are recommended to ensure safety and productivity. For instance, the standard suggests 20-30 foot-candles for active picking aisles but only 5-10 foot-candles for inactive bulk storage. For uniformity, a max/min ratio of 3:1 or better is recommended for general storage, while inspection areas may require a stricter 2:1 ratio to prevent visual strain and errors.
- Validating Light Levels: It confirms that the layout will meet target foot-candle requirements for safety and task performance.
- Optimizing Efficiency: It allows designers to test different fixture spacings, wattages, and beam angles to find the most energy-efficient solution that still meets performance criteria.
Professional-grade fixtures like the Hyperlite Linear High Bay LED Lights -HPLH01 Series come with downloadable IES files for this exact purpose. While the standard fixture includes a versatile 110° beam, having the IES data allows a lighting designer to confirm if it's the right fit for your layout or if a different optic is needed.
Linear High Bay LED Lights -HPLH01 Series, 18200lumens, Adjustable Wattage & CCT, 120-277V
From Simulation to Reality: Installation and Verification
A perfect simulation is only as good as its real-world implementation. Several environmental factors and on-site practices are crucial for ensuring the design translates accurately.
Practical Considerations for Layout Success
- Surface Reflectance: The color and finish of your walls, ceiling, and floor have a material impact on overall light levels. A simulation that assumes high reflectance values (e.g., 70% for a new white ceiling) will not match reality if the actual ceiling is an industrial finish with only 20-30% reflectance. Always use realistic values in your model.
- Avoid Mixing Optics: In a continuous bay or zone, never mix different beam families without simulating it first. The interaction between a wide beam and an aisle optic can create unpredictable patterns of light and shadow.
- On-Site Verification: Once the installation is complete, the job isn't done. A critical final step is to conduct an on-site light level reading with a calibrated handheld lux meter. This should be done within 24-72 hours of installation to confirm that the real-world results match the photometric simulation. This step provides the ultimate proof of performance and allows for minor adjustments to aiming or shielding to perfect the layout.
Important Safety and Professional Consultation Disclaimer
Please Read Before Implementation: The information and recommendations provided in this article are intended for educational and general guidance purposes only. Lighting design for commercial and industrial environments involves critical safety considerations.
- Professional Consultation: This guide is not a substitute for a professional lighting design prepared by a qualified engineer or certified lighting designer. For any project, especially those in high-risk environments, critical task areas, or facilities subject to strict safety regulations, the final lighting layout must be reviewed and approved by a licensed professional.
- Code Compliance: All electrical installations must be performed by a licensed electrician and must comply with all applicable national and local building and electrical codes (such as the NEC in the United States).
- Limitations of General Advice: The S/MH ratios and general recommendations provided are heuristics. They do not account for all variables, such as obstructions, specific task requirements, or surface reflectances. A professional photometric simulation using IES files is the only way to guarantee performance and compliance with standards like ANSI/IES RP-7. Relying solely on these general rules without professional validation may lead to unsafe conditions or suboptimal performance.
Key Takeaways
Selecting the correct beam angle for your linear high bay fixtures is a foundational step in effective lighting design. It impacts everything from energy consumption to worker safety. To ensure a successful project, remember these core principles:
- Match the Optic to the Space: Use wide beams (90°-110°) for open areas and specialized aisle optics for racked aisles to avoid wasted light.
- Respect the S/MH Ratio: Use the spacing-to-mounting-height ratio as a starting point for your layout to prevent poor uniformity.
- Go Beyond Beam Angle: Never rely on the beam angle alone. Always use the manufacturer-provided IES file and professional lighting software to model your layout and verify performance against standards like ANSI/IES RP-7.
- Verify in the Field: A layout isn't complete until it has been verified on-site with a lux meter. This final check ensures your design delivers its promised performance.
By moving beyond a "one-size-fits-all" mentality and embracing a data-driven approach, you can create a lighting system that is not only bright but also intelligent, efficient, and perfectly tailored to your facility's needs.
Frequently Asked Questions (FAQ)
What happens if my beam angle is too wide for the space?
If the beam angle is too wide, especially in a space with high ceilings or tall racks, a significant amount of light will spill into unproductive areas (like the tops of racks or high on the walls). This wastes energy and reduces the amount of effective light reaching the work plane or task area, leading to lower-than-expected foot-candle levels.
And if the beam angle is too narrow?
Using a beam angle that is too narrow for an open space will create "hot spots" of intense light directly beneath the fixtures and dark areas in between them. This results in very poor uniformity, which can cause eye strain as workers move between bright and dark zones and can create safety hazards.
Can I use a wide 110° beam fixture in a warehouse aisle?
You can, but it is highly inefficient. As detailed in our guide on using aisle-optic high bays in high-rack warehouses, a wide beam wastes a tremendous amount of light on the top of the racking system. An aisle optic is specifically designed to direct that light down to the floor and onto the vertical faces of the racks where it is needed.
How do I find the IES file for a specific light fixture?
Reputable manufacturers provide photometric data on their websites, typically on the product specification page or in a dedicated documentation library. For professional-grade products like the Hyperlite HPLH01 series, IES files are available for download to be used by lighting designers and engineers in simulation software like AGi32.
