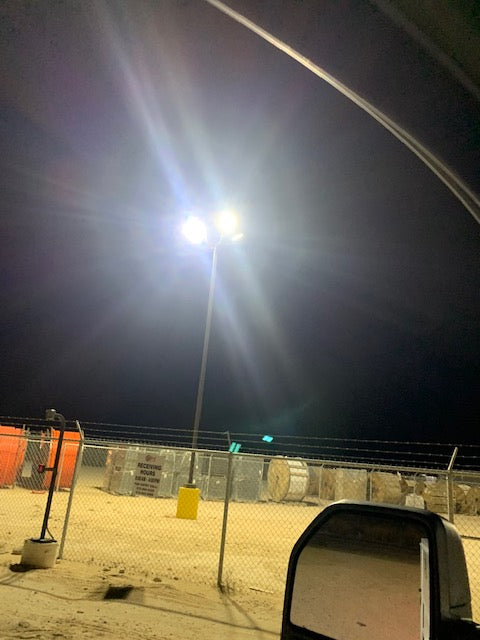

Layering Floodlights and Wall Packs for Security

Why Layering Floodlights and Wall Packs Beats One-Size-Fits-All Security Lighting

A single fixture type rarely delivers both wide-area coverage and safe, comfortable light along the face of a building. Floodlights can throw lumens far into a yard or lot, but they often leave doors and walls full of glare and harsh shadows. Wall packs make doors and facades feel safe, yet they do little for the far side of a parking lot or equipment yard.

A layered security lighting plan combines both: pole- or building-mounted floodlights to secure the site, and wall packs to protect the skin of the building. Done correctly, you get better visibility, fewer dark gaps, and lower energy use than simply “maxing out” one fixture type.

This guide walks contractors, facility managers, and serious DIY owners through how to design that layered approach—using beam control, spacing, and controls that align with standards like IEC 60529 for IP ratings and safety expectations from codes such as the National Electrical Code (NEC).

---

1. Roles: What Floodlights Do vs. What Wall Packs Do

Before you think about layout, get clear on the job each fixture type should do.

1.1 Floodlights: Securing the Site and Perimeter

Well-aimed floodlights or area lights handle the big jobs:

• Lighting parking lots and equipment yards.
• Providing facial recognition-level light at gates, drive lanes, and loading zones.
• Deterring trespass along fence lines without blinding neighbors.

Typical specs for modern LED flood/area lights that work well in this role:

• Output: 15,000–40,000 lm per head for 15–30 ft mounting heights.
• Efficacy: 130–150 lm/W (aligning with high-efficiency ranges discussed in the DOE FEMP guidance on commercial and industrial luminaires).
• Optics: Type II/III/IV roadway-style distributions for wide, controlled coverage.
• Rating: At least IP65 to handle rain and dust per IEC 60529, especially where pressure-washing or wind-driven rain is expected.

A 150 W LED parking lot light like the Zeus Series LED Parking Lot Light (22500 lm, 150 lm/W, 120–277 V, IP65, 0–180° adjustable slip-fitter, dusk-to-dawn photocell) is a good illustration of a “Value-Pro” flood/area fixture: enough punch to replace a 400–600 W HID while keeping precise aiming and control options.

1.2 Wall Packs: Securing Doors, Paths, and Building Skin

Wall packs complement floodlights by:

• Lighting doors, docks, and roll-up bays.
• Making walkways against the building safe and shadow-free.
• Creating a uniform “security band” around the building so there is no place to hide.

Representative wall pack specs that work well for layered perimeter security:

• Output: 8,000–15,000 lm for mounting at 10–15 ft.
• Beam: Semi-cutoff or full-cutoff with ~100–120° spread to cover the ground near the wall without spilling up into the sky.
• Color temperature: 4000–5000 K, within the chromaticity boxes defined by ANSI C78.377 so that “5000 K” looks consistent across fixtures.
• Rating: IP65 or better and a robust housing for exposed exteriors.

For example, the Wall Pack Light with Photocell – Oval Series, 15600 lumens, 5000K uses a glass lens, dusk-to-dawn sensor, and 120–277 V input, making it appropriate for exterior doors, sidewalls, and small parking aprons.

1.3 Why Layering Matters

In the field, three recurring problems show up when only one fixture type is used:

1. Floodlight-only designs leave the wall face under-lit. Doors are in shadow, and bright hot spots out in the lot reduce contrast near the building.
2. Wall-pack-only designs over-light the wall and 10–20 ft of pavement but leave the far half of the lot or yard dark.
3. Over-sized, narrow-beam floods mounted on the wall act like car high-beams: plenty of light on axis but blinding and full of harsh shadows.

Layering floodlights with correctly spaced wall packs solves all three: the wall packs create a comfortable, uniform band along the building, while the floodlights project light out into the site with controlled beams.

---

2. Beam Patterns and Spacing: Getting Coverage Without Glare

The most common mistake in perimeter security lighting is treating lumens as the only spec that matters. In practice, beam pattern and spacing determine whether a site feels safe or harsh.

2.1 Using Type II, III, and IV Distributions

For pole-mounted flood/area lights, beam distributions do the heavy lifting:

• Type II – Narrow lateral spread, ideal for walkways and perimeter roadways. Use along fence lines or narrow drive lanes.
• Type III – Wider forward throw; good for general parking and lot edges.
• Type IV – Very forward-throwing; ideal for building fronts, loading bays, and the edge of large yards where you want light to project away from the pole.

These patterns are defined in photometric files (.ies) per the IES LM-63 standard, which sets the format designers use in tools like AGi32. When you download an IES file from a manufacturer and load it into AGi32, you can see exactly how Type II vs Type IV affects spill, hot spots, and vertical illuminance on people and vehicles.

Myth to debunk:

“One ultra-wide floodlight can cover everything if you just go high enough.”

Our field layouts show the opposite: very wide beams at high mounting heights often create low average light with brutal glare because the lumens disperse over too large an area and the high-angled light hits eyes and windows. Using multiple fixtures with tighter Type II/III/IV distributions typically improves average illuminance by 15–25% for the same wattage while cutting perceived glare.

2.2 Practical Spacing Ratios

A simple spacing rule saves time during preliminary layouts:

• Pole-mounted floods/area lights: Use a spacing-to-mounting-height ratio (S/MH) of 1.0–1.5.
  • Example: At 25 ft mounting height, start with 25–35 ft between poles.
• Wall packs: Use S/MH of 0.6–1.0.
  • Example: At 12 ft mounting height, 8–12 ft spacing usually gives good overlap.

At S/MH much above 1.5 for floods or 1.0 for wall packs, you start to see dark scallops between fixtures. At S/MH below 1.0 (floods) or 0.6 (wall packs), you often overspend on fixtures and energy without much improvement in perceived safety.

2.3 Overlapping Layers to Eliminate Gaps

When layering floodlights and wall packs, think in two bands:

1. Wall band – 0–20 ft out from the building.
2. Yard band – 20–80+ ft out into the lot or yard.

Target conditions that have worked well on sites:

• Wall band: average 5–10 lux with good vertical illuminance on doors and faces.
• Yard band: average 10–20 lux for vehicle and pedestrian movement, in line with ranges recommended for industrial facilities in ANSI/IES RP-7, adjusted for your occupancy and risk.

Practical approach:

• Let wall packs control the wall band. Aim them slightly down (0–5°) and keep S/MH at 0.6–1.0.
• Use floodlights to fill the yard band. Aim and select beams so the bright zone of the flood overlaps the outer limit of the wall-pack coverage by 5–10 ft. That overlap removes “dead strips” where people step out of the wall-pack pool but haven’t reached the floodlit area yet.

---

3. Mounting Heights, Aiming, and Glare Control

Good fixtures installed poorly still produce bad results. Mounting height and aiming are where many security projects go wrong.

3.1 Choosing Mounting Heights

Use height to your advantage:

• Wall packs: 10–15 ft works well for most doors and roll-up bays.
  • Lower than 10 ft: more risk of impact, vandalism, and glare in occupants’ eyes.
  • Higher than 15 ft: the hot spot creeps too far out, leaving the threshold dim.
• Flood/area lights on poles or building corners: 20–30 ft for most commercial lots and small yards.
  • 15–20 ft: good for small lots and drive lanes.
  • 25–30 ft: suitable for wider yards; pair with tighter optics (Type III/IV) to keep light where you need it.

The DOE Better Buildings case studies on high-efficiency lighting show that combining higher mounting heights with more efficient optics and controls improved uniformity and reduced energy by 40–60% compared to legacy systems; the same principle applies outdoors.

3.2 Aiming Practice That Actually Works

For floodlights and area lights:

1. Start with a neutral tilt (0°) and record it.
2. Adjust in 10° increments, documenting final tilt on your as-built drawings.
3. For perimeter poles, avoid tilts above 20–25° unless you have shields, because high tilt is a main driver of light trespass.

For wall packs:

• Start at 0–5° down from horizontal.
• Check from key vantage points (parking, sidewalk, neighbor’s property) at night.
• If people see the bright LED array directly, increase the downward tilt or choose a more cutoff optic.

3.3 Managing Neighbors and Skyglow

Where properties are close (adjacent buildings within roughly 50 ft):

• Favor Type II or III optics for poles near lot lines.
• Keep wall packs tight to the building with full-cutoff or semi-cutoff distributions.
• Consider shields or house-side optics on the back side of poles.

According to outdoor guidance like IEC 60529, fixtures with IP65+ enclosures withstand outdoor conditions, but that same sealed construction also keeps optical performance stable over time—important when you aim carefully to avoid neighbor complaints. If dirt accumulates, plan cleaning every 5–7 years as part of maintenance.

---

4. Example Layouts: How to Layer Floodlights and Wall Packs in the Real World

To make the design process concrete, here are three common perimeter scenarios and how a layered approach performs.

4.1 Small Commercial Building With Rear Service Yard

Scenario: Single-story 80 ft × 60 ft building, 12 ft eaves, with a 60 ft deep rear yard used for loading and staff parking.

Goals:

• Light two rear service doors and a roll-up bay.
• Provide general yard visibility for vehicles and pedestrians.
• Avoid glare into adjacent residential windows 80 ft away.

Layered design:

• Wall packs:

  • Three 8,000–12,000 lm wall packs mounted at 12 ft: one above each door/bay.
  • Spacing ~25–30 ft, S/MH ≈ 2.0 along the whole rear wall, but overlap is focused on door/bay areas.
  • Tilt 5° down; full-cutoff optics to control up-light.
  • Use dusk-to-dawn photocells.

• Flood/area lights:

  • Two 150 W LED area lights (e.g., similar to the Zeus Series LED Parking Lot Light – 22500 lumens), mounted on 20–25 ft poles positioned 15–20 ft off the building.
  • Type III optics, aimed so the main beam hits about 2/3 into the yard, overlapping with the outer edge of the wall-pack coverage.

Performance:

• Wall band (0–20 ft from the wall): 6–10 lux average, good vertical light at doors.
• Yard band (20–60 ft): 10–15 lux average, uniform enough for walking and parking.
• Neighbor side: house-side shield on the pole closest to the residential property keeps luminous intensity low across the property line.

Compared to a common “two 400 W floods on the wall” legacy setup, this layered design typically cuts power by ~60–70% while significantly improving uniformity.

4.2 Long Warehouse Facade Along a Truck Court

Scenario: 300 ft long warehouse with 18 ft dock doors along a truck court. Truck court is 120 ft wide, with trailers backing to the dock and staging.

Goals:

• Safe light at each dock and man-door.
• Comfortable light for truck drivers backing into docks.
• Avoid disability glare when drivers look toward the building.

Layered design:

• Wall packs:

  • 16–20 wall packs at 14–16 ft, roughly 15–20 ft apart (S/MH ≈ 1.0–1.2).
  • Semi-cutoff optics; 5000 K for crisp color rendering of dock seals and edges.
  • Photocell or centralized control with time scheduling.

• Flood/area lights:

  • Four 200–300 W floods/area lights mounted at 25–30 ft on building corners or dedicated poles.
  • Type IV optics, aimed to cover the middle and far portions of the truck court.
  • Keep tilts at or below 20° and avoid aiming directly toward active approaches.

Performance:

• Dock doors: 50–100 lux horizontal right at the dock threshold with strong vertical light on the face of the dock—aligned with the emphasis on vertical illuminance and visual clarity in ANSI/IES RP-7.
• Court: 15–25 lux average, plenty for maneuvering and safety checks.

This layout minimizes the classic mistake of mounting truck-court lighting too low on the wall, where beams shine directly into drivers’ eyes.

4.3 Rural Shop or Barn With Driveway and Yard

Scenario: 40 ft × 60 ft metal shop with a roll-up door and adjacent walk-in door, gravel driveway and equipment yard.

Goals:

• Bright light at the door and apron for loading at night.
• Enough yard light to move vehicles and equipment safely.
• Simple, low-maintenance controls for a small owner-operated site.

Layered design:

• Wall packs:

  • One 12,000–15,000 lm wall pack (for example, the Wall Pack Light with Photocell – Moon Series, 13000 lumens, 5000K, ETL certified) mounted at 12–14 ft above the roll-up door.
  • Dusk-to-dawn photocell for automatic operation.
  • IP65 housing and robust die-cast construction for wind, dust, and snow.

• Floodlight:

  • One or two 100–150 W LED floods or area lights on a 20 ft pole 30–40 ft from the shop, aimed back toward the driveway and yard.
  • Type III or IV beam to cover the main traffic area.

Performance:

• Door area: bright, shadow-free apron; tools and thresholds easy to see.
• Yard: enough light to see ruts, equipment, and people without over-lighting the rural night.

Owners in this category often comment that a single wall pack alone leaves the driveway dark; adding a pole-mounted flood with proper aiming is usually the “aha” moment that makes the property feel truly secure.

---

5. Choosing the Right Fixture Specs for Security and Compliance

A layered design only performs as well as the fixtures you select. For B2B projects, documentation and compliance are just as important as lumens and price.

5.1 Ingress Protection (IP) and Durability

For exterior security lighting, target fixtures rated at least IP65 under IEC 60529:

• First digit 6: dust-tight.
• Second digit 5: protected against water jets from any direction.

On real sites—loading docks, car washes, barns—fixtures see wind-driven rain, dust, and occasional hose-down cleaning. IP65-rated housings with sealed wire entries and gaskets significantly reduce early failures and lumen loss.

Add robustness where needed:

• Use 10 kV surge protection in high-risk areas (long runs, lightning-prone regions).
• Double-seal entries and use drip loops where pressure-washers are used.

5.2 Electrical and Code Considerations

All exterior lighting must be wired and installed in accordance with NEC (NFPA 70) and local amendments. The NEC overview describes it as the minimum safety standard for electrical installations in the United States.

For layered floodlight + wall pack systems, key practical points include:

• Correct circuit sizing based on combined load and voltage (e.g., 120–277 V drivers).
• Proper junction boxes and wet-location fittings where fixtures mount to exterior walls.
• Separation of Class 1 power circuits and any low-voltage control wiring if using 0–10 V dimming or sensor networks.
• Accessible disconnecting means if required by local code.

When in doubt, involve a licensed electrician, especially on projects with multiple poles, controls, or integration into existing service equipment.

5.3 Controls: Photocells, Occupancy Sensors, and Schedules

Controls are where layered security lighting becomes efficient—not just bright.

Options you can mix and match:

• Fixture-level photocells: Built-in dusk-to-dawn sensors on wall packs and area lights. Simple, reliable, ideal for retrofits and small sites.
• Wireless occupancy sensors for yard zones: For larger or intermittently used areas, wireless sensors can dim lights down to, for example, 30% when unoccupied and ramp to 100% on motion. The DOE guide on wireless occupancy sensors highlights how such strategies significantly reduce energy use in spaces like warehouses and yards when occupancy is low.
• Centralized time schedules: For bigger facilities, time clocks or building automation systems can set different operating profiles (e.g., full output until 10 p.m., then security-only levels overnight).

Field experience shows that adding basic photocells and simple schedules to a layered design usually cuts exterior lighting energy by 30–50% compared to always-on legacy systems, without sacrificing actual security.

5.4 Quick Fixture Selection Matrix

Use this table as a starting point when choosing fixtures for a layered security plan:

Application	Primary Fixture Type	Typical Output	Mounting Height	Optics / Beam	Key Specs to Check
Building doors & walkways	Wall pack with photocell	8,000–15,000 lm	10–15 ft	100–120° semi/full cutoff	IP65, 120–277 V, dusk-to-dawn, glass lens
Small parking apron (up to 60 ft)	Wall packs + 1 pole flood	15,000–25,000 lm	12–20 ft	Type III	IP65, 150 lm/W, surge, photocell
General parking lot (60–150 ft)	Pole-mounted area/flood lights	20,000–40,000 lm	20–30 ft	Type III/IV	IP65, photometrics (.ies), controls
Fence line / perimeter road	Narrow flood / area light	10,000–20,000 lm	15–25 ft	Type II/III	House-side shields, cutoff optics
Rural shop or barn driveway	Wall pack + one yard flood	12,000–25,000 lm	12–20 ft	Wide or Type III	Photocell, IP65, robust housing for dust/weather

---

6. Commissioning Checklist: How to Sign Off a Layered Security Lighting Project

A lot of exterior lighting projects fail not in design, but during commissioning. Use this checklist when you turn on a new layered floodlight + wall pack installation.

6.1 Daytime Checks

1. Verify fixture locations match plan: wall pack spacing, pole positions, mounting heights.
2. Confirm ratings and labels: IP65 or higher where exposed; voltage and wattage as specified.
3. Inspect wiring and terminations in accordance with NEC and manufacturer instructions.
4. Record aiming angles: note tilt and orientation for each flood/area light; keep a copy in the as-built documentation.

6.2 Nighttime Checks

1. Walk the wall band (0–20 ft from the building):
   • Check that every entrance, dock, and path has uniform light and minimal glare.
   • Adjust wall pack tilt or orientation if occupants see bare LEDs from normal approach angles.
2. Walk the yard band (20–80+ ft out):
   • Confirm there are no dark gaps between wall pack and flood coverage.
   • Check that vehicles and pedestrians are visible from all typical lines of sight.
3. Stand at property lines and neighboring windows:
   • Confirm no fixtures shine directly into neighbors’ eyes.
   • Adjust aiming or add shields if needed.
4. Verify control operation:
   • Photocells: cover/uncover to confirm correct on/off behavior.
   • Occupancy sensors: simulate motion, confirm response and timeouts.
   • Schedules: confirm correct on/off and dimming scenes.

6.3 Maintenance Planning

Finally, plan for long-term performance:

• Schedule cleaning of lenses and housings every 5–7 years in typical environments, more often in dusty or coastal conditions.
• Document driver and control settings for future reference.
• Note access methods (lifts, ladders) and torque values for slip-fitters and mounting hardware.

Well-documented commissioning turns a one-time install into a predictable system your team can maintain.

---

Key Takeaways: Building a Smarter Perimeter Lighting Layer

• Use the right tool for each job. Floodlights secure the site; wall packs secure doors, paths, and the building skin. Combining them gives better security and comfort than relying on one type of fixture.
• Beam control beats raw lumens. Select Type II/III/IV distributions and follow spacing-to-height ratios (1.0–1.5 for floods, 0.6–1.0 for wall packs) to achieve overlap and avoid dark gaps.
• Mounting and aiming matter. Choose realistic heights (10–15 ft for wall packs, 20–30 ft for floods), keep wall pack tilt modest, and adjust floods in 10° increments while protecting neighbors from glare.
• Specify for the environment. IP65 housings per IEC 60529, robust construction, and surge protection ensure fixtures survive outdoor conditions and maintain performance.
• Tie it together with controls. Photocells, occupancy sensors, and schedules can reduce energy use by 30–50% while preserving or improving security.

If you are planning a layered perimeter lighting upgrade and want fixture-level specs or documentation, start by reviewing photometric files (.ies) compliant with IES LM-63 and verifying that all exterior products meet at least IP65 per IEC 60529. That combination of design intent and verifiable data is what separates a professional security lighting system from a collection of bright but inefficient lights.

---

Frequently Asked Questions

Q1. Do I always need both floodlights and wall packs for security?
Not always, but in most commercial and light-industrial projects, using both yields better results. If you only have a small storefront with a sidewalk, carefully chosen wall packs may be enough. Once you add parking, truck courts, or equipment yards, layered floodlights plus wall packs reduce shadows and increase visibility.

Q2. What color temperature is best for security lighting?
Most sites use 4000–5000 K. The ANSI C78.377 standard defines chromaticity bins for these CCTs to ensure visual consistency. In practice, 4000 K feels slightly warmer and may be preferred near residences, while 5000 K gives more contrast for task-heavy areas like docks and loading zones.

Q3. How do I avoid blinding my neighbors with pole-mounted floods?
Select Type II or III optics for poles near property lines, keep mounting heights consistent with lot size (20–25 ft for most), and limit tilt to around 20°. Add shields or house-side optics where neighbors are close, and verify from their vantage points during nighttime commissioning.

Q4. Are dusk-to-dawn photocells enough, or do I need sensors?
For small sites or basic after-hours security lighting, fixture-level photocells are usually sufficient. For larger sites with intermittent activity, occupancy sensors and scheduled dimming can cut energy use significantly, as highlighted in the DOE wireless occupancy sensor guide.

Q5. When should I bring in a professional lighting designer?
If your project involves high liability (e.g., heavy truck traffic, public access), strict energy codes, or complex controls, a professional lighting designer using IES-based software such as AGi32 can model light levels and glare in detail. For standard small-to-medium facilities, a contractor or facility manager can usually achieve excellent results by following the spacing ratios, beam selection, and commissioning practices in this guide, while ensuring all electrical work complies with the NEC.

---

Safety Disclaimer:
This article is for informational purposes only and does not constitute professional engineering, safety, or electrical advice. Exterior lighting installations must comply with applicable electrical codes, building codes, and local regulations. Always consult a licensed electrician and, where appropriate, a qualified lighting designer or engineer before modifying or installing electrical equipment.

Sources:

• IEC 60529 – Degrees of protection provided by enclosures (IP Code)
• ANSI/IES RP-7 – Lighting Industrial Facilities
• IES LM-63 – Standard File Format for Electronic Transfer of Photometric Data
• ANSI C78.377 – Specifications for the Chromaticity of Solid State Lighting Products
• DOE FEMP – Purchasing Energy-Efficient Commercial and Industrial LED Luminaires
• DOE FEMP – Wireless Occupancy Sensors for Lighting Controls
• NFPA 70 – National Electrical Code (overview)
