Decoding IP Ratings: From Dust-Proof to Submersible
When specifying lighting for industrial, commercial, or rugged outdoor applications, you will inevitably encounter two critical codes: IP and IK ratings. While they often appear together on a spec sheet, they measure entirely different aspects of a fixture's durability. Confusing them can lead to premature failure, safety hazards, and costly replacements. IP ratings concern protection from environmental ingress, while IK ratings measure resistance to mechanical impact.
Understanding the distinction is the first step toward selecting a luminaire that will not just perform, but survive its intended environment. This guide breaks down both systems, providing the technical details and practical insights needed to make an informed decision for any project, from a dusty workshop to a high-traffic loading dock.
What is an Ingress Protection (IP) Rating?
An Ingress Protection (IP) rating is an international standard defined by the International Electrotechnical Commission (IEC) in standard 60529. It classifies the degree of protection provided by an electrical enclosure against the intrusion of foreign objects (including dust and solid particles) and moisture (water).
The IP code consists of two digits, each with a specific meaning:
- First Digit: Protection against solid objects.
- Second Digit: Protection against liquids.
A higher number in either position indicates a greater level of protection. If a criterion is not rated, the digit is replaced with an "X".
The First Digit: Solids Protection
The first digit ranges from 0 (no protection) to 6 (fully dust-tight). For most commercial and industrial lighting, you will encounter ratings of 5 or 6.
| First Digit | Level of Protection | Practical Application Example |
|---|---|---|
| 0 | No protection | Open-frame components not intended for exposure. |
| 1 | Protected against objects >50mm | Prevents accidental contact with large body surfaces, like a hand. |
| 2 | Protected against objects >12.5mm | Prevents contact from fingers. |
| 3 | Protected against objects >2.5mm | Protects against tools, thick wires. |
| 4 | Protected against objects >1mm | Protects against most wires, screws, and large insects. |
| 5 | Dust-Protected | Ingress of dust is not entirely prevented, but it must not enter in sufficient quantity to interfere with the safe operation of the equipment. |
| 6 | Dust-Tight | No ingress of dust; complete protection against contact. This is critical for environments like grain mills or woodworking shops. |
For any workspace that generates airborne particles, specifying a fixture with a rating of at least IP6X is a crucial step. You can learn more about why dust-tight lights are key for shops and barns.
The Second Digit: Liquids Protection
The second digit, which ranges from 0 to 9, is often the more critical factor for outdoor and washdown applications.
| Second Digit | Level of Protection | Test Conditions |
|---|---|---|
| 0 | No protection | --- |
| 1 | Dripping water | Vertically falling drops shall have no harmful effect. |
| 2 | Dripping water when tilted | Vertically dripping water shall have no harmful effect when the enclosure is tilted at any angle up to 15°. |
| 3 | Spraying water | Water falling as a spray at any angle up to 60° from the vertical shall have no harmful effect. |
| 4 | Splashing of water | Water splashing against the enclosure from any direction shall have no harmful effect. |
| 5 | Water jets | Water projected by a nozzle (6.3mm) against the enclosure from any direction shall have no harmful effects. |
| 6 | Powerful water jets | Water projected in powerful jets (12.5mm nozzle) against the enclosure from any direction shall have no harmful effect. |
| 7 | Immersion up to 1m | Ingress of water in harmful quantity shall not be possible when the enclosure is immersed in water under defined conditions of pressure and time (up to 1m of submersion). |
| 8 | Immersion beyond 1m | The equipment is suitable for continuous immersion in water under conditions which shall be specified by the manufacturer. |
Common IP Ratings in Practice: A Field-Based Heuristic
A common misconception is that a higher IP rating is always better. While IP67 offers more protection than IP65, it comes at a higher cost and may be over-specified for the application. The key is to match the rating to the environment.
- IP65: This is the baseline for most outdoor and damp locations. It's fully dust-tight and can withstand low-pressure water jets, making it suitable for areas exposed to rain or light splashes.
- IP66: This rating is necessary for environments that undergo regular, high-pressure washdowns. The seals and construction are designed to resist powerful water jets from a hose. This is a common minimum requirement for places like car wash facilities and food processing plants. When you need robust security in difficult weather, IP66 floodlights provide a reliable solution.
- IP67: This is designed for temporary submersion. It's often specified for fixtures in pits, on docks, or in areas prone to temporary flooding. Before specifying it, it's important to ask if IP67 submersion-proofing is worth the extra cost for your specific risk profile.
Understanding IK Ratings: Measuring Impact Resistance
While an IP rating protects a fixture from the elements, an IK rating defines its resistance to mechanical impact. This standard, IEC 62262, is crucial for lighting installed in areas with a high risk of being struck by objects, vehicles, or acts of vandalism.
The IK rating is expressed on a scale from IK00 (no protection) to IK10 (protection against 20 joules of impact). Each level corresponds to a specific amount of impact energy the enclosure can withstand without releasing hazardous parts.
The IK Scale Explained
The test involves striking the luminaire with a calibrated hammer of a specific shape and weight. The higher the IK code, the greater the impact energy it can endure.
| IK Code | Impact Energy (Joules) | Equivalent Impact Example |
|---|---|---|
| IK00 | 0 | No protection. |
| IK01 | 0.14 | A 0.25 kg mass dropped from 56 mm. |
| IK02 | 0.2 | A 0.25 kg mass dropped from 80 mm. |
| IK03 | 0.35 | A 0.25 kg mass dropped from 140 mm. |
| IK04 | 0.5 | A 0.25 kg mass dropped from 200 mm. |
| IK05 | 0.7 | A 0.25 kg mass dropped from 280 mm. |
| IK06 | 1 | A 0.5 kg mass dropped from 200 mm. |
| IK07 | 2 | A 0.5 kg mass dropped from 400 mm. |
| IK08 | 5 | A 1.7 kg mass dropped from 300 mm. |
| IK09 | 10 | A 5 kg mass dropped from 200 mm. |
| IK10 | 20 | A 5 kg mass dropped from 400 mm. |
Practical Application: Where IK Ratings Matter Most
Not every application requires a high IK rating. The decision should be based on a realistic assessment of risk.

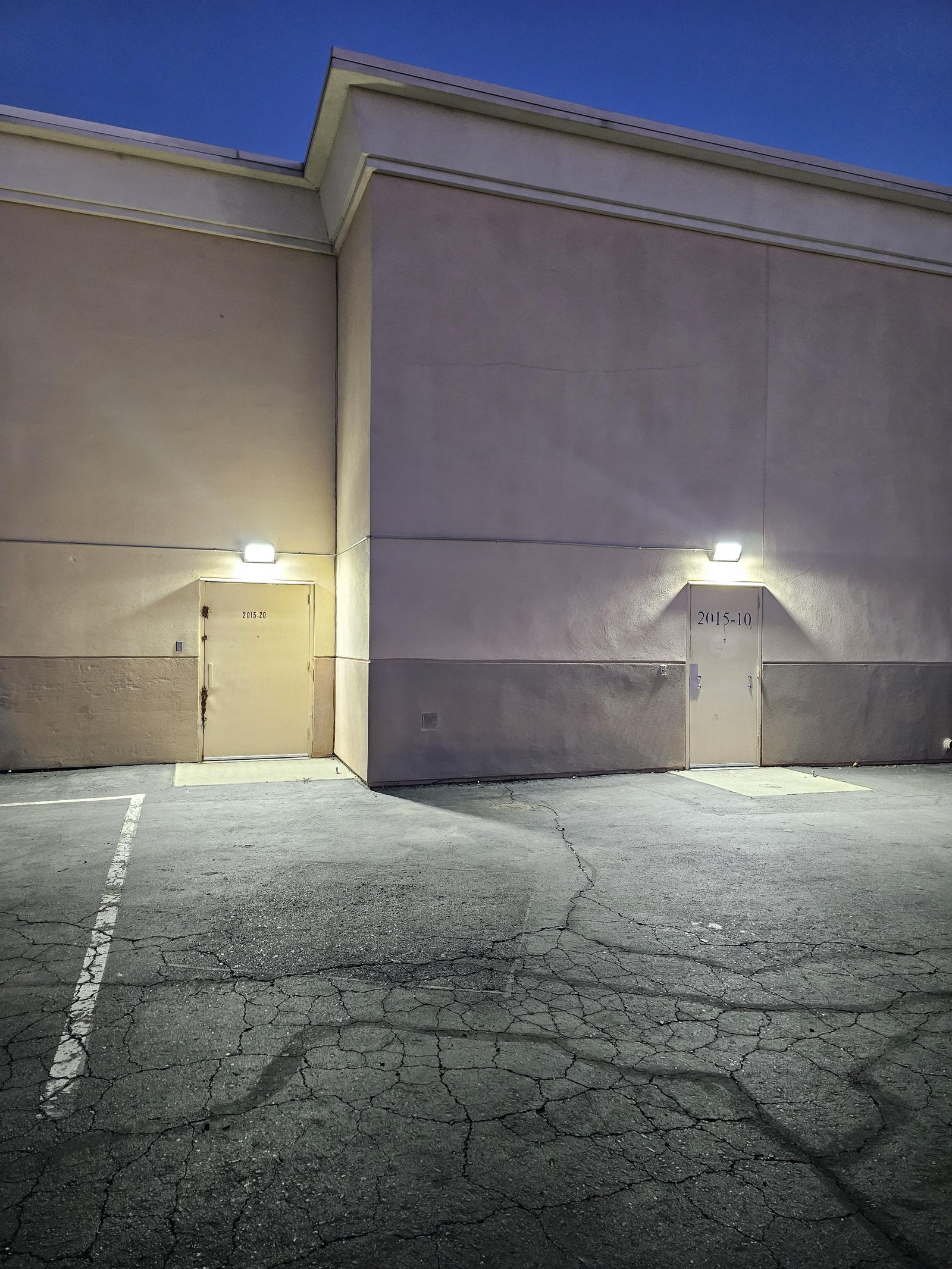

- IK06–IK08: This range is sufficient for most commercial exteriors and areas with moderate human traffic. It protects against accidental bumps, small flying debris, and casual contact. Many wall packs and area lights fall into this category.
-
IK10: This is the gold standard for high-risk environments. Specify IK10 fixtures for:
- Loading Docks & Warehouses: Protection against impacts from forklifts, pallets, and vehicles.
- Public Access Areas: Tunnels, walkways, and transportation hubs where vandalism is a concern.
- Gymnasiums & Sports Facilities: Resistance to impacts from balls and sports equipment.
- Low-Mounted Fixtures: Any luminaire installed within easy reach of people or equipment.
The Critical Interplay of IP and IK Ratings
A fixture's IP and IK ratings are not independent; a severe impact can compromise its environmental seals. A luminaire might be rated IK10 and survive a 20-joule impact without shattering, but the force can deform the housing, break a lens seal, or damage a cable gland. This deformation can create a pathway for dust and water, effectively nullifying its IP66 rating and leading to moisture-related failure down the line.
This is why a holistic view is essential. A truly durable fixture must be designed with both ratings in mind.
Beyond the Numbers: Real-World Failure Points
My experience in the field has shown that failures often occur not because the primary IP or IK rating was wrong, but because of weaknesses in the system's smaller components.
- Poor Cable Glands: The point where the power cable enters the fixture is a common failure point. An improperly specified or installed gland will not maintain the IP rating. Always use factory-fitted, gasketed connectors.
- Non-Rated Accessories: Adding a photocell or motion sensor that isn't rated to the same IP level as the fixture creates a weak link. Ensure all accessories, including caps for sensor ports, match or exceed the fixture's rating.
- Improper Servicing: If a technician opens a sealed fixture in the field to service a driver and fails to properly re-seat the gasket, the IP rating is compromised. This is a frequent cause of post-installation failures.
- Condensation: In environments with rapid temperature swings, even a perfectly sealed IP67 fixture can "breathe," pulling in moist air as it cools. Over time, this can lead to condensation buildup. Specifying fixtures with integrated, IP-rated breather vents can mitigate this by allowing pressure to equalize without drawing in moisture.
A Practical Framework for Specifying Fixtures
To ensure longevity and reliability, use a structured, environment-first approach when selecting luminaires.
Step 1: Assess the Environment (The IP Decision)
Start by analyzing the fixture's location.
- Dust & Debris: Will it be exposed to significant airborne particles (wood dust, metal filings, agricultural dust)? If yes, IP6X is mandatory.
- Moisture Exposure: Will it be exposed to rain, humidity, or occasional splashes? IP65 is the baseline.
- Washdown Procedures: Will the area be cleaned with low-pressure hoses? IP65 is sufficient. Will it be cleaned with high-pressure jets? IP66 is required.
- Flooding Risk: Is the fixture located in a low-lying area, pit, or dockside with a risk of temporary submersion? IP67 is necessary.
Step 2: Assess the Impact Risk (The IK Decision)
Next, evaluate the potential for mechanical impact.
- Mounting Height: Is the fixture mounted high and out of reach (>15 feet / 4.5 meters)? IK06–IK07 may be adequate. Is it mounted below that height? IK08 or higher is recommended.
- Proximity to Traffic: Is it near vehicle paths, forklifts, or loading bays? IK10 is a wise investment.
- Public Accessibility: Is it in an unsupervised public area? IK10 provides vandal resistance.
- Application Type: Is it for a gymnasium or sports court? IK10 is essential.
Step 3: Verify the Documentation
Do not rely solely on marketing claims. For any B2B or critical project, demand proof. According to standards like UL 1598 for Luminaires, products must undergo rigorous testing to be certified. A reputable manufacturer should provide downloadable PDF copies of their IP and IK test reports from a certified third-party laboratory. This documentation is your assurance that the product will perform as specified.
Key Takeaways
- IP and IK are Different: IP ratings measure protection against dust and water ingress. IK ratings measure resistance to mechanical impact.
- Match the Rating to the Job: Over-specifying is costly, while under-specifying leads to failure. Use an environment-first approach to select the correct ratings.
- Impact Compromises Ingress Protection: A high IK rating is not enough. A severe impact can break the environmental seal of a high IP-rated fixture.
- Look Beyond the Numbers: Pay attention to the quality of components like cable glands, seals, and accessories, as these are common points of failure.
- Demand Proof: For professional applications, always request third-party IP and IK test reports to verify a manufacturer's claims.
By carefully considering both IP and IK ratings in the context of the complete application, you can specify luminaires that deliver reliable performance and maximum durability, ensuring a safe, well-lit environment for years to come.
Disclaimer: This article is for informational purposes only. Electrical work should be performed by a qualified professional in accordance with the National Electrical Code (NEC) and all applicable local regulations. Always consult a project engineer to determine the appropriate specifications for your unique application.
