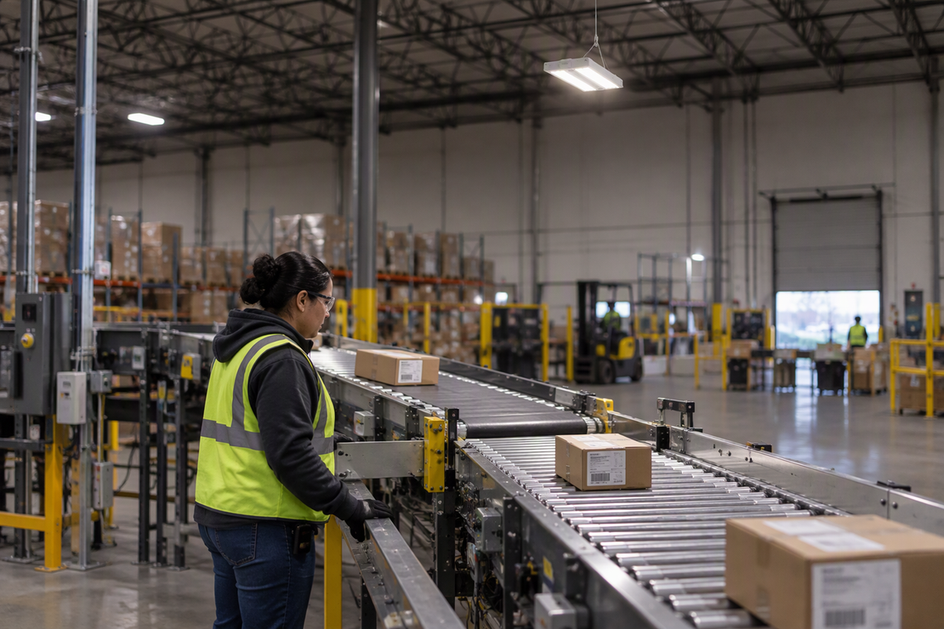

A conveyor transfer point needs its own lighting review when people do recurring work there, such as watching a merge, clearing jams, or handling product at a handoff. An aisle or open-floor plan shows broad coverage. It does not show whether anyone checked the light at the exact spot and plane where that task happens.
The review is a check, not a purchase order. It may confirm that your current conveyor transfer lighting already serves the documented task. The working path has three steps: walk the point with operations, record the geometry around each task, and compare that record with the lighting information you actually have.
Why a conveyor transfer point merits a separate lighting review
General coverage and task coverage answer different questions. An aisle or open-floor layout describes light across a floor area or travel path. A transfer-point task sits at one location, often on a surface the worker has to look at directly.
General warehouse lighting practice recommends assessing task illumination at the exact point and plane where work occurs. That plane can be horizontal or vertical, so a belt surface and a side-facing chute call for different checks. Visual quality matters as much as quantity: reviews check for freedom from glare, shadows, and extreme contrasts, along with the direction and distribution of light. A floor-level coverage plan can look complete and still leave these questions open at the transfer point.
Supplemental luminaires are only considered when a localized task requires more light than permanent fixtures consistently provide. That puts any fixture decision after the review, not inside it. Conveyor transfer point lighting earns its own review because the task is local. The outcome of that review is still open until you compare the evidence.
Map the task and worker positions
Walk the transfer point with an operations representative and write down what people actually do there. Operations staff know which tasks repeat, which only happen during jams, and where people stand to do them.
- Task: Name each recurring job at the point, such as monitoring a merge, clearing jams, or picking and placing items at a handoff. Two transfer points on the same line can involve different tasks.
- Recurring work or pass-through: Note whether someone works at the point on a recurring basis or materials simply pass through. A pass-through point with no local task does not call for a fixture on that basis alone.
- Worker positions: Record where workers stand, reach from, or move along while doing each task, including which side of the conveyor they work from.
- Task location and plane: Describe the surface the worker has to see, whether it faces up or sideways, and its approximate height above the floor.
Keep one line per task. If two tasks share a transfer point but use different positions, record both. The plan comparison later has to check each position on its own, and one merged entry can hide the one that matters.
Record conveyor geometry, obstructions, and existing lights
Next, capture the physical setup around each task so you can verify whether existing lighting documents reflect actual site conditions. Equipment arrangement changes where and how people work, directly altering the relevant task plane.
In one documented conveyor-jam case, workers stood on the factory floor and reached up to clear jams from a lumber conveyor about 4½ feet above the floor. A platform installed later let them do the same task at waist height. While that case addressed ergonomics, it demonstrates how physical layout changes move the working position that a lighting review must evaluate.
Record these details for each task:
- Conveyor and equipment elevations: belt height, nearby equipment, and any platforms or catwalks, where known.
- Task locations: each position from your task record, marked on a sketch or the floor plan.
- Existing fixtures: location, mounting height, and orientation, where you can see them or the drawings show them.
- Possible obstructions: supports, guarding, overhead conveyor runs, racks, or equipment between the fixtures and the task, or between the worker and what they need to see. Note them without guessing their lighting effect.
- Differences from the plan: anything moved, added, or removed since the drawings were made.
If the transfer point sits under a different ceiling height or rack layout than the floor around it, give it a separate entry when you plan warehouse lighting zones. That keeps its conditions from being folded into the open-floor zone.
Compare the site record with the lighting plan
Hold your record up against the lighting information you have, and limit any conclusion to what both sources cover. Start by checking whether the layout or photometric results include calculation points at the documented task locations, in the right plane, under the current geometry. Our photometric data guide explains how to read IES files, uniformity, and glare metrics such as UGR when you check those results.
Then confirm which criteria apply. Use only criteria set for this specific project. Activity values from general warehouse guidance are not automatic targets for a conveyor task, and no single number applies to every transfer point.
This planning aid connects what you find to the next step:
| Observed condition | Review implication | Next check |
|---|---|---|
| Task, plane, and current geometry shown; project criteria available | Bounded comparison possible | Compare at each documented task only |
| Site geometry differs from the plan | Plan may not represent the site | Update the record; get project-specific review |
| Task, plan detail, or criteria missing | No adequacy conclusion | Request project-specific review |
A clean result in the first row covers only the documented tasks and conditions. It is not a code-compliance or safety sign-off. That decision belongs to the project's lighting designer, engineer, or local authority having jurisdiction.
The second and third rows lead to the same step: a project-specific layout that models each documented task plane. Your own lighting designer can produce one, or you can work through our lighting design service. If a fixture estimate is the only document you have, audit the lighting estimate for its task-area assumptions first. On smaller sites, it also helps to know when a photometric layout is worth requesting before you accept a fixture count.
FAQs
What if workers only go to the transfer point to clear occasional jams?
Record jam clearing as a task anyway, with the position workers use and the surface they need to see. An occasional task still has a task point and plane. General warehouse lighting practice treats supplementary lighting as one option where a task needs more light than the permanent lighting consistently provides. Whether that applies here is decided in the plan comparison, not by how often the task happens.
Does OSHA's lighting rule for cargo transfer points cover a warehouse conveyor?
Not automatically. OSHA 1917.123 names cargo transfer points as active work areas and calls for measuring light at the task or working surface, in its plane. That rule sits in the marine terminal standard, though. Whether it reaches your facility depends on the operation's regulatory scope. Confirm which rules apply with the project's code authority before you treat any value as a requirement.
When should a transfer point be reviewed again?
Repeat the geometry record and plan comparison after any change that moves a task or a worker. That includes a new platform, a re-routed or raised conveyor, added guarding or overhead equipment, relocated fixtures, or a new task at the point. Update only the affected task lines, then check whether the lighting documents still match.
Can a light meter reading stand in for the plan comparison?
A reading taken at the documented task point and in the task plane shows conditions at that moment. It is useful evidence when you compare it with criteria set for the project. It does not record glare, shadows, or sightline problems on its own. It also won't show how a planned layout change will perform, so keep the site record and the plan comparison as well.
