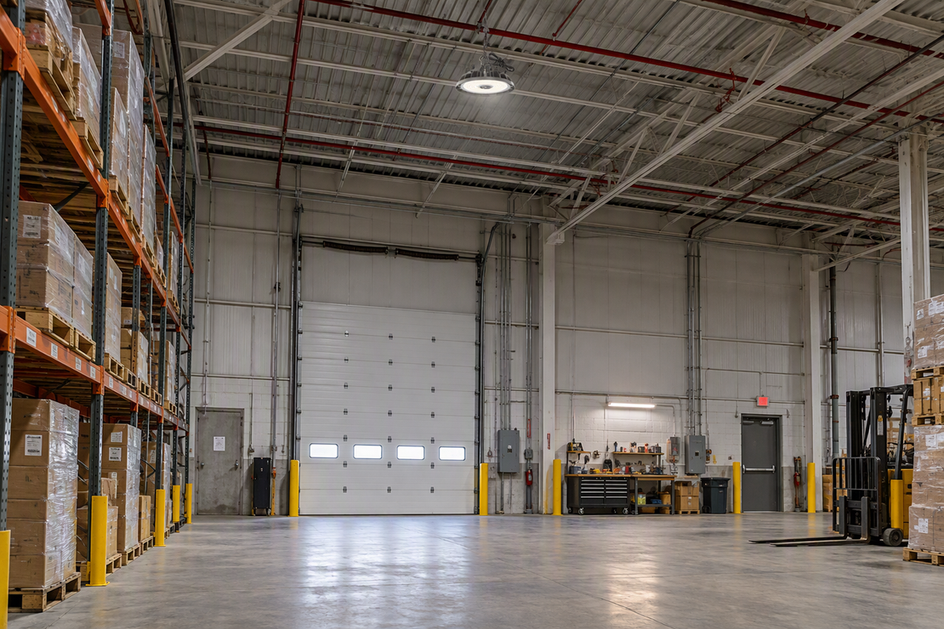

To plan commercial service area lighting with a high door, split the space into three zones: the tall door face, the work next to it, and the route people or equipment take to reach it. For each zone, write down how it is used, including whether work happens with the door open, closed, or both. Then compare possible fixture locations against those notes, and confirm the layout with a photometric review for your project before you buy.
A tall door is a vertical surface. A plan that only looks at the floor can leave the door face unchecked. A fixture's output rating will not show you how light lands on each zone, so the plan needs a layout check.
Plan the Door, Work Area, and Approach as Three Zones
Start with a site record that lists the door face, the nearby task area, and the approach route as separate zones. This record is the base for every fixture-location decision that follows.
| Zone | What to record | Planning implication |
|---|---|---|
| Door face | Height, width, door type, open and closed positions, when work happens in each | Assess it as its own vertical surface |
| Adjacent task area | Actual task spots, work surfaces, equipment, staging space | Map specific tasks, not one general floor area |
| Approach route | Path of people, carts, or vehicles; obstructions; available mounting surfaces | Shows where fixtures can mount and what may block light |
The door face gets its own row for a reason. Illuminance on horizontal and vertical planes differs by measurement plane. Horizontal readings are taken on a surface like a desk, and vertical readings are taken on an upright surface. A check on the floor or a workbench says nothing about light on the door itself. This difference does not set a target for a service door. It tells you to list the door as a separate item when the layout is reviewed.
Facility guidance supports the same approach. In its loading-dock section, the VA Lighting Design Manual calls for considering vertical illumination. That manual is written for VA facilities. Treat it as an example of what to check, not as a rule for your site.
Only record conditions that could change a task or a fixture location. A simple sketch is enough to start if it shows the three zones, the door's travel, and possible mounting surfaces. On its own, the sketch cannot show whether the lighting will be adequate. Its job is to make the next comparison accurate.
Compare Candidate Locations Against Door Operation and Site Geometry
Use the site record to test each possible fixture location in every door position that matters for the work. One shared location that covers all three zones is an option to evaluate, not something to assume from the start.
- Compare the door states. If work happens with the door both open and closed, check each candidate location in both positions. An open door, its track, or a raised panel can change which surfaces are exposed and what blocks the light.
- Mark the mounting surfaces. Note the walls, canopy, structure above the door, or other surfaces where a fixture could actually go. A location with nothing to mount on drops off the list.
- Flag obstructions. Mark racks, equipment, parked trucks, and stacked goods. Note which candidate locations each one affects, and in which door state.
- Carry the viable options forward. Every location that survives steps 1 through 3 goes into the photometric review. Looking at the site or reading a fixture's output rating does not count as confirmation.
These notes split the decision into two paths. Keep a shared location on the list when your record shows it can reach the door face, the task area, and the route in every door state that matters. Add separate locations as alternatives when a door position, an obstruction, or a missing mounting surface cuts one zone off from the shared spot. In both cases, the review makes the final call.
Check the geometry around the door, too. The VA manual's loading-dock guidance calls for coordinating dock-light locations with the loading platform. If your service area has a platform, dock edge, or raised floor, add it to the record and check each candidate location against it. If the approach starts outdoors, our guide to transition-zone planning covers mapping the threshold and approach before you shop. If the route is shared with vehicles, our guide to mapping entry movement for vehicles helps you trace that traffic.
Request a Project-Specific Photometric Review
Before you pick a fixture or call the layout done, ask for a calculation that tests your fixed candidate locations using the exact fixture's photometric data. The VA's calculation workflow is a documented example of what that review can include. Use it to shape your request:
- Fixed fixture locations. VA calculations are based on permanently mounted luminaires. Give the reviewer the specific positions you kept from your location comparison, not a general area.
- Matching photometric data. The file should describe the fixture and configuration you are actually considering. The VA manual says to confirm that the lamp lumen output in the photometric report matches the specified lamping. If a fixture has selectable settings, ask which setting the file represents.
- Surface and light-loss inputs. The VA workflow uses light-loss factors. Where they apply, give the reviewer the surface reflectance of walls, floor, and door.
- Results by functional area. The VA report covers all functional areas. It lists average illumination levels, maximum and minimum illumination, luminaire types and quantities, and the light-loss factor used. Ask for the door face, the task area, and the approach route to be named as separate areas in your results.
Set target levels and local requirements separately, for your actual jurisdiction and project. A lighting designer, engineer, or the authority having jurisdiction can confirm them. A calculation report is not a code-compliance ruling. Circuit design and wiring belong with a licensed electrician.
If your plan started with one lumen number, our article on lumens estimates versus layouts explains when site conditions call for a full layout. When you shortlist outdoor lighting fixtures or interior high bay lights, get the photometric file for the exact configuration under review. For help with a specific project, bring your three-zone record and candidate locations to our online lighting layout tool.
FAQs
Does the VA Lighting Design Manual set the standard for every commercial service area?
No. The manual is written for VA facility projects. Its loading-dock notes and calculation steps are useful as a model for what to check and what a report can show. They do not set requirements or targets for other commercial buildings.
Where do light-level targets for my service area come from?
Targets come from the codes, standards, and owner requirements that apply to your project and jurisdiction. This guide does not set them, and no single U.S. number covers every site. Ask your lighting designer, engineer, or local authority which criteria apply before you approve a calculation.
Can I choose fixtures from their lumen rating alone?
A lumen rating tells you a fixture's total output. It does not tell you how that light lands on a vertical door, a workbench, or a travel route. Use lumens to narrow your choices early. Then rely on a layout calculation with the fixture's photometric file to judge how well it covers each zone.
Should I redo the site record for a retrofit if the fixture locations stay the same?
Yes, if anything has changed since the original lighting went in. A new door type, different door travel, added racks, or a rerouted approach can each change what a fixture location can reach. Update the record before you assume the old positions still serve all three zones.
