To evaluate indoor-outdoor work lighting, treat the job as one route with three linked zones: the indoor work area, the transition at the opening, and the outdoor work area. In each zone, record the task, the movement, the mounting location, and the exposure you can actually see. Don't assume the layout on one side also covers the threshold.
Next, turn every difference between zones into a specific question. Some go to the documentation for the exact fixture. Others go to qualified project review. This method is a planning aid, not a formal standard or design procedure, and it works for loading docks, service entrances, and other routes where workers or materials cross the building envelope.
Map the Route Into Indoor, Transition, and Outdoor Zones
Before you compare any fixture, sketch the route and give each zone its own entry. Include the threshold even if people only pass through it. Mark fixed work points, such as a staging table or a truck bay, and the path workers or materials take between them.
| Zone | What to record | What the observation flags |
|---|---|---|
| Indoor work point | Task, fixed or moving work, mounting spot, conditions seen | Lighting function needed inside |
| Threshold or transition | Any task at the opening, traffic through it, mounting surface, exposure seen | Whether the opening needs its own review |
| Outdoor work point | Task, movement, mounting location, weather exposure seen | Outdoor environmental and documentation questions |

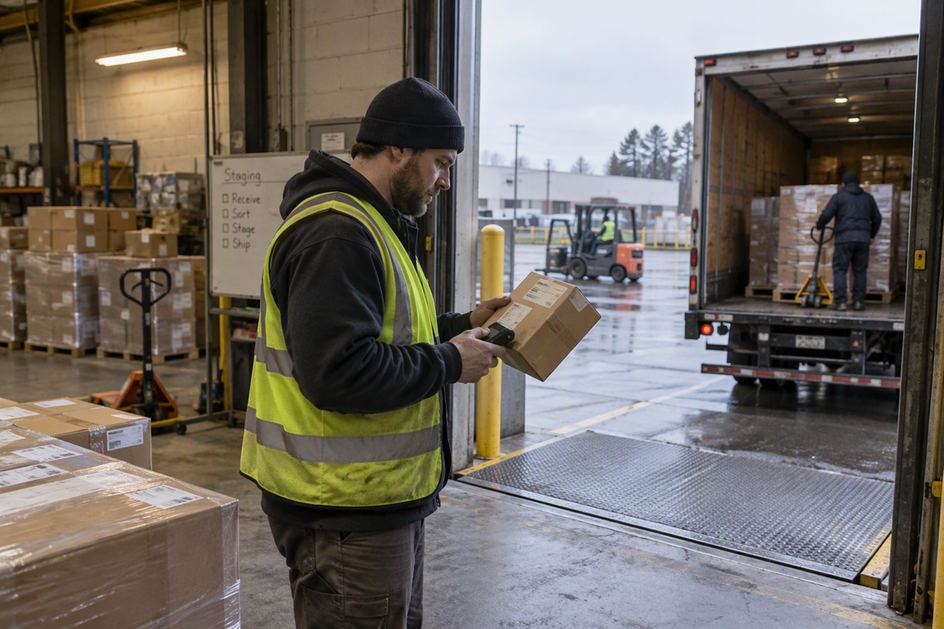

List threshold tasks apart from tasks that happen only inside or only outside. A dock worker checking a shipping label in the door frame is working at the threshold. A worker sorting cartons deeper in the staging area is not, even when both jobs belong to the same shipment.
Write down what you observe, not what you expect. Say you don't yet know whether rain reaches the doorway when the overhead door is open. Mark that condition "unknown" and come back to it. A labeled blank is more useful than a guess, because a guess can hide the one question that changes which fixture fits.
Note mounting locations the same way. Write "interior ceiling above staging," "exterior wall above dock door," or "underside of canopy," rather than a general "near the entrance." Each spot is a separate mounting condition you'll check later. Leave ratings off the map for now. The map records the site. It doesn't assign a requirement.
Compare the Conditions That Change Between Zones
A shared route doesn't mean shared conditions. If the task, movement, mounting location, or observed exposure changes from one zone to the next, that zone needs its own answer, not an assumption borrowed from next door.
- Task changes. Different work can call for a different lighting function. A 2016 DOE research-plan figure shows a concept luminaire that sends light down to a task area and separate light up to fill the room. It's only a concept, but it shows why your brief should name the task at each work point instead of asking for "good light" along the whole route.
- Movement changes. A fixed station and a lane where carts or forklifts pass create different questions. For each zone, ask whether the lighting must serve a work spot, a travel path, or both.
- Mounting changes. An interior ceiling, an exterior wall, and a canopy are different conditions. Check each one against the documentation for the exact fixture variant instead of carrying over what worked in the neighboring zone. If the outdoor side depends on wall mounting, our outdoor wall-mounted light guide covers cutoff profiles and placement on the wall.
- Exposure changes. Moisture, sunlight, and cold may affect the outdoor side and not the indoor side. UL's outdoor luminaire evaluation overview explains that line-voltage luminaires are evaluated to UL 1598, including applicable wet-location requirements. It adds that polymeric enclosures need extra evaluation for ultraviolet light and very low temperatures. UL covers IP ratings separately, so ingress protection and wet-location evaluation are two different questions to ask about the documentation.
If your exposure notes get complicated, sort dust, moisture, condensation, and cleaning conditions with our lighting exposure matrix before you write the documentation questions.
Decide Whether the Transition Needs Its Own Review
Flag the threshold for separate review if work happens there or if the task, mounting, or observed exposure changes at the crossing. If nothing changes, keep the opening on the route map as a passage and move on.
- Check the transition entry for a task. If someone scans, loads, inspects, or signs paperwork at the opening, mark it as a work point.
- Compare it with the indoor entry right next to it. Note any change in task, mounting surface, or exposure.
- Compare it with the outdoor entry next. Note the same three conditions.
- Name each change and the question it raises. For example: "Door frame gets wet from blowing rain when the door is open. Does the candidate fixture's documentation cover this location?"
- If you found no task and no change, write "no change" and keep the threshold on the map so the route stays continuous.
A flag means the opening gets its own line in the brief. It doesn't mean you need a separate fixture, a set fixture count, or a different layout. Those answers come out of the review the flag triggers.
Turn the Zone Map Into a Fixture-Review Brief
The brief pairs each recorded condition with the exact model or variant you're considering and the question its documentation has to answer. Questions about how the whole site performs, or what local rules will accept, go to qualified project professionals or the authority having jurisdiction.
- Condition, model, question. For each zone, put the observed condition, the exact model or variant, and the open documentation question on one line. A product name, category, or collection page doesn't answer that question.
- Mounting and environment. Ask what the manufacturer's documentation says about the recorded mounting location and environmental conditions. Keep IP ratings, wet-location suitability, and safety listings on separate lines, because none of them substitutes for another.
- Outdoor photometry. For outdoor-area candidates, DOE's fact sheet recommends examining actual-product IES photometric files. These should be in standard IES format and based on a working product, not a prototype or computer model. The same fact sheet describes analyzing horizontal and vertical target areas with lighting design software and actual site measurements. That's site-specific work for the project team, so list it as a review item, not something the file settles alone.
- Project-review items. List layout, local code, and acceptance questions apart from the product-document checks. A licensed electrician, lighting designer, engineer, or the local authority makes those decisions. If you're not sure a layout is worth requesting, our photometric layout guide explains when geometry, mounting, task zones, and edges make one worthwhile.
With the brief written, compare candidates from our indoor lighting collection and outdoor lighting collection one zone at a time. A fixture moves forward for a zone only when its current documentation answers the questions recorded there. For indoor-outdoor work lighting, that zone-by-zone discipline keeps the threshold from slipping through as an assumption.
FAQs
What if the manufacturer documentation doesn't mention a condition I recorded?
Treat that condition as unresolved. Missing information doesn't count as approval. Ask for the specific document that covers the exact variant and condition, such as a spec sheet, installation instructions, or label details. If no one can supply it, move to a candidate whose documentation addresses the condition, or flag the item for project review.
Can one fixture type cover the whole indoor-outdoor route?
It can, but only if the documentation for that exact model or variant addresses the task, mounting, and exposure recorded in every zone where you plan to use it. Check each zone separately. A good fit at the indoor staging area doesn't carry over to the exterior wall above the dock door.
What should I update if the work or the site changes after the review?
Revise only the zone entries the change affects, then rerun the transition comparison for the zones next to it. Say an overhead door that used to stay closed now stays open during loading. The threshold's exposure notes change, so send that new question back for review. Keep the answers that still apply.
How do I handle an outdoor area that extends into a yard or lot?
Split it into its own zones instead of stretching the entrance entry to cover it. Storage rows, access lanes, loading points, and edges can each have a different task and mounting condition. Our guide to equipment yard lighting zones shows how to separate them and state assumptions in a lighting request.
Who should get the finished brief?
Give the product-document questions to the manufacturer or seller of each candidate model. Give the layout, photometric, and code questions to your lighting designer, engineer, licensed electrician, or the local authority having jurisdiction. Splitting the brief this way gets each question to the person who can actually answer it, and it keeps indoor-outdoor work lighting decisions tied to documented answers.
