A 120-watt LED wall pack light is extremely bright, typically producing between 14,000 and 18,000 lumens. It is designed for commercial and industrial outdoor applications, not standard residential use. This wattage effectively replaces traditional 400-watt Metal Halide fixtures while consuming 70% less energy. Understanding the lumen output, ideal mounting height, and coverage area is crucial for determining if a 120-watt wall pack is the right fit for your facility's exterior lighting needs.
How Many Lumens Does a 120 Watt LED Wall Pack Produce?
To understand brightness, you must look at lumens rather than watts. Watts measure energy consumption, while lumens measure actual light output.
Modern LED technology typically yields between 120 and 150 lumens per watt. Therefore, a 120-watt LED wall pack generates approximately 14,000 to 18,000 lumens. This is a massive amount of light. For context, a standard indoor 60-watt incandescent light bulb produces only 800 lumens. A single 120-watt LED wall pack puts out enough illumination to safely light up large commercial driveways and building perimeters.
What Does a 120W LED Wall Pack Replace?
A 120-watt LED wall pack is the direct replacement for a 400-watt Metal Halide (MH) or High-Pressure Sodium (HPS) wall pack.
You might notice that a new 400W Metal Halide bulb is rated for 36,000 lumens, which seems much higher than the LED's 15,000 lumens. However, HID (High-Intensity Discharge) bulbs degrade rapidly. Within the first six months, a Metal Halide bulb loses up to 30% of its initial lumens.
Furthermore, HID bulbs produce light in 360 degrees. To direct the light outward, the fixture relies on internal reflectors, which trap and waste up to 30% of the light. LED wall packs are directional. They push 100% of their 15,000 lumens exactly where you need them. Because of this directional efficiency and zero lumen depreciation, a 120W LED provides brighter, more consistent ground illumination than a 400W HID fixture.
Recommended Mounting Height for a 120W Wall Pack
Because of its intense brightness, you cannot mount a 120-watt LED fixture low to the ground. Mounting it too low creates severe glare, which can temporarily blind drivers and pedestrians.
The industry standard mounting height for a 120-watt LED wall pack is between 15 feet and 25 feet.
- 15 to 18 Feet: Ideal for general building perimeters and loading docks where workers need high visibility for tasks.
- 20 to 25 Feet: Ideal for pushing light further outward into parking lots or covering large exterior walls.
If your mounting location is lower than 15 feet, you should downgrade to a 40-watt to 80-watt LED wall pack to prevent excessive glare.
How Much Area Does a 120 Watt Wall Pack Cover?
The coverage area depends entirely on the mounting height and the lens type (standard forward-throw vs. full-cutoff).
When mounted at a height of 20 feet, a 120-watt LED wall pack typically projects light outward (forward throw) up to 60 to 80 feet. It will also spread light laterally (side-to-side) along the building wall.
When installing multiple 120-watt wall packs along a commercial building, the general rule of thumb is to space the fixtures at 2 to 2.5 times the mounting height.
If mounted at 20 feet, space the fixtures 40 to 50 feet apart. This spacing ensures even illumination without creating overlapping bright spots or leaving dangerous dark shadows between the lights.
Where Should You Install 120W LED Wall Packs?
A 120-watt fixture is categorized as heavy-duty commercial lighting. It is highly effective in the following scenarios:

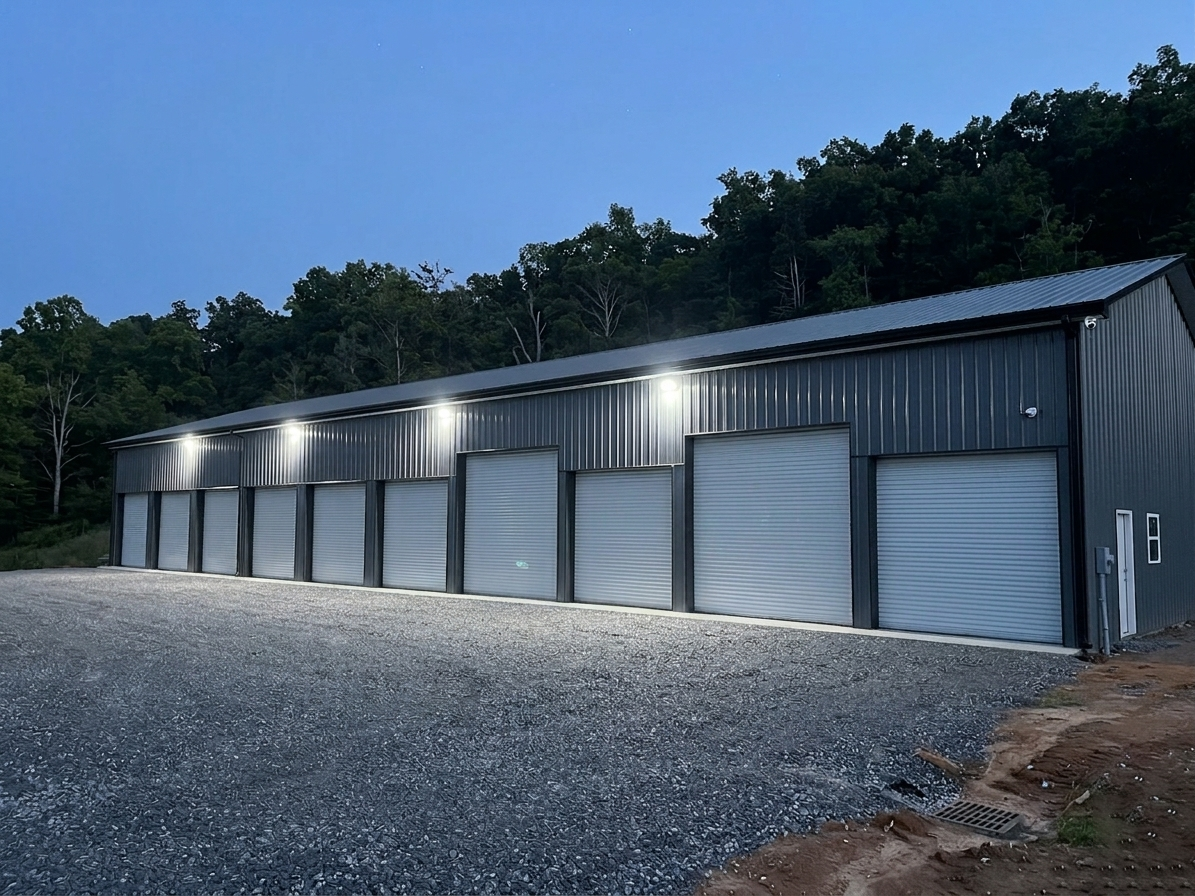

Commercial Building Perimeters
Large retail stores, factories, and commercial warehouses use these fixtures along their outer walls. The high lumen output eliminates dark hiding spots, making security cameras much more effective at night.
Warehouse Loading Docks
Loading docks require intense, clear light for safety. A 120-watt wall pack provides enough illumination for truck drivers to reverse safely and for warehouse staff to read shipping manifests during night shifts.
Large Parking Areas
If a business does not have tall parking lot pole lights, 120-watt wall packs mounted high on the building exterior can push enough light outward to safely illuminate adjacent parking spaces and pedestrian walkways.
Conclusion
A 120-watt LED wall pack is a powerful lighting solution designed for heavy-duty commercial use. Producing over 15,000 lumens, it easily replaces outdated 400W traditional fixtures while slashing energy costs. By mounting it at the proper height of 15 to 25 feet, you maximize its coverage and enhance security for loading docks, warehouses, and parking perimeters. Always check your local lighting codes and required mounting heights before installation to ensure optimal performance and safety.
FAQs
Is a 120W LED wall pack too bright for a residential house?
Yes, a 120-watt LED wall pack is far too bright for residential use. It will cause severe light trespass into your neighbors' windows and create uncomfortable glare in your yard. For standard residential garages or backyards, a 15-watt to 30-watt LED wall pack (producing 1,500 to 3,500 lumens) is more than sufficient.
Should I choose a standard or full-cutoff 120W wall pack?
A standard wall pack pushes light outward and slightly upward. A full-cutoff wall pack has a shielded design that directs 100% of the light straight down to the ground. If your building is in a city with strict "Dark Sky" compliance laws or light pollution ordinances, you must use a full-cutoff fixture. Full-cutoff fixtures are also recommended if the commercial building is adjacent to a residential neighborhood.
What color temperature is best for a 120W wall pack?
For security and maximum visibility, 5000K (Daylight White) is the standard choice. It provides a crisp, high-contrast light that mimics noon sunlight, which is excellent for security cameras. If you want a slightly softer, more welcoming light for retail entrances, a 4000K (Cool White) option is a better choice.
