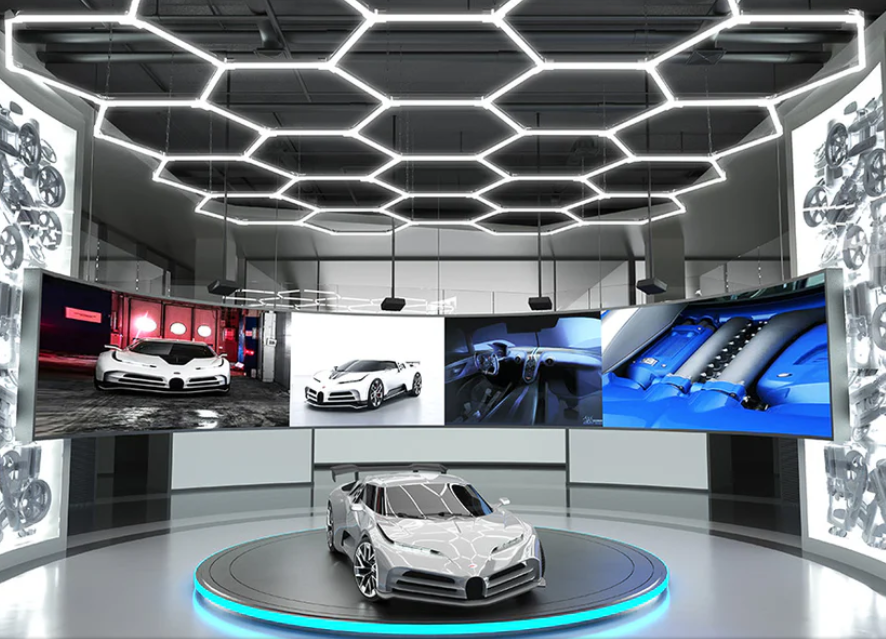

We’ve all seen that one garage on social media. You know the one—glistening epoxy floors, perfectly organized tool walls, and a ceiling filled with a symmetrical grid of glowing circular lights that looks like it belongs in a high-end car showroom. It’s a dream setup. But as we start planning our own workshop upgrades, a nagging question often pops up: is a perfect grid actually the best way to light a space where real work happens?
In the world of professional lighting design, this is the classic battle between symmetry and function. While a balanced layout creates visual harmony, a rigid grid can sometimes leave your most important work areas in the shadows. Today, we’re going to show you how to master the 'UFO Hub' layout—those powerful, round LED high bay fixtures—to achieve that showroom look without sacrificing the high-performance visibility your projects demand.
The Geometry of Light: Understanding the SHR Rule
Before we pick up a drill, we need to talk about the 'why' behind fixture placement. A common mistake we see is mounting fixtures too high relative to their spacing. This creates a 'spotlight' effect—bright pools of light directly under each fixture with frustrating dark zones in between.
To avoid this, we use the Spacing-to-Mounting Height Ratio (SHR). According to the Illuminating Engineering Society (IES), the SHR is the ratio of the distance between luminaires to the height at which they are mounted. For most round high bay fixtures with a standard 120-degree beam angle, you should aim for an SHR of 1.0 to 1.5.
What does that look like in the real world?
- The 1.0 Ratio: If your ceiling is 12 feet high, space your lights 12 feet apart. This gives you incredibly uniform, 'wall-to-wall' light.
- The 1.5 Ratio: If you’re on a tighter budget, you can stretch that spacing to 18 feet. You’ll still have good coverage, but the light levels between fixtures will be slightly lower.
Why Quality Specs Matter: The Pro-Grade Difference
When you’re browsing for lights, it’s easy to get lost in a sea of '100,000-hour life' claims. But as experts who have audited hundreds of setups, we’ve learned that the 'Solid' and 'Bright' promises of a brand are only as good as the data backing them up.
For a shop that looks professional, you need consistency. You don’t want one light looking slightly 'yellow' and another looking 'blue.' This is why we look for standards like ANSI C78.377. This ANSI standard defines the color specifications for solid-state lighting, ensuring that a '5000K' light from one batch matches the next.
Furthermore, if you’re looking for utility rebates to fund your project, your fixtures must be on the DesignLights Consortium (DLC) Qualified Products List. This is the industry benchmark for high-performance, energy-efficient LED lighting. Using DLC-certified fixtures isn't just about efficiency; it's often a prerequisite for getting money back from your power company.
The "Weekend Workshop" Experiment: Real-World ROI
We recently ran a simulation for a typical 'Weekend Workshop Enthusiast'—someone with a 400-square-foot two-car garage who spends about 2,000 hours a year on projects. We compared an old-school 400W metal halide setup to a modern grid of four 150W LED high bays. The results were eye-opening.
| Metric | Old Metal Halide Setup | Modern LED High Bay Grid |
|---|---|---|
| Actual Power Draw | 1,832W (Total) | 600W (Total) |
| Annual Energy Cost | ~$485.00 | ~$140.00 |
| Maintenance Costs | ~$90/year (Bulb swaps) | $0 (5-Year Warranty) |
| Estimated Payback | N/A | 1.16 Years |
| CO2 Reduction | Baseline | 310.5 lbs / year |
Note: Calculations based on $0.14/kWh and average fixture costs. Individual results vary by local utility rates and state incentives.
This isn't just about 'saving the planet.' That 1.16-year payback period means the lights literally pay for themselves in energy savings before your second year of use. Plus, if you live in a warm climate, LEDs produce significantly less waste heat, which reduced the cooling load in our test garage by an estimated $14 annually.
Functional Zoning: Breaking the Grid for Better Work
While a symmetrical grid is great for general illumination, your workbench or car lift might need a different approach. This is where Functional Zoning comes in.
In retail environments, designers use a 5:1 accent-to-ambient light ratio to draw the eye. While you aren't selling merchandise, you are trying to see fine details on a circuit board or a car engine. According to the 2026 Commercial & Industrial LED Lighting Outlook, the trend is moving toward 'layered lighting'—combining a symmetrical overhead grid with dedicated task fixtures.
The Rule-Breaker's Guide:
- Over the Workbench: Place a fixture directly over your primary work surface. To manage glare, ensure the edge of the fixture—not the center—is in your direct line of sight when you're standing at the bench.
- The 2-Post Lift: If you have a car lift, symmetry can be your enemy. A center grid often casts a shadow right where you’re working under the chassis. Instead, position fixtures to the sides of the lift arms to 'throw' light into the undercarriage.
- The 'Dry Fit' Strategy: Before you drill, do a physical dry fit. We recommend holding the fixtures (or even cardboard cutouts) in place with a ladder or temporary support. You’d be surprised how often a garage door opener or a stray duct blocks the perfect light path you drew on paper.
Technical Deep Dive: CCT, CRI, and Visibility
When planning your 'Symmetry vs. Function' layout, the quality of light is just as important as the placement.
- CCT (Correlated Color Temperature): For workshops, we almost always recommend 5000K (Daylight). It’s crisp, energetic, and helps you stay alert. If your garage is more of a 'hangout' space with a classic car, 4000K (Neutral White) offers a slightly warmer, more inviting feel without looking yellow. You can learn more about this in our guide on 4000K vs 5000K for shops.
- CRI (Color Rendering Index): This measures how accurately a light source reveals the true colors of objects. A CRI of 80+ is standard, but if you’re doing paintwork or detail-heavy crafts, look for higher ratings. High CRI prevents that 'washed out' look and helps you distinguish between similar-colored wires or paint shades.
- Flicker-Free Performance: Cheap LED drivers are notorious for 'invisible' flickering. While you might not see it, it can cause eye strain and headaches over a long work session. Professional-grade fixtures use drivers that comply with FCC Part 15 regulations to ensure they don't interfere with your radio or shop equipment.
Step-by-Step Installation: Achieving the Showroom Look
Ready to get started? Here is our checklist for a professional-grade install.
Materials Checklist
- UL-Listed or ETL-Listed High Bay Fixtures
- Heavy-duty ceiling hooks (usually included with pro-grade units)
- Safety cables (essential for earthquake zones or high-vibration shops)
- 14/2 or 12/2 NM-B Cable (depending on your circuit load)
- 0-10V Dimmer (optional, but highly recommended for adjusting light levels)
The Installation Process
- Map the Grid: Use a laser level to mark your symmetrical points on the ceiling. Refer back to your SHR (1.0 to 1.5) to ensure even coverage.
- Mount the Hooks: Ensure you are drilling into solid wood trusses or using appropriate steel beam clamps.
- Wiring for Control: Most modern high bays support 0-10V dimming. This requires a separate low-voltage wire run to your dimmer switch. It’s an extra step, but it allows you to drop the brightness when you're just 'hanging out' and crank it up when it's time to work. For more on this, check out our 0-10V dimming guide.
- The Safety Loop: Always install the safety cable. It’s a simple 'better safe than sorry' measure that takes 30 seconds but provides permanent peace of mind.
- Clean Up: Use conduit or cable clips to keep your wiring runs perfectly straight. Nothing ruins a 'showroom' look faster than sagging wires.
What to Expect: Common Questions
"Will these lights interfere with my garage door opener?" In most cases, no. However, if you use low-quality LED bulbs in old fixtures, they can emit EMI (Electromagnetic Interference). Professional-grade UFO hubs are designed to meet FCC standards to prevent this exact issue.
"Do I need a sensor?" If you frequently forget to turn off the lights, a microwave occupancy sensor is a great addition. They can be mounted directly to the fixture and will dim or turn off the lights when the shop is empty. This is often a requirement in strict energy codes like California Title 24.
"Can I use these in a wash bay?" Yes, but you must ensure the fixture is IP65 rated. This means it is 'dust tight' and protected against water jets. According to the IEC 60529 standard, an IP65 rating is the benchmark for fixtures used in damp or dusty environments like workshops and barns.
Final Thoughts
Achieving a showroom-worthy garage doesn't mean you have to work in the dark. By starting with a symmetrical baseline and then strategically 'breaking the grid' for your task areas, you get the best of both worlds. Remember to prioritize safety certifications like UL and performance benchmarks like DLC. Not only does this ensure a 'Solid' and 'Bright' experience for years to come, but it also turns your lighting upgrade into a high-ROI home improvement project.
Disclaimer: This article is for informational purposes only and does not constitute professional electrical or construction advice. Always consult with a licensed electrician and follow your local building codes (such as the NEC) before performing electrical work. High-ceiling installations involve risks; always use proper fall protection and equipment.
