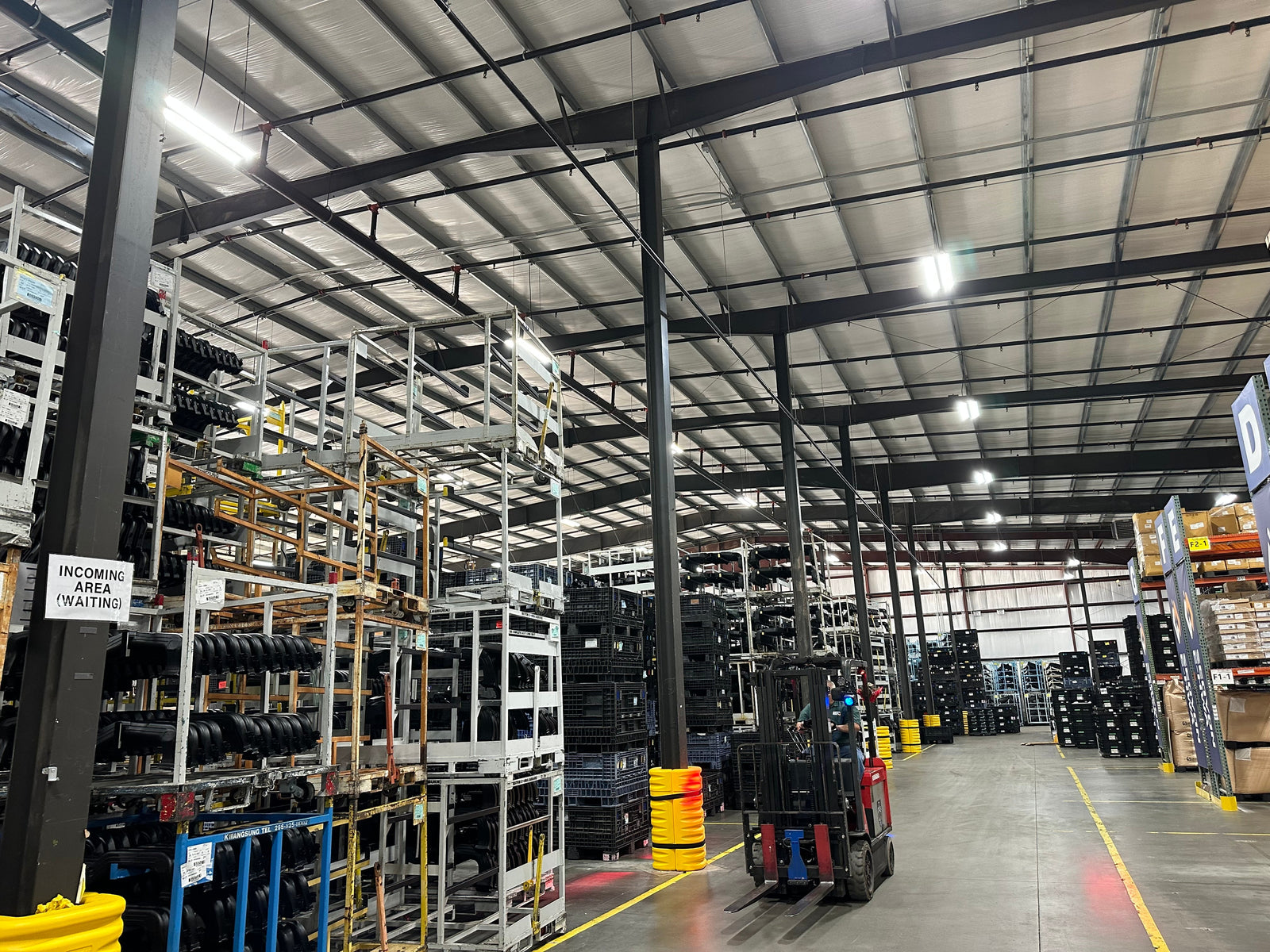

Calculating UFO High Bay Lumens for Your Space
Getting UFO high bay lighting right starts with one question: how many lumens does your space actually need? Once you know that, fixture wattage and quantity become a straightforward calculation instead of guesswork.
This guide walks through:
- How to set a realistic target lux/foot-candle level for your application
- A simple lumen formula you can run on any warehouse, barn, or garage
- How ceiling height, spacing, reflectance, and dirt change the answer
- Practical examples for common mounting heights (12–40 ft)
- When you must move from “rule of thumb” to a full photometric layout
Along the way, you will see where standards from the Illuminating Engineering Society (IES) and energy‑efficiency programs shape good practice, and where real‑world experience says you need to go further.
1. Start With Target Illuminance, Not Fixture Lumens
1.1 Task-based target lux ranges
Professional lighting design always starts from the task, not the fixture catalog.
For most warehouse, shop, and industrial spaces, a practical working set of targets (horizontal illuminance at floor or workplane) looks like this, consistent with summaries of ANSI/IES RP‑7 industrial lighting practice:
| Space / Task Type | Typical Target Lux (lx) | Typical Target Foot‑candles (fc) |
|---|---|---|
| Bulk storage / general warehouse | 100–150 lx | 10–15 fc |
| Aisle stocking / picking | 150–250 lx | 15–25 fc |
| Packing, assembly (general) | 300–500 lx | 30–50 fc |
| Fine assembly / inspection | 500–1000 lx | 50–100 fc |
| Hobby/DIY garage, general work | 200–300 lx | 20–30 fc |
IES recommendations are usually given as minimum maintained values, so these ranges are a starting point, not a ceiling. As the IES Illuminance Selector notes, higher values are appropriate for older workers or tasks with very fine detail.
Pro Tip – Don’t treat tables as “brightness caps”. For a precision inspection line or a shop where users do detailed electrical work, experienced designers often aim for 1.5–2× the minimum values from the Illuminance Selector. That extra light improves speed and reduces errors without a big energy penalty when paired with 0–10 V dimming.
1.2 Horizontal vs vertical illuminance (and why it matters)
A common misconception is that meeting an average lux level on the floor automatically means the space is well lit. In reality, that only guarantees horizontal illuminance.
According to the IES Illuminance Selector, recommended values are expressed at the working plane, but it also emphasizes seeing faces, labels, and vertical surfaces in industrial facilities. In practice this means:
- In aisle and racking layouts, you must think about light on pallet faces and signage, not just the slab.
- For safety and security, vertical illuminance on faces is critical so people can see each other clearly.
Wide-beam UFO high bays with higher mounting heights often give more usable vertical light in aisles than narrow beams aimed straight down. That should influence both your lumen selection and your optics choice.
2. The Core Formula: From Lux to Total Lumens
Once you know your target lux, the core calculation is straightforward. The standard design relationship is:
Total lumens required = Area × Target lux ÷ (CU × LLF)
Where:
- Area = floor or workplane area in square meters (m²)
- Target lux = design illuminance (lx)
- CU (Coefficient of Utilization) ≈ fraction of lamp lumens reaching the workplane
- LLF (Light Loss Factor) ≈ multiple to account for lumen depreciation, dirt, etc.
This structure mirrors how IES calculation methods handle lumen output and losses, as summarized in many design guides such as the Elite Lighting foot‑candle recommendations document.
2.1 Picking realistic CU and LLF values
CU (Coefficient of Utilization) depends on:
- Fixture distribution (wide vs narrow)
- Room cavity ratio (height and proportions)
- Surface reflectances (ceiling/walls/floor)
For quick field estimates with UFO high bays:
- Simple, high‑ceiling boxes (light ceiling/walls): CU ≈ 0.7–0.8
- Dark or cluttered shops/barns: CU ≈ 0.5–0.6
LLF (Light Loss Factor) combines:
- LED lumen depreciation (L70, L80, etc., projected per LM‑80 and TM‑21)
- Dirt depreciation (how dusty; how often you clean)
- Voltage variation and other minor factors
Secondary summaries of IES methods referenced in the Elite Lighting guide above show that “generic 0.8” LLF assumptions are optimistic in dirty spaces. Field experience and that same summary indicate that in warehouses with infrequent cleaning, true LLF can drop below 0.6, meaning a design that “looked conservative” on paper can miss targets by 25–30%.
For UFO high bays, practical LLF choices are:
- Clean warehouse, LED, regular cleaning: LLF ≈ 0.75–0.80
- Moderately dusty shop/barn: LLF ≈ 0.65–0.75
- Heavy dust, rare cleaning: LLF ≈ 0.55–0.65
2.2 Quick selection table for CU × LLF
For fast hand calculations it is convenient to work with the product CU × LLF:
| Space Condition | CU | LLF | CU × LLF (use in formula) |
|---|---|---|---|
| Bright, clean warehouse, light walls/ceiling | 0.75 | 0.80 | 0.60 |
| Typical warehouse / shop, mixed reflectances | 0.65 | 0.70 | 0.46 |
| Dark barn / dirty industrial, rare cleaning | 0.55 | 0.60 | 0.33 |
Using the right CU × LLF is where professional designs usually separate from rough estimates.
2.3 Example: 10,000 ft² general warehouse
Assume:
- Area = 10,000 ft² ≈ 929 m²
- Target = 150 lx (midpoint of 100–150 lx range for general warehouse)
- Conditions = typical warehouse → CU × LLF ≈ 0.46
Now calculate:
-
Total lumens required
- Raw lumens at workplane: 929 m² × 150 lx = 139,350 lm
- Accounting for CU × LLF: 139,350 ÷ 0.46 ≈ 303,000 lumens
-
Convert lumens to fixture count
Suppose you are considering a UFO high bay around 28,000–30,000 lm initial output.
- 303,000 ÷ 29,000 ≈ 10.4 → plan for 10–11 fixtures
-
Reality check with height and spacing
If your mounting height is 25 ft and you want S/MH ≈ 1.0 (spacing‑to‑mounting‑height ratio; see Section 3), then:
- Spacing target ≈ 25 ft
- A 10,000 ft² square is ~100 ft × 100 ft → 4 × 4 grid = 16 fixtures at 25 ft spacing
- The lumen formula says 10–11 fixtures; S/MH says 16 for uniformity
In this case you usually hold the 16 fixtures for uniformity and accept higher average lux (and dim them down with 0–10 V controls if needed).
This illustrates a key principle from many industrial lighting notes and photometric application guides, such as the S/MH discussions in high‑bay application notes: lux and spacing constraints must both be satisfied.
3. Height, Spacing, and Beam Angle: Don’t Break S/MH
3.1 Spacing‑to‑mounting‑height (S/MH) rules of thumb
For UFO high bays in open areas, a reliable field heuristic is:
- Wide distribution (typical 90–120° optic): S/MH ≈ 0.8–1.2
- Narrow distribution (60–90°): S/MH ≈ 0.5–0.8
These ranges align with manufacturer application notes and are consistent with spacing guidance cited in industrial high‑bay design summaries.
Rearranged:
Maximum spacing ≈ S/MH × Mounting height
Examples:
- 20 ft mounting height, wide optics → spacing ≈ 16–24 ft
- 30 ft mounting height, wide optics → spacing ≈ 24–36 ft
Expert Warning – S/MH is not optional. A frequent failure in quick retrofits is pushing spacing to 1.5× mounting height or more to cut fixture count. As highlighted in spacing guidance summarized from major manufacturers, once S/MH exceeds ~1.2 for wide distributions, uniformity collapses and you see bright “puddles” with dark scallops between. Meeting average lux while ignoring S/MH is one of the fastest ways to create complaints.
3.2 How beam angle changes required lumens
Beam angle and optics change the effective CU. Experience across large retrofit programs shows:
- Switching from a wide 120° optic to a tighter 90° can concentrate more light where you need it in high racks, improving vertical illuminance and allowing 10–15% lower total lumens.
- Using reflectors or lenses to manage glare and boost uplight can improve perceived brightness and vertical light, again allowing small lumen reductions.
- Conversely, using very wide or bare‑LED optics in low‑reflectance barns often needs 15–30% more lumens to hit the same working plane level because much of the light spills onto dark surfaces.
The DOE’s Solid‑State Lighting technology fact sheets underline that distribution and controls often matter as much as raw efficacy when you look at real kWh savings.
3.3 Surface reflectance: the “free lumen boost”
Surface reflectance drives CU. Summaries of IES guidance on reflectance and utilization factors, such as the analysis compiled by Waypoint Lighting using IES data, show that repainting walls and ceilings from dark to light can increase working plane illuminance by 10–20% with the same fixtures.
In practice:
- Light ceilings and walls (50–70% reflectance) → higher CU → fewer lumens required
- Bare metal, dark wood, or dirty surfaces (20–30% reflectance) → lower CU → more lumens required
If you have flexibility in a retrofit, raising reflectances is often more cost‑effective than stepping up an entire lumen package.
4. Step‑by‑Step Method: From Empty Room to Fixture Count
This section turns the concepts into a repeatable procedure you can use on any project.
4.1 Quick configuration template
Use this as a worksheet for each space:
| Step | Item | Example Value |
|---|---|---|
| 1 | Room length × width | 80 ft × 50 ft |
| 2 | Mounting height (MH) above workplane | 20 ft |
| 3 | Task type / target lux | Packing – 300 lx |
| 4 | Room condition (CU × LLF) | Typical shop – 0.46 |
| 5 | Beam type (wide/narrow) | Wide |
| 6 | S/MH range | 0.8–1.2 |
| 7 | Candidate fixture lumens | 18,000 lm |
4.2 Worked example: 4,000 ft² shop at 20 ft
Assume:
- Size: 80 ft × 50 ft → 4,000 ft² ≈ 372 m²
- Mounting height: 20 ft
- Task: mixed repair and assembly → target 300 lx
- Condition: typical shop (mixed surfaces) → CU × LLF ≈ 0.46
- Candidate fixture: ~18,000 lm UFO high bay
Step 1 – Total lumens
- Raw lumens at workplane: 372 m² × 300 lx = 111,600 lm
- With CU × LLF: 111,600 ÷ 0.46 ≈ 243,000 lm
Step 2 – Fixture count by lumens
- 243,000 ÷ 18,000 ≈ 13.5 → 14 fixtures
Step 3 – Check spacing vs S/MH
Target S/MH = 0.8–1.2 → spacing ≈ 16–24 ft.
- Try a 3 × 5 grid (15 fixtures) in 80 ft × 50 ft:
- Along 80 ft: spacing ≈ 80 / 4 ≈ 20 ft
- Along 50 ft: spacing ≈ 50 / 2 ≈ 25 ft
- S/MH ≈ 20/20 = 1.0 one way, 25/20 = 1.25 the other → acceptable but on the high side.
You could:
- Use 15 fixtures on a 3 × 5 grid, then dim slightly because lumens are a bit above the 14‑fixture estimate, or
- Use 14 fixtures and accept slightly lower uniformity but stay within S/MH ≈ 1.2.
In practice, most contractors choose the 3 × 5 grid and lean on 0–10 V dimming to fine‑tune levels.
For a deeper walkthrough focused on warehouse safety and hazard visibility, see the dedicated layout guide in Designing a High Bay Layout for Warehouse Safety on this site.
4.3 Worked example: 12 ft DIY garage with UFOs
Secondary audience garages and hobby shops often have lower ceilings, but many users prefer UFO high bays over traditional shop lights for punch and aesthetics.
Consider:
- Size: 24 ft × 30 ft → 720 ft² ≈ 67 m²
- Mounting height: 11 ft above floor (allowing for fixtures below ceiling)
- Target: 250 lx (between general garage and light task work)
- Condition: light walls, reasonably clean → CU × LLF ≈ 0.60
- Candidate fixture: ~18,000 lm UFO is too aggressive at this height; consider 10,000–12,000 lm units instead.
Lumens and count
- Raw lumens: 67 m² × 250 lx = 16,750 lm
- With CU × LLF = 0.60 → 16,750 ÷ 0.60 ≈ 27,900 lm total
If using 10,000–12,000 lm fixtures:
- 27,900 ÷ 11,000 ≈ 2.5 → plan 3 fixtures, but check glare.
S/MH check
- S/MH (wide optic) target 0.8–1.0 → spacing ≈ 9–11 ft
- A 24 × 30 ft space with 3 fixtures in a simple row likely pushes spacing beyond this; a 2 × 2 grid (4 fixtures) of smaller‑lumen UFOs often delivers better uniformity and avoids harsh point sources.
For more low‑ceiling specific trade‑offs between UFO and linear form factors, see Low‑Ceiling Garage Challenge: UFO vs. Linear Lights in this knowledge base.
5. Accounting for Real‑World Losses: Thermal, Dirt, and Aging
5.1 Thermal and driver de‑rating
Lab‑tested lumen values from LM‑79 photometry are taken at controlled temperatures. In real high‑bay applications, ambient temperatures can be far higher.
Energy‑efficiency standards and field experience summarized by the U.S. Department of Energy in its SSL standards and test procedure overview show that thermal conditions and driver performance routinely trim 10–25% from usable lumens in hot environments.
In practice for UFO high bays:
- Mounting in unconditioned metal buildings or close to warm ceilings reduces output.
- Clustering many fixtures without airflow increases case temperature.
- Drivers with robust thermal protection will reduce current to protect components, dropping lumens.
When designing for hot barns, factories, or sun‑exposed warehouses, it is normal to treat catalog lumens as 90–95% of nominal for calculations, and verify that TM‑21 projections (L70 or L80) are based on LED case temperatures close to the application.
5.2 Dirt and maintenance planning
Research summarized in the Elite Lighting foot‑candle guide, based on IES light loss factor methods, highlights that dusty industrial spaces can push LLF below 0.6 if fixtures and room surfaces are not cleaned regularly. That is a big difference compared with the “rule of thumb” 0.8 still used in many quick layouts.
Implications:
- For mills, barns, and fabrication shops, design on an LLF of 0.55–0.65 unless you know cleaning will be frequent.
- For clean logistics warehouses, LLF of 0.70–0.80 is generally safe.
Real‑world experience from long‑running LED programs, as reported by the DesignLights Consortium, also shows that LED lumen depreciation is non‑linear and dirt accumulation is seasonal. The most robust practice is to measure light levels 1–2 years after commissioning and adjust cleaning or dimming profiles if readings fall outside the target band.
5.3 Pro Tip – Aim higher when you have controls
The U.S. Department of Energy’s Solid‑State Lighting technology fact sheets report that occupancy and daylight controls in warehouses often cut lighting operating hours by 30–60%. When your fixtures are off or dimmed that much of the time, it becomes practical to:
- Slightly oversize lumen packages to maintain good light at end‑of‑life
- Use higher minimum dim levels early on for comfort, then relax them as components age
In other words, pairing a higher‑lumen UFO high bay with 0–10 V dimming and code‑compliant controls is often a better strategy than installing too few lumens and having no headroom to compensate as the system ages.
6. Quick Selection: Lumens and Wattage by Height
The table below summarizes starting points, assuming:
- Wide distribution UFO high bays
- CU × LLF ≈ 0.46 (typical mixed‑surface warehouse/shop)
- Target ≈ 150 lx for general storage, 300 lx for work areas
These are practical approximations synthesized from real retrofit projects, not regulatory limits.
| Mounting Height | Typical Spacing (wide optic) | General Storage Target | Suggested Fixture Output | Typical System Watts* |
|---|---|---|---|---|
| 12–14 ft | 10–14 ft | 150–200 lx | 8,000–12,000 lm | 60–100 W |
| 16–18 ft | 14–18 ft | 150–250 lx | 12,000–18,000 lm | 90–140 W |
| 20–24 ft | 16–24 ft | 150–300 lx | 18,000–26,000 lm | 130–200 W |
| 26–30 ft | 20–28 ft | 150–300 lx | 24,000–32,000 lm | 180–240 W |
| 30–40 ft | 24–32 ft | 150–300 lx | 30,000–40,000 lm | 220–300 W |
*Assuming efficacy of roughly 120–140 lm/W, consistent with federal high‑efficiency specification ranges such as those in the U.S. DOE FEMP guidance for commercial and industrial luminaires.
How to use this table:
- Find your mounting height row.
- Pick a fixture lumen band based on whether the space is storage‑only or work‑intensive.
- Use the spacing column as a sanity check on your grid.
- Run the exact lumens formula (Section 2) with your room area to refine fixture count.
For a warehouse‑specific treatment that ties fixture selections to safety considerations such as racking, travel paths, and task zones, refer to the separate Warehouse Lumens Guide for UFO High Bay Lights article in this library.
7. Expert Warning: Common Myths About UFO High Bay Lumens
Myth 1 – “Just match metal halide wattage”
A persistent myth is that a 1:1 wattage replacement (e.g., 400 W metal halide → 200 W LED) guarantees equivalent light. Field studies captured in DOE SSL fact sheets show that distribution, lumen maintenance, and controls often let well‑designed LEDs outperform legacy fixtures at half the input power, but this is not because wattage matches—it is because photometric design changes.
Reality: Always work from lumens and photometry (.ies files), not fixture wattage, and confirm that the chosen LED fixture’s distribution actually puts light where the task is.
Myth 2 – “If the average lux is right, the design is done”
Designers sometimes stop after checking that the average illuminance meets the table. As discussed earlier and emphasized by IES industrial practice documents, average horizontal illuminance alone says nothing about uniformity, vertical light, or glare.
Reality: A warehouse can hit 200 lx average and still have:
- Dark ends of aisles
- Harsh glare at floor level
- Poor visibility of labels and faces
Spacing, beam shape, and glare control need as much attention as the lumen math.
Myth 3 – “Initial lumens are what you get forever”
It is tempting to size your UFO high bays from catalog “initial lumens” and skip LLF. However, DOE’s standards and test procedures overview highlights that LM‑80 data (long‑term LED testing) and TM‑21 projections are essential precisely because lumen output drops over time and varies with temperature.
Reality: For most industrial applications, design as if you have 10–25% fewer lumens than the initial catalog number, especially in hot or dirty spaces, and use controls to fine‑tune output in the early years.
8. When You Need a Full Photometric Layout
The methods in this article are intentionally simple so contractors, facility managers, and DIYers can get to a solid first pass quickly. There are, however, conditions where a proper photometric layout using .ies files and software such as AGi32 is essential:
- Complex racking or mezzanines where vertical illuminance and shadowing are critical
- Very tall spaces (35–60 ft) where narrow beams and aiming angles matter
- High‑risk industrial tasks (fine inspection, moving machinery) where IES RP‑7 recommends higher levels and better glare control
- Code‑driven projects where you must document compliance with ASHRAE 90.1, IECC, or Title 24 and need exact lighting power density and control zone calculations
In these cases, use the lumen and S/MH methods as a pre‑design filter to select likely wattages and distributions, then request detailed layouts with:
- IES files conforming to IES LM‑63
- Documented LM‑79 and LM‑80 reports
- DLC listing data where rebates are needed (via the DLC Qualified Products List)
For many users, an online lighting layout calculator tailored to UFO high bays is the ideal bridge between quick rules and full‑blown design. It lets you type in room dimensions, height, target lux, and a candidate fixture lumen package, and then see both quantity and spacing recommendations.
9. Key Takeaways
- Start from the task. Pick a target lux level based on what people actually do in the space, using IES‑based ranges as minimums.
- Use the lumen formula. Total lumens = Area × Target lux ÷ (CU × LLF). Adjust CU × LLF for real reflectances and dirt, not theoretical “clean room” values.
- Respect S/MH. Treat spacing‑to‑mounting‑height ratios around 0.8–1.2 (wide optics) as a design constraint, not a suggestion.
- Derate for reality. Assume 10–25% losses for thermal, dirt, and aging, especially in hot, dusty high‑bay environments.
- Leverage controls. 0–10 V dimming and occupancy/daylight sensors let you spec higher lumen packages without wasting energy.
- Know when to escalate. For racked warehouses, tall bays, or critical tasks, move from rules of thumb to a full photometric layout backed by LM‑79, LM‑80, and DLC/IES documentation.
Done well, calculating UFO high bay lumens is a disciplined, repeatable process—not a guessing game. With a few key inputs and the methods above, you can quickly converge on fixture lumen packages and wattages that deliver safe, comfortable, and efficient lighting for almost any high‑ceiling space.
FAQ
Q1. How many UFO high bays do I need for a 30 × 60 ft shop with 16 ft ceilings?
Convert area: 30 × 60 = 1,800 ft² ≈ 167 m². For 300 lx (task work) and typical CU × LLF of 0.46: total lumens ≈ 167 × 300 ÷ 0.46 ≈ 109,000 lm. Using ~15,000 lm fixtures suggests about 7–8 fixtures. Then check spacing vs S/MH (≈ 13–19 ft at 16 ft MH) and adjust the grid to keep uniformity acceptable.
Q2. Should I choose higher lumen fixtures and dim them, or lower lumen fixtures at full power?
For most industrial projects, higher lumen fixtures with 0–10 V dimming are the smarter move. DOE fact sheets show controls can reduce operating hours by 30–60%, so slightly oversizing lumens and dimming early gives you headroom as LEDs age and dirt accumulates, without increasing lifetime energy use.
Q3. How do I convert between lux and foot‑candles when using older specs?
1 foot‑candle ≈ 10.76 lux. To convert: fc × 10.76 = lux, or lux ÷ 10.76 = fc. Many IES tables and legacy specs use foot‑candles, while most modern calculators and sensors read in lux.
Q4. Is it okay to mix different lumen packages in the same space?
Yes, as long as you maintain good uniformity and avoid abrupt transitions. A practical approach is to keep one lumen package per zone (e.g., higher in assembly areas, lower in storage) and ensure each zone has consistent spacing and optics.
Q5. When calculating lumens, do I need to include emergency lighting?
Emergency egress lighting often has separate code requirements (for example, in life safety standards like NFPA 101). In some projects, high bays are part of the emergency system, which can affect your control strategy and wiring. Always coordinate with the project’s electrical engineer and local code officials.
Safety & Compliance Notice
Lighting calculations affect safety‑critical systems, including visibility for people and vehicles. This article is for informational purposes only and does not replace the judgment of a licensed professional engineer, electrician, or code authority. Always verify final designs and installations against current electrical codes, building codes, and applicable standards, and consult qualified professionals for project‑specific decisions.
