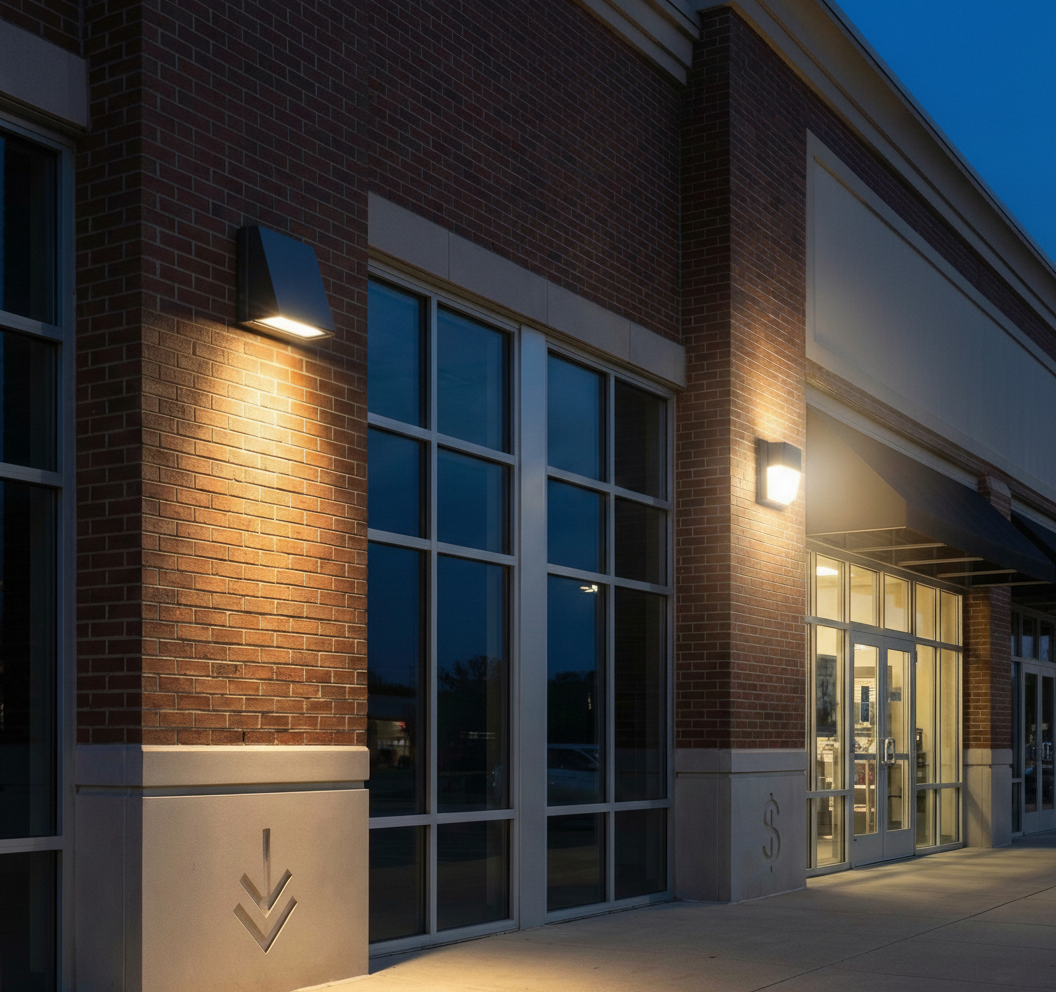

The Technical Path to Dusk-to-Dawn Automation
Retrofitting dusk-to-dawn (DTD) controls onto legacy wall packs is a pragmatic strategy for facility managers seeking to enhance security and reduce energy waste without the capital intensity of a full fixture replacement. By automating the "on/off" cycle based on ambient light levels, facilities can eliminate human error—such as lights left on during daylight hours—and ensure consistent perimeter illumination.
Quick Summary: Most legacy wall pack retrofits are achieved by installing a 120-277V button or swivel photocell on the line-side of the fixture’s power supply. This upgrade typically yields a payback period of 1.5 to 3.5 years by reducing daytime energy waste and extending the lifespan of LED drivers or HID ballasts.
However, a successful retrofit is more than a simple wiring task. It requires a precise understanding of driver compatibility, inrush current management, and weatherproofing standards. As noted in the 2026 Commercial & Industrial LED Lighting Outlook, the industry is moving toward integrated "smart" controls, but for millions of existing fixtures, an external photocell remains the most cost-effective bridge to modern efficiency.
1. Electrical Assessment: The "Driver Gotcha" and HID Realities
The first step in any retrofit is determining the internal architecture of the existing wall pack. While older High-Intensity Discharge (HID) fixtures are straightforward to control via line voltage, LED wall packs present unique challenges.
Driver Compatibility
Many older LED wall packs utilize constant-current drivers. A common mistake is attempting to wire a simple button photocell in series with the driver's output. This can lead to driver failure or unstable light output. The correct approach is to verify if the driver has a switched line input or a dedicated dimming (0-10V) lead that supports "Daylight Harvesting" logic.
The Inrush Current Factor
When retrofitting controls onto legacy HID ballasts (Metal Halide or High-Pressure Sodium), you must account for inrush current. According to the Study of Inrush Current, the initial current spike when an HID lamp strikes can be 5 to 15 times the steady-state operating current.
- The Risk: Standard consumer-grade photocells often have contacts that "weld" shut under this stress, causing the light to stay on 24/7.
- The Solution: Use a photocell with a properly rated internal relay or, for high-wattage arrays, install an external contactor to handle the load.
Field Observation: Based on internal technical support logs and field assessments of major legacy brands, we estimate that approximately 70% of LED wall packs manufactured before 2018 lack dedicated internal sensor ports. This data—derived from common patterns in customer support and repair handling—suggests that line-side switching is the most broadly applicable retrofit method.
2. Component Selection: Photocell Types and Standards
Selecting the right sensor is critical for long-term reliability. In a B2B environment, "Value-Pro" means choosing components that meet strict safety and performance benchmarks.
UL and ETL Certification
Never install a control component that lacks a UL Listed or ETL Listed mark. These certifications provide objective evidence that the component has been tested for electrical safety, fire resistance, and durability under load. For wall packs, look specifically for compliance with UL 1598, which covers general-purpose luminaires.
Mounting Form Factors
| Photocell Type | Best Use Case | Installation Complexity |
|---|---|---|
| Button Photocell | Compact fixtures; side-wall mounting. | High (requires drilling/tapping). |
| Swivel/Stem Mount | Directional control; avoiding false triggers. | Moderate (uses 1/2" knockout). |
| Twist-Lock (ANSI C136.10) | Industrial/Street lighting; easy replacement. | Low (if NEMA receptacle exists). |
IP Ratings (IEC 60529)
Since wall packs are exposed to the elements, the photocell must match or exceed the fixture's IP rating. Most professional wall packs are rated IP65. According to IEC 60529, an IP65 rating ensures the housing is "dust-tight" and protected against water jets from any angle.
3. Step-by-Step Retrofit Installation
Before beginning, always use a multimeter to confirm the fixture is truly switched off at the source. Some legacy installations have "constant hot" wires that remain energized even when the wall switch is off.
Step 1: Prepare the Housing
Locate a 1/2" knockout on the side or bottom of the fixture. If no knockout is available, you will need to drill a hole. Ensure you are drilling into a flat area of the cast aluminum housing to maintain a proper seal.
Step 2: Wiring Configuration
Most North American photocells follow a standard color code:
- Black (Line): Connects to the incoming "hot" wire from the power source.
- White (Neutral): Connects to the incoming neutral and the neutral lead of the light fixture.
- Red (Load): Connects to the "hot" input lead of the light fixture's driver or ballast.
Step 3: Proper Orientation (The North Rule)
A professional rule of thumb is to mount the photocell facing true north (in the Northern Hemisphere). This prevents the sensor from being "blinded" by direct sunrise or sunset light, which can cause rapid cycling (flickering).
Step 4: Advanced Weatherproofing
For superior long-term corrosion resistance, do not rely on electrical tape alone.
- Dielectric Grease: Apply a small amount inside wire connectors before tightening.
- Heat-Shrink & Silicone: Use heat-shrink tubing over connections, and apply a bead of outdoor-rated silicone around the base of the photocell where it meets the fixture housing.
4. Compliance and Regulatory Standards
For B2B projects, staying compliant with the National Electrical Code (NEC) is non-negotiable.
FCC Part 15 and EMI
Retrofitting low-quality electronic photocells can introduce electromagnetic interference (EMI). Ensure your components comply with FCC Part 15. This is critical in facilities like hospitals where EMI can disrupt sensitive equipment.
Energy Codes: IECC and Title 24
In jurisdictions following IECC 2024 or California Title 24, automated lighting controls are often mandatory for outdoor spaces. Retrofitting a photocell helps existing buildings meet these requirements without a full system overhaul.
Methodology Note: Our compliance guidance is aligned with the GSA LED and Controls Guidance (2023), which emphasizes open-standard controls to ensure long-term facility interoperability.
5. ROI Justification: The "Truck Roll" Reality
While a photocell retrofit kit costs between $20 and $50, the true project cost is labor.
The Labor Risk
Research indicates that the cost of a single "truck roll" (an electrician's service visit) typically ranges from $100 to $300 (source: FieldEdge). If a low-quality photocell fails, the replacement cost far exceeds the energy savings.
ROI Calculation Model
To estimate your specific payback period, use the following formula: Payback Period (Years) = (Hardware Cost + Labor Cost) / Annual Energy Savings
| Parameter | Example Value | Your Value (Input) | Rationale |
|---|---|---|---|
| Hardware (Kit) | $35 | $_______ | High-quality button sensor. |
| Labor (Install) | $125 | $_______ | 1 hour (including overhead). |
| Wattage Saved | 100W | _______W | Power of fixture no longer running in daylight. |
| Utility Rate | $0.12 | $_______ | Your local cost per kWh. |
| Annual Savings | $45 | $_______ | (Watts/1000) * Hours Saved * 365 * Rate. |
Note: The example payback of ~3.5 years assumes a $0.12/kWh rate and a reduction of 4 operating hours per day for a 100W fixture. Individual results will vary.
6. Security Strategy: Dusk-to-Dawn vs. Motion-Activated
There is a common debate in security circles regarding constant illumination versus motion-activated lighting.
The Deterrence Mechanism
According to security experts at Tuma Lawn & Landscaping, constant dusk-to-dawn lighting provides a predictable environment for surveillance. Conversely, motion-activated lighting provides a "psychological jolt" to intruders by suddenly drawing attention to their presence.
The Hybrid Approach
For high-security industrial sites, the most effective strategy is often a "Dim-to-Bright" setup:
- Dusk: Lights turn on at a 20% dim level (requires 0-10V drivers).
- Motion Detected: Lights ramp up to 100% brightness.
- Benefit: This saves maximum energy while providing the active deterrent of a sudden light increase.
Final Implementation Checklist
Before finalizing your retrofit project, address these technical points:
- Voltage Range: Confirm the photocell is rated for your facility's voltage (e.g., 120-277V multi-volt).
- Cleanliness: Schedule semi-annual cleaning of the sensor lens to prevent "false dusk" triggers caused by dirt buildup.
- Testing: Use an opaque bag to cover the sensor during the day to verify the light turns on. Wait at least 60 seconds, as pro-grade sensors have a built-in time delay to prevent "hunting" during cloudy periods.
YMYL Disclaimer: This article is for informational purposes only and does not constitute professional electrical, legal, or security advice. Electrical work involves significant risks of fire and injury. Always consult with a licensed electrician and refer to the National Electrical Code (NEC) before performing any modifications to building systems.
