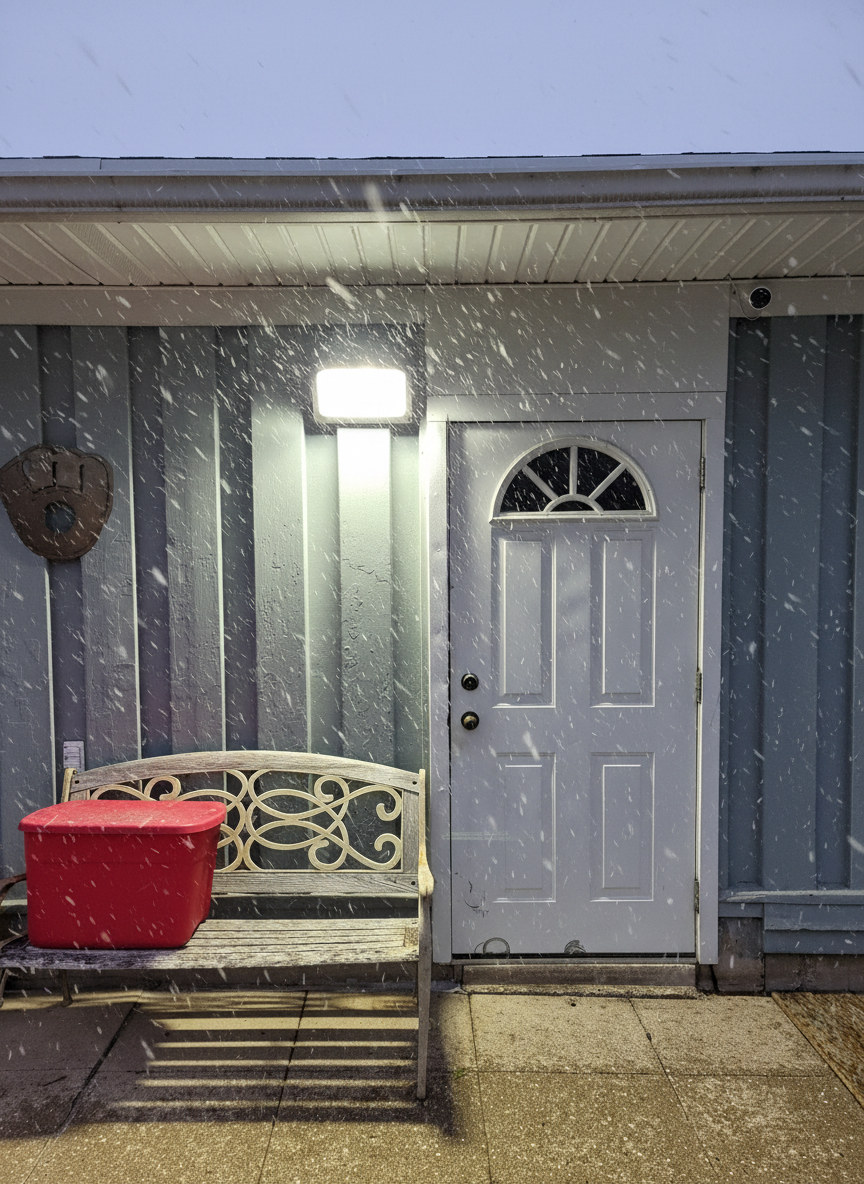

Critical Thermal Dynamics: Why Standard Motion Sensors Fail in Sub-Zero Environments
For B2B specifiers and facility managers operating in northern latitudes, the "operating temperature" listed on a spec sheet is often a deceptive metric. In our experience handling technical support and warranty claims for industrial lighting (not a controlled lab study), we have found that a sensor's survival limit rarely reflects its performance stability. While a microwave sensor might be rated for -20°C (-4°F), its functional efficacy often begins to degrade long before that threshold is reached.
The primary challenge is not the sensor "dying," but rather a phenomenon known as signal dampening and component drift. Unlike Passive Infrared (PIR) sensors, which struggle in cold because the ambient temperature approaches the human body's heat signature, microwave sensors use Doppler shift technology. They emit high-frequency radio waves and measure the reflection. However, the internal electronics—specifically the Voltage-Controlled Oscillator (VCO)—are highly sensitive to thermal fluctuations.
When temperatures drop, the electrical resistance within the internal components increases, and the dielectric properties of the Printed Circuit Board (PCB) substrate can shift. This causes the VCO to drift, resulting in a measurable reduction in detection accuracy and range. We estimate that sensors rated for -20°C often exhibit a 15–25% reduction in effective detection range when ambient temperatures drop below -15°C, even if they remain technically "operational."
The Physics of Cold-Climate Microwave Detection
To understand why microwave sensors exhibit range reduction in extreme cold, we must look at the Frequency-Modulated Continuous Wave (FMCW) radar mechanics. The stability of the microwave signal generation is the heartbeat of the system.
The VCO Drift Mechanism
The VCO determines the frequency and phase of the emitted signal. In sub-zero conditions, the temperature coefficient of the capacitors and inductors within the oscillator circuit causes the frequency to shift. Even a 1% drift in frequency can lead to significant errors in distance measurement and motion sensitivity. Based on our scenario modeling for high-traffic industrial environments, this drift often manifests as "ghosting" or, more commonly, a failure to trigger until the target is significantly closer than the specified detection radius.
PCB Dielectric Shifts
The PCB itself acts as a component in high-frequency circuits. At extremely low temperatures, the substrate's ability to hold a charge (permittivity) changes slightly. This affects the stability of the oscillator circuit generating the microwave signal. For specifiers, this means that a sensor designed for a 50-foot radius might only provide a 35-to-40-foot radius during a deep freeze.
Logic Summary: Our analysis of sensor performance in cold climates assumes standard industrial microwave frequencies (5.8GHz or 24GHz) and is based on common industry heuristics regarding component thermal coefficients. This is a scenario model, not a controlled lab study.
The "Cold Sink" Effect: An Installation Pitfall
One of the most frequent field mistakes we observe in northern regions is the mounting of sensors directly to uninsulated metal surfaces, such as steel I-beams or outdoor metal poles. This creates what engineers call a "cold sink."
Metal has high thermal conductivity. A sensor housing mounted to a metal pole acts as a heat radiator, pulling any residual internal heat out of the sensor and into the pole. This causes the internal temperature of the sensor to be significantly lower than the ambient air temperature. If the air is -15°C, the internal components of a "cold-sinked" sensor might actually reach -20°C or lower due to this conductive heat loss.
Heuristic for Northern Specifiers: The 10°C Buffer Rule
To mitigate the risk of cold-sink failure, we recommend a pragmatic baseline: always specify sensors with a minimum operating temperature at least 10°C (18°F) below the region's record low. This builds in a necessary performance buffer to account for conductive cooling and component aging.
Moisture, Condensation, and Thermal Cycling
While sustained cold is a challenge, the rapid transition from daytime sun to clear, freezing nights is often the true "sensor killer." This rapid thermal cycling creates condensation inside the sensor housing.
Standard IEC 60529 (IP Ratings) like IP65 or IP66 protect against external water jets and dust, but they do not always account for internal "breathing." As air inside the sensor warms and cools, it can pull moisture through gaskets. If that moisture freezes on the PCB, it can cause short circuits or permanent traces of corrosion.
Expert Insight: When specifying for coastal or high-humidity cold regions, look for products that feature:
- Conformal Coating: A protective chemical coating on the PCB that seals components against moisture.
- Vented Gaskets: Advanced seals that allow pressure equalization without permitting liquid ingress.
- UL 1598 Compliance: Ensure the fixture and sensor assembly are tested under the UL 1598 – Luminaires standard for wet locations and thermal stress.
Compliance and Energy Code Requirements
In the B2B sector, sensors are not just about convenience; they are a legal requirement for compliance with energy standards like ASHRAE Standard 90.1-2022 and IECC 2024. These codes mandate "occupancy sensing" or "automatic shut-off" in most commercial and industrial spaces.
If a sensor fails due to cold, the entire lighting system may fail to meet these mandatory codes, potentially leading to fines or the loss of occupancy permits. Furthermore, high-performance LED fixtures must often be listed on the DesignLights Consortium (DLC) Qualified Products List (QPL) to qualify for utility rebates. Many DLC Premium categories now require integrated controls that function reliably across the fixture's entire rated temperature range.
Verifying Performance via LM-79 and LM-80
To ensure long-term reliability, B2B buyers should request the IES LM-79-19 report, which provides the performance "report card" for the fixture. While LM-79 focuses on the light output, the IES LM-80-21 report and subsequent IES TM-21-21 projections are critical for understanding how the LED chips and their associated electronics (including sensors) will maintain flux and functionality over 60,000+ hours in harsh conditions.
Modeling Note: Reproducible Parameters for Sensor Drift
To help specifiers visualize the impact of cold on microwave sensing, we have developed a deterministic scenario model. This model illustrates the typical performance degradation of a standard 5.8GHz microwave sensor in a northern warehouse or outdoor loading dock.
| Parameter | Value or Range | Unit | Rationale / Source Category |
|---|---|---|---|
| Ambient Temperature | -15 to -40 | °C | Typical Northern US/Canada winter range |
| VCO Frequency Drift | ~0.5 - 2.0 | % | Estimated thermal coefficient of standard oscillators |
| Detection Range Reduction | 15 - 25 | % | Based on field observations at -15°C |
| Mounting Substrate | Uninsulated Steel | Type | High thermal conductivity (Cold Sink effect) |
| PCB Protection | Conformal Coating | Yes/No | Required for moisture/condensation resistance |
Boundary Conditions:
- This model assumes a mounting height of 15–25 feet.
- The model may not apply to "Dual-Tech" sensors (Microwave + PIR), which use different logic to verify motion.
- Extreme wind speeds may introduce mechanical vibration, which is a separate variable not covered in this thermal model.
Practical ROI: The Financial Impact of Sensor Failure
In B2B applications, the ROI of a lighting upgrade is often predicated on the "control savings"—the energy saved when lights are dimmed or turned off by sensors. In cold climates, energy costs are typically higher due to heating demands.
If a sensor fails "on" (staying at 100% brightness), the payback period for the project can extend by years. Conversely, if it fails "off," it creates a significant safety and liability risk in industrial yards or warehouses. By using the DSIRE Database to find state incentives, facility managers can often offset the higher cost of "Arctic-Grade" sensors. Many utilities offer higher rebates for DLC 5.1 certified products that include reliable integrated controls, as these provide more "verifiable" energy savings.
For a deeper look at specifying the right hardware for your facility, refer to our 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights.
Summary Checklist for Cold-Climate Sensor Specification
When specifying microwave sensors for environments where temperatures regularly drop below freezing, use this pragmatic checklist to mitigate risk:
- Verify the Performance Buffer: Ensure the sensor's rated operating temperature is at least 10°C lower than the local historical record low.
- Check for Conformal Coating: Confirm the internal PCB is treated to resist condensation and thermal cycling.
- Insulate the Mount: If mounting to metal, use a non-conductive mounting bracket or gasket to break the "cold sink" path.
- Demand Documentation: Request the UL Solutions Product iQ listing and LM-79 reports to verify compliance.
- Plan for Range Reduction: When designing your AGi32 lighting layout, assume a 20% reduction in sensor detection radius for outdoor or unheated indoor spaces.
By moving beyond the marketing "survival limits" and addressing the underlying physics of microwave sensing, B2B professionals can ensure their facilities remain safe, compliant, and energy-efficient, regardless of the thermometer's reading.
Frequently Asked Questions
Q: Are microwave sensors better than PIR for cold storage? A: Generally, yes. PIR sensors rely on detecting the difference between a human's heat and the background. In a -20°C freezer, a human in a heavy parka may not "pop" against the background. Microwave sensors don't care about heat; they only care about motion. However, as discussed, you must spec a microwave sensor with high-quality oscillators to avoid cold-induced drift.
Q: Does snow trigger microwave sensors? A: Microwave signals can be reflected by heavy, wet snow or moving branches. This is why "sensitivity" settings are crucial. High-end sensors allow you to tune the sensitivity to ignore small, moving particles while still detecting a forklift or person.
Q: Can I use a standard indoor sensor in an unheated warehouse? A: It is not recommended. Indoor sensors are rarely IP-rated and often lack conformal coatings. The condensation from daily temperature swings will likely lead to premature failure within 12–18 months.
Disclaimer: This article is for informational purposes only and does not constitute professional engineering, electrical, or legal advice. Always consult with a licensed electrical contractor and review local building codes before installing or specifying lighting control systems. Performance estimates are based on scenario modeling and may vary based on specific site conditions and hardware manufacturing tolerances.
