To position motion-sensor security lights for multiple approaches, first mark every path and the exact spot where movement should switch the light on. Then pick a mounting spot only if two things are true. The selected fixture's own detection diagram must cover every one of those trigger points from that spot, and its mounting instructions must allow that location.
If no spot passes both checks, one light has not been shown to cover the area. Walk each route on site before you call it covered. Then keep the position, adjust it, move it, or choose a different fixture based on what you actually see.

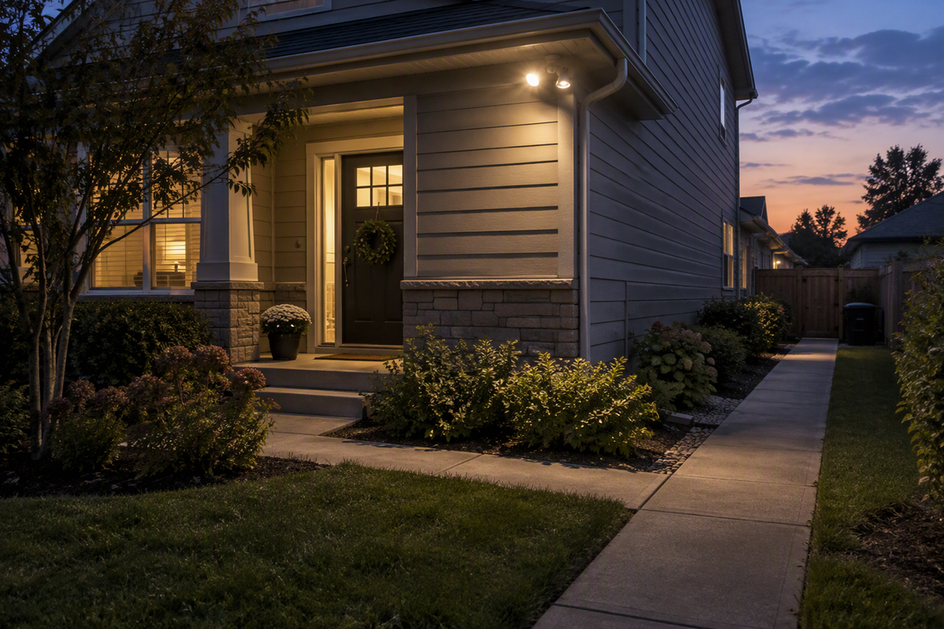

Choose a Candidate Position for All Intended Approaches
The right candidate is a spot where every mapped trigger point falls inside the fixture's documented detection field and the mounting matches its instructions. You get there in three passes: map the routes, compare them with the diagram, and screen for corners and obstructions.
Mark Each Approach and Its Trigger Point
Start with a simple site sketch. Every later check depends on it, so draw it before you judge any mounting spot. A printed overhead photo or a phone photo marked up with arrows works fine. On it, mark:
- Every route in scope: front walk, driveway, side gate, back path, garage service door.
- A trigger point on each route: the spot where a person should first set off the light, such as the bottom porch step or the gate latch.
- Direction of travel: an arrow showing whether people walk toward the house, along it, or around a corner.
- Candidate mounting spots: each wall, eave, or post you could realistically use, labeled A, B, C.
- Fixed features: walls, fences, shrubs, parked cars, and building corners between the candidates and the routes.
This sketch covers your property only. It is not a placement rule for any other layout. Larger sites work the same way. For example, mapping driveway coverage zones comes before choosing fixtures.
Compare Candidate Sites With the Fixture's Detection Diagram
Check each trigger point against the exact fixture's current manual or maintained product documentation. The product name or an advertised range number is not enough. A detection diagram shows the area the sensor is designed to watch. Look closely at the mounting position the drawing assumes, because the field only applies when you install the fixture that way.
Mounting conditions are the permitted height, surface, and orientation listed in the instructions. This guide covers placement only. Any wiring, new junction box, or circuit work belongs with a licensed electrician who follows the manufacturer's instructions and local code.
Set the diagram over your sketch from one candidate at a time and fill in a worksheet like this illustrative one for Spot A:
| Route and trigger point | Diagram and mounting check from Spot A | Result |
|---|---|---|
| Front walk, bottom step | Inside drawn field; mounting allowed | Supported |
| Driveway, top of apron | Outside drawn field | Not supported |
| Side gate latch | Drawing does not reach that far | Not established |
| All routes | Spot A outside permitted mounting | Not supported |
Repeat the worksheet for Spots B and C. Keep the first spot where every row reads Supported. If no spot gets there, a single-light position is not established for this fixture.
Direction matters if the documentation says the sensor is PIR. PIR stands for passive infrared, a sensor that reacts to heat from a moving body. PIR sensors can be more sensitive to movement across the sensor field than along it. So a route that heads straight at the sensor may respond differently than one that crosses in front of it. Use your direction arrows to flag head-on routes for extra attention in the site test. The flag does not prove coverage either way. Home security lights with motion sensor controls can also use other sensor types. Our overview of microwave vs. PIR sensors explains how they differ.
Screen Corners and Obstructions
A route behind a wall, fence, or corner from the candidate spot is unconfirmed until both the diagram and the site test show it is covered. Screen each candidate this way:
- Draw a straight line from the candidate spot to each trigger point. If a wall, fence, shrub, vehicle, or building corner crosses that line, flag the route.
- When paths arrive on opposite sides of a corner, check each side against the diagram on its own. One side passing tells you nothing about the other.
- If the diagram cannot show whether the field reaches past that geometry, mark the route "Not established" instead of assuming it is covered.
- Try a candidate with a clear view of both approaches, such as a spot nearer the corner itself, and rerun the worksheet.
Test Each Approach and Choose the Next Step
A site test turns a paper candidate into a confirmed route, one approach at a time. Your worksheet tells you what to expect. The walk tells you what actually happens.
Record a Separate Result for Each Route
Test one route at a time so each result belongs to one approach. If the fixture's manual describes a test mode or test steps, follow them. Otherwise:
- Start with the light off, so a new trigger is easy to see.
- Walk one mapped route from its start toward its trigger point at a normal pace, following your direction arrow.
- Note where you were when the light came on: before the trigger point, at it, after it, or not at all.
- Write the result next to that route on your sketch: Passed, Late, or Missed.
- Wait until the light is off again, then walk the next route.
Keep these observed results apart from the Supported column in your worksheet. A route can look covered on paper and still miss on site. When the two disagree, the site result decides the next step.
Choose an Adjustment, Relocation, or Different Fixture
Your route results decide the next move. Follow the branch that matches them:
- Every route passed: keep the position.
- A route was late or missed, and the manual documents a control for it, such as sensor aim or sensitivity: make that one documented change. Then walk every route again, because a change made for one path can shift coverage on another.
- A route missed and no documented control addresses it, or it was Not supported on paper: move to the next candidate spot. Rerun the worksheet, then the walk test.
- No candidate passes every route: this fixture has not been shown to cover all of them from one spot. Cover the leftover route with a second light, or look for a fixture with a documented field that fits your sketch. If you compare models in our outdoor wall lights collection, hold each one's detection diagram up against your routes before you order. A different model only earns a place once its own documentation and a site walk support every route.
FAQs
Is a longer advertised detection range enough to cover more approaches?
No. A single range number does not show the field's width or shape. It also does not show whether the field reaches a path around a corner. For home security lights with motion sensor coverage across several routes, the detection diagram and your walk test tell you more than the headline range.
Does the light beam cover the same area as the motion sensor?
Not necessarily. The sensor field and the light's output are separate things, and they need separate checks. A route can trigger the light and still sit outside the brightest part of the beam. For commercial sites, modeling light distribution with IES files can show where the light lands before you install.
Should I retest after landscaping or other changes around the house?
Yes. Retest any route affected by new shrubs, a fence, a shed, or a car parked in a new spot. These features can come between the sensor and a trigger point. Walk those routes again and update your sketch.
Do I need an electrician to move a motion-sensor light to a better spot?
If the new spot needs new wiring, a new box, or circuit changes, hire a licensed electrician. They can do the work to the manufacturer's instructions and local code. You can still do the mapping, diagram check, and route test yourself before and after the move.
