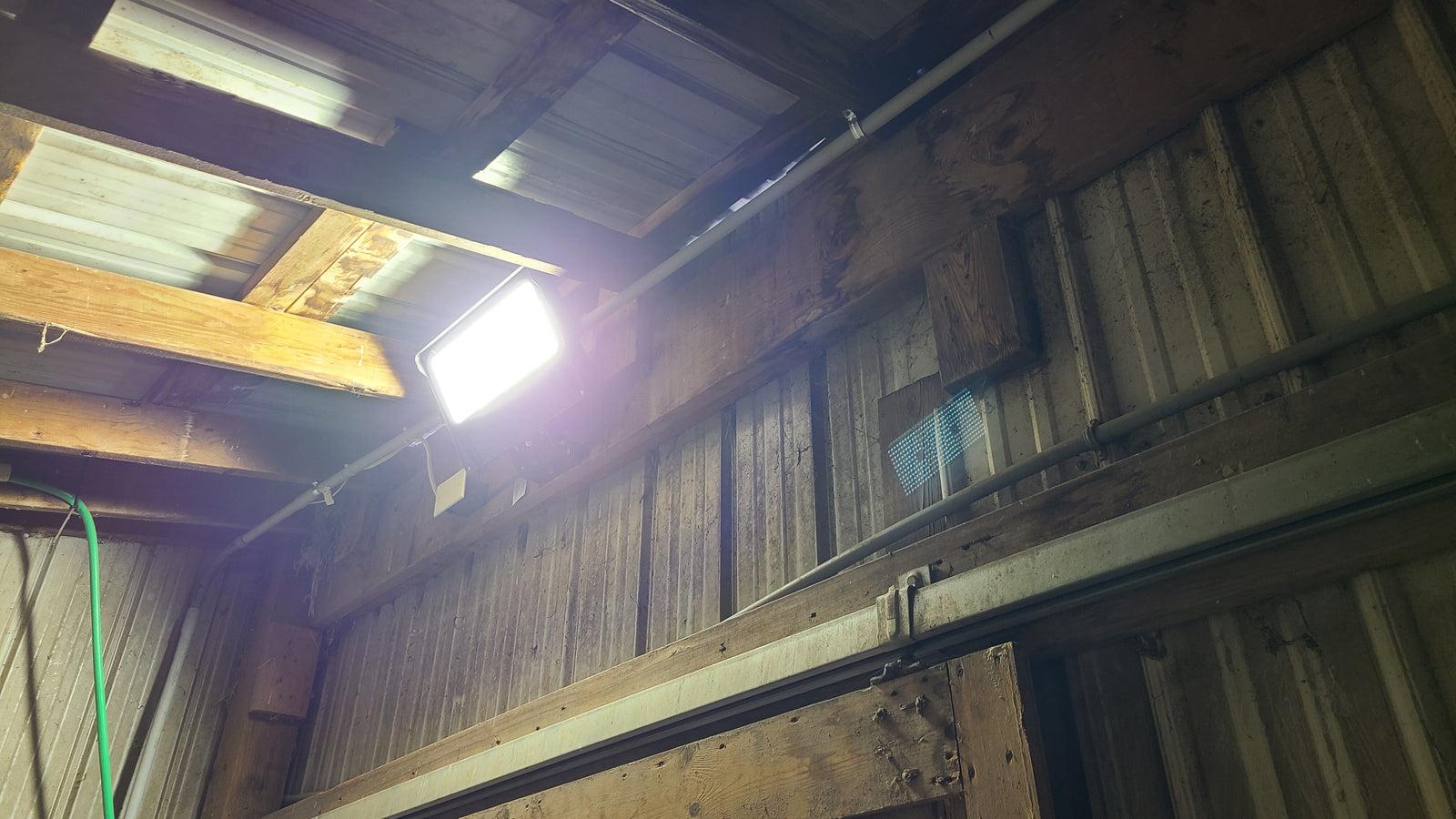

Mounting Linear High Bay Lights in a Pole Barn: A Structural & Electrical Guide
⚠️ Important Safety Disclaimer:
This guide is provided for informational purposes only. Electrical wiring and structural modifications involve significant risks, including fire, electric shock, and structural failure. All installations must comply with local building codes and the National Electrical Code (NEC).
Consult a licensed professional if:
- You need to install a new circuit breaker or modify the main service panel.
- You are unsure about the load-bearing capacity of your trusses.
- The installation height exceeds safe ladder reach (requiring scissor lifts).
- The building is open to the public (commercial code requirements apply).
Lighting a pole barn effectively is less about choosing a fixture and more about mastering the structure it hangs from. Unlike finished commercial spaces with predictable grid ceilings, pole barns present a raw landscape of trusses, purlins, and varying heights. I have seen too many farmers and DIY enthusiasts struggle with dark spots or unsafe installations because they treated a pole barn like a standard garage.
The challenge lies in the mounting. You are often working with exposed wood or metal trusses spaced 4 to 8 feet apart, with mounting heights that can range from 12 to 20 feet or more. A standard residential shop light simply won’t cut it, and an improper installation can lead to fixtures swaying in drafts or, worse, falling due to vibration.
This guide details the specific methods for mounting linear high bay lights in pole barn structures. We will cover how to bridge trusses for secure attachment, the safety factors professional electricians use, and how to layout your lighting to eliminate shadows in a large, open bay.
Structural Assessment: Wood vs. Metal Trusses
Before you purchase a single bolt, you must identify your anchor points. The mounting hardware you choose depends entirely on whether your pole barn uses wood trusses or steel framing.
Working with Wood Trusses
In traditional timber-frame pole barns, the most common mistake is hanging heavy fixtures directly from thin roof purlins (the smaller strips of wood running perpendicular to the trusses) without reinforcement. Purlins are designed to hold the roof skin, not a 10-pound industrial fixture that may be subjected to vibration or impact.
The Professional Approach:
- Bridge the Gap: If your lighting layout requires a fixture between trusses, install a 2x4 "blocking" or "ledger" board spanning two trusses. Secure this blocking with structural wood screws (e.g., 3-inch GRK or Spax), not drywall screws. This creates a solid, vibration-resistant mounting surface exactly where you need it.
- Beam Clamps: For mounting directly to the bottom chord of a truss, avoid drilling vertical holes through the truss, as this can weaken its structural integrity. Instead, use beam clamps or wrap-around hangers designed for the specific width of your lumber.
Working with Steel Trusses
Steel structures offer rigidity but fewer easy fastening points. Critical Warning: Never drill into an engineered steel truss unless the manufacturer specifications explicitly allow it. Compromising the chord can void the building's warranty and structural rating.
The Professional Approach:
- Strut Channel (Unistrut): This is the gold standard for steel buildings. Bridging two steel trusses with a length of strut channel (typically 1-5/8" size) allows you to slide the fixture to the exact position needed using spring nuts.
- Girder Slings: Use non-invasive girder clamps or toggle bolts designed for hollow structural sections (HSS) if you cannot access the backside of the steel member.
Above: Note how the fixtures are aligned with the steel structure. When mounting to steel, ensure clamps are tightened to the manufacturer's specified torque settings.
Mounting Methods: Suspension vs. Surface
Once your anchor points are defined, you must choose a mounting method that suits your ceiling height and task requirements.
Suspension Mounting (Chain or Cable)
This is the most versatile method for pole barns, especially those with high peaks. Suspension allows you to lower the fixture to a more effective height (typically 12–16 feet for standard tasks) without losing light in the rafters.
- Vibration Damping: Chains naturally absorb some vibration from wind or equipment, protecting the fixture’s electronics.
- Leveling: In older barns where the roofline may have settled, adjustable aircraft cables (gripples) allow you to level the lights perfectly, independent of the ceiling angle.
📐 Calculation Example: The 5x Safety Factor
A critical rule of thumb from industrial installers is to size your suspension hardware for 5 times the static load. This accounts for the dynamic stress of cleaning, accidental impacts, or seismic activity.
| Component | Fixture Weight | Safety Factor | Required Working Load Limit (WLL) |
|---|---|---|---|
| Linear High Bay | 12 lbs | 5x | 60 lbs |
In this example, your chain, S-hooks, and eye bolts must be rated for at least 60 lbs. Never use "plant hooks" or open-ended hooks designed for lightweight decor.
Surface Mounting
Surface mounting attaches the fixture directly to a truss or blocking. This is ideal for lower ceilings (under 12 feet) or areas where you need maximum clearance for equipment like tractors or lifts.
- Heat Dissipation: Ensure the fixture has stand-offs or a design that allows airflow between the housing and the wood. LED drivers generate heat, and mounting them flush against insulating wood without airflow can shorten their lifespan.
- Rigidity: Surface-mounted fixtures do not sway, making them a good choice near large overhead doors where wind drafts are common.
Comparison of Mounting Methods
| Feature | Suspension (Chain/V-Hook) | Surface Mount (Bracket) | Rigid Stem (Pendant) |
|---|---|---|---|
| Best For | High ceilings (>15 ft), uneven trusses | Low ceilings (<12 ft), max clearance | High ceilings with heavy drafts |
| Install Difficulty | Low (Forgiving of layout errors) | Medium (Requires precise blocking) | High (Requires conduit work) |
| Adjustability | High (Easy to change height) | None (Fixed position) | Low (Fixed length) |
| Vibration | Absorbs vibration | Transfers vibration to fixture | Rigid transfer |
Wiring and Code Compliance
Wiring in a pole barn is governed by strict safety standards due to the presence of dust, moisture, and potential pests. According to the NFPA 70 – National Electrical Code (NEC), agricultural buildings often fall under special requirements.
Key NEC References for Barns
- Article 547 (Agricultural Buildings): Addresses the unique risks in barns, requiring dust-tight and water-tight enclosures (NEMA 4X or IP65) in areas with livestock or excessive dust.
- Article 300.4 (Protection Against Physical Damage): Mandates that wiring subject to physical damage must be protected.
Hardwiring vs. Plug-and-Play
While many linear high bays come with a standard 120V plug, permanent installations in pole barns should typically be hardwired or use locking plugs to prevent accidental disconnection.
- Conduit Protection: Never run exposed Romex (NM cable) along the bottom of trusses where it can be chewed by rodents or snagged by equipment. Use EMT conduit or Schedule 80 PVC for mechanical protection, especially for vertical drops (switches) and runs below 8 feet.
- Strain Relief: If you are using a cord and plug for a suspended fixture, you must use a strain-relief grip (often called a Kellums grip) to ensure the weight of the cord does not pull on the electrical connection inside the junction box.
- Safety Cables: This is non-negotiable. Always attach a secondary safety cable to the fixture housing and wrap it around a primary structural member (truss). Do not attach it to the same hook as the main mount. If the primary mount fails, this cable prevents the fixture from falling on personnel or expensive machinery.
Environmental Protection
Pole barns are not climate-controlled. Condensation is a real threat. Ensure your linear high bay is rated IP65 or higher, meaning it is dust-tight and protected against water jets. This rating is crucial not just for cleaning, but for surviving the humidity swings typical in agricultural settings.
Layout Strategy: Avoiding the "Spotlight" Effect
A common misconception is that buying the brightest possible light and putting it in the center of the room is the best strategy. This creates a "spotlight" effect with harsh shadows in the corners and under workbenches.
The Spacing Heuristic
For linear high bays with standard 110-120° optics, a practical spacing rule used by lighting designers is 0.7 to 1.2 times the mounting height.
- Example: If you mount your lights at 14 feet, your rows should be roughly 10 to 16 feet apart.
- Cross-Illumination: Position fixtures so that light overlaps. If you are working on an engine block, you want light coming from multiple angles to fill in shadows. A single bright source creates dark shadows that make detailed work difficult.
According to ANSI/IES RP-7-21 – Lighting Industrial Facilities, general manufacturing and repair areas should aim for an illuminance of 30–50 footcandles. For fine bench work, you may need up to 75 footcandles. Commissioning your space with a simple lux meter (or even a phone app) can help you verify you have hit these targets before finalizing the installation.
Above: Proper spacing eliminates dark corners. Notice the uniform light distribution on the floor, achieved by overlapping beam angles.
Pre-Installation Checklist
Before starting your installation, use this checklist to ensure you have all necessary components and safety measures in place.
- [ ] Structural Inspection: Verify trusses are free of rot (wood) or rust (steel) and can support the added load.
- [ ] Hardware Rating: Confirm chains, cables, and hooks are rated for 5x the fixture weight.
- [ ] Secondary Safety: Acquire one safety cable per fixture.
- [ ] Circuit Capacity: Ensure the breaker can handle the total amperage of all new fixtures (Total Watts / Volts = Amps). Keep load under 80% of breaker rating.
- [ ] Access Equipment: Arrange for a scissor lift or scaffolding if mounting height exceeds 12 feet.
Wrapping Up: Building a System That Lasts
Mounting linear lights in a pole barn is a balance of structural security and optical performance. By bridging trusses with blocking, using suspension hardware rated for 5x the load, and adhering to NEC wiring standards, you build a system that is safe and durable.
Key Takeaways:
- Reinforce: Never hang heavy fixtures from thin purlins without blocking.
- Redundancy: Always install a secondary safety cable looped around a structural truss.
- Spacing: Mount lights at a distance of 0.7–1.2x the mounting height for uniform coverage.
- Protection: Use conduit (EMT or Sched 80 PVC) to protect wiring from pests and impact.
Frequently Asked Questions
Can I mount linear high bays on a sloped ceiling?
Yes. If you use chain or cable suspension, gravity will naturally level the fixture. If you surface mount to a sloped rafter, the light will point at an angle, which might cause glare on one side of the barn and shadows on the other. Suspension is generally preferred for sloped roofs to keep the light pointing straight down.
Do I need a specific certification for barn lights?
You should look for the UL Listed or ETL Listed mark, which verifies the product meets safety standards like UL 1598 (Luminaires). Additionally, checking the DesignLights Consortium (DLC) Qualified Products List ensures the fixture is energy-efficient and may qualify for utility rebates.
How do I stop my suspended lights from swinging in the wind?
If your pole barn is drafty (e.g., when large doors are open), standard chains may sway. You can use rigid stem kits (pendants) which are solid pipes instead of chains, or install a third "anti-sway" cable at a 45-degree angle to stabilize the fixture.
What is the best height to hang lights in a 16-foot pole barn?
For general storage and equipment movement, mounting close to the truss (14-16 feet) is fine. However, if you are doing detailed mechanical work, lowering the fixtures to 10-12 feet will significantly increase the brightness (footcandles) on your workbench without requiring you to buy more powerful lights. Just ensure they are high enough to clear any equipment like tractors or overhead doors.
