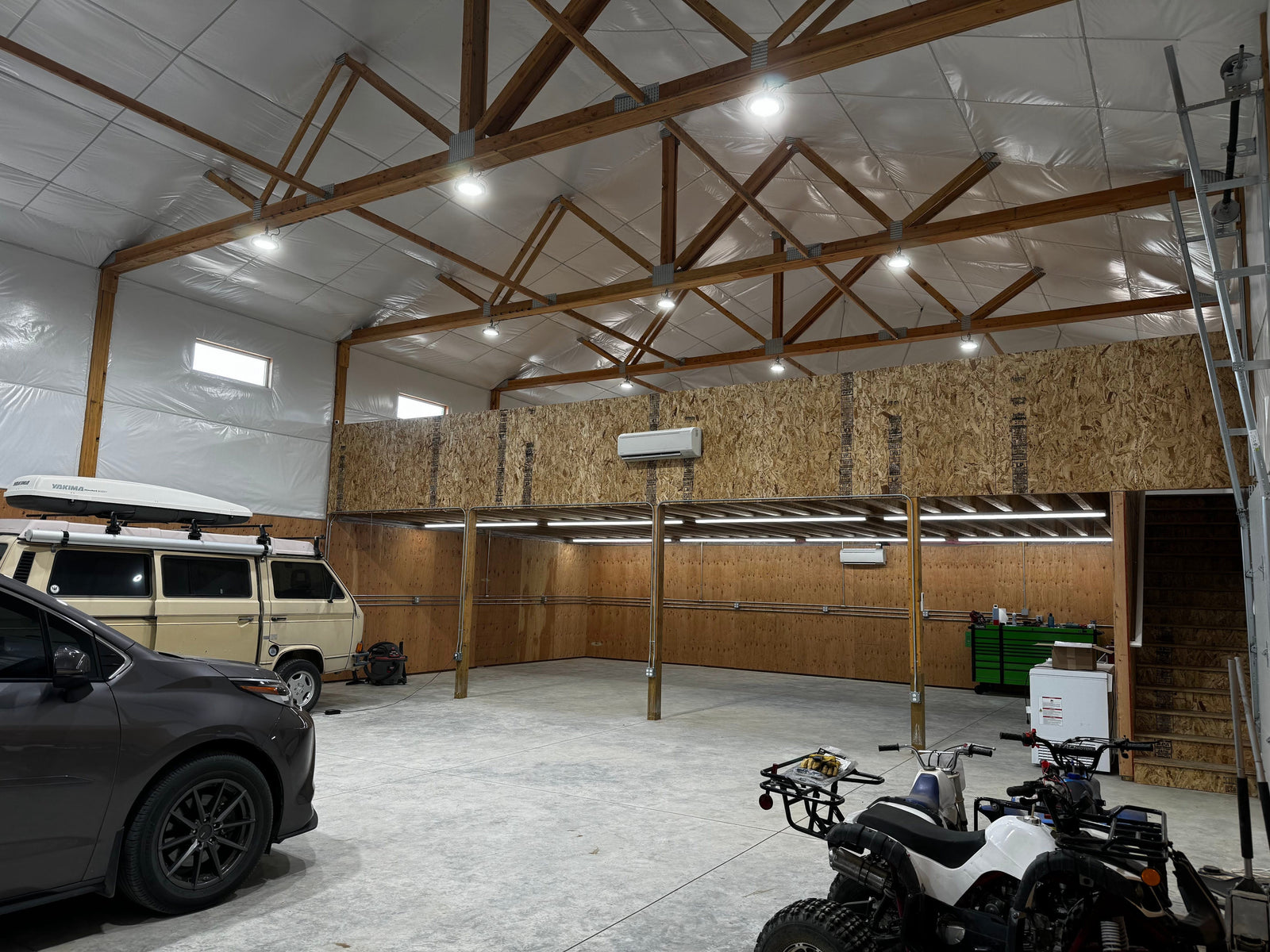

Mounting UFO High Bays on Sloped or Wooden Ceilings

Getting the Foundation Right: Pre-Installation Planning

Mounting a high-output fixture like a UFO high bay is not like hanging a picture frame. These lights, while compact, have significant weight and must be secured to a structural element, not just drywall or thin ceiling sheathing. A rushed installation is a risk to your property and safety. Before you even unbox the light, a few minutes of assessment will ensure a secure and lasting result.

I’ve seen installations fail because the anchor was only set into 1/2-inch sheathing. After a few months of subtle vibration and temperature changes, the anchor pulled loose, and the fixture came crashing down. The root cause is always the same: failing to secure the light to a load-bearing part of your building.

Locating Structural Members

Your primary task is to find a solid mounting point. In a garage, barn, or workshop, this means locating a ceiling joist, rafter, or beam. These are the wooden or steel bones of your roof structure.

• Exposed Beams: In many barns and pole buildings, these are visible. This is the easiest scenario, as you have a clear, strong anchor point.
• Finished Ceilings: For ceilings covered with drywall or paneling, you will need a stud finder. A quality electronic stud finder can detect the density change and pinpoint the edges of the joists hidden behind the surface. Run it across the ceiling and mark the locations of the joists in your intended work area.

Once you find a joist, confirm it can handle the load. A standard UFO high bay weighs around 6 pounds. As a rule of thumb, your anchoring hardware should be rated for a safety factor of 4-5 times the fixture's weight. For a 6-pound light, your mounting point and hardware must support at least 30 pounds. This accounts for dynamic loads and ensures long-term stability.

Mounting UFO High Bays on Wooden Ceilings

Wood-framed ceilings are common in garages, workshops, and barns, offering strong and reliable mounting points if you use the correct hardware. The key is to anchor directly into the center of a solid wood beam or joist.

Debunking a Common Myth: The Right Fastener for the Job

A persistent misconception is that a heavy-duty drywall anchor or toggle bolt is sufficient for a high bay light. This is incorrect and dangerous. These fasteners are designed for shear loads on vertical walls, not the sustained downward (tensile) pull of a ceiling-mounted fixture. They will eventually fail.

For wood structures, the correct choice is nearly always a structural lag screw or a rated J-hook that threads directly into the wood. The Hyperlite LED High Bay Light - Black Hero Series, 21750lumens, for example, comes with a hook designed for this type of secure installation.

To provide clarity, here is a comparison of common hardware choices for wooden ceilings:

Hardware Type	Ideal Use Case	Material Needed	Strength	Notes
Lag Screw Eye Bolt	Direct mounting into a wood joist or beam.	3/8" x 3" (or longer) lag eye bolt.	Excellent	The workhorse. Pre-drilling is required to prevent wood from splitting.
J-Hook (Threaded)	Direct mounting into a wood joist.	Rated J-hook with wood screw threads.	Very Good	Simple and effective. Ensure it's rated for at least 30 lbs.
Beam Clamp	Clamping onto the flange of an exposed engineered beam (I-beam) or truss chord.	Steel beam clamp rated for the load.	Excellent	Use when drilling into the beam is not desirable or possible.

Step-by-Step Installation on a Wood Joist

1. Pinpoint the Center: Once you've located a joist with a stud finder, use a small drill bit to make a test hole to confirm you've hit solid wood, not an empty cavity.
2. Drill a Pilot Hole: Select a drill bit that is slightly smaller than the diameter of your lag screw's shaft (not the threads). Drilling a proper pilot hole is crucial; it allows the screw to be installed without splitting the wood, which would compromise its holding power.
3. Install the Anchor: Drive the lag eye bolt or J-hook into the pilot hole until the threads are fully engaged and the base is snug against the ceiling. Do not overtighten, as this can strip the wood.
4. Hang the Fixture: Lift the UFO high bay and connect its carabiner or hook to your anchor. Ensure it clicks shut securely.
5. Attach the Safety Cable: This is a critical, non-negotiable step. The safety cable is a secondary support system. Find a separate anchor point a short distance from the main hook—or wrap the cable around the beam itself—and secure it. This ensures that if the primary mount were ever to fail, the cable would catch the fixture.
6. Test the Mount: Before completing the wiring, give the fixture a firm tug to ensure the anchor is solid. After installation, it's good practice to inspect the mount after 24-72 hours to check for any signs of movement.

Tackling Sloped Ceilings

A sloped or vaulted ceiling presents a unique challenge. Standard hook mounting will cause the UFO high bay to hang at an angle, directing light sideways instead of down onto your workspace. This not only creates poor illumination and glare but also puts uneven stress on the mounting hardware. You can find more detail on how light direction impacts your space by understanding how to choose a beam angle for your ceiling height.

Hardware Solutions for Angled Mounting

To correct this, you need hardware that allows the fixture to hang plumb (perfectly vertical) from an angled surface.

• Pendant Mount with Swivel Adapter: This is a common and effective solution. A rigid stem (pendant) is attached to a swivel or universal hinge adapter at the ceiling. This hinge allows the pendant to hang straight down, regardless of the ceiling's pitch. This method works well for slopes up to about 45 degrees.
• Adjustable Angle Brackets: Some manufacturers offer surface-mount brackets with an adjustable hinge. The base of the bracket is bolted to the angled face of the rafter, and the fixture attachment point can be adjusted to a vertical orientation.

For most DIY and prosumer applications in garages or workshops with slopes up to 30°, a pendant mount with a swivel adapter is the most straightforward approach.

Installation on a Sloped Rafter

1. Locate the Rafter: Just like with a flat ceiling, your anchor point must be a solid structural member.
2. Install the Mounting Box/Adapter: Secure an electrical box or the swivel adapter's base directly to the rafter using appropriate lag screws. Ensure it is rated for the fixture's weight.
3. Attach the Pendant/Fixture: Connect the pendant rod to the adapter and then hang the UFO high bay from the bottom of the pendant. Use turnbuckles or adjustable cables if included to fine-tune the leveling.
4. Verify Verticality: Use a level to ensure the fixture is hanging perfectly vertical. An off-plumb fixture can look unprofessional and affect the evenness of your lighting.

Electrical Safety and Final Checks

Proper mounting is only half the battle. Safe electrical connections are just as important. According to the National Electrical Code (NEC), all electrical wiring must be done in a way that prevents fire and shock hazards.

Wiring Best Practices

• Use an Accessible Junction Box: A common mistake is creating "floating junctions" with wire nuts tucked away inside an inaccessible ceiling cavity. All connections should be made inside a properly mounted and accessible junction box. This is a requirement for code compliance and essential for future maintenance.
• Flexible Conduit: Use a short length of flexible conduit (a "whip") for the final connection from the junction box to the fixture. This protects the wires and allows for slight movement without straining the connections.
• Follow Luminaire Standards: All reputable lights are certified to standards like UL 1598 - Luminaires, which governs their electrical and mechanical safety. Following the manufacturer's wiring instructions helps maintain this safety certification.

When to Call a Professional Electrician

While mounting a single, plug-in style high bay can be a DIY project, you should call a licensed electrician if your project involves:

• Running New Circuits: If you need to add a new circuit from your breaker panel.
• Complex Slopes or High Ceilings: Working on ceilings over 45 degrees or at heights that require specialized lifts or scaffolding.
• Commercial Spaces: Installations in commercial buildings must adhere to strict building codes and often require a professional lighting plan. A professional can create a photometric layout compliant with standards like IES RP-7 for Industrial Facilities to ensure safety and performance.
• Roof Penetrations: If your mounting plan requires cutting through the roof structure.

Key Takeaways

Installing a UFO high bay on a wooden or sloped ceiling is entirely achievable with the right knowledge and hardware. It transforms a dark, unusable space into a bright, functional workshop or garage.

Remember these core principles:

• Anchor to Structure: Always secure your fixture to a joist, rafter, or beam. Never trust drywall or sheathing alone.
• Use Correct Hardware: Use rated lag bolts for wood and swivel adapters for slopes. The hardware is just as important as the light itself.
• Prioritize Safety: Always use the included safety cable as a redundant support system and follow proper electrical practices.
• Know Your Limits: For complex wiring or challenging structures, hiring a professional electrician is the safest and most reliable choice.

By following these guidelines, you can ensure your high bay lights are mounted safely, securely, and positioned to deliver the best possible illumination for your space.

---

This article is for informational purposes only. Electrical work can be dangerous. Always comply with local electrical codes and standards. Consult a qualified electrician for any work you are not comfortable and competent in performing. The user assumes all risk and liability for any installations.

Frequently Asked Questions (FAQ)

Q: What size lag bolt should I use for my UFO high bay?

A: For a typical 6-10 lb UFO high bay light, a 3/8" diameter lag bolt that is long enough to penetrate at least 2.5 inches into solid wood is a robust choice. Always pre-drill a pilot hole to prevent the wood from splitting.

Q: Can I mount a high bay light on a metal roof panel in a pole barn?

A: No. Metal roof panels are not structural. You must anchor the fixture to the underlying steel purlins or wood rafters that support the roof.

Q: My high bay light flickers. Is it a mounting issue?

A: Flickering is typically an electrical issue, not a mounting one. It could be related to an incompatible dimmer switch (if using one), a loose wiring connection, or a faulty driver. Ensure your fixture is on a stable, non-dimmed circuit first. If the problem persists, consult the manufacturer's troubleshooting guide or an electrician.

Q: How do I ensure my lights are level on a sloped ceiling?

A: Use an adjustable pendant mount with a swivel adapter. After installation, you can use a small torpedo level on the body of the fixture to check for plumb. If you are using suspension cables, turnbuckles can be installed to allow for fine-tuning the height of each side to achieve a perfectly level installation.
