For facility managers and plant engineers, the selection of high-ceiling lighting is often reduced to a simple calculation of lumens per dollar. However, in precision assembly environments—where workers must distinguish fine color contrasts and minute mechanical tolerances for eight to twelve hours a day—the metric that matters most is visual ergonomics. Poor lighting design does more than just dim the room; it induces visual fatigue, which quietly erodes productivity, increases error rates, and compromises workplace safety.
As outlined in the 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights, the industry is shifting away from generic "bright" lighting toward task-specific optical performance. When comparing round (point-source) fixtures to linear (line-source) fixtures for assembly lines, the decision hinges on how light interacts with the human eye and the work surface. Linear high bays, with their elongated profiles and wide batwing distributions, offer a structural advantage in achieving the uniformity required for high-stakes manufacturing.

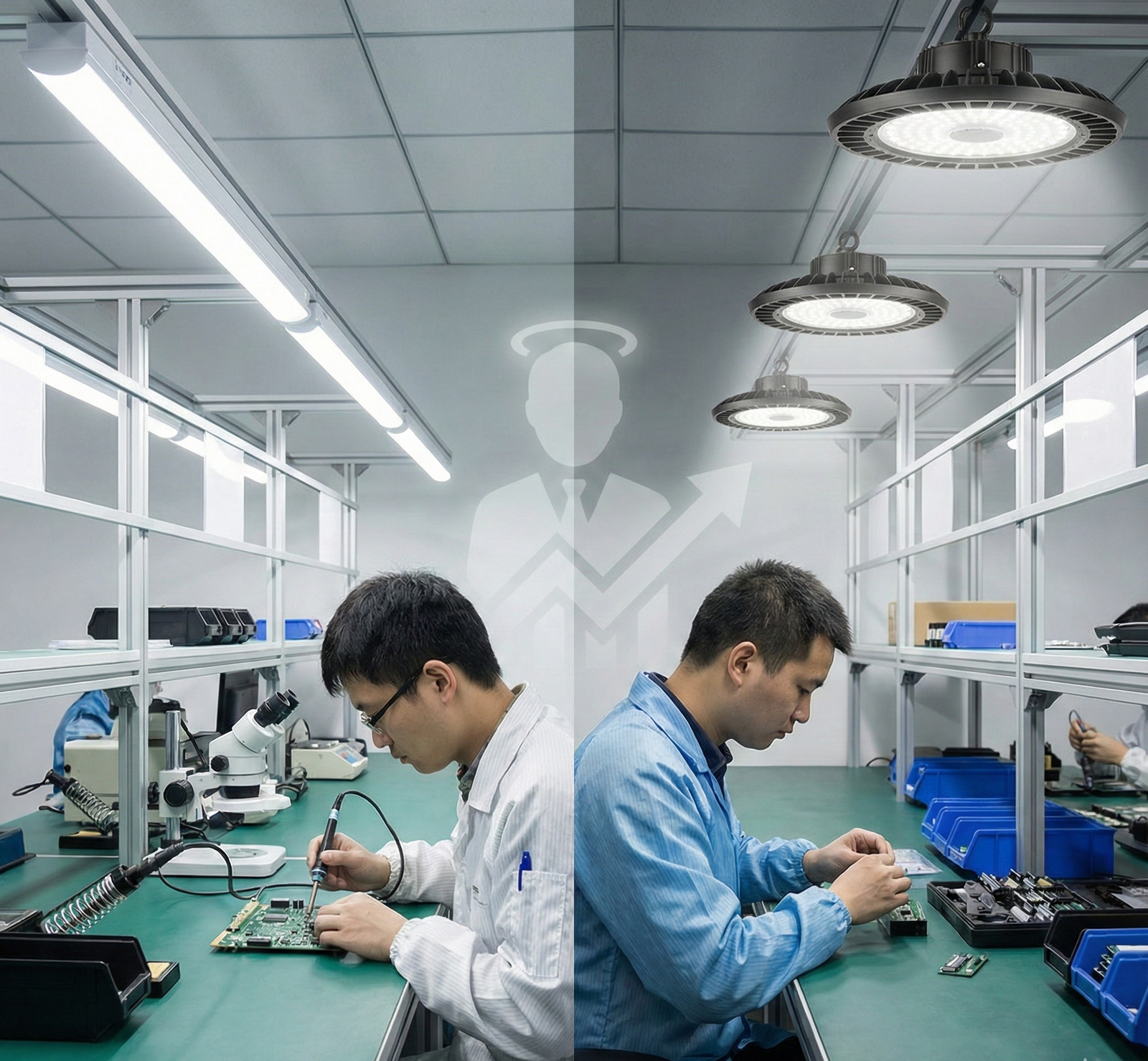

The Physics of Precision: Point-Source vs. Line-Source
The fundamental difference between a round high bay and a linear high bay lies in the geometry of the light source. A round fixture acts as a "point source," concentrating high-intensity light into a circular footprint. While efficient for open storage, this concentration often creates "hot spots" directly under the fixture and deep shadows between mounting points.
In contrast, a linear high bay is a "line source." By spreading LEDs across a 2-foot or 4-foot housing, the fixture distributes the luminous flux over a much larger surface area. This reduces the source luminance (the perceived brightness of the fixture itself), which is the primary driver of reflected glare on glossy components.
Optical Specification Comparison
| Metric | Round High Bay (Point-Source) | Linear High Bay (Line-Source) |
|---|---|---|
| Typical Beam Angle | 90° (Concentrated) | 120° (Wide Batwing) |
| Shadow Quality | High Contrast / Hard Edges | Diffuse / Soft Edges |
| Source Luminance | Very High (Small area) | Moderate (Distributed area) |
| Luminous Efficacy | 135–140 lm/W | 140–150 lm/W |
| Task Suitability | Bulk Storage, Gymnasiums | Assembly, Inspection, Retail |
According to the IES LM-79-19 Standard, which defines the approved method for optical and electrical measurements of solid-state lighting, the "performance report card" of a fixture must include its luminous intensity distribution. For precision work, the wider 120° distribution of linear optics ensures that light reaches the work plane from multiple angles, effectively "filling in" shadows that a point source would leave behind.
Photometric Uniformity and Task Accuracy
In a precision assembly facility, "enough light" is not just about the average foot-candle (fc) level; it is about the uniformity ratio. The ANSI/IES RP-7-21 – Lighting Industrial Facilities recommends specific illuminance levels for different tasks, but experienced specifiers go further, targeting a luminance uniformity ratio (minimum-to-average) of at least 0.7 on the work plane.
Achieving this 0.7 ratio with round fixtures often requires a dense grid that increases installation costs. However, linear fixtures with batwing distributions typically achieve superior uniformity with 20–30% fewer mounting points than round fixtures in a standard grid layout. This is because the linear optic is designed to push light out laterally, overlapping with adjacent fixtures to create a seamless "blanket" of light.
The Role of IES Files and AGi32 Simulations
Professional lighting designers do not guess; they simulate. By using IES LM-63-19 formatted data files, engineers can import the exact photometric footprint of a fixture into software like AGi32.
A common "gotcha" in B2B procurement is relying solely on published beam angles. The real test is how the light falls at a 30-degree off-axis angle. In precision environments, linear optics significantly reduce veiling reflections—those "bright spots" on metal or plastic parts that hide surface defects during inspection. For more on this, see our guide on Linear vs. UFO High Bays for Uniformity in Open Areas.
Mitigating Visual Fatigue: Glare Control and UGR Standards
Visual fatigue is a physiological response to inappropriate brightness factors. According to research on lighting health-friendly for eye fatigue, excessive contrast within the visual field is one of the most direct contributors to eye strain.
The industry uses the Unified Glare Rating (UGR) to quantify this discomfort. For precision assembly, a UGR ≤ 19 is considered the "glare-free" benchmark. Round high bays, by their nature, are high-glare fixtures because they pack high lumen packages into a small aperture. Linear high bays naturally lower the UGR by increasing the luminous area, making them far more comfortable for workers during long shifts.
Scenario Analysis: The Precision Inspection Line
- Scenario A (The Round Fixture): An inspector looks at a polished aluminum component under a round high bay. The concentrated point source creates a specular reflection (a "mirror image" of the LEDs) on the part, blinding the inspector to small scratches or burrs.
- Scenario B (The Linear Fixture): The same inspector works under a linear fixture. The light is diffused over a 4-foot length. The reflection on the aluminum part is a soft, elongated glow rather than a piercing point, allowing the inspector to see the physical texture of the metal clearly.
To further reduce strain, maintaining a color temperature (CCT) between 4000K and 5000K is recommended. This range mimics natural daylight, which helps keep focus sharp and aligns with the ANSI C78.377-2017 standards for chromaticity.
The B2B ROI: Energy Economics and Rebate Optimization
For the facility manager, the ergonomic argument must be paired with a financial one. Linear high bays are not just "better" light; they are often a more profitable investment when considering the Total Cost of Ownership (TCO).
Theoretical ROI Calculation: 120ft × 60ft Assembly Area
Based on a simulated retrofit of a precision manufacturing floor with 16ft ceilings, we can compare the financial impact of upgrading from legacy metal halide to premium linear LEDs.
| Financial Metric | Value (Estimated) |
|---|---|
| Annual Energy Savings | $11,827 |
| Annual Maintenance Savings | $3,360 |
| HVAC Cooling Credit | $508 |
| Total Annual Savings | $15,695 |
| Potential Rebate (per fixture) | $91.50 - $175.00 |
| Payback Period | ~0.51 Years (6 Months) |
Note: Calculations assume 6,000 annual operating hours (3 shifts) and an industrial rate of $0.16/kWh. The HVAC credit is based on a 0.33 interactive factor, as reduced lighting heat lowers the cooling load in climate-controlled assembly environments.
To maximize this ROI, B2B buyers should consult the DSIRE Database (Database of State Incentives) to identify local utility rebates. In many jurisdictions, choosing a DLC Premium certified linear fixture can cover up to 50% of the initial hardware cost, particularly when integrated with 0-10V dimming and occupancy sensors.
Compliance and Installation: The "Pro-Grade" Checklist
Winning approval for a B2B lighting project requires more than just a good ROI; it requires strict adherence to safety and energy codes.
- Safety Certification: Ensure all fixtures are UL 1598 listed for commercial use. This is the primary verification point for building inspectors and insurance providers.
- Energy Code Compliance: For projects in California, fixtures must meet California Title 24, Part 6 requirements, which often mandate multi-level dimming and daylight harvesting controls.
- Electromagnetic Interference (EMI): In facilities with sensitive testing equipment or robotics, FCC Part 15 compliance is mandatory to ensure the LED drivers do not interfere with wireless signals or machine controllers.
- Lumen Maintenance: Look for IES LM-80 data and TM-21 calculations. A "Pro-Grade" fixture should provide an $L_{70}$ life projection of at least 50,000 to 60,000 hours.
Strategic Implementation: 0-10V Dimming
Integrating 0-10V dimming is not merely an energy-saving feature; it is a tool for visual ergonomics. On assembly lines with mixed tasks—where some stations require high-intensity inspection and others require standard assembly—dimming allows managers to tune the environment. Field studies have shown that dynamically reducing ambient light by 40% while maintaining focused task lighting can cut operator eye strain complaints by half.
When planning your layout, consider the "Friction Points" of installation. While round fixtures are often quicker to hang individually, achieving uniform light on a long assembly line requires precise spacing. Linear fixtures, though they may require more careful alignment during pendant mounting, provide a more forgiving distribution that simplifies the achievement of code-compliant uniformity. For a deeper dive into application-specific choices, refer to UFO vs. Linear High Bay for Warehouse Racking Aisles.
YMYL Disclaimer: This article provides general information regarding industrial lighting and visual ergonomics. It is not a substitute for professional engineering advice or an on-site lighting audit. Facility managers should consult with a certified lighting professional (LC) or electrical engineer to ensure compliance with local building codes and specific occupational health standards.
