How to Choose a Lighting Zone When One Outdoor Control Cannot Serve Every Area

Put exterior areas in one control zone when they can share the same operating hours and control response, even if their day-to-day use differs. If an entrance, parking area, or service yard needs a different schedule or response, give it its own zone. That way, one control decision doesn't force the wrong behavior on every area.

Start with a simple site inventory. List each area, what it serves, when it needs light, and whether it must run on its own. That list becomes a first map of your exterior lighting zones, and you can check it against real control equipment before you order anything.

Choose Zones by Shared Use and Operating Needs

Two areas can share a zone when controlling them together meets the operational needs of both. When an area requires an independent operating schedule or distinct control response, split it into its own zone.

Department of Energy guidance defines a control zone as a lighting load assigned to one control strategy or to a single controller. So a zone is an operating group, not a section of the site plan. Two areas on opposite sides of a building can share a zone. A single parking lot can also hold two.

The same DOE guidance shows both patterns. In its parking-lot example, all fixtures share one zone that turns on automatically at dusk. A subset of those fixtures is also zoned separately so it can turn off automatically after hours. Facade lighting gets its own zone, with scheduled on/off operation during evening operating hours. These examples show the reasoning, but your property's assignments still have to come from its own schedule.

Write down four things for each exterior area:

• What it serves, such as customer entry, employee parking, deliveries, or security.
• The hours it needs light.
• The response you want, such as on at dusk, off after closing, on all night, triggered by activity, or dimmed during low use.
• Whether it ever needs to run while nearby areas are off.

Areas that match on all four are candidates to group. One mismatch is enough to split them. The table below applies that test to the three areas in this example site.

If every answer comes back the same, one zone is a valid result. The table doesn't set a zone count. It tests whether each area really needs its own control behavior.

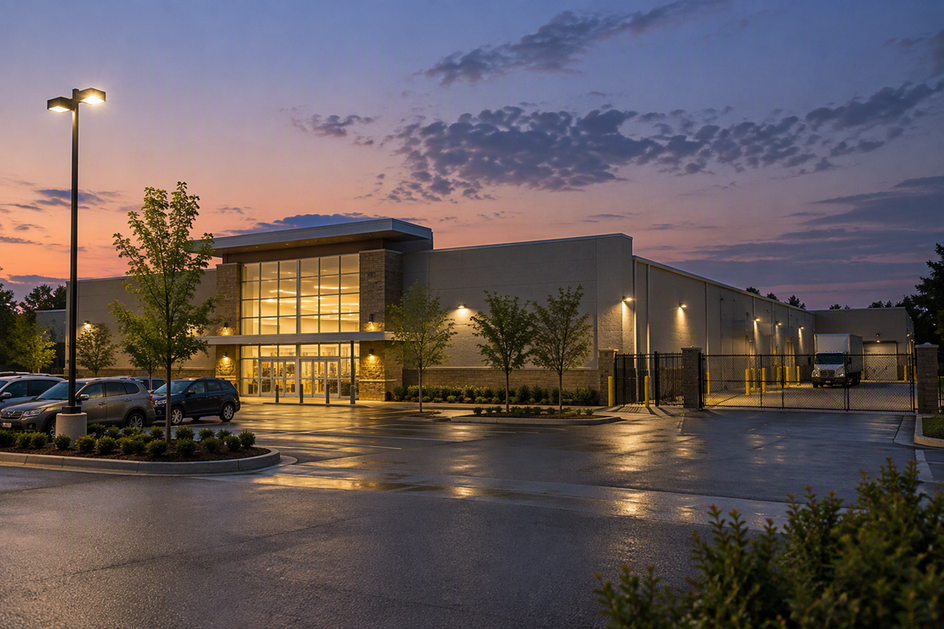

Here is an illustrative example, not a tested site. A retail store closes at 9 p.m. Its entrance and customer parking share a dusk-to-close schedule, but the rear yard needs light for a 5 a.m. delivery. That store would map as two zones even though it has three areas.

Keep in mind that this map is a control plan. It is not a wiring layout or circuit design, and it is not a regulatory "lighting zone" classification that a local code may use. Leave circuit work and any code determination for your jurisdiction to a licensed electrician, lighting designer, or local authority. Once your zones are mapped, our guide to commercial exterior lighting planning covers mounting context, glare risks, and review needs before you choose fixtures.

Verify Control Capabilities Against the Zone Plan

Before you match equipment to the map, compare what each zone needs to do with what the exact control system is documented to do. A controller category or a product name alone can't confirm that it delivers a planned response.

The difference between on/off scheduling and dimming can change the choice entirely. According to the DesignLights Consortium, most relay-based time clocks only switch lighting on or off and cannot dim. If a zone needs lower light after hours, it needs a system documented to dim, not just a scheduled switch.

1. Record each zone's required response. Note whether scheduled on/off is enough, or whether the zone needs dimming, a dusk trigger, or an activity-based response.
2. Identify the exact system under consideration. Write down the specific controller or model, including any existing controls you plan to keep.
3. Check its current documentation against every zone. For a networked lighting control system, the DLC guidance suggests checking whether the system is listed to verify its capabilities.
4. Send any gap back to the map. If a needed response is missing, pick a different system or revise that zone's requirement before ordering.

On a retrofit, the controls already on site belong in step 2. Our checklist for existing lighting controls shows how to record them by zone and when to hold a fixture order. If a zone's response depends on dusk or activity, our comparison of photocells and motion sensors explains the tradeoffs between those two triggers.

Keep the finished zone map after installation, too. The DOE guidance recommends testing all lighting controls to confirm they work according to the owner's operating needs and design intent, then correcting any problems. Your map records exactly what each zone was supposed to do.

FAQs

Does every outdoor area need its own control zone?

No. An area needs its own zone only when its schedule or control response differs from its neighbors. An entrance and a parking lot that both run from dusk to closing can share one zone. A yard that needs light at a different time should be split out.

How many exterior lighting zones does a commercial site need?

There is no fixed number. Count the distinct combinations of schedule and response your site actually needs. Three physical areas might map to one, two, or three zones, depending on how they operate.

Can one parking lot be split into more than one zone?

Yes. In DOE's parking-lot example, every fixture turns on at dusk, while a separately zoned group turns off after hours. Splitting a lot makes sense when some fixtures are needed all night and others only during business hours.

What should I confirm before choosing a lighting controller?

List the response each zone needs, then check the exact model's current documentation for each one. Pay close attention to dimming, because many relay-based time clocks can only switch lights on and off.
