Disclosure: This guide is prepared by our product engineering team. While we feature examples based on our own professional-grade hex kits, the technical principles, electrical safety standards, and photometric data are applicable to any high-quality LED installation.
The "Color Clash" Reality Check

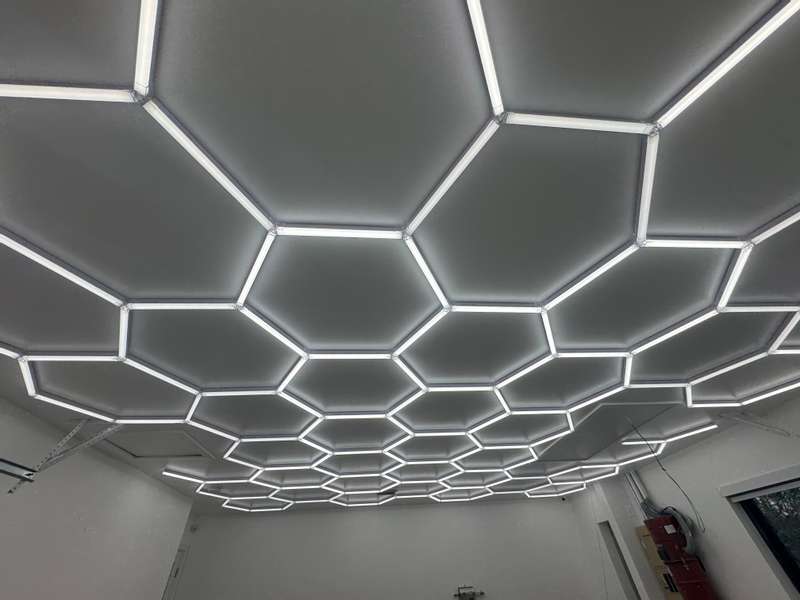

You’ve spent the weekend meticulously installing a high-end hexagon lighting grid. You step back, flip the switch, and prepare for that "wow" moment. Instead, you’re met with a visual headache. The left side of your shop glows with a crisp daylight blue, while the right side—where your old high-bay lights remain—looks like a dingy, yellowish office from the 1970s.
This is the "color clash," a common visual frustration in garage workshops. Achieving CCT (Correlated Color Temperature) consistency isn't just about aesthetics; it’s about reducing eye strain and ensuring your workspace functions as a professional-grade environment.
The Short Answer: To avoid a mismatched garage, don't just shop for "5000K." Look for fixtures that adhere to tight ANSI binning standards, verify their actual LM-79 test reports, and ensure your layout provides enough overlap to blend light sources seamlessly.
The Science of "White": Why 5000K Isn't Always 5000K
When we talk about light color, we use Correlated Color Temperature (CCT), measured in Kelvin (K). In a workshop, the industry preference usually sits between 4000K (cool white) and 5000K (daylight). According to the ANSI C78.377-2017 standard, there is a specific "quadrangle" of allowable color variation for any given rating.
The issue is that two different manufacturers can both label their lights as "5000K," but because they fall on opposite ends of that ANSI quadrangle, they will look noticeably different. Based on our experience in customer support, a mismatch of even 300K–500K is immediately noticeable in a side-by-side comparison, creating a "dirty" or unbalanced look.
Why Consistency Matters for Your Eyes
Research on occupant response to different CCTs suggests that inconsistent lighting affects visual perception. In a detailing bay or a gym, your brain is constantly trying to "white balance" the room. When CCT is inconsistent, your eyes work harder to adjust, often leading to faster fatigue and a lack of focus during precision work.
Workshop Simulation: 30' x 40' Photometric Data
To understand the impact of layout on color perception, we ran a simulation for a 1,200-square-foot garage (30'x40') with 12ft ceilings.
Simulation Parameters:
- Software: DIALux evo 12.
- Reflectance Values: Ceiling 70%, Walls 50%, Floor 20% (Standard concrete).
- Light Loss Factor (LLF): 0.85.
| Metric | 4-Fixture Layout (High Bay Only) | 12-Fixture Grid (Hex + Ambient) |
|---|---|---|
| Average Illuminance | 40 foot-candles (fc) | 45 foot-candles (fc) |
| Uniformity Ratio (Max/Min) | 4:1 (High Contrast) | 1.2:1 (Smooth) |
| Visual Result | Harsh shadows; color clashes are obvious | Uniform blending; "seamless" transition |
As the data shows, a 4-fixture layout creates "dark spots." These are the areas where CCT inconsistencies become glaring. By using a well-distributed hex grid, you ensure light beams overlap at 120-degree angles, which helps blend the colors of different fixtures into a more cohesive visual field.
The Hidden Electrical Math: NEC Safety and Voltage Drop
One of the most common mistakes in DIY hex installations is overloading the circuit. A large 22-grid system can contain over 380 tube segments.
The Calculation:
- Total Load: 385 tubes × 7W per tube = 2,695W.
- Amperage Draw: 2,695W / 120V = 22.5 Amps.
According to the National Electrical Code (NEC) Section 210.20(A), a circuit should not be loaded beyond 80% for continuous use (defined as 3 hours or more). For a standard 20A garage circuit, your safe limit is 16A (1,920W).
The Solution: Power Injection Points To stay within safety limits and prevent voltage drop (which causes tubes at the end of the line to dim or shift in color), this system requires at least 7 separate power injection points. We recommend a maximum of 440W per power drop for most professional-grade hex kits.
The "Seasoning" Effect and the White Paper Test
LED color can shift slightly during the first 100 hours of operation, often referred to as "initial seasoning." If your new grid looks slightly different from your existing lights on Day 1, we suggest running them for a full week before making a final judgment. The phosphors in the LED chips need time to stabilize under thermal load.
The White Paper Test (Practical Check)
To check for a CCT match without expensive meters:
- Hold a plain white sheet of printer paper 3 feet under your hex grid.
- Move it under your high bay.
- If the paper looks crisp white under one and "creamy" or "blue-tinged" under the other, the CCT mismatch is likely exceeding 500K.
ROI: Breaking Down the Savings
Upgrading to a color-consistent, high-efficiency system is a financial decision. In our 30'x40' simulation, replacing 12 legacy 400W metal halide fixtures with a modern LED grid yielded the following:
ROI Assumptions:
-
Operating Hours: 12 hrs/day, 300 days/year.
-
Energy Cost: $0.16/kWh.
-
Maintenance: Savings from eliminating ballast/bulb replacements.
-
Annual Energy Savings: ~$1,774.
-
Maintenance Savings: ~$653.
-
Total Annual Savings: $2,427.
-
Estimated Payback: With a project cost of approx. $2,100, the payback period is roughly 10.4 months (excluding potential utility rebates from the DLC Qualified Products List).
Installation Checklist: Getting the "Pro" Look
- Request the LM-79 Report: Don't rely on the box label. Ask the manufacturer for the IES LM-79-19 report. This provides the actual measured CCT and CRI (Color Rendering Index).
- Verify CRI: Aim for CRI 80+ for general work and CRI 90+ for detailing or paint correction. High CCT with low CRI will make colors look "flat" or "gray."
- Plan Power Drops: Calculate your total wattage. Plan for multiple power drops to avoid color shifting and circuit overloads.
- Match Beam Angles: Use wide 120-degree beam angles for both your hex grid and ambient lights to ensure "mixing."
- Look for the Mark: Ensure all components are UL 1598 listed. This is critical for insurance compliance and fire safety.
FAQ: Troubleshooting Your Setup
Can I dim my hex lights? Most pro kits offer dimming. However, lower-quality LEDs may shift CCT when dimmed. Ensure your driver is "constant current" to maintain color stability.
Why do my lights flicker when the compressor kicks in? This is often caused by a voltage sag or EMI (Electromagnetic Interference). Check that your lights are FCC Part 15 compliant and try to put heavy machinery on a separate circuit.
What happens if a single tube fails? Professional modular systems allow you to swap a single 17.3-inch bar without dismantling the whole grid. We recommend choosing kits with at least a 5-year warranty to ensure long-term color matching for replacement parts.
Engineering Your Sanctuary
A garage is more than just a storage space; for many, it’s a sanctuary. By paying attention to CCT consistency and following electrical best practices, you aren't just hanging lights—you’re engineering an environment that supports focus, safety, and a professional aesthetic.
Disclaimer: This article is for informational purposes only and does not constitute professional electrical or engineering advice. Always consult with a licensed electrician and follow local building codes (NEC) before performing any electrical installations. High-voltage work involves significant risks of fire and electrical shock.
