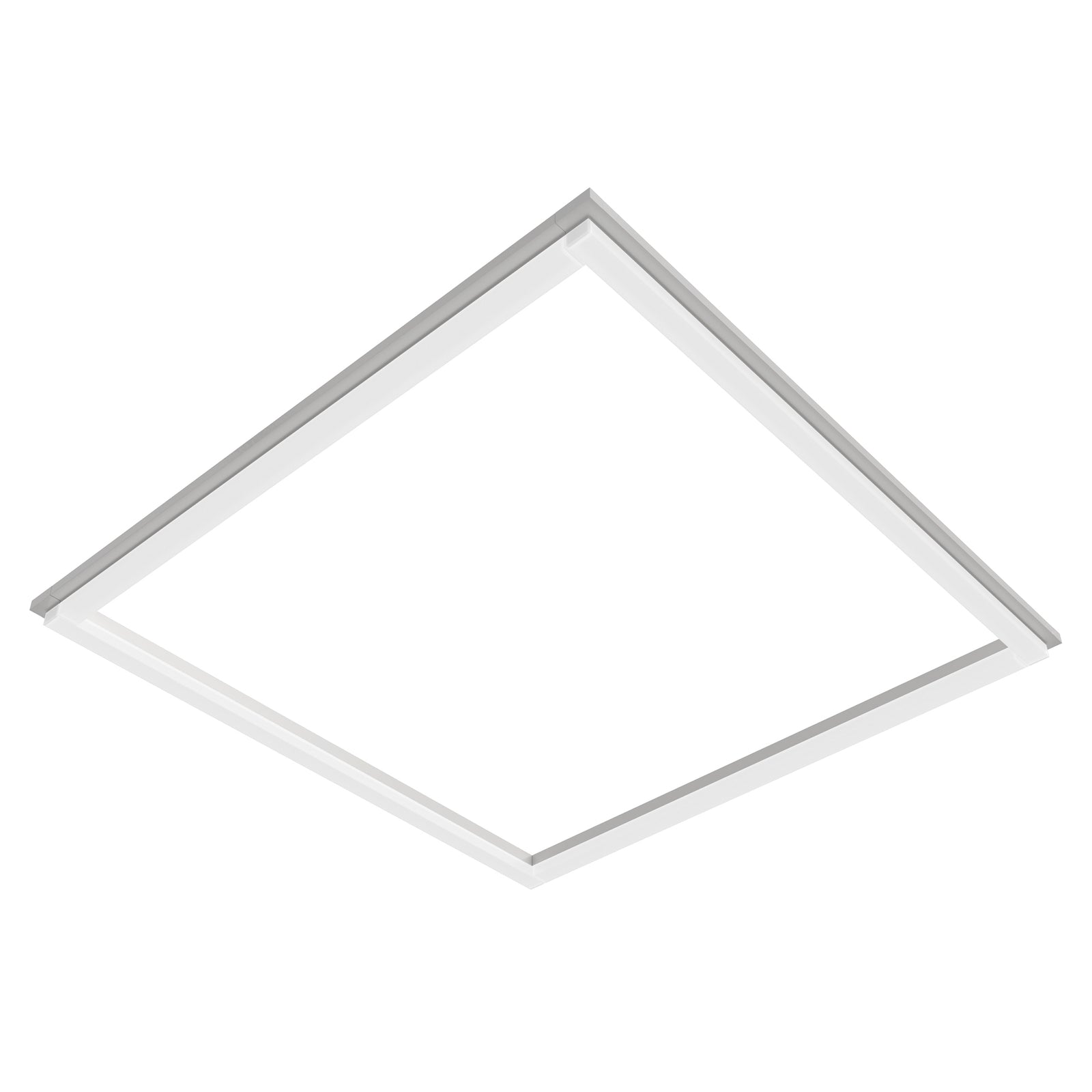

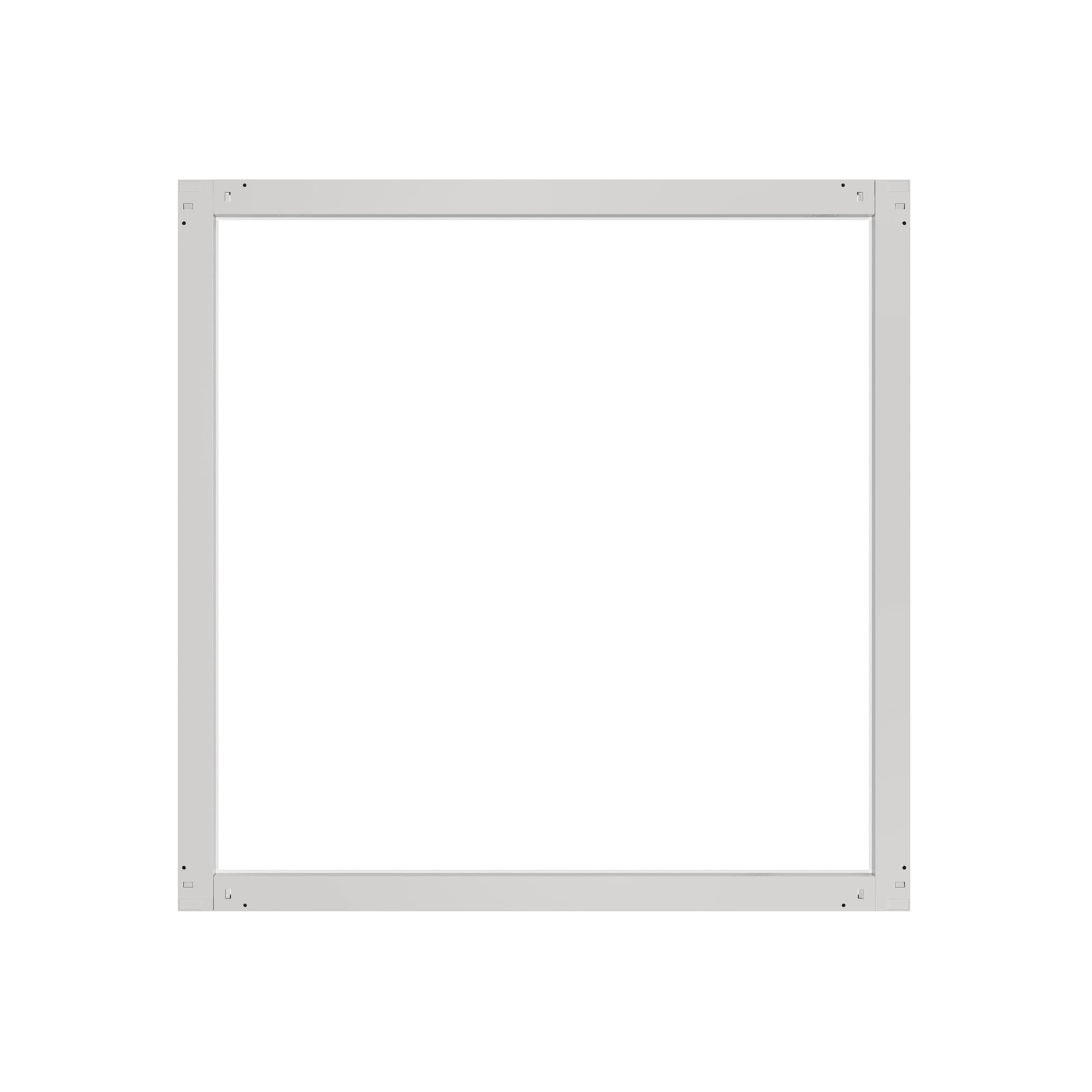

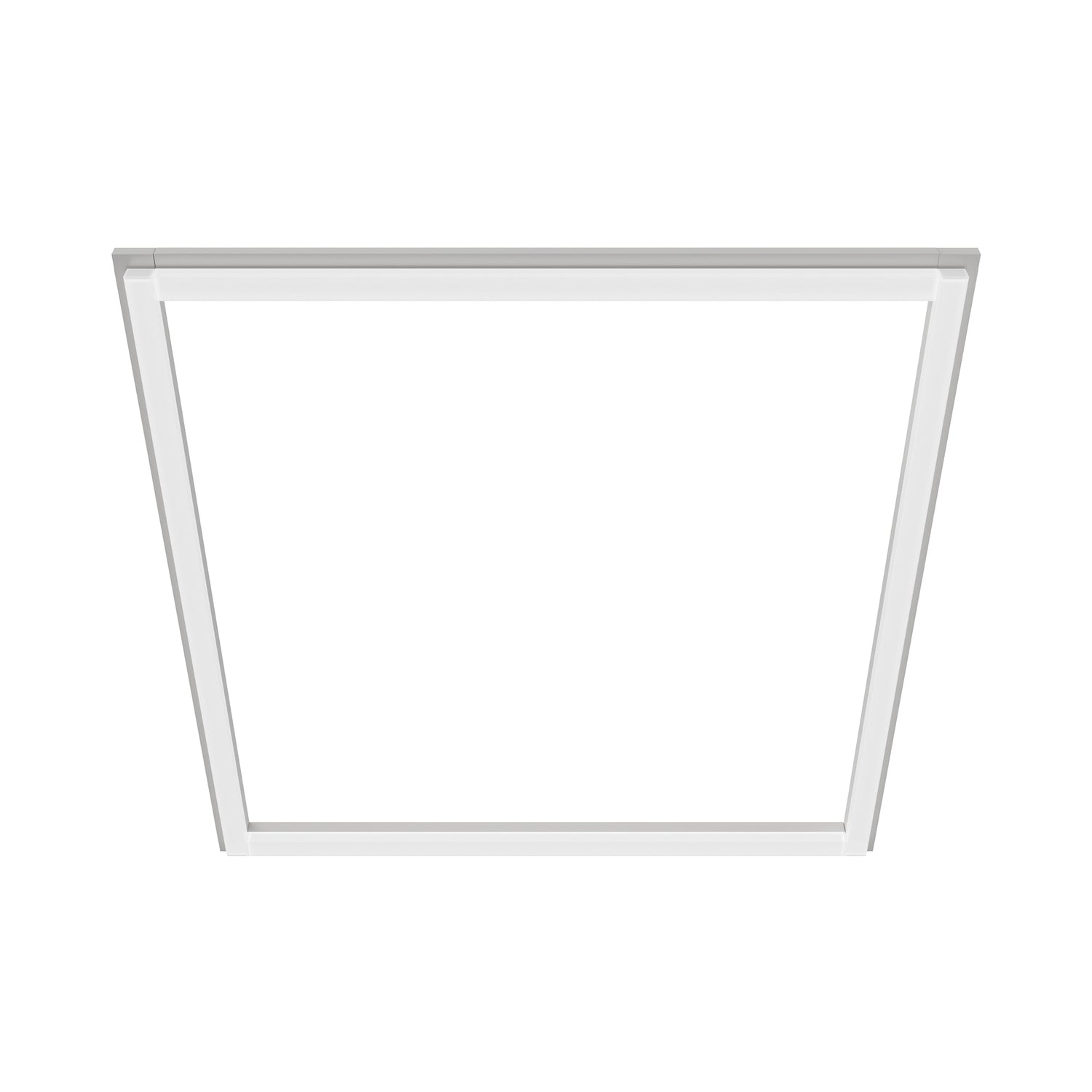

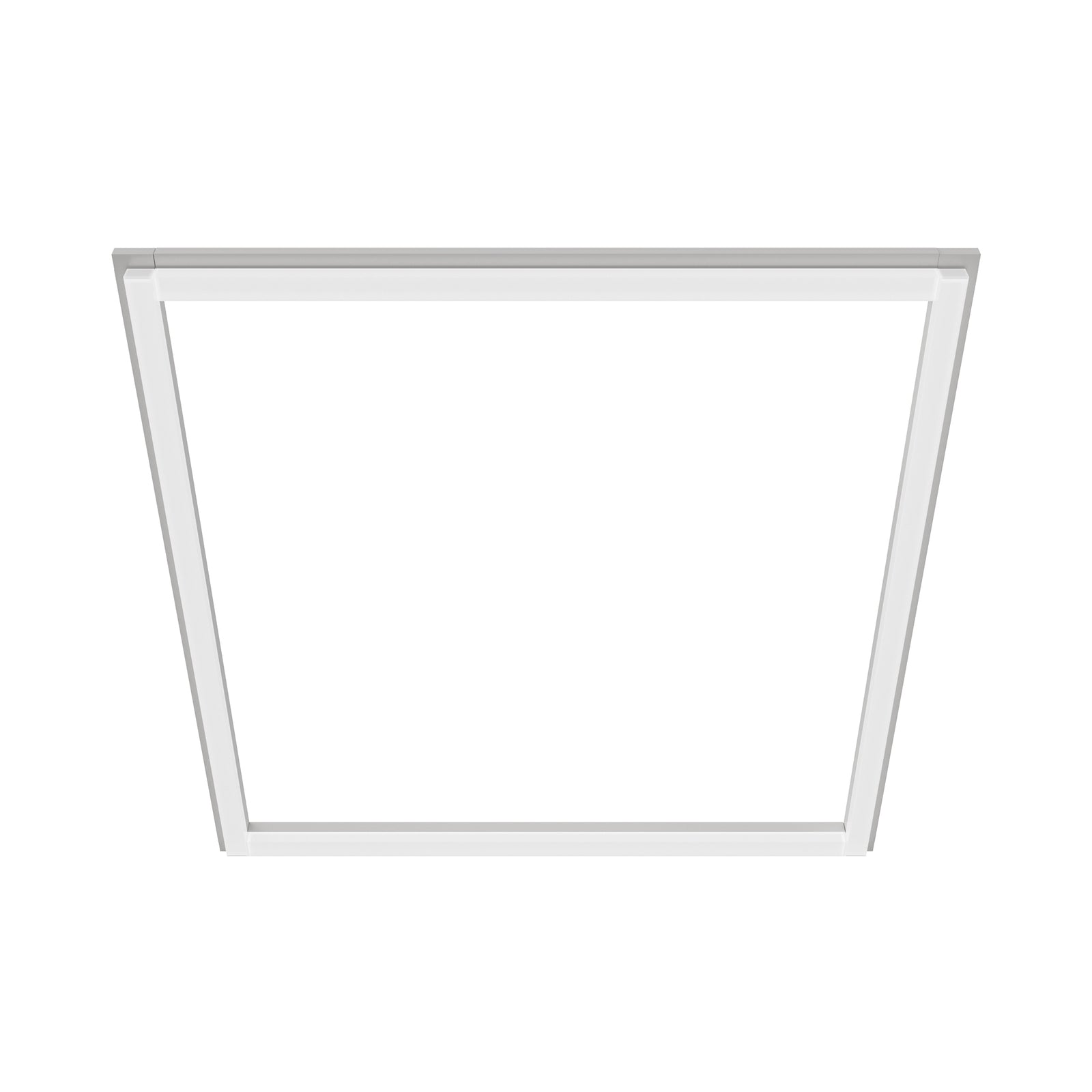

Surround Frame LED Lights - HPSFL01 Series, 2x2FT, 5120lumens, Adjustable Wattage & CCT, 120-277V
$59.99 USD
$89.99
33 % de descuento
Precio unitario
/
Agotado
All Free Shipping. No Extra Taxes.
Watts Guide
Wattage
: 40/30/20W
Wattage：
40/30/20W
Lumen
: 5120 lumens
Lumen：
5120 lumens
Lifetime
: 50000hrs
Lifetime：
50000hrs
Certification
: UL,cUL
Certification：
UL,cUL
Voltage
: AC 120-277V
Voltage：
AC 120-277V
Warranty
: 5 Years
Warranty：
5 Years
33 % de descuento
Surround Frame LED Lights - HPSFL01 Series, 2x2FT, 5120lumens, Adjustable Wattage & CCT, 120-277V - 5000K/4000K/3500K/3000K/2700K selectable / AC 120-277V está agotado y se enviará tan pronto como vuelva a estar disponible.
No se ha podido cargar la disponibilidad de recogida
BNPL flexible payment
30 Days no hassle return
2-7 Days delivery
2-5Year Warranty
Description
LED Surround Frame Lights with a lightweight design for easier handling, transportation, storage, and installation. Suitable for retrofit and new construction, featuring selectable wattage, adjustable CCT, high CRI, and standard 1–10V dimming from 10% to 100% for flexible lighting control. Designed for offices, classrooms, shopping malls, hotels, lobbies, back-of-house areas, restaurants, and other commercial applications. Backed by a 5-year warranty.
Construction
• Available in 1×4, 2×2 and 2×4 sizes.
• Aluminum heatsink can provide excellent thermal management to effectively extend the service life.
• Seamless stitching corner can effectively eliminate the shadow of the corner.
• Aluminum heatsink can provide excellent thermal management to effectively extend the service life.
• Seamless stitching corner can effectively eliminate the shadow of the corner.
Electrical
• Universal 120-277 VAC input voltage.
• Selectable Wattage: 40W/30W/20W or 50W/40W/30W.
• 1-10V dimming driver with 10%-100% dimming range.
• PF > 0.9, THD < 20%.
• Operating Temperature Range: -20°C to 40°C (-4˚F - + 104˚F).
Note: Operating with emergency battery temperature range:10°C to 40°C (+50˚F - + 104˚F).
• Selectable Wattage: 40W/30W/20W or 50W/40W/30W.
• 1-10V dimming driver with 10%-100% dimming range.
• PF > 0.9, THD < 20%.
• Operating Temperature Range: -20°C to 40°C (-4˚F - + 104˚F).
Note: Operating with emergency battery temperature range:10°C to 40°C (+50˚F - + 104˚F).
Optics
• Standard 120° beam angle
• Selectable CCT: 2700K, 3000K, 3500K, 4000K, 5000K.
• Adjustable Lumen Output: Low, Mid, High (Up to 6,400 lumens).
• High efficacy up to 136 lm/W.
• 80 CRI options.
• Optics designed to deliver smooth even light withouthot spots.
• Selectable CCT: 2700K, 3000K, 3500K, 4000K, 5000K.
• Adjustable Lumen Output: Low, Mid, High (Up to 6,400 lumens).
• High efficacy up to 136 lm/W.
• 80 CRI options.
• Optics designed to deliver smooth even light withouthot spots.
Weight

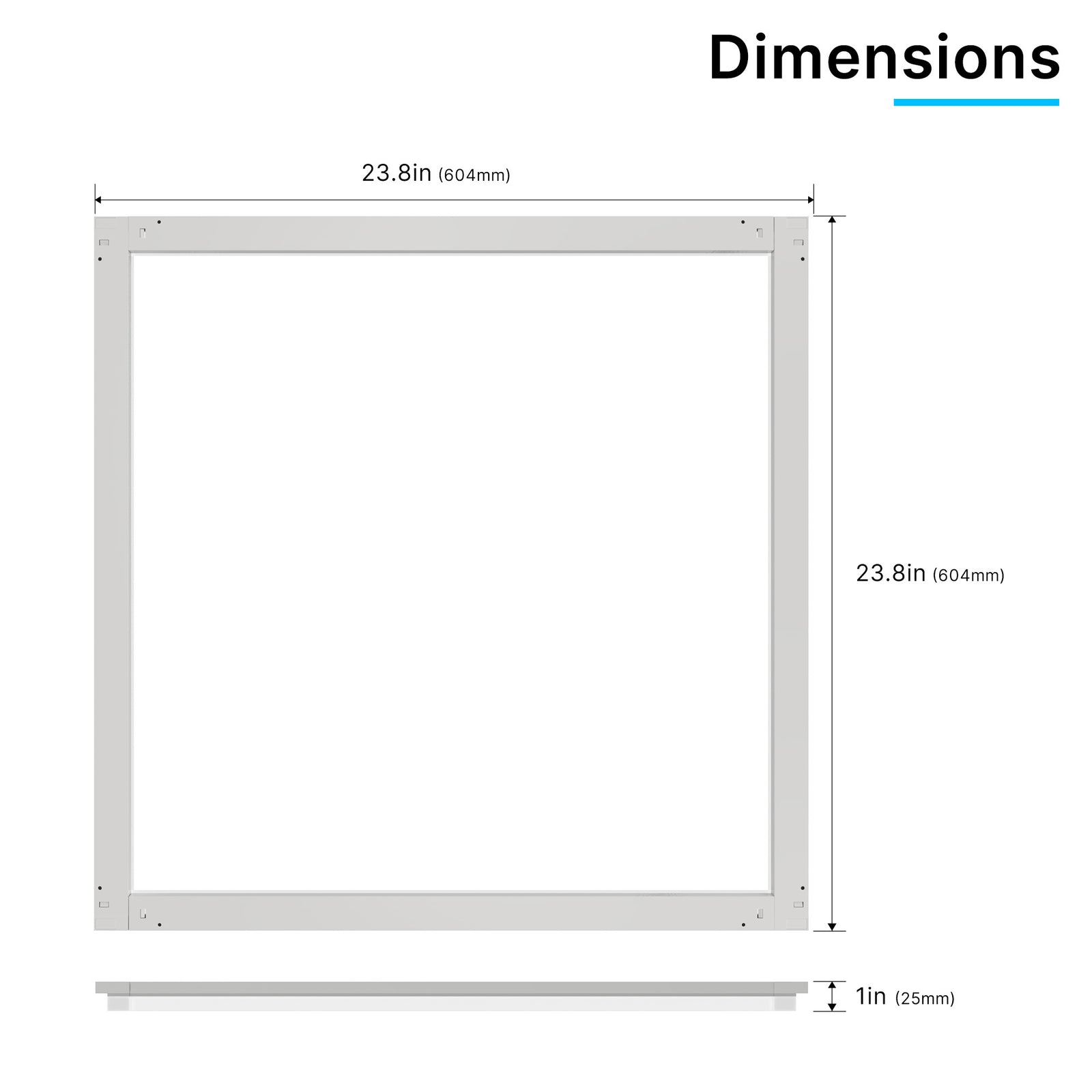

• 2x2FT：2.51 lb
• 2x4FT：3.24 lb
• 1x4FT：2.91 lb
• 2x4FT：3.24 lb
• 1x4FT：2.91 lb
Model
• SFL01-22F-40W-27VDDK
• SFL01-14F-40W-27VDDK
• SFL01-24F-50W-27VDDK
Note: “27V” represents 120-277VAC
• SFL01-14F-40W-27VDDK
• SFL01-24F-50W-27VDDK
Note: “27V” represents 120-277VAC
Certifications
• UL cUL
Mount
• Recessed
• Surface-Mounted
• Suspended
• Wall-Mounted
• Surface-Mounted
• Suspended
• Wall-Mounted
Application
• Offices
• Classrooms
• Shopping malls
• Hotels
• Lobbies
• Restaurants
• Classrooms
• Shopping malls
• Hotels
• Lobbies
• Restaurants
Lifespan
• Estimated L70 ≥50,000-hour LED lifespan based on IES TM-21 calculations at 25°C.
Warranty
• 5-year warranty
