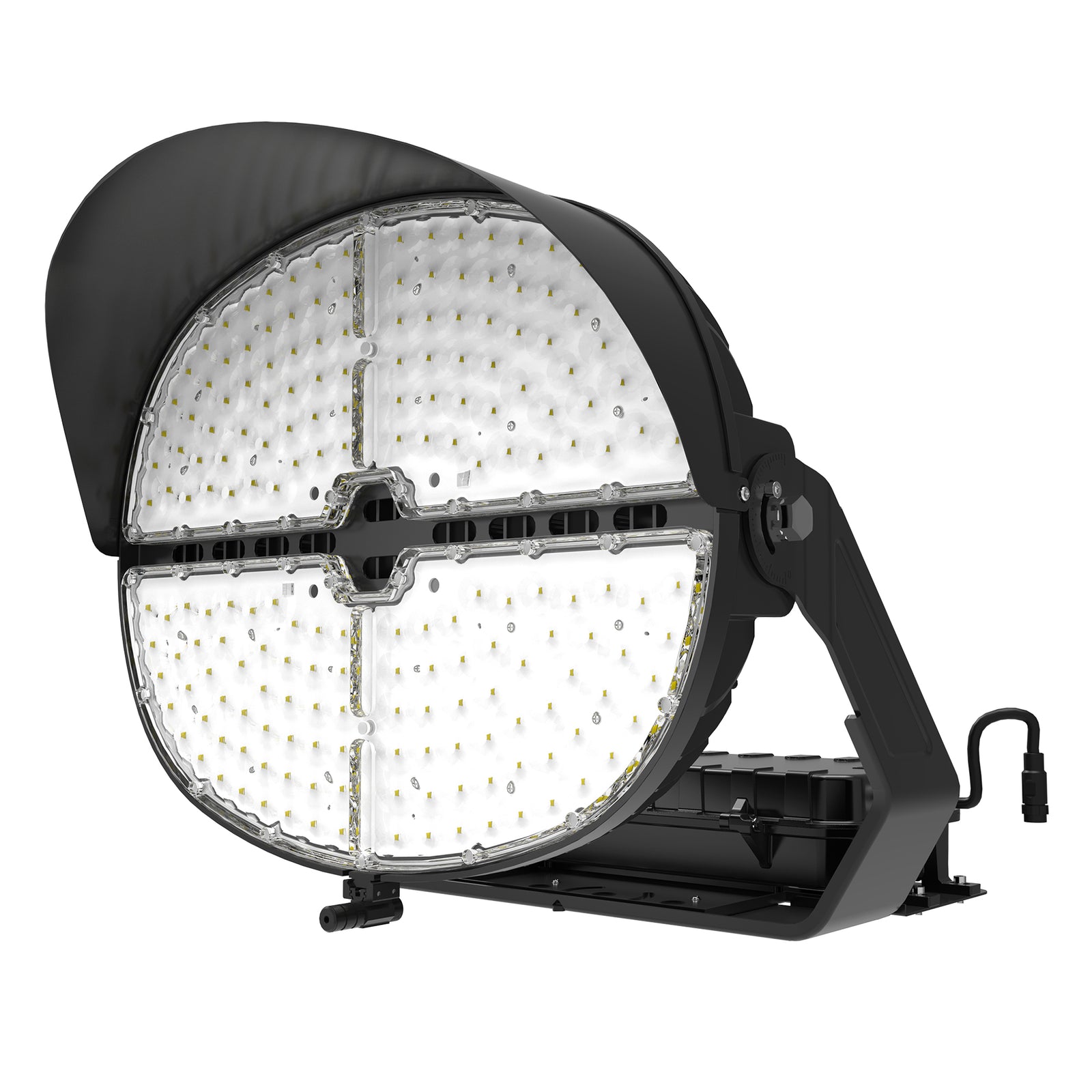

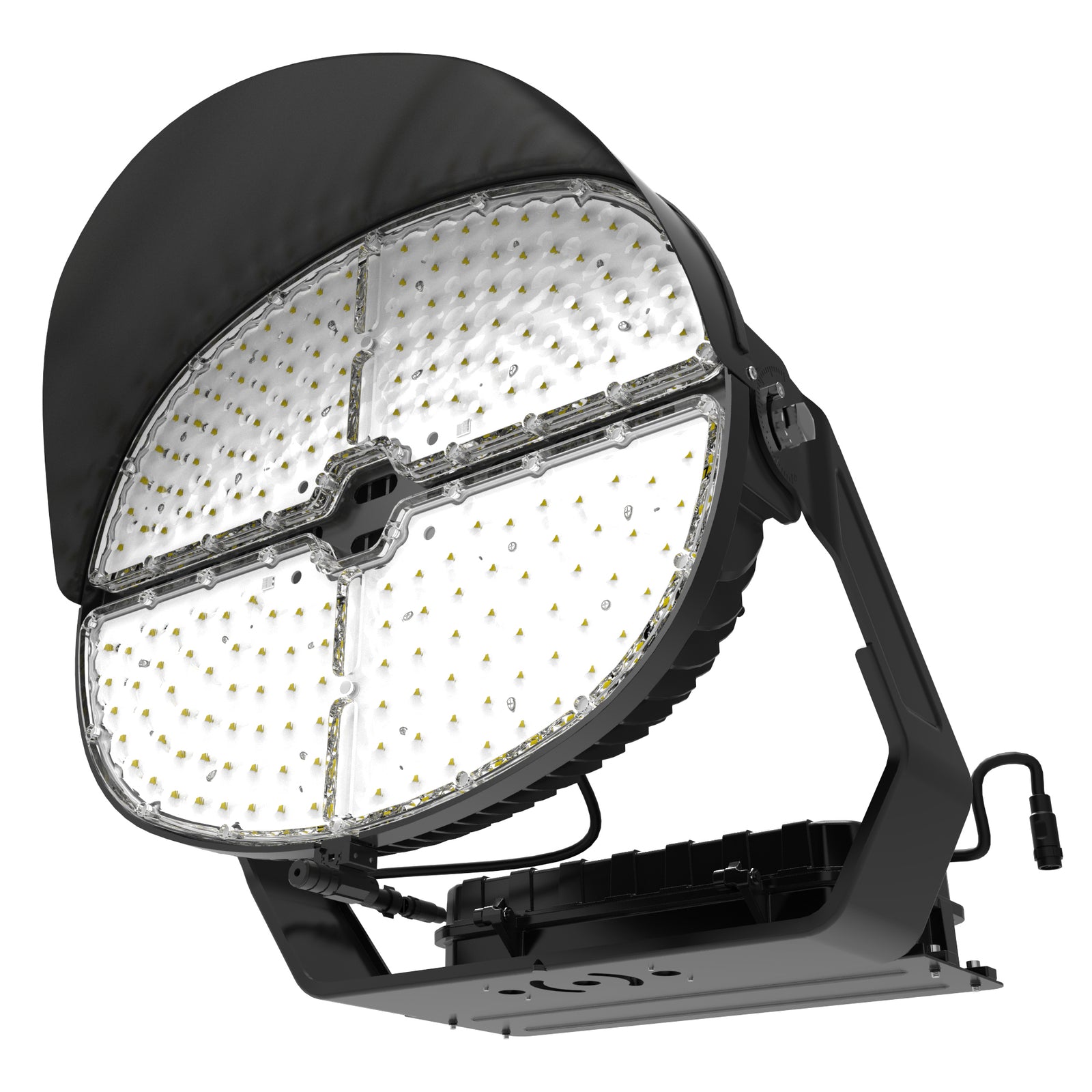

LED Sports Light - HPSL02 Series, 120000lumens, 5700K, 200-480V
$899.99 USD
Precio unitario
/
Agotado
All Free Shipping. No Extra Taxes.
Watts Guide
Wattage
: 850W
Wattage：
850W
Lumen
: 120000 lumens
Lumen：
120000 lumens
Lifetime
: 100000hrs
Lifetime：
100000hrs
Certification
: UL,cUL,DLC,IP65
Certification：
UL,cUL,DLC,IP65
Voltage
: AC 200-480V
Voltage：
AC 200-480V
Warranty
: 5 Years
Warranty：
5 Years
LED Sports Light - HPSL02 Series, 120000lumens, 5700K, 200-480V - 5700K / AC 200-480V está agotado y se enviará tan pronto como vuelva a estar disponible.
No se ha podido cargar la disponibilidad de recogida
BNPL flexible payment
30 Days no hassle return
2-7 Days delivery
2-5Year Warranty
Description
This LED Sports Light is designed for stadiums, sports fields, and other high-mast lighting applications. Available in wattages from 600W to 1200W with lumen output up to 160,000 lumens. Featuring a remote driver system for easier installation and maintenance, plus built-in surge protection up to 40KV. Multiple CCT options and NEMA 3Hx3V distributions provide precise light control for a wide range of venue requirements.
Construction
• Sealed Die-Cast Aluminum Housing
• Low-Profile, Compact Design
• IP65 Sealed Construction
• Low-Profile, Compact Design
• IP65 Sealed Construction
Electrical
• Wide-Range 200–480V Input
• 1–10V Dimming (10–100%)
• Up to 40kV Surge Protection
• PF ≥0.90 | THD ≤20%
• Operating Temp:-40°C to 50°C（-40℉ to 122℉）
• 1–10V Dimming (10–100%)
• Up to 40kV Surge Protection
• PF ≥0.90 | THD ≤20%
• Operating Temp:-40°C to 50°C（-40℉ to 122℉）
Optics
• NEMA 3H×3V Distributions
• 5700K
• 70 CRI
• 91,000–160,000 Lumens
• 5700K
• 70 CRI
• 91,000–160,000 Lumens

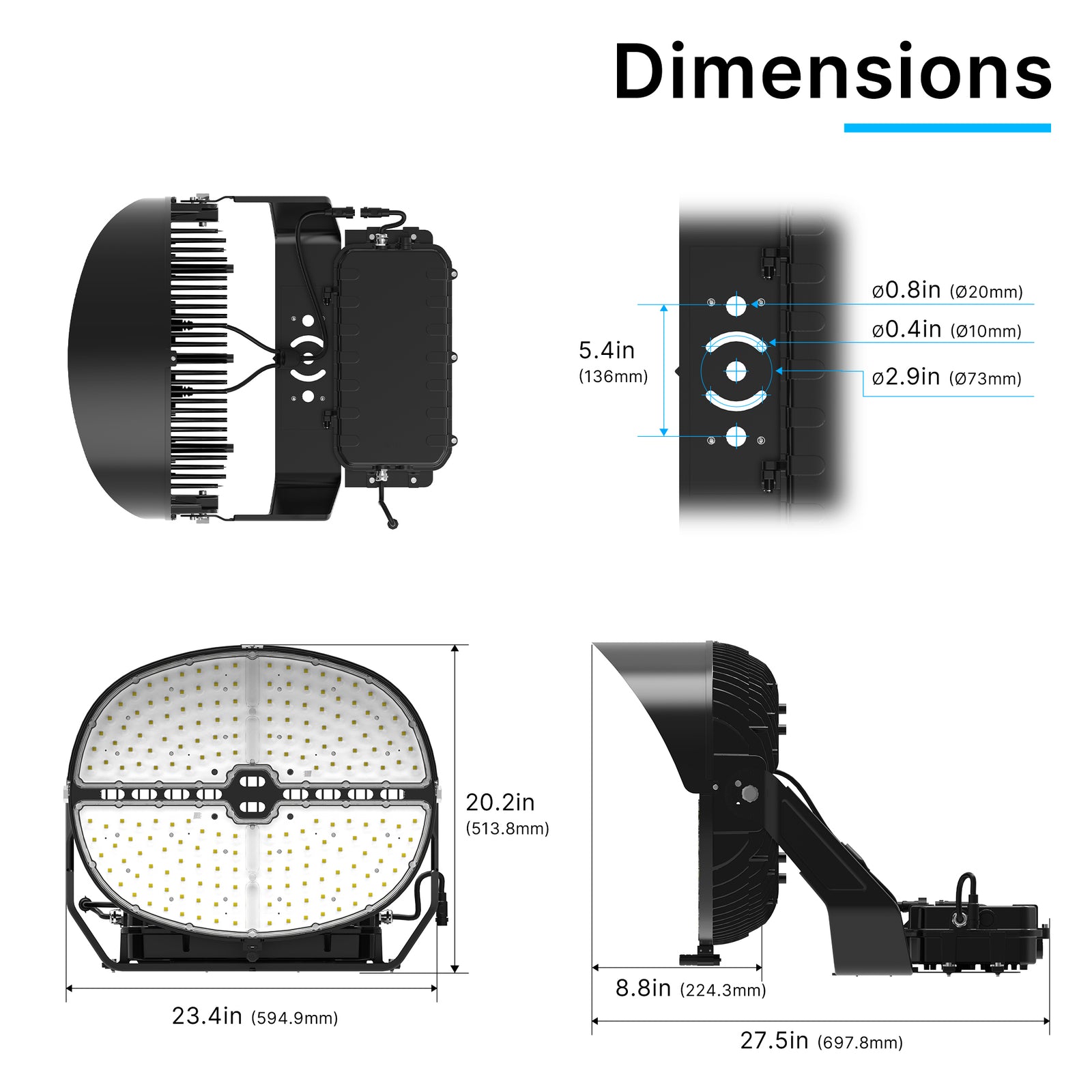

Weight
• 600W:38.51 lb
• 850&1200W:56.06 lb
• 850&1200W:56.06 lb
Model
• SL02-600W-48V57K
• SL02-850W-48V57K
• SL02-1200W-48V57K
Note: “48V” represents 200-480VA
• SL02-850W-48V57K
• SL02-1200W-48V57K
Note: “48V” represents 200-480VA
Certifications
• DLC
• UL/cUL

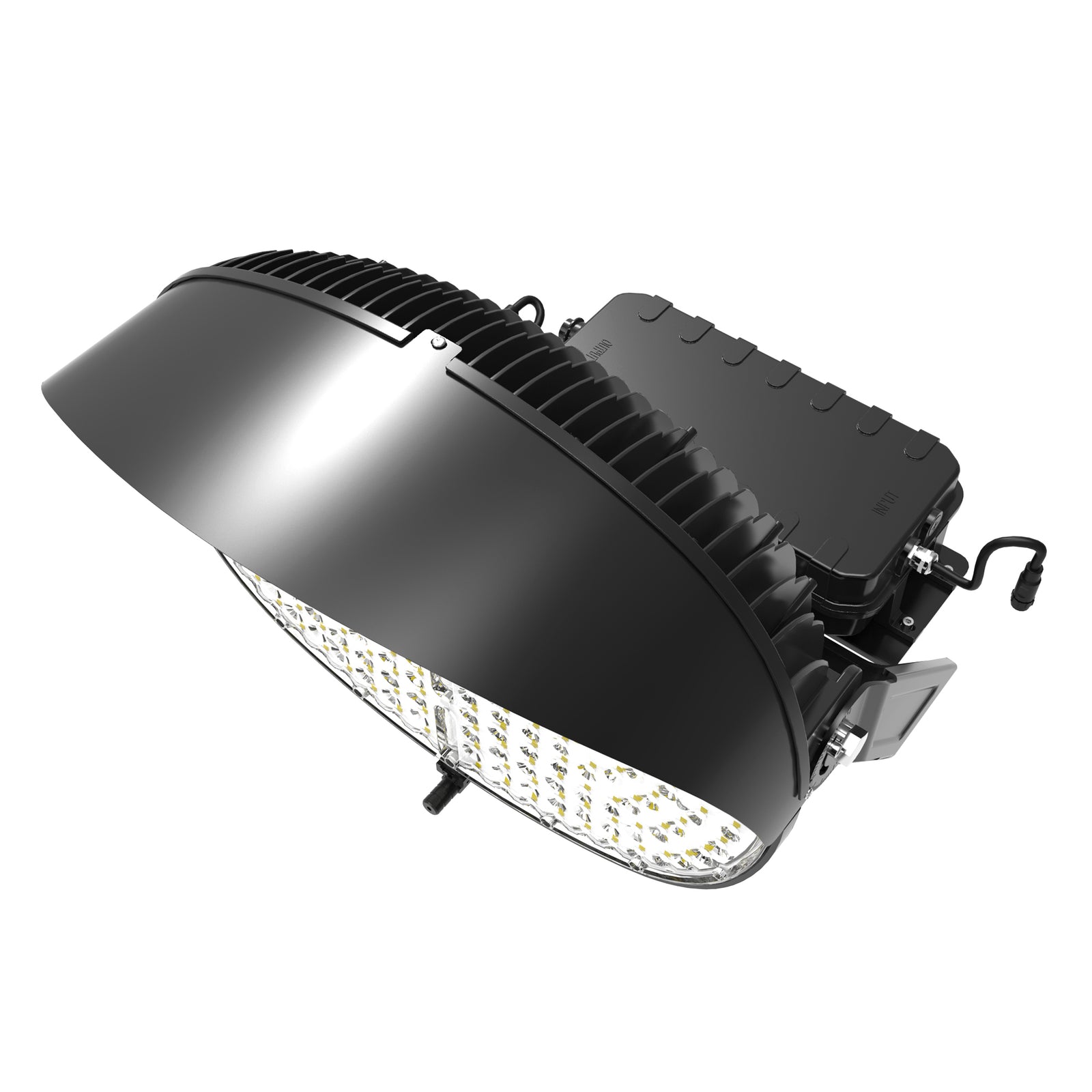

Mount
• Designed for installation with included trunnion bracket
• The Yoke Adaptor(option)is designed to slipfit a 2 3/8" to 3" O.D. tenon
• The Yoke Adaptor(option)is designed to slipfit a 2 3/8" to 3" O.D. tenon
Application
• Municipal
• School
• Semi-professional outdoor sports
• School
• Semi-professional outdoor sports
Lifespan
• Estimated 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
Warranty
• 5-year warranty
