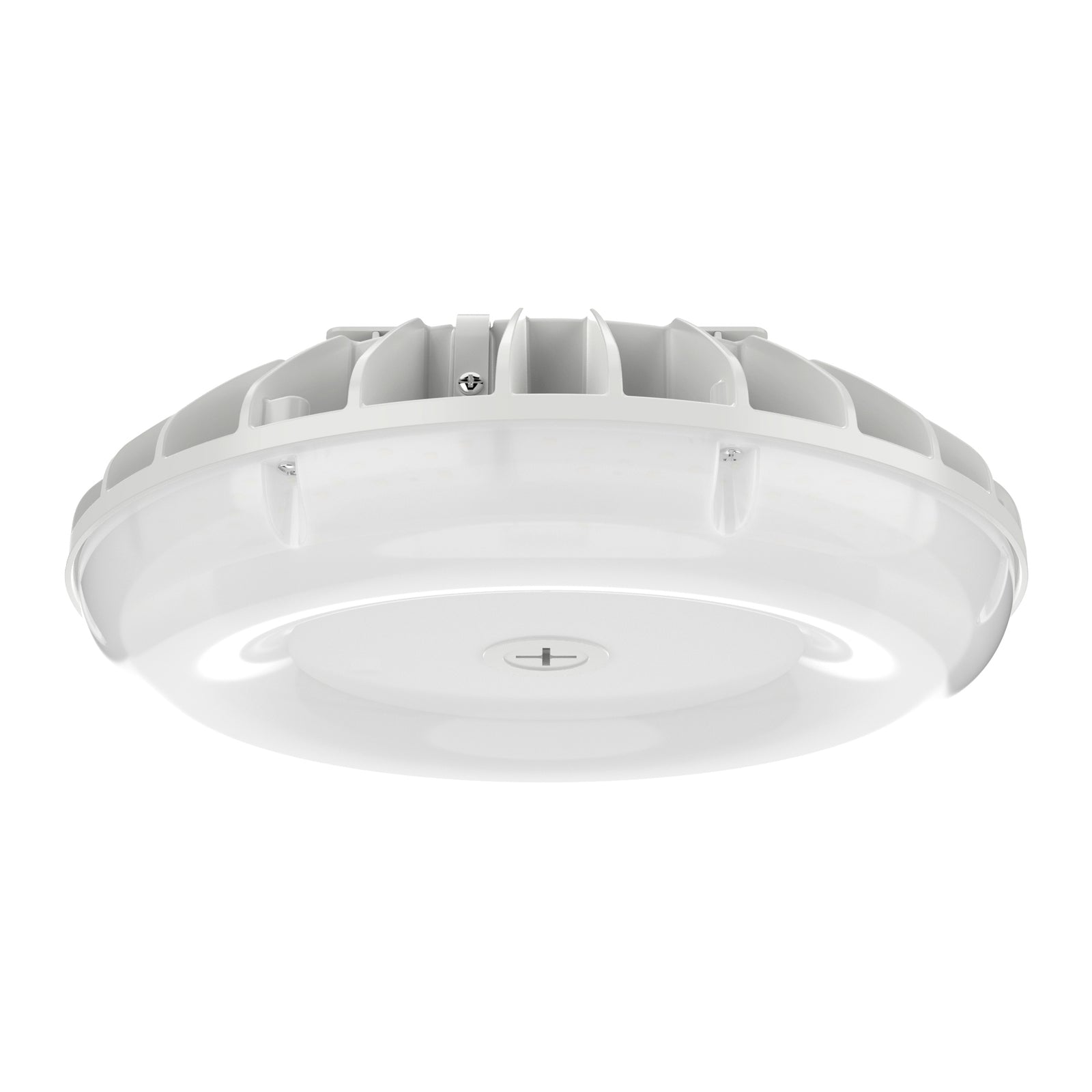

LED Canopy Light - HPCP02 Series, 7700lumens, Adjustable Wattage & CCT, 120-277V
$99.99 USD
Precio unitario
/
Agotado
All Free Shipping. No Extra Taxes.
Watts Guide
Wattage
: 60W/48W/36W/24W
Wattage：
60W/48W/36W/24W
Lumen
: 7700 lumens
Lumen：
7700 lumens
Lifetime
: 50000hrs
Lifetime：
50000hrs
Certification
: UL,cUL,DLC
Certification：
UL,cUL,DLC
Voltage
: AC 120-277V
Voltage：
AC 120-277V
Warranty
: 5 Years
Warranty：
5 Years
LED Canopy Light - HPCP02 Series, 7700lumens, Adjustable Wattage & CCT, 120-277V - 5000K/4000K / AC 120-277V está agotado y se enviará tan pronto como vuelva a estar disponible.
No se ha podido cargar la disponibilidad de recogida
BNPL flexible payment
30 Days no hassle return
2-7 Days delivery
2-5Year Warranty
Description
This LED Canopy Light features 1-10V dimming, selectable wattages, and field-adjustable CCT (4000K–5000K) on 60W models for greater flexibility. Built with a heavy-duty die-cast aluminum housing and 6KV surge protection, it is available in Parking Garage or Low Bay distributions. UL, cUL, and DLC certified, this fixture is backed by a 5-year warranty for dependable commercial performance.
Construction

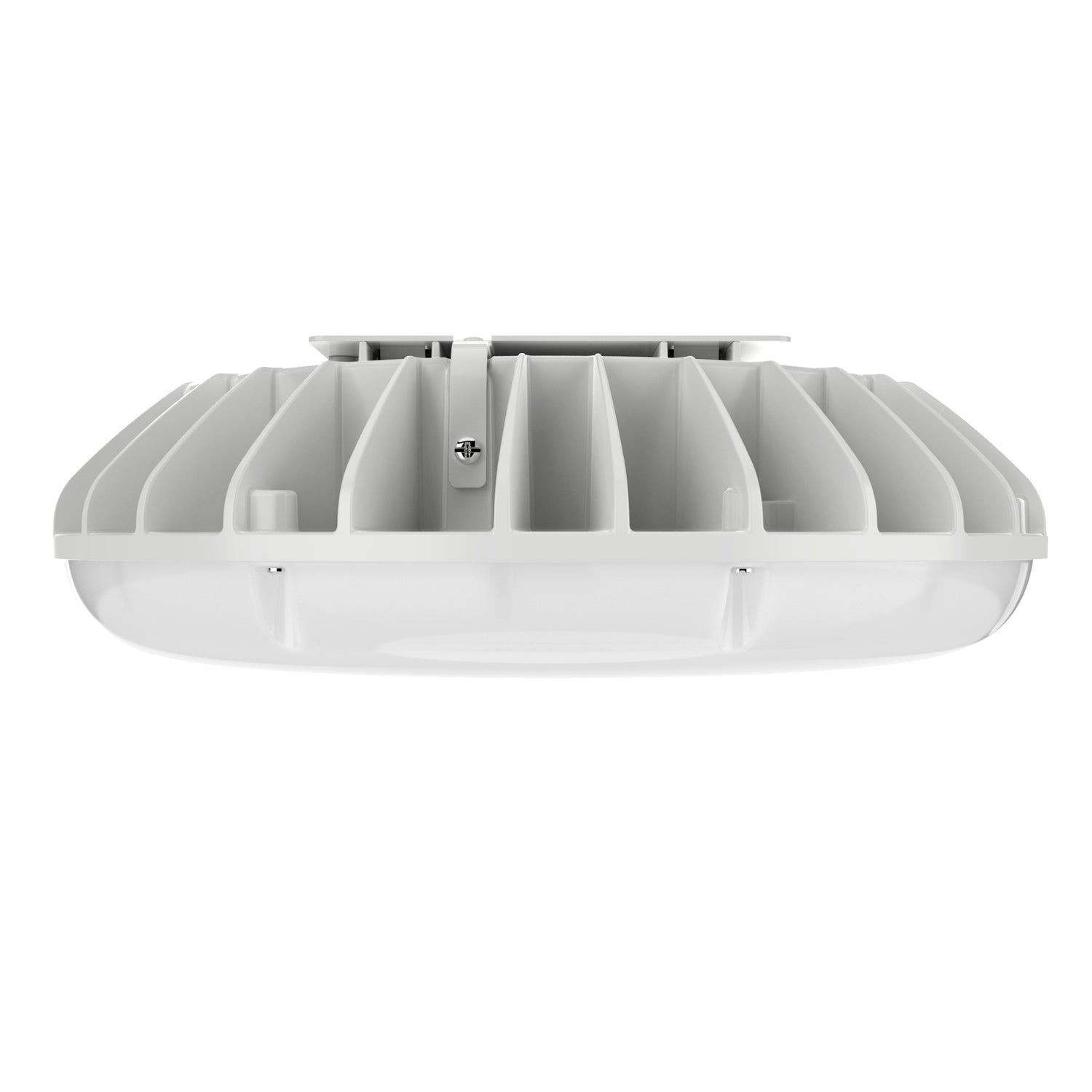

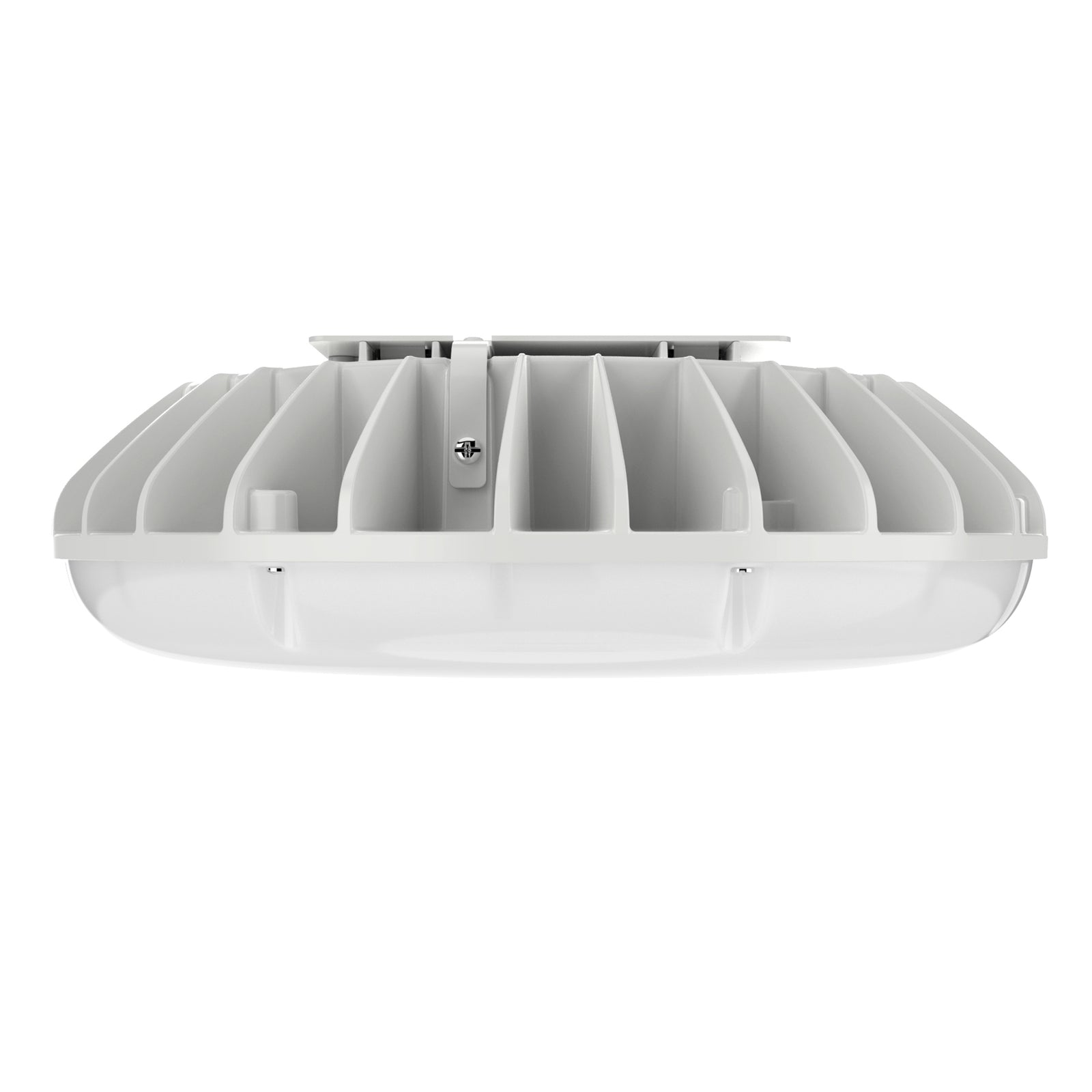

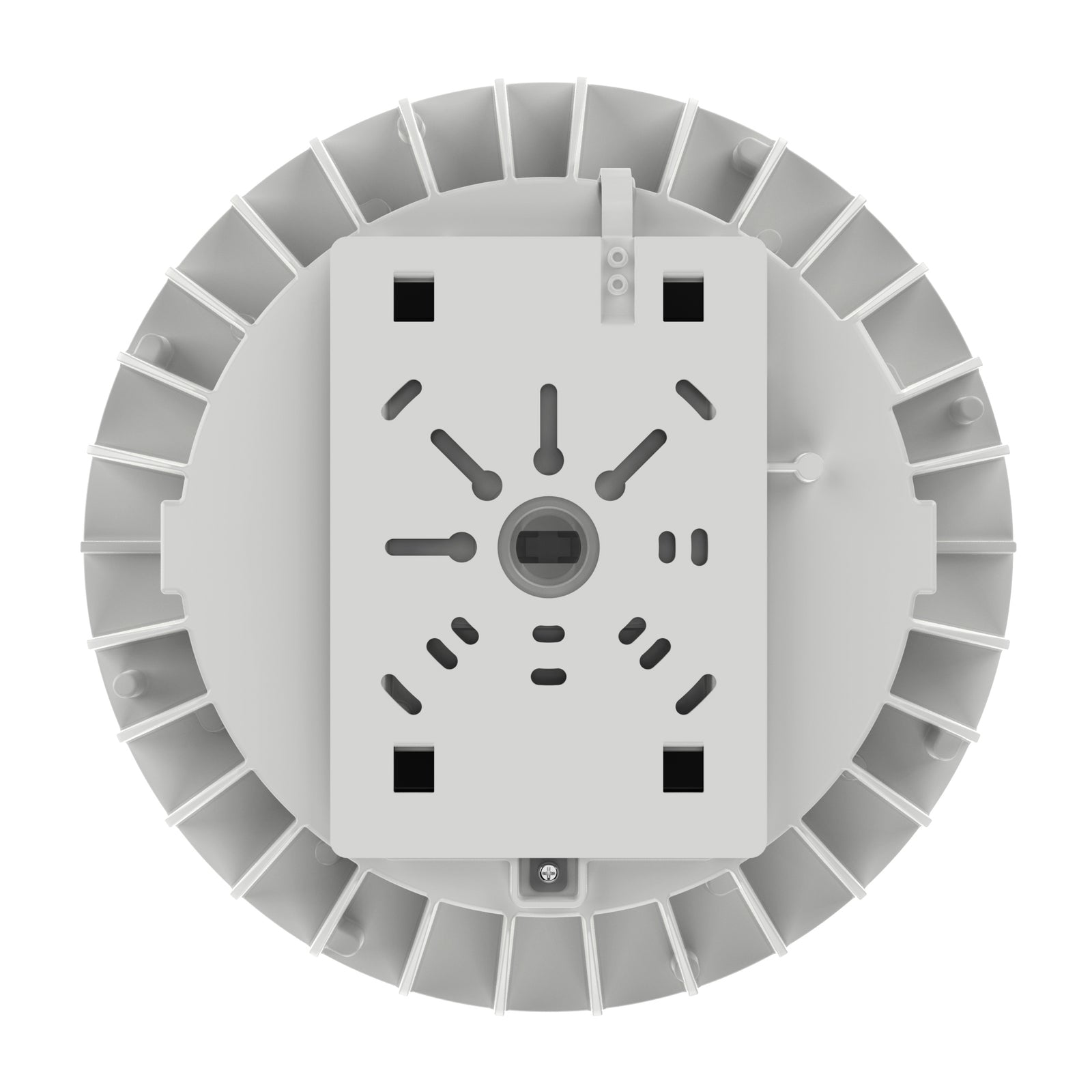

• Sealed Die-Cast Aluminum Housing
• Indoor & Outdoor Rated
• Optimized Heat Dissipation
• Corrosion-Resistant Powder Coat Finish
• Indoor & Outdoor Rated
• Optimized Heat Dissipation
• Corrosion-Resistant Powder Coat Finish
Electrical
• Voltage: 120–277VAC
• 1–10V Dimming
• Field-Selectable Wattage (100% / 80% / 60% / 40%)
• PF >0.9 | THD <20%
• Operating Temp: -40°C to 45°C （-40℉ to 113℉）
• 1–10V Dimming
• Field-Selectable Wattage (100% / 80% / 60% / 40%)
• PF >0.9 | THD <20%
• Operating Temp: -40°C to 45°C （-40℉ to 113℉）

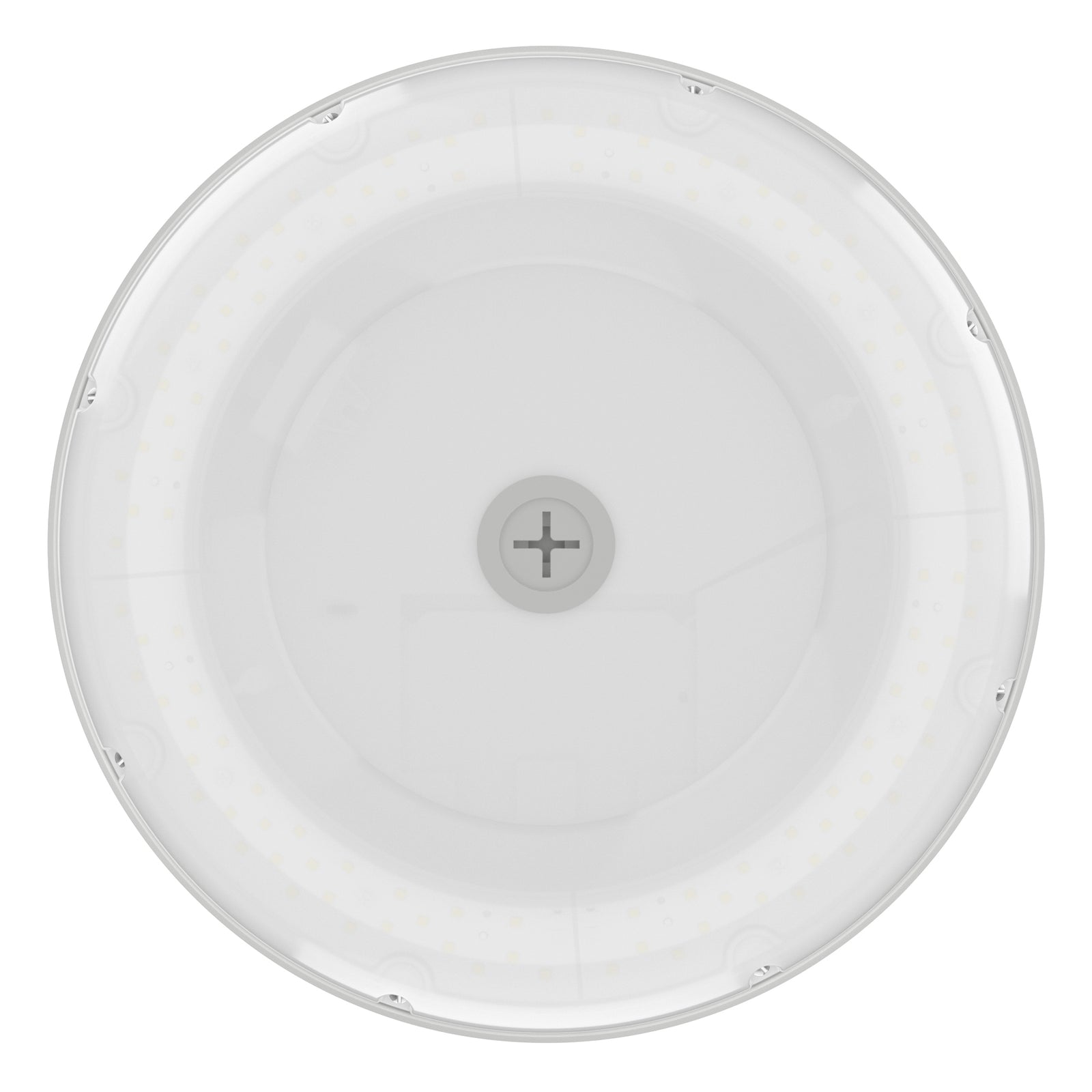

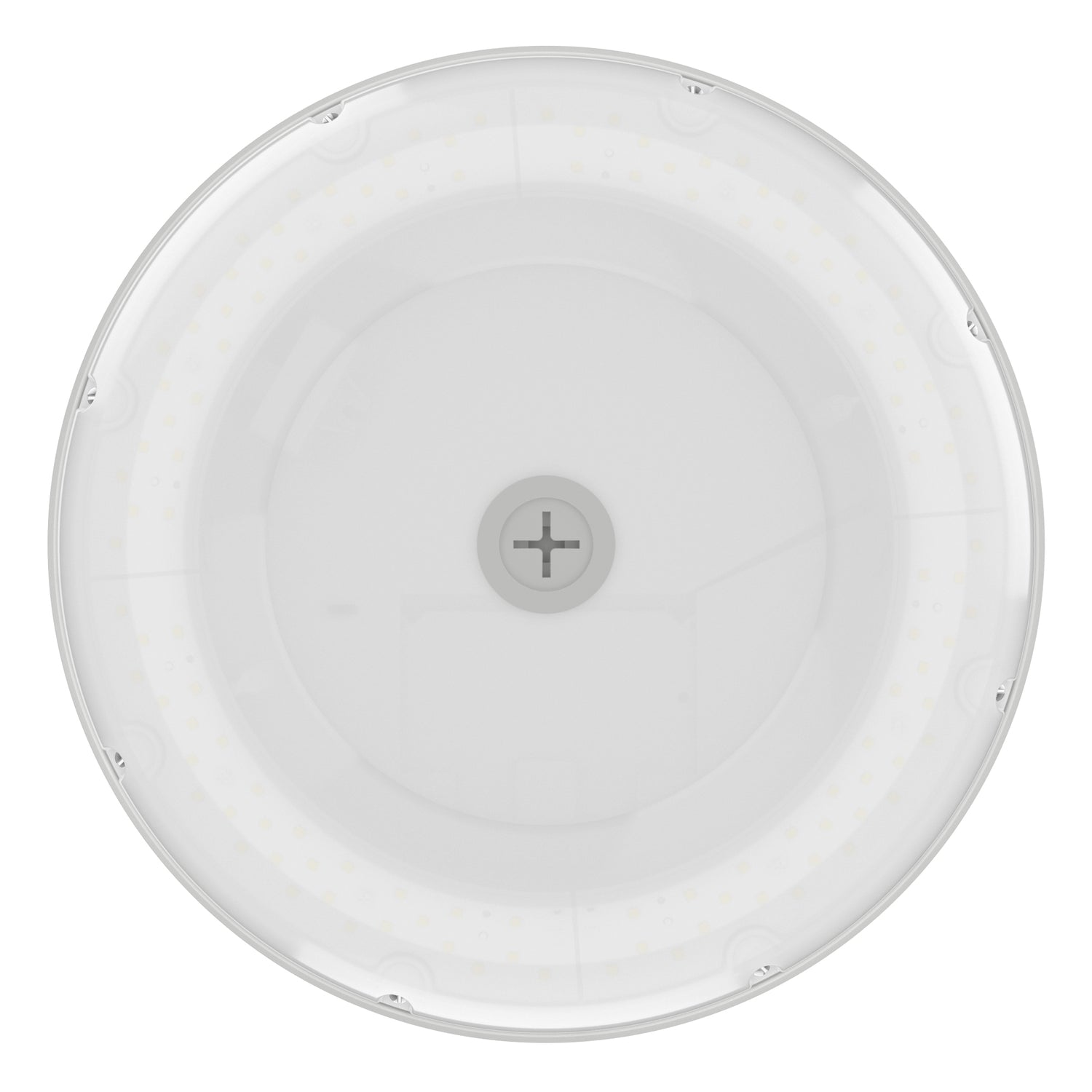

Optics
• 3,500–10,400 lm | Up to 150 lm/W
• 4000K / 5000K Selectable CCT
• 70 CRI | 120° beam angle
• 4000K / 5000K Selectable CCT
• 70 CRI | 120° beam angle
Weight
• 60W : 5.7 lb
• 80W : 6.2 lb
• 80W : 6.2 lb
Model
• CP02-60W-27VDDK
• CP02-80W-27VDDK
Note: “27V” represents 120-277VAC
• CP02-80W-27VDDK
Note: “27V” represents 120-277VAC
Certifications
• DLC
• UL/cUL
Mount

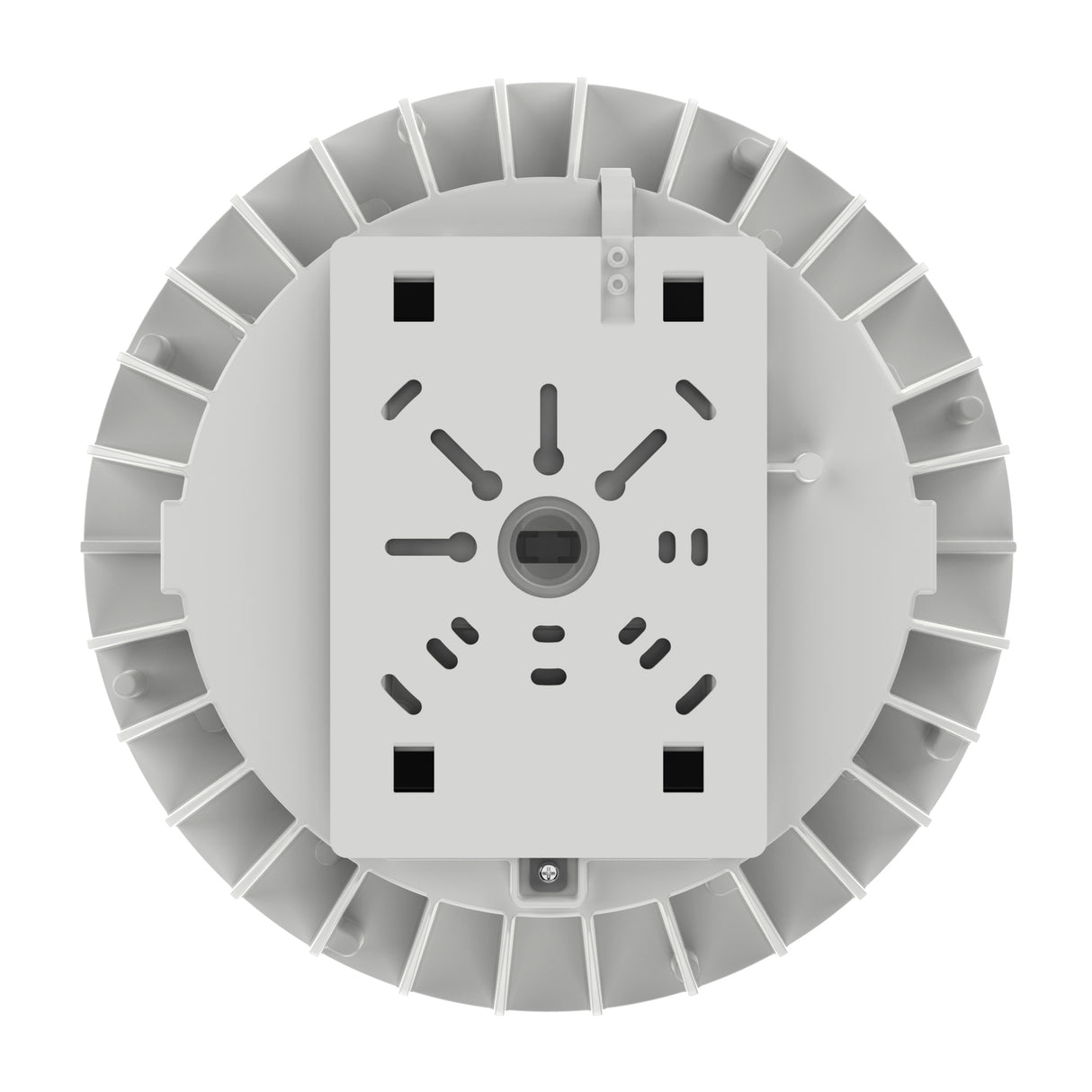

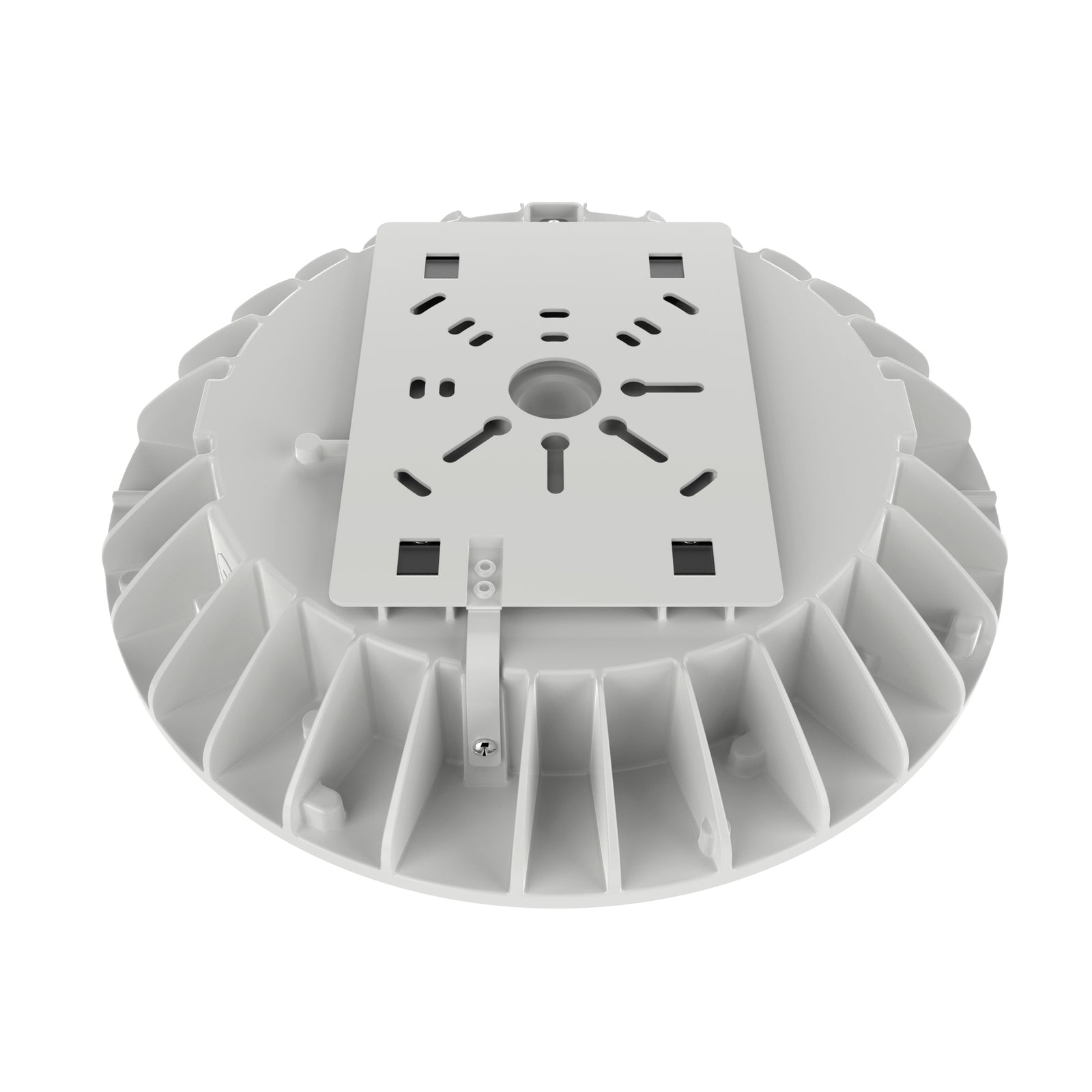

• Surface Mounted With J-Box(Default)
• Conduit Pendant Mount(Option)
• Conduit Pendant Mount(Option)
Application
• Indoor & Outdoor
• Parking Garage
• Gas Station
• Outdoor Corridor
• Shop
• Parking Garage
• Gas Station
• Outdoor Corridor
• Shop
Lifespan
• Estimated 50,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
Warranty
• 5-year warranty
