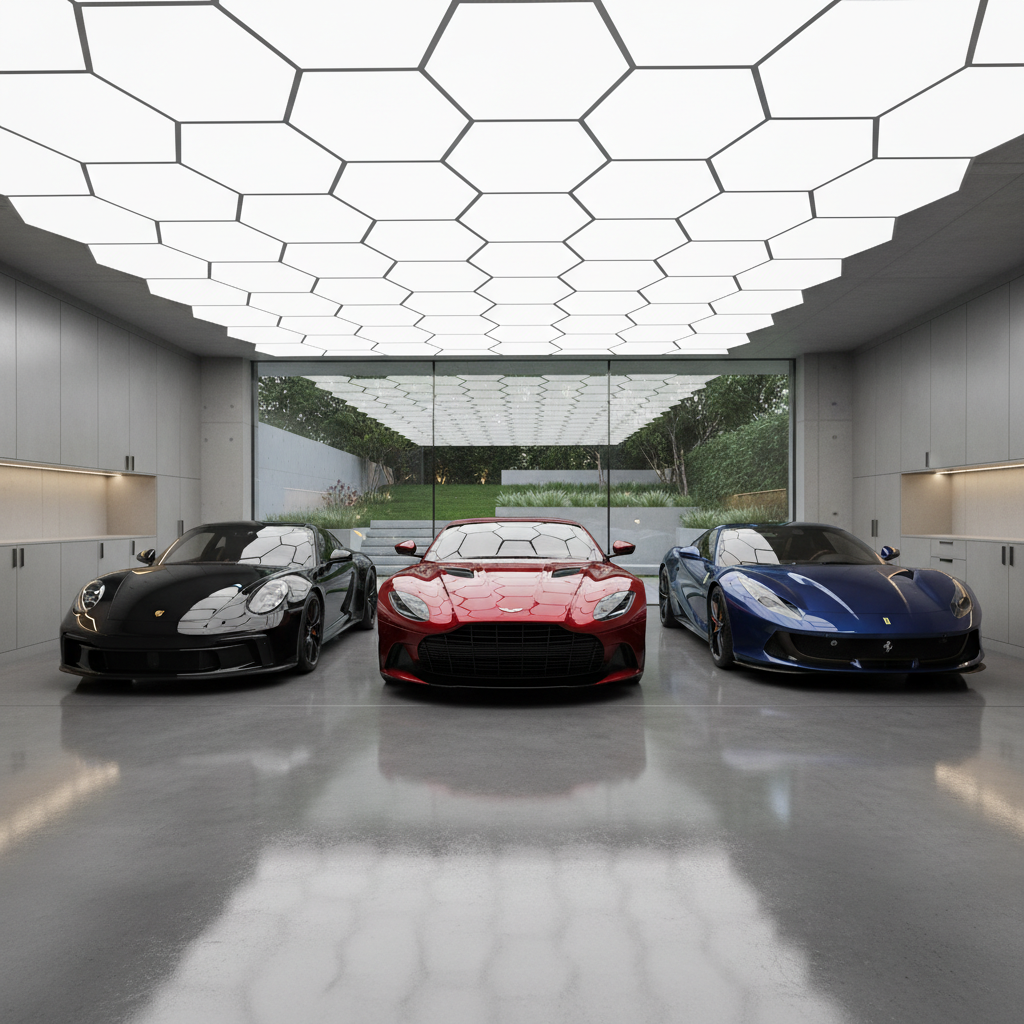

Resolving Voltage Drop in Large-Scale Hexagon Grid Installations
Expanding a hexagon lighting grid beyond standard kit sizes often results in a frustrating technical hurdle: the "dimming edge" effect. While a single power feed might suffice for a small 5-grid setup, larger architectural installations frequently suffer from voltage drop— a measurable reduction in electrical potential as current travels through the thin conductors of an expansive array.
To maintain uniform grid brightness and protect the longevity of your LEDs, you must transition from a "plug-and-play" mindset to a "power distribution" strategy. Based on our support patterns and technical benchmarks, the most effective way to resolve dimming is to implement multiple, synchronized power injection points and upgrade feeder wire gauges.
The Physics of Dimming: Understanding Voltage Drop
Voltage drop is not a defect of the LED itself; it is a fundamental property of electrical resistance. In a hexagon grid, the power must travel through numerous connectors and thin internal PCB (Printed Circuit Board) traces.
Think of voltage like water pressure in a garden hose. If the hose is very long or has many couplings, the pressure at the nozzle drops because of friction against the walls. In electrical terms, the "friction" is resistance. According to standard electrical principles, voltage drop is a function of current load, wire length, and the cross-sectional area of the conductor, measured in AWG (American Wire Gauge).
Expert Insight: For most DIY hexagon kits using standard 18AWG internal wiring, we observe that the visual threshold for "noticeable dimming" typically occurs when the voltage drops by more than 3%. Beyond this point, the 6500K cool-white LEDs may begin to shift in color temperature (CCT) or lose lumen output at the farthest points of the grid.
Assessing the Load: The 300W Heuristic
A common mistake among workshop enthusiasts is assuming the included power cable can handle an infinitely expandable grid. In practice, the total wattage of your installation dictates how many power feeds you need.
We utilize a Practical Loading Heuristic derived from real-world installation monitoring: limit the total load to approximately 300W per feed point for runs under 15 feet. This keeps the voltage drop within the imperceptible 3% range. If your grid exceeds 440W total, a single injection point is no longer sufficient.
| Grid Size Example | Estimated Wattage | Required Power Feeds | Logic / Assumption |
|---|---|---|---|
| 5-Grid (Small) | ~144W | 1 Feed | Well under the 300W threshold. |
| 14-Grid (Medium) | ~400W | 2 Feeds | Exceeds 300W; dual feeds prevent edge dimming. |
| 30-Grid (Large) | ~850W | 3-4 Feeds | Requires distributed injection to maintain uniformity. |
| 60-Grid (Enterprise) | ~1700W | 6+ Feeds | Approaches the limit of a standard 20A circuit. |
Modeling Note: These estimates assume a standard 120V US residential circuit and 7W per LED tube. If you are using RGB Gradient tubes or higher-output modules, your wattage-per-feed must be recalculated downward.
Strategic Power Injection: Step-by-Step Implementation
To resolve existing dimming or plan a large-scale layout, follow these technical steps to distribute power evenly across the grid.
1. Calculate Your "Injection Map"
Don't just plug power into one corner. For a large grid, you should plan for "Center-Out" or "Multi-Point" distribution. By injecting power into the center of a grid or at opposite ends, you effectively halve the distance the electricity must travel to reach the furthest LED tube.
2. Upgrade the Feeder Lines
While the internal grid wiring is fixed, the "home run" lines (the wires going from your outlet/junction box to the grid) can be optimized. Switching from the standard 18AWG provided in many kits to 14AWG or 12AWG for the main feeder lines significantly reduces the initial loss before the power even hits the first hexagon.
3. Synchronize Your Circuits (Avoid Ground Loops)
When adding auxiliary feeds, ensure all power supplies are plugged into the same electrical circuit (the same breaker in your panel). If you pull power from two different circuits, you may encounter "ground loop" issues. This can manifest as high-frequency flickering or even audible humming from the LED drivers.
4. Sectional Testing
Always test the grid section-by-section as you build it. If the furthest point is noticeably dimmer during the assembly of the second or third kit, that is your cue to add another power feed before completing the installation. It is significantly harder to retroactively add a feed point once the grid is fully mounted to the ceiling.
Compliance and Reliability: Why Standards Matter
When scaling up your lighting, you aren't just decorating; you are performing a small-scale electrical engineering project. This is where professional certifications become critical for safety and performance.
- UL Listed vs. UL Recognized: For large installations, always look for products that are UL Listed (Underwriters Laboratories). According to the UL Solutions Product iQ Database, a "Listed" mark means the entire end-product has been tested for safety, whereas "Recognized" components are only parts of a larger system.
- LM-79 Reports: This is the "performance report card" for your lights. An IES LM-79-19 report provides verified data on total lumens, efficacy (lm/W), and CCT consistency. If a manufacturer cannot provide an LM-79 report, their claims of "high brightness" are unverified.
- FCC Part 15: Large LED arrays can generate significant electromagnetic interference (EMI). Ensuring your drivers are FCC Part 15 compliant prevents your lights from interfering with your Wi-Fi, garage door openers, or shop radio.
For a deeper dive into how professional-grade specifications impact long-term performance, refer to the 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights.
Scenario Analysis: The 20x30ft Home Gym Challenge
To demonstrate the complexity of large-scale installs, we modeled an "Ambitious Home Gym Enthusiast" scenario. This setup aims to cover a 600-square-foot area with a continuous shared-edge hexagon grid.
Modeling Parameters & Assumptions:
- Area: 20ft x 30ft (600 sq. ft.)
- Geometry: Balanced shared-edge installation (1.75 geometry factor).
- Component: Hyperlite Gen 2 Hexagon Tubes (17.4-inch length, 7W/tube).
- Circuitry: Standard 120V / 20A dedicated lighting circuit.
Analysis Findings:
- Tube Count: The layout requires ~193 tubes to achieve the desired aesthetic density.
- Total Load: 1351W (~11.3A). This is well within the NEC (National Electrical Code) continuous-load limit of 1920W for a 20A circuit (80% rule).
- Power Feed Requirement: Based on the 440W maximum limit per injection point, this grid requires 4 separate power feeds distributed evenly.
- Thermal Impact: The 1351W load generates approximately 4600 BTU/hr of heat. In a small home gym, this may require additional HVAC considerations during intense workouts.
Logic Summary: Our analysis assumes a deterministic model where brightness uniformity is the priority. While one plug might "turn on" the whole grid, the voltage drop across 193 tubes would result in a ~15-20% brightness loss at the perimeter without the 4 injection points.
Troubleshooting Common Scaled-Grid Issues
If you have already installed your grid and are experiencing issues, use this diagnostic checklist:
- Flickering at the Edges: Usually indicates voltage drop or a loose Y-connector. Check the physical connection first; if it's tight, add a power feed to that specific section.
- One Section is Dimmer Than Others: This often happens when one "leg" of the grid has significantly more tubes than another. Rebalance your power injection points so each feed handles a similar number of tubes.
- The "Last Tube" Doesn't Light: This is often a polarity issue or a defective connector. Since hexagon tubes are directional, ensure the "Power In" side of the tube is correctly oriented toward the source.
- Breaker Tripping: If your grid is massive (over 1900W), you are likely exceeding your circuit capacity. You may need to split the grid across two separate 15A or 20A breakers.
Aesthetic vs. Efficiency: A Practical Trade-off
It is important to acknowledge that while hexagon grids offer unparalleled "wow factor" and uniform task lighting for car detailing or gym work, they are an aesthetic choice.
In our TCO (Total Cost of Ownership) modeling, we compared a 1351W hexagon grid to a traditional 400W metal halide system. While the LED hexagon grid provides superior light distribution, it actually consumes more energy than a single high-efficiency High Bay fixture because of the sheer number of tubes required to cover the same area. For most DIYers, the trade-off is worth it for the shadow-free environment, but you should be aware of the higher operating cost compared to standard Industrial LED High Bay lights.
Summary of Actionable Steps
To ensure your large-scale hexagon installation is a success:
- Map Your Feeds Early: Plan for one power injection point for every 300W–440W of lighting.
- Use 14AWG Wire: For your main power runs to the ceiling, use 14AWG to minimize pre-grid voltage loss.
- Verify Certifications: Ensure your kit is UL Listed and the manufacturer provides LM-79 data for verified brightness.
- Test as You Go: Don't wait until the last hexagon is snapped in to flip the switch. Test each "zone" as you connect it to its power feed.
By following these professional electrical practices, you can transform a standard garage into a high-performance, uniformly lit showroom that remains "Solid" and "Reliable" for years to come.
Disclaimer: This article is for informational purposes only and does not constitute professional electrical advice. Always consult with a licensed electrician for installations involving high-voltage wiring and ensure all work complies with the National Electrical Code (NEC) and local building regulations.
