The Critical Role of Junction Box Integrity in Industrial LED Retrofits
In the current landscape of industrial facility management, the transition from legacy high-intensity discharge (HID) lighting to high-performance LED systems is a standard operational strategy. While most project discussions focus on efficacy (lumens per watt, lm/W) and the DesignLights Consortium (DLC) Qualified Products List (QPL) status to secure utility rebates, a fundamental safety risk is often overlooked: the physical mounting interface.
Legacy junction boxes (J-boxes) in older warehouses and manufacturing plants were installed under different building codes and for different hardware profiles. As contractors and facility managers navigate the 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights, it becomes clear that "fitting" a new light into an old hole is not the same as a code-compliant installation. This article provides a pragmatic, technical framework for assessing, upgrading, and verifying junction boxes to ensure long-term structural reliability and compliance with the National Electrical Code (NEC).
The Weight Paradox: Why "Lighter" Isn't Always Safer
A common misconception in the B2B lighting sector is that because modern LED high bays are significantly lighter than their predecessors, existing mounting hardware is over-engineered for the task. The data, however, suggests a more nuanced reality.
According to technical specifications for legacy 400W metal halide fixtures, these units can weigh upwards of 80 lbs (36 kg) due to heavy magnetic ballasts and glass reflectors. In contrast, a modern LED equivalent typically weighs between 15 and 25 lbs (7–11 kg). This represents a 50% to 80% reduction in static load.
However, the risk during a retrofit is rarely the static weight of the fixture alone. The primary hazards stem from:
- Vibrational Fatigue: Industrial environments with heavy machinery or overhead cranes subject ceiling structures to cyclical loading that legacy boxes, potentially weakened by decades of oxidation, may no longer sustain.
- Dynamic Installation Force: The act of installation—specifically the "tug" an electrician gives to verify a seat—can exert momentary forces exceeding 100 lbs (45 kg).
- Code Evolution: Older "old work" boxes secured only to drywall or thin-gauge metal decking are a severe hazard under modern safety standards.
Logic Summary: Our analysis of mounting risks assumes that while static load has decreased, dynamic environmental factors (vibration) and installation stresses require a safety factor of at least 1.5 to 2 times the fixture's weight, regardless of the box's nominal rating.
Technical Specifications for Compliant Junction Boxes
When upgrading legacy systems, the standard 4-inch round pan box often found in light commercial settings is insufficient for industrial high bay applications. For concrete ceilings or steel-truss environments, the hardware must meet specific volumetric and structural criteria.
Minimum Hardware Requirements for Industrial Retrofits
| Parameter | Minimum Requirement | Unit | Rationale |
|---|---|---|---|
| Box Size | 4 11/16 | Inches | Provides adequate wiring space for 0-10V dimming leads. |
| Interior Volume | 30+ | Cubic Inches | Prevents wire crowding and heat buildup per NEC 314.16. |
| Static Load Rating | 50 | lbs | Standard NEC requirement for fixture support (NEC 410.36). |
| Material | Zinc-Coated Steel / Cast Al | N/A | Corrosion resistance in non-conditioned industrial spaces. |
For concrete ceilings, a shallow pan box is physically unable to house the necessary wire connectors for modern smart-controlled fixtures. We recommend a deep 4 11/16-inch box with multiple screw holes for the fixture bracket. This ensures that the bracket is not dependent on a single point of failure.
NEC Article 410.36 and the "50-Pound Rule"
The National Electrical Code (NEC) Article 410.36 specifically addresses the support of luminaires. It mandates that a junction box must be "listed" for the weight it supports.
A common, costly mistake is assuming a junction box rated for 50 lbs (22 kg) can support a 35 lb (16 kg) fixture safely without further inspection. In professional practice, experienced electricians recognize that the existing box's attachment to the building structure is the true weak link. If a box is secured only to drywall or a light-duty bar hanger, it is a "severe hazard" regardless of the box's individual rating.
The Safety Factor Heuristic
To mitigate risk, we apply a Safety Factor Heuristic of 2.0x. If your high bay weighs 20 lbs, the mounting system (box + anchor) should be verified to hold 40 lbs of static force to account for long-term vibration and installation "tug."
Methodology Note: This 2.0x heuristic is a practical baseline derived from patterns in customer support and warranty handling where mounting failures were linked to marginal structural attachments (not a controlled lab study).
Structural vs. Electrical: The Overlooked Conflict
While the NEC governs the electrical box, structural codes like the International Building Code (IBC) and OSHA standards often dictate the requirements for overhead load attachments. A junction box may technically meet NEC 410.36 but fail under the dynamic, cyclical loads of a manufacturing plant.
In facilities with significant machinery vibration, the existing box may have experienced "thread creep" or fastener loosening over 20+ years. Simply swapping the fixture without inspecting the anchors is a liability.

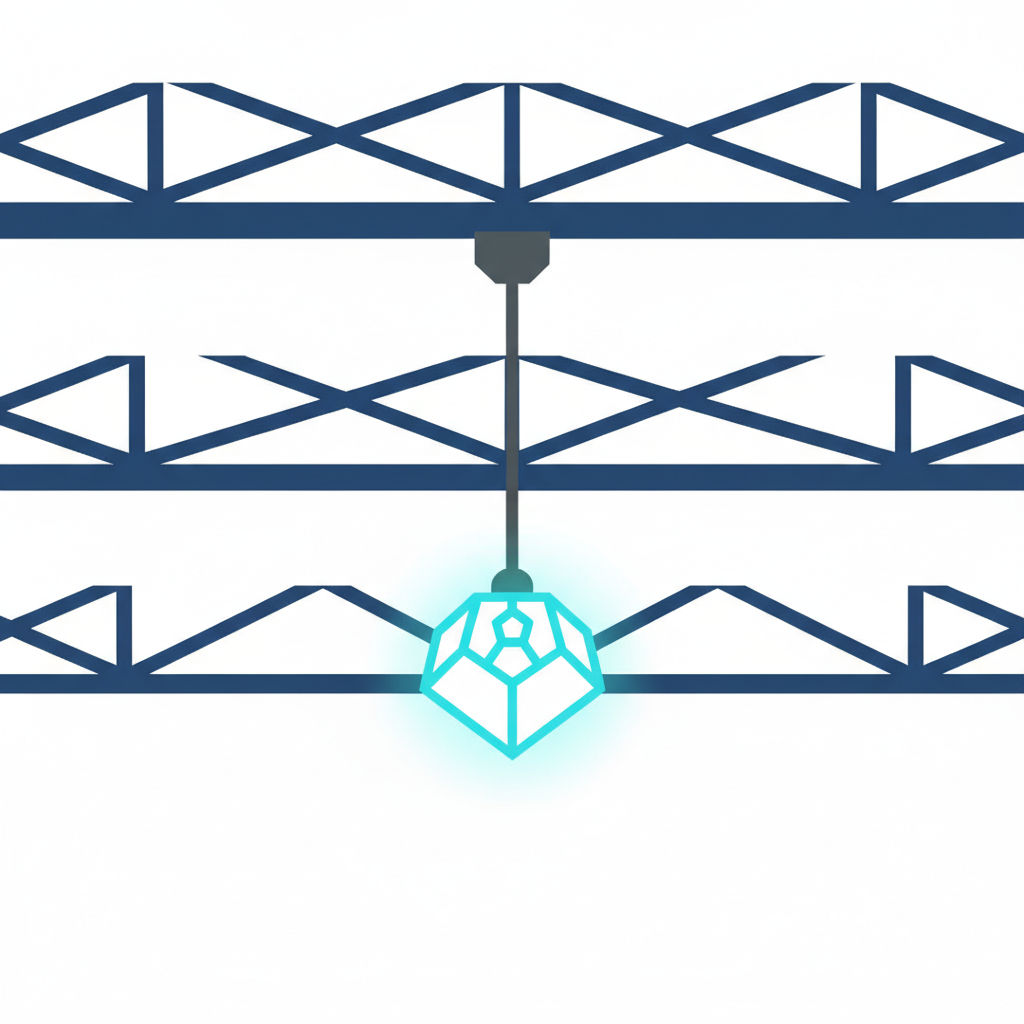

Pro-Tip for Contractors: If a legacy box is embedded in concrete or high-bay decking and access is restricted, the most practical and code-compliant solution is often to abandon the old box in place. Instead, install a new, independently supported structure, such as a Unistrut system, directly to the building's structural members. This bypasses the integrity issues of the old box entirely.
Step-by-Step Assessment for Legacy J-Boxes
Before beginning a retrofit, every mounting point should undergo a standardized inspection. Use the following checklist to determine if a box requires a full upgrade:
- Anchor Verification: Is the box secured to a ceiling joist or structural beam? Boxes secured only to ceiling tiles or drywall must be replaced.
- Corrosion Check: Are there signs of "white rust" or oxidation on the mounting screws? Corrosion reduces the shear strength of the threads.
- Volume Check: Does the box have at least 30 cubic inches of space? Modern LED drivers often require 0-10V dimming wires and potentially sensor leads (Class 2 circuits), which take up significant space.
- Grounding Continuity: Does the legacy box provide a low-impedance ground path? Many older boxes lack a dedicated grounding screw, which is essential for UL 1598 compliance.
Economic Reality: The Cost of the "Shortcut"
The operational impact of a full junction box replacement—involving scaffolding, production downtime, and potential hazardous material abatement (in very old facilities)—can be 5 to 10 times the material cost of the box itself. This creates a powerful economic incentive for facilities to choose unapproved adapters or "field modifications."
However, using unlisted adapters or modifying a box in the field often voids the manufacturer's warranty and the UL Solutions Product iQ listing of the fixture. In the event of a failure, the liability shifts entirely to the facility owner or the installing contractor.
Estimated Cost Comparison (Per Point)
| Item | Standard Retrofit (Old Box) | Full Box Upgrade | Independent Support (Unistrut) |
|---|---|---|---|
| Material Cost | $0 | $15–$25 | $30–$50 |
| Labor Time | 15 mins | 60–90 mins | 45 mins |
| Warranty Risk | High | Low | None |
| Code Compliance | Questionable | High | Highest |
Note: Costs are estimated ranges based on common industrial labor rates ($85/hr) and bulk material pricing.
Ensuring Compliance with Energy and Performance Standards
While structural safety is paramount, the upgrade is also the ideal time to ensure the system meets modern energy codes like ASHRAE Standard 90.1-2022 or the IECC 2024. These standards increasingly require integrated controls (occupancy sensors and daylight harvesting).
A larger, upgraded junction box provides the physical space needed for these control modules. Furthermore, ensuring the fixture is DLC Premium certified and backed by IES LM-79-19 performance data ensures that the investment in structural safety is matched by energy savings and light quality.
Summary of Best Practices for Mounting
For B2B contractors and facility managers, the "Solid and Reliable" brand of a lighting project is built on the components the customer never sees. By adhering to strict mounting protocols, you mitigate the risk of fixture falls, code violations, and warranty denials.
- Always verify the structural attachment of the box, not just the box's nominal rating.
- Prioritize 4 11/16-inch deep boxes for all high bay applications to accommodate modern wiring and control systems.
- Consult the UL Product iQ Database to ensure all mounting hardware is "Listed" for its intended use.
- Implement independent support (Unistrut or aircraft cable) if the existing junction box integrity is in doubt.
YMYL Disclaimer: This article is for informational purposes only and does not constitute professional electrical, structural, or legal advice. Electrical installations should only be performed by a licensed professional in accordance with the National Electrical Code (NEC) and local building regulations. Improper installation can result in fire, injury, or death. Always consult with a structural engineer when mounting heavy equipment to building members.
