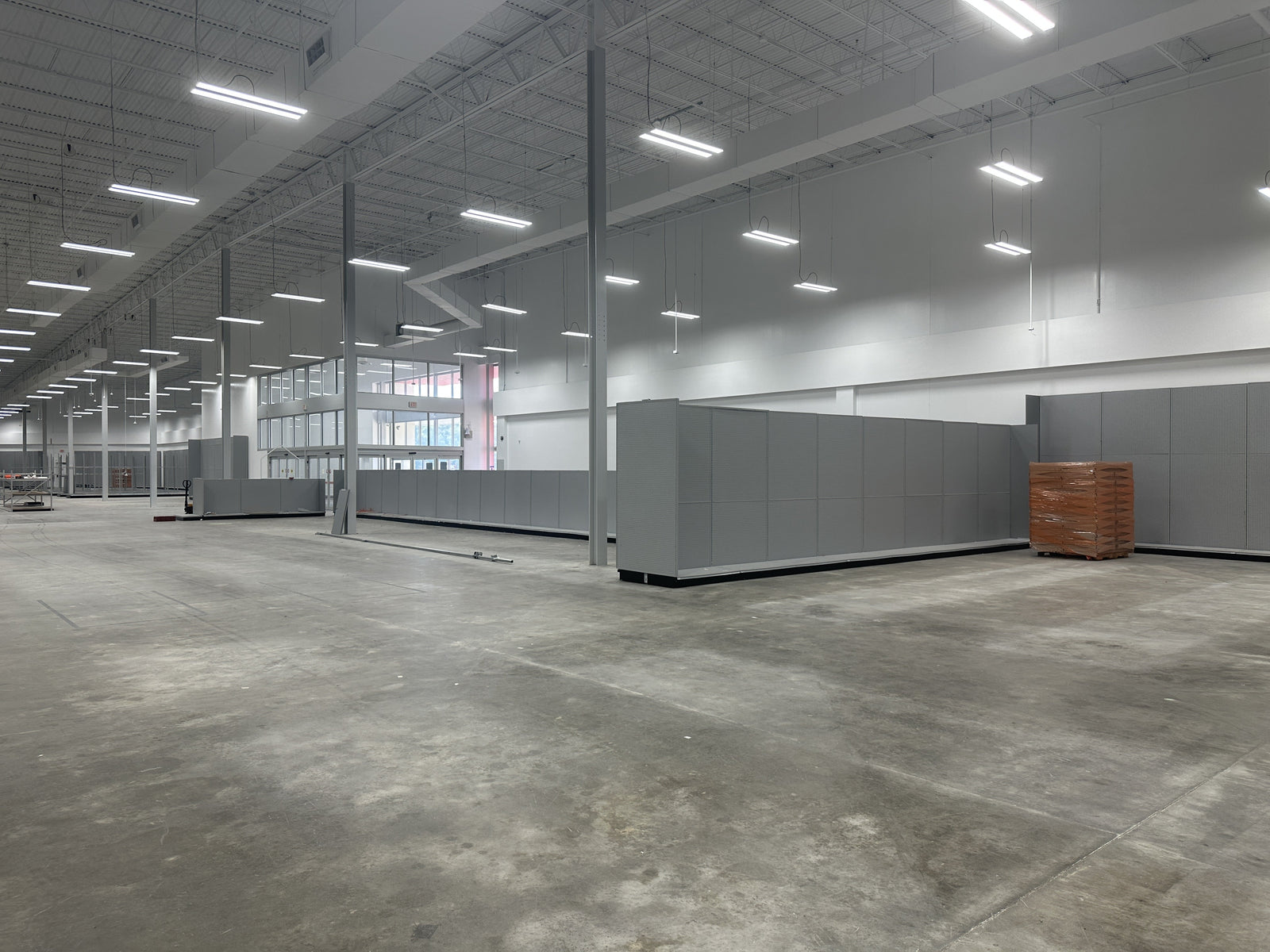

Engineering Structural Integrity in High Bay Installations
In industrial and commercial lighting projects, the mounting system is the literal bridge between a high-performance luminaire and the building's structural bones. For B2B professionals—contractors, facility managers, and electricians—selecting mounting hardware is not merely a matter of convenience; it is a critical decision involving structural liability, safety compliance (UL 1598), and long-term maintenance efficiency.
Whether you are retrofitting a 50,000-square-foot warehouse or specifying lighting for a new-construction manufacturing plant, the ceiling substrate dictates the hardware. A failure to match the mounting system to the ceiling type can lead to fixture sagging, seal compromise, or catastrophic structural failure. This guide breaks down the engineering requirements for steel, concrete, wood, and specialized ceilings to ensure every installation meets the "Pro-Grade" standard.
Steel I-Beams and Open Web Trusses
Steel structures are the backbone of modern industrial architecture. However, the variety in beam profiles—from wide-flange I-beams to tapered C-channels—requires precision in hardware selection.
Beam Clamps vs. Drilling
For steel I-beams, the industry-standard approach is the use of high-strength C-clamps or beam clamps. These are preferred over drilling and tapping for two reasons: they preserve the structural integrity of the beam and allow for lateral adjustability during the final aiming phase.
When using C-clamps, the jaw opening must match the beam flange thickness precisely. A common error is using a clamp with a slightly oversized jaw, which can lead to "walking" or loosening under the vibration of HVAC systems or bridge cranes. Professional electricians recommend clamps with a secondary locking pin or a "cup-point" set screw that bites into the steel.
Dynamic Load and Truss Mounting
In buildings with open web steel trusses, fixtures are often suspended via wrap-around hooks or specialized truss hangers. It is vital to calculate the dynamic load rather than the static weight.
Logic Summary: Our structural analysis for industrial mounting assumes a dynamic load factor of 1.5x to 2.0x the static fixture weight. This heuristic accounts for the "jerk" force applied during cleaning, the weight of accumulated dust (which can add 5–10% over time), and potential seismic activity.
| Hardware Type | Application | Benefit |
|---|---|---|
| C-Clamp | I-Beams / H-Beams | No drilling required; high lateral adjustability. |
| Beam Hanger | Tapered Flanges | Self-leveling design for non-parallel surfaces. |
| Wrap-around Hook | Round/Square Tubing | Maximum security against sliding on trusses. |
| Pendant Stem | High-vibration areas | Reduces "sway" compared to chain mounting. |
For a deeper look at specifying fixtures for these environments, refer to the 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights.
Concrete Decks and Masonry Substrates
Mounting to concrete requires a different set of mechanical principles, primarily focused on the friction between the anchor and the substrate. According to the American Concrete Institute (ACI) 318-14 Chapter 17, all post-installed anchor connections must be qualified for the specific load type (tension vs. shear).
Wedge Anchors vs. Sleeve Anchors
For permanent, high-load high bay installations, wedge anchors are generally preferred over sleeve anchors. Wedge anchors provide higher pull-out strength because the expansion clip is forced against the walls of the hole as tension is applied.
The 1/16" Precision Rule: A critical "gotcha" in concrete mounting is the drill bit size. Using a worn-out carbide bit or a bit that is just 1/16" larger than the anchor diameter can reduce the holding capacity by up to 50%. Always use a multi-cutter carbide bit to produce a perfectly round hole, which maximizes the friction surface.
Modeling Note: Anchor performance modeling assumes a substrate density of 3000 PSI (pounds per square inch). If you are mounting to lightweight or "green" concrete, the embedment depth must be increased by approximately 25% to maintain the safety factor.
Embedment Depth and Dust Removal
The hole must be drilled deeper than the intended embedment to allow for dust settlement, or it must be thoroughly cleaned with compressed air. Residual dust acts as a lubricant, significantly decreasing the ultimate holding power of the anchor.
Wooden Beams and Timber Trusses
In pole barns, agricultural facilities, and older industrial lofts, wood is the primary substrate. Unlike steel, wood is an organic material subject to expansion, contraction, and grain-direction weaknesses.
Through-Bolts vs. Screw Eyes
A common mistake is using undersized or unrated screw eyes driven into the bottom of a wooden beam. Over time, the dynamic load and the natural drying of the wood can cause these to pull out.
For maximum security, experienced contractors recommend through-bolts with large fender washers on the top side of the beam. This distributes the load across the entire structural member. If through-bolting is impossible, use heavy-duty lag bolts driven into the center of the beam, ensuring at least 3 inches of thread engagement into solid wood (not including the drywall or insulation layer).
Torsion and Linear Fixtures
For linear high bay fixtures exceeding 4 feet in length, a two-point suspension system is mandatory. Single-point mounting on wood can lead to torsion (twisting), which may warp the fixture housing and compromise the IP65 waterproof seal.
Specialized Ceilings: Corrugated Metal and Sloped Surfaces
Many modern warehouses utilize a corrugated aluminum or steel sheet ceiling (typically 0.6mm thickness). These sheets are not structural and cannot support the weight of a high bay fixture directly.
Strut Channels (Unistrut)
The solution for corrugated ceilings is the installation of a strut channel system (e.g., Unistrut) that bridges across the structural purlins or beams. The fixtures are then attached to the strut. This method ensures the load is transferred to the building's frame rather than the thin metal skin.
Swivel Mounts for Sloped Ceilings
When dealing with pitched roofs, a standard hook or chain may cause the fixture to hang at an angle, creating uneven light distribution and high UGR (Unified Glare Rating) values. Swivel pendants or adjustable bracket mounts allow the fixture to remain perfectly vertical (plumb), ensuring the optics perform as intended by the IES LM-79-19 Standard.
Safety Redundancy and Compliance Standards
Regardless of the ceiling type, every high bay installation must adhere to the National Electrical Code (NEC) and local building codes.
The Safety Cable Mandate
A safety cable is not optional; it is a critical redundant system. It must be attached to a separate structural point from the primary mount. Looping the safety cable back to the same hook as the primary mount defeats its purpose. In the event of a primary hardware failure, the safety cable prevents the fixture from falling and protects personnel below.
Compliance and Certifications
When specifying hardware, ensure it is compatible with the fixture's certification.
- UL 1598: Covers the safety of the entire luminaire and its mounting interface.
- DLC Premium: While primarily an energy efficiency standard, DesignLights Consortium (DLC) QPL certification often implies that the manufacturer has met rigorous thermal and structural testing requirements.
- IP65/IK08: If the mounting hardware allows the fixture to vibrate excessively, it can lead to fatigue in the gaskets, compromising the IP (Ingress Protection) rating.
Photometric Planning and Mounting Height
The mounting height is a primary variable in lighting design software like AGi32. Before the first hole is drilled, a photometric layout should be performed using the product's .ies files.
Changing the mounting height by just 2 feet can significantly impact the foot-candle levels on the work plane. For example, in a 20-foot ceiling warehouse, a 150W high bay is typically spaced every 15–18 feet to achieve uniform illumination. If the mounting hardware forces a lower suspension, the spacing must be recalculated to avoid "hot spots" and dark areas.
Project Implementation & Long-Term Maintenance
A successful high bay installation concludes with a rigorous check of the electrical connections. For dimmable fixtures, ensuring the 0-10V dimming wires are correctly routed (Class 1 vs. Class 2 wiring per NEC) is essential to prevent interference and flickering.
Final Checklist for Contractors:
- Verify Substrate: Confirm if the concrete is lightweight or standard (ACI 318 compliance).
- Check Hardware Ratings: Ensure all hooks, chains, and anchors are rated for at least 2x the fixture weight.
- Inspect Safety Cables: Verify they are tethered to an independent structural member.
- Confirm Plumb: Use a level to ensure fixtures are vertical, especially on sloped ceilings.
- Documentation: Keep the UL Solutions Product iQ or ETL certificates on file for building inspections.
By matching the right mounting system to the specific ceiling architecture, B2B professionals can deliver lighting solutions that are not only high-performing but also structurally sound and fully compliant with North American safety standards.
Disclaimer: This article is for informational purposes only and does not constitute professional engineering or electrical advice. Always consult with a licensed structural engineer and a certified electrician to ensure your installation meets all local building codes and safety regulations.
