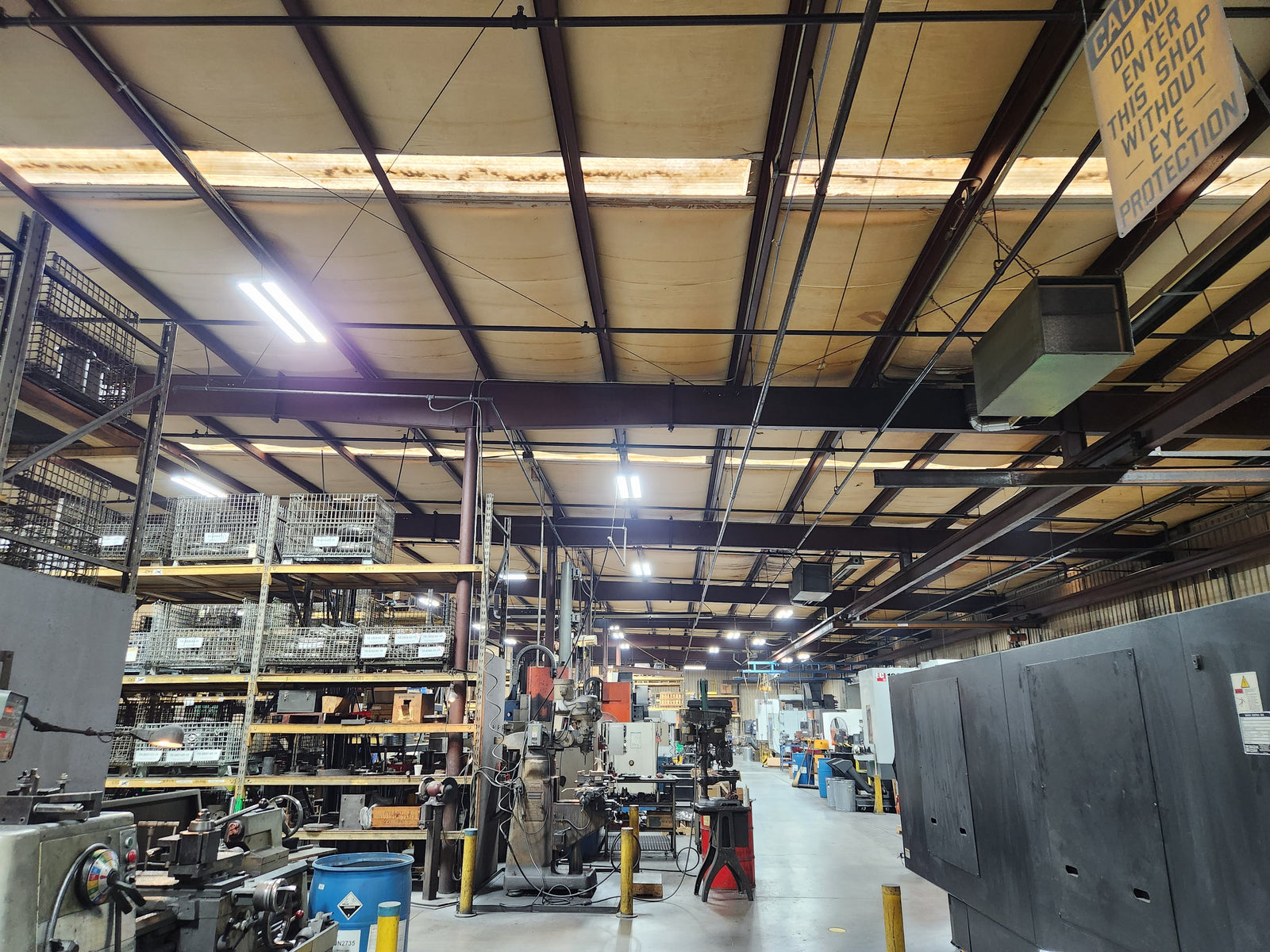

What is Unified Glare Rating (UGR)?
Walk into a newly retrofitted warehouse, and the sheer brightness can be impressive. But after a few hours, workers might complain of headaches, eye strain, or difficulty seeing properly. This is the difference between illumination and quality of light. The culprit is almost always glare, and the professional metric to control it is the Unified Glare Rating (UGR).
UGR is a dimensionless value established by the International Commission on Illumination (CIE) that quantifies the degree of discomfort glare from light sources in an indoor environment. It operates on a logarithmic scale, meaning a small change in number represents a significant change in perceived glare. A difference of three points (e.g., from UGR 19 to UGR 22) is typically noticeable.
Common Misconception: "UGR is a Fixture Rating"
A persistent myth is that a luminaire itself has a UGR value. This is incorrect. UGR is a rating for a complete lighting system within a specific environment. The calculation depends on several factors:
- Luminance of the Luminaire: How bright the fixture appears.
- Background Luminance: The brightness of the surrounding surfaces (walls, ceiling, floor).
- Observer's Position and Viewing Angle: Where people are in relation to the lights.
- Solid Angle: The apparent size of the light source from the observer's viewpoint.
Because UGR depends on the room's geometry, surface reflectances, and the layout of the fixtures, a "low-glare" UFO high bay can still be part of a high-glare installation if designed poorly.
An Important Note on Safety and Compliance
Disclaimer: The information provided here is for educational purposes. All lighting designs, especially in industrial environments, should be reviewed and approved by a qualified lighting designer or safety professional. Before implementing significant changes, consult your facility's safety manager. In high-risk scenarios, such as areas where personnel frequently look up or during night-shift operations, it is crucial to adopt conservative, low-glare designs and meticulously document all verification and commissioning processes.
Why UGR is Critical for Warehouse Safety and Productivity
Controlling glare goes far beyond simple comfort; it is a fundamental component of a safe and efficient workplace. In a high-traffic industrial environment, poor quality lighting is a significant operational risk.
According to the ANSI/IES RP-7-21 Recommended Practice for Lighting Industrial Facilities, providing appropriate illuminance levels while controlling for glare is essential for visual performance and safety. High glare can directly lead to:
- Increased Safety Incidents: Momentary "flash blindness" when a forklift operator glances up at a fixture can obscure hazards or personnel, leading to accidents.
- Reduced Productivity: Constant visual discomfort causes eye fatigue, headaches, and an inability to concentrate, which can increase picking errors and slow down tasks.
- Poor Visibility: Glare reduces contrast, making it harder to read labels, inspect products, or notice spills and debris on the floor.
Adhering to established UGR targets is a mark of a professional, human-centric lighting design that prioritizes the well-being and performance of the people working in the space.
Practical Strategies for Achieving Low-UGR Warehouse Lighting
I've seen many projects where the lighting choices were driven by lumen output and initial cost alone, only to require expensive fixes later to mitigate glare complaints. A proactive approach is always more effective and economical. The key is treating glare as a design parameter from the very beginning.
1. Start with a Professional Photometric Layout
This is non-negotiable for any large space. Using lighting design software like AGi32 with IES photometric files is the only way to accurately predict the UGR of a proposed layout. An IES file is a standardized data file that describes how a specific luminaire distributes light. This simulation allows you to test different fixtures, layouts, and mounting heights to find the optimal balance of brightness and comfort before a single fixture is purchased.
2. Prioritize Fixture Optics and Shielding
Not all UFO high bays are created equal. While total lumen output is important, the control of that light is what determines glare.
- Optical Design: Fixtures with precisely engineered lenses or reflectors distribute light more effectively, directing it where it's needed (the work plane) and shielding the bright LED source from direct view at typical angles.
- Shielding Accessories: A simple but highly effective tool is an aluminum or polycarbonate reflector. These accessories can reduce a fixture's apparent brightness at higher angles, often lowering the overall system UGR by 3 to 6 points. For example, a versatile fixture like the Hyperlite LED High Bay Light - Black Hero Series, 14500lumens can be paired with an optional reflector to significantly improve visual comfort in open areas.
Hyperlite LED High Bay Light - Black Hero Series, 14500lumens, Selectable Wattage&CCT, AC 120-277V
3. Implement Smart Layout & Spacing
Fixture placement is just as critical as fixture selection. A common heuristic for achieving good uniformity and minimizing glare is to maintain a spacing-to-mounting-height ratio between 0.8 and 1.2. Spacing fixtures too far apart forces you to use higher-output, punchier optics that create "hot spots" and increase glare.
4. Design for the Task: UGR Targets
Different areas in a warehouse have different visual requirements. A one-size-fits-all approach is rarely optimal. The Illuminating Engineering Society (IES) provides recommended UGR levels for various industrial tasks.
| Application Area | Recommended UGR | Design & Fixture Considerations |
|---|---|---|
| Loading Docks & Bulk Storage | ≤ 25 | Focus on broad uniformity. Wide-distribution optics are acceptable. |
| Forklift Traffic Aisles | ≤ 22 | Use fixtures with good shielding or asymmetric/aisle-specific optics. |
| Picking & Packing Stations | ≤ 19 | Lower mounting heights, focused light, excellent shielding are critical. |
| Detailed Inspection / Quality Control | ≤ 19 | Task lighting combined with lower ambient levels and high CRI is best. |
Source: Adapted from ANSI/IES RP-7 recommendations.
5. Leverage Lighting Controls
Modern LED lighting is not just on/off. Implementing 0-10V dimming, as supported by most professional-grade high bays, is a powerful tool for managing glare. It allows you to:
- Set Task-Tuned Light Levels: Dim areas that don't require full brightness.
- Daylight Harvesting: Use sensors to automatically dim fixtures near windows or skylights, saving energy and reducing daytime glare.
- Respond to Occupant Feedback: Easily adjust light levels post-installation to achieve optimal comfort without needing to physically alter the fixtures. As the NEMA Lighting Systems Division often highlights, controls are integral to a modern, high-performance lighting system.
Case Studies: UGR Reduction in Action
Theoretical knowledge is useful, but real-world data demonstrates the impact of proper UGR management.
-
Case Study 1: Retrofit Glare Mitigation. A distribution center replaced its old fixtures with new LED high bays, but workers soon reported headaches. An on-site measurement confirmed a UGR of 27 in the main aisles. Action: Instead of a costly full replacement, simple aluminum reflectors were installed on the existing fixtures. Result: A follow-up measurement showed the UGR dropped to an acceptable 22, resolving the visual discomfort issues. This simple addition lowered the UGR by 5 points.
-
Case Study 2: Proactive Design in a New Build. During the design phase for a new warehouse, the initial photometric simulation in AGi32 predicted a UGR of 25 in the picking module aisles, which was too high. Action: The lighting designer revised the plan, replacing the general wide-distribution fixtures with luminaires featuring specific aisle-optimized optics and reducing the spacing-to-mounting-height ratio from 1.5 to 1.1. Result: The updated simulation predicted a UGR of 18. After construction, on-site measurements confirmed an average UGR of 19, meeting the IES recommendation and ensuring a safe, productive environment from day one.
How to Predict and Verify UGR: Simulation and Measurement
Predicting and confirming UGR values is a core part of professional lighting design. This involves two key stages: simulation during the design phase and measurement after installation.
Simulating UGR with Photometric Software (e.g., AGi32, Relux)
A photometric simulation is the only reliable way to predict UGR before installation. Here are the key inputs required for an accurate analysis:
- Room Geometry: Define the precise length, width, and ceiling height of the space.
- Surface Reflectances: Input the estimated reflectance values for the ceiling, walls, and floor (e.g., a common starting point is 70% for the ceiling, 50% for walls, and 20% for the floor).
- Luminaire IES File: Use the specific IES file provided by the manufacturer for the exact fixture you plan to install. This file contains its unique light distribution data.
- Layout and Mounting Height: Place the fixtures in their proposed locations and set their mounting height.
- Calculation Points: Define an observer grid at the typical task height (e.g., 0.8m / 2.6ft) and specify the viewing directions relevant to workers' normal line of sight. The software will then calculate the UGR value for these specific points.
On-Site UGR Measurement Process
After installation, field measurements are essential to validate the design and ensure compliance.
- Equipment: Use a calibrated luminance meter or a dedicated UGR meter.
- Define Observer Positions: Identify critical workstations, high-traffic aisles, and other areas where employees spend significant time.
- Set Viewing Direction: Take measurements along the primary lines of sight for the tasks performed in that area (e.g., looking down a forklift aisle, looking at a computer screen in a packing station).
- Record and Compare: Document the results in a clear format and compare them against the design targets from your simulation and IES recommendations.
Sample Measurement Log:
| Location ID | Observer Position | Viewing Direction | Measured UGR | Target UGR | Pass/Fail |
|---|---|---|---|---|---|
| Aisle 3 | Center of aisle | Northbound | 21 | ≤ 22 | Pass |
| Packing Stn 1 | Operator's chair | Facing conveyor | 18 | ≤ 19 | Pass |
| QC Table 2 | Standing inspector | Across table | 17 | ≤ 19 | Pass |
Wrapping Up: Key Takeaways for a Glare-Free Workspace
Creating a visually comfortable and safe warehouse environment doesn't happen by accident. It requires moving beyond a simple "lumens per dollar" calculation and embracing a more holistic design philosophy. The most successful projects I've been a part of always prioritize UGR from the outset.
Remember these key principles:
- UGR is a System Metric: It is the result of the fixtures, the layout, and the room itself. It cannot be determined by looking at a single fixture in isolation.
- Glare Control is Safety: Reducing glare is a direct investment in preventing accidents and improving employee well-being.
- Design is Essential: A photometric layout is the single most important step to ensure a low-glare outcome.
- Optics Matter More Than Lumens: Choose fixtures with high-quality optical control and utilize shielding accessories whenever possible.
- Verify and Validate: Use the IES simulation as your plan and follow up with on-site measurements and, most importantly, feedback from the people who use the space every day.
By following these guidelines, you can ensure your next lighting upgrade delivers not just light, but high-quality, comfortable, and productive illumination.
Frequently Asked Questions (FAQ)
What is a good UGR rating for a warehouse? It depends on the task. For general storage and forklift aisles, a UGR of 22 or lower is a common target. For more visually demanding tasks like picking, packing, or inspection, a UGR of 19 or lower is recommended to improve accuracy and reduce eye strain.
Can't I just use fewer, brighter lights to save money? This approach often leads to higher glare. Using fewer, more powerful fixtures creates "hot spots" of intense light and deep shadows, increasing the contrast that is a primary driver of discomfort glare. A layout with more, properly spaced fixtures at a lower output will almost always provide a more comfortable and uniform result.
Do I need a lighting designer to plan my warehouse lighting? For small, simple spaces, a basic layout tool might suffice. However, for any large or complex facility, consulting with a lighting designer is a valuable investment. They can create a detailed photometric analysis using IES files to predict and optimize UGR, ensure compliance with energy codes, and guarantee a safe, productive lighting environment.
