For high-rack aisles where the width is less than 1.5 times the mounting height, aisle-optic linear fixtures are the mandatory selection to maintain vertical illuminance; for open floor plans, circular high-bay fixtures provide superior horizontal uniformity at a lower installation cost per square foot.
The selection between round UFO (Ultra-Frequency Output) high bays and linear aisle-optic fixtures is not merely an aesthetic choice but a technical decision grounded in photometric distribution. In a warehouse environment, the primary objective is to deliver light where it is most needed—either on the floor for foot traffic and general storage or on the vertical faces of racking for picking accuracy. Misapplying these fixtures leads to significant energy waste and operational inefficiency. According to the Illuminating Engineering Society - IES RP-7, industrial facilities must balance illuminance levels with glare control and uniformity to ensure worker safety and productivity.
The Physics of Luminous Distribution: Type V vs. Type I
The fundamental difference between these two fixture types lies in their optical engineering. Most round UFO high bays utilize a Type V distribution, which projects light in a circular, symmetric pattern. This is ideal for open areas but problematic in narrow aisles.
- Symmetric UFO (Type V): These fixtures are designed to maximize horizontal foot-candles (fc) in a large radius. However, when placed in a high-rack aisle, over 40% of the luminous flux is wasted on the floor between racks or on the top of the racking, leaving the critical middle and lower "pick faces" under-illuminated.
- Aisle-Optic Linear (Type I/II): These fixtures use specialized lenses to stretch the light into an elongated, rectangular beam. By concentrating light along the aisle and directing it toward the vertical surfaces, they can increase vertical rack-face illuminance by 20–30% at the same wattage compared to symmetric alternatives.
High-Rack Precision: The Aisle-Optic Advantage
In facilities with narrow aisles (typically 8 to 12 feet wide) and high mounting heights (above 20 feet), the challenge is "vertical illuminance." Workers must be able to read small labels on pallets located 25 feet in the air.
Applying the IES LM-79-19 Standard for optical measurement allows designers to verify the "candela power" at specific angles. Experienced specifiers use a rule of thumb: if the aisle width is less than 1.5 times the mounting height, an asymmetric aisle-optic fixture is required. For example, in a 30-foot high warehouse with 10-foot aisles (a ratio of 0.33), a symmetric fixture will create a "cave effect," where the floor is bright but the shelves are dark.
Scenario A: The High-Rack Retrofit
In a recent simulation for a 9,600 sq ft high-rack section, replacing legacy 400W metal halide lamps with 200W aisle-optic linear LEDs resulted in a 3.6-month payback period after utility rebates. The precision of the aisle optics allowed for wider spacing between fixtures while maintaining a consistent 20 vertical foot-candles on the rack faces.

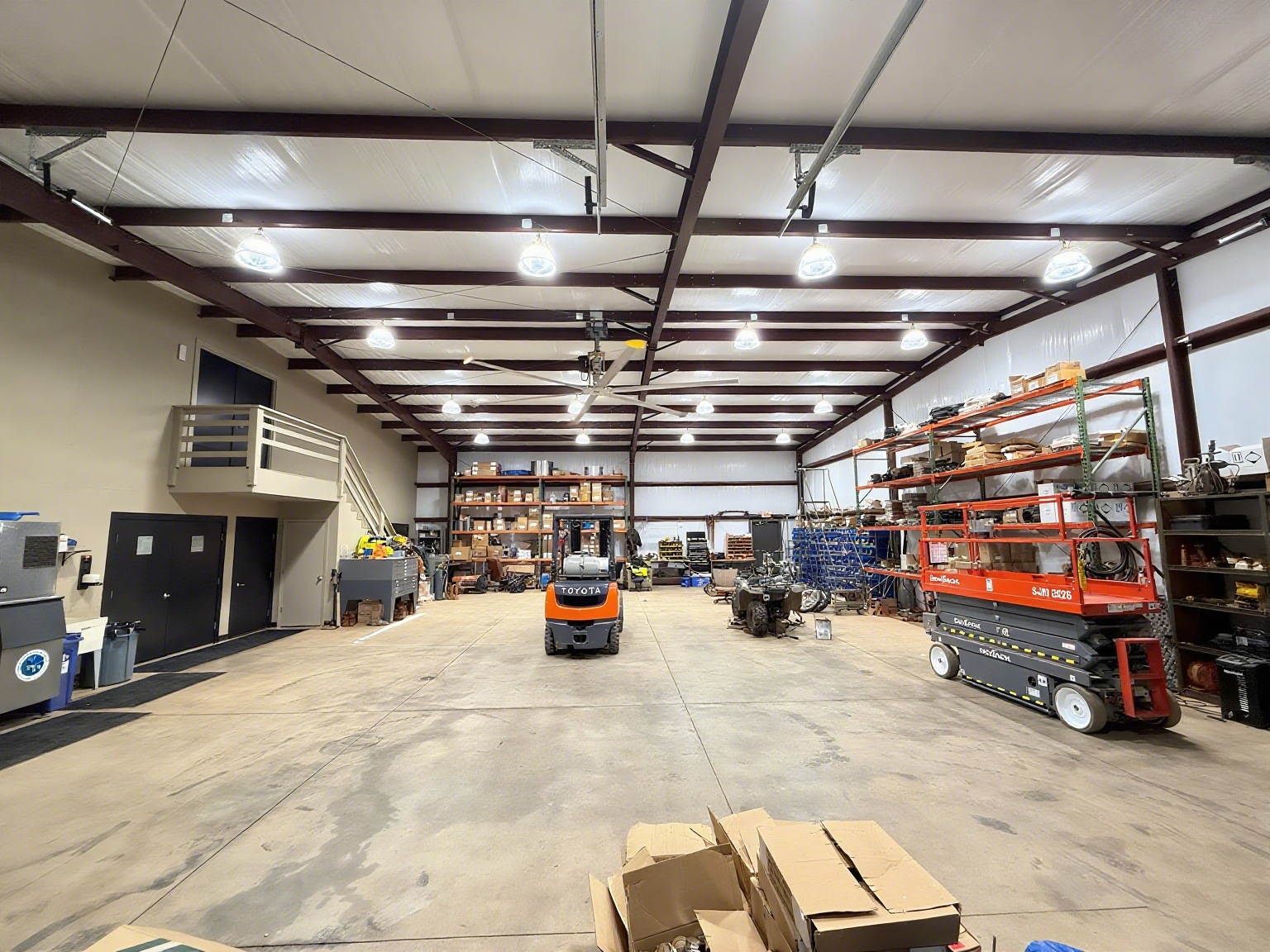

Open-Floor Logistics: Optimizing UFO Layouts
For open areas such as shipping docks, staging zones, or manufacturing floors, the round UFO high bay remains the industry standard for its cost-to-performance ratio. The goal here is "uniformity," preventing dark spots that can lead to forklift accidents.
To maintain a high uniformity ratio (the difference between the brightest and darkest spots), the spacing-to-mounting-height (S/MH) ratio should be kept between 1:1 and 1.2:1. If fixtures are mounted at 20 feet, they should be spaced no more than 24 feet apart. Exceeding this ratio forces the use of higher-wattage fixtures to "fill the gaps," which negates energy efficiency gains and increases the Lighting Power Density (LPD) beyond ASHRAE Standard 90.1-2022 limits.
Quantitative Performance Comparison
The following data represents a simulation of a 9,600 sq ft industrial space with 30-foot ceilings, comparing standard symmetric UFOs with aisle-optic linear fixtures.
| Metric | Symmetric UFO High Bay | Aisle-Optic Linear High Bay |
|---|---|---|
| Primary Application | Open Floor / Staging | High-Rack Aisles |
| Typical Beam Angle | 110° - 120° (Circular) | 30° x 70° (Rectangular) |
| Vertical Illuminance (on rack) | 12 fc | 22 fc |
| Horizontal Uniformity (floor) | 0.85 (Excellent) | 0.45 (Poor in open areas) |
| Installation Cost (per unit) | Lower (Hook/Plug) | Moderate (Chain/Conduit) |
| Energy Savings vs. HID | 60–70% | 65–75% |
Values estimated based on average industry rates and AGi32 photometric simulations.
Compliance Framework: DLC, ASHRAE, and Title 24
B2B procurement in the value-pro segment requires more than just raw lumens; it requires "verifiable evidence" of performance and safety.
- DLC Premium Qualification: To qualify for the most lucrative utility rebates (often covering 30-50% of the project cost), fixtures must be listed on the DesignLights Consortium (DLC) Qualified Products List (QPL). DLC Premium status indicates higher efficacy (lm/W) and stricter requirements for lumen maintenance.
- L70 and TM-21 Projections: The lifespan of a fixture is determined by how long it takes to lose 30% of its initial light output (L70). According to the IES TM-21-21 Standard, projections cannot exceed six times the actual testing duration of the LED chips (LM-80 data). A claim of "100,000 hours" is mathematically invalid if the underlying LM-80 test was only 10,000 hours.
- Mandatory Controls: Modern building codes, including California Title 24, now mandate occupancy sensors and daylight harvesting in warehouses. Integrating these sensors can add another $5,400 in annual savings for a medium-sized facility by dimming lights in unoccupied aisles.
Technical Installation Pitfalls
Even the best fixture will fail if the electrical and mechanical installation is flawed. Facility managers must address these three "friction points":
- Class 1 vs. Class 2 Dimming: Most high-performance fixtures use 0–10V dimming. However, the National Electrical Code (NEC) has strict rules regarding the separation of high-voltage power wires and low-voltage dimming wires. Mixing these in the same conduit without proper insulation ratings is a common code violation found during inspections.
- Driver Thermal Management: Cheaper fixtures often use drivers that cannot handle sustained low-output operation. When dimmed to 10% or 20% by an occupancy sensor for extended periods, these drivers may flicker or fail prematurely. Ensure the fixture utilizes cold-forged aluminum housing for superior thermal transfer.
- Electrical Load Planning: A large-scale retrofit can create a massive electrical load. For instance, an 81kW total load exceeds the limits of a single 20A/277V circuit. Proper daisy-chain planning and multiple power injection points are critical to prevent breaker trips and meet NFPA 70 safety requirements.
Strategic Selection Checklist
Before issuing a Purchase Order (PO), verify the following technical artifacts:
- [ ] IES Files: Are they available for download? Without these, a lighting designer cannot perform an AGi32 simulation to guarantee foot-candle levels.
- [ ] LM-79 Reports: Does the report confirm the claimed efficacy (lm/W) and Color Rendering Index (CRI)?
- [ ] UL 1598 Certification: Is the fixture listed in the UL Product iQ Database? This is the first verification point for insurance and building inspectors.
- [ ] IP65/IK08 Rating: Does the fixture have the necessary Ingress Protection (IP) for dust and moisture, and Impact Protection (IK) for potential forklift strikes?
By aligning fixture selection with the specific geometry of the floor plan, facility managers can maximize ROI while providing a safer, more productive environment for their teams.
YMYL Disclaimer: This article provides technical information for industrial lighting applications and is for informational purposes only. It does not constitute professional engineering, electrical, or legal advice. Lighting designs should be verified by a qualified lighting professional and must comply with all local building and electrical codes (NEC/NFPA 70).
