UFO High Bays for Cold Storage: Engineering, Compliance, and ROI Analysis
Executive Summary: Key Takeaways
- Critical Failure Point: Standard LED drivers fail in sub-zero environments due to electrolytic capacitor freezing; specify solid-state or low-temp ceramic capacitors rated for -40°F.
- Verification: Do not rely on marketing labels. Demand IES LM-79 reports specifically validated for the claimed minimum operating temperature.
- Financial Impact: LED retrofits in cold storage typically yield a sub-6-month payback due to the "Refrigeration Credit"—LEDs emit less heat, reducing the load on compressors.
- Compliance: Ensure fixtures are UL 1598 Listed (not just "Recognized") and appear on the DLC Premium QPL to qualify for maximum utility rebates.

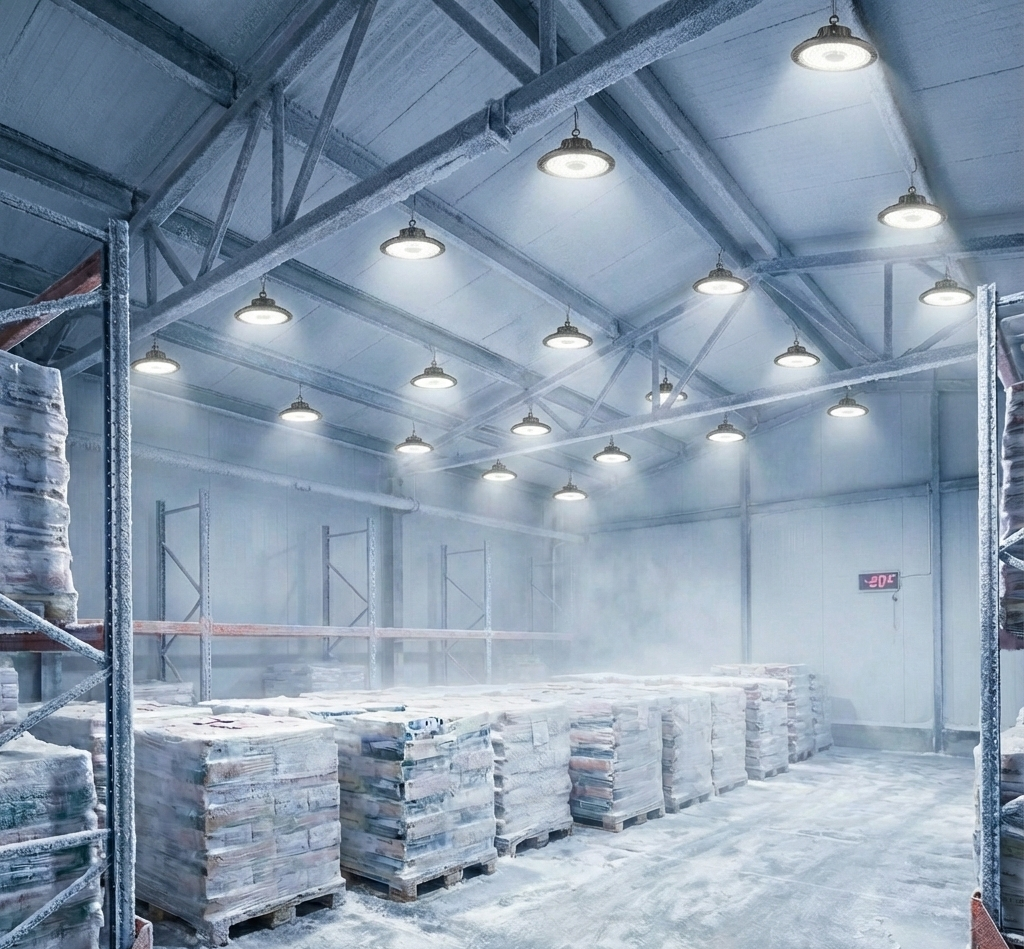

Operating a cold storage facility, freezer warehouse, or blast chiller presents one of the most hostile environments for electrical equipment. While standard Light Emitting Diode (LED) fixtures are often marketed as "cold-tolerant," the reality of sub-zero operations—where temperatures frequently drop to -22°F (-30°C) or lower—reveals a significant gap between consumer-grade lighting and true industrial-grade reliability.
For facility managers, the risk is a total cold-start failure. When a driver fails to initiate current in extreme cold, or when thermal shock fractures a solder joint during a rapid cooldown cycle, the resulting downtime compromises food safety and disrupts logistics. This guide explores the engineering requirements, compliance standards, and economic justifications for deploying high-performance circular (UFO) high bay solutions in sub-zero environments.
The Engineering of Cold-Start Reliability
In a standard LED fixture, the most common point of failure is the driver. Specifically, the electrolytic capacitors contain a liquid electrolyte that can freeze and crack the component's casing.
1. Capacitor Selection and Driver Design
Professional-grade fixtures prioritize drivers equipped with solid-state or low-temperature-rated ceramic capacitors. These components maintain their ESR (Equivalent Series Resistance) and capacitance values at temperatures as low as -40°F.
Technical Note: Inrush Current Management Inrush current is the initial surge of electricity when a fixture is powered on. In cold temperatures, component resistance changes, potentially leading to surges that trip circuit breakers. According to industry-standard inrush current mitigation strategies, drivers must include soft-start mechanisms to prevent nuisance tripping in large-scale installations.
2. Thermal Shock and Material Integrity
Blast chillers subject fixtures to rapid temperature fluctuations. This "Thermal Shock" causes materials to expand and contract at different rates. Low-quality die-cast housings can suffer from internal stress, leading to "Cold Solder Joints"—micro-cracks in the LED Printed Circuit Board (PCB).
To mitigate this, high-reliability fixtures utilize cold-forged aluminum. Cold forging creates a denser, more thermally conductive structure than die-casting, providing superior structural resilience against thermal cycling.
| Feature | Standard LED High Bay | Sub-Zero Rated UFO High Bay | Verification Method |
|---|---|---|---|
| Driver Capacitors | Standard Electrolytic | Solid-State / Low-Temp Ceramic | Bill of Materials (BOM) Audit |
| Operating Temp | 32°F to 104°F | -22°F to 122°F | LM-79 Cold-Start Test |
| Housing Material | Die-Cast Aluminum | Cold-Forged Aluminum | Material Spec Sheet |
| Solder Assembly | Standard | Stress-Relieved / High-Silver | Cross-section Analysis |
| Start Time at -20°F | 5–30 Seconds | Instant-On (<1 Second) | Field Testing / Oscilloscope |
Environmental Protection: Beyond the IP65 Label
In cold storage, condensation is the "silent killer." When warm air enters a freezer, it liquifies on cold surfaces. If a fixture is not perfectly sealed, moisture is "sucked" into the housing as the internal air cools and creates a vacuum.
IP and IK Ratings
Compliance with IEC 60529 (IP Ratings) is mandatory. While IP65 is standard, IP66 is preferred for cold-chain applications to protect against high-pressure washdowns and heavy condensation. Additionally, IEC 62262 (IK Rating) measures impact resistance; an IK08 or IK10 rating ensures the fixture can withstand accidental forklift strikes without shattering.
Sealing Integrity
A true cold-rated fixture employs high-grade silicone gaskets that remain flexible at sub-zero temperatures. Standard rubber gaskets can become brittle and "dry rot," losing their seal. Maintaining a sealed environment is the primary defense against internal short circuits.
Compliance, Certification, and the B2B Checklist
Safety: UL 1598 and UL 8750
The UL 1598 standard governs luminaire safety. Buyers must verify fixtures are UL Listed (tested as a complete assembly) rather than just containing UL Recognized components. This distinction is critical for insurance compliance and building inspections.
Performance: IES LM-79, LM-80, and TM-21
- IES LM-79-19: Provides verified data on luminous flux and efficacy. Editor's Note: Ensure the LM-79 test was performed at the environment's target ambient temperature.
- IES LM-80-21 / TM-21-21: Tracks LED degradation to project $L_{70}$ life (the point where light output drops to 70%). In cold environments, LEDs often exceed 50,000–100,000 hours because heat—the primary enemy of LEDs—is naturally mitigated.
Energy Efficiency: DLC QPL
The DesignLights Consortium (DLC) QPL is the benchmark for performance. DLC Premium status is often a prerequisite for utility rebates, which can cover 30–70% of the initial project cost.
The Economics of Cold-Chain Lighting: ROI and Sensitivity
The "Glass Box" Logic: A Simulation
We modeled a 25,000 sq. ft. freezer warehouse operating 24/7 at -22°F, replacing 50 legacy 400W Metal Halide (MH) fixtures with 150W DLC Premium UFO LEDs.
Baseline Parameters:
- Energy Rate: $0.18/kWh.
- Maintenance: Legacy bulbs replaced every 8,000 hours (labor: $120/hour).
- HVAC Credit: Reduced heat load saves approximately 5% on refrigeration energy.
Estimated Annual Savings: $37,937 Simple Payback: ~4.2 Months
Sensitivity Analysis: Payback Variability
ROI is highly dependent on local utility rates and operational hours. The table below illustrates the payback period across different scenarios:
| Energy Cost ($/kWh) | Maintenance Frequency | Payback Period (Months) | 5-Year Net Savings |
|---|---|---|---|
| $0.10 (Low) | Standard (12mo) | 8.5 Months | $122,000 |
| $0.18 (Base) | Accelerated (8mo)* | 4.2 Months | $189,000 |
| $0.25 (High) | Accelerated (8mo)* | 3.1 Months | $254,000 |
*Cold environments often accelerate legacy ballast failure, increasing maintenance frequency.
Implementation and Lighting Design Strategy
Photometric Planning
Use IES (.ies) files in software like AGi32 to simulate light distribution. According to ANSI/IES RP-7-21, active warehouse aisles should maintain 10 to 30 foot-candles. A 120° beam angle is typically optimal for uniformity in open freezer spaces.
Advanced Controls
Energy codes like ASHRAE 90.1-2022 mandate controls in large warehouses.
- Occupancy Sensors: Can reduce consumption by an additional 30–50% in low-traffic freezers.
- Wireless Controls: Preferred for retrofits to avoid the high cost of running new control wiring in existing cold-storage envelopes.
Summary of Decision Factors
Key Procurement Checklist:
- Verified Operating Temp: Check LM-79 data for -22°F (-30°C) or lower.
- Driver Specs: Confirm solid-state or low-temp ceramic capacitors.
- Sealing: Verify IP65/IP66 with silicone gaskets.
- Certification: Check the DLC QPL for the specific model number.
- Warranty: Ensure the warranty covers performance at sub-zero temperatures, not just "standard" conditions.
Disclaimer: This article is for informational purposes only and does not constitute professional electrical engineering or financial advice. ROI figures are estimates based on specific models; actual results vary by location and usage. Always consult with a licensed electrician and your local utility provider.
Sources:
- DesignLights Consortium: DLC Qualified Products List
- ANSI/IES: LM-79-19 Standard for Optical/Electrical Measurement
- ASHRAE: Standard 90.1-2022 (Energy Standard for Buildings)
- UL Solutions: UL 1598 Standard for Luminaires
- NC Clean Energy Technology Center: DSIRE Database of Incentives
