The Technical Reality of LED Lifespan Claims

In the high-stakes world of industrial facility management, the "100,000-hour lifespan" has become a ubiquitous marketing claim for LED high bay fixtures. However, for contractors and specifiers responsible for project budgets and long-term maintenance cycles, these numbers often lack the necessary statistical rigor to be considered project-ready. The gap between a marketing brochure and a verifiable performance specification lies in the understanding of the IES TM-21-11 Six-Times Rule.

The Illuminating Engineering Society (IES) TM-21-11 standard provides the industry-standard mathematical method for projecting the long-term lumen maintenance of LED light sources. It is the bridge that connects raw laboratory data—collected via the IES LM-80-21 test method—to real-world performance expectations. Without a properly executed TM-21 projection, a lifespan claim is merely an estimate; with it, it becomes a documented performance artifact.

Logic Summary: Our analysis of lifespan validation is based on the mathematical constraints defined in IES TM-21-11. We assume that any claim exceeding six times the actual test duration is a violation of industry standards and poses a significant risk to Project ROI (Return on Investment).

Understanding the LM-80 to TM-21 Pipeline

To validate a high bay fixture, one must first distinguish between the test method and the projection method.

LM-80 (The Data): This is a laboratory test where LED packages (the chips) are operated at specific temperatures (typically 55°C, 85°C, and a third manufacturer-selected temperature) for a minimum of 6,000 hours. The result is a report showing how much light (lumens) the chips lost over that period.
TM-21 (The Math): This standard takes the raw data from the LM-80 report and applies an exponential decay model to predict when the light output will drop to 70% of its initial value ($L_{70}$).

LED High Bay lights in a high-ceiling warehouse with light meter and IES lighting standards clipboard

The "Six-Times Rule" is a policy limit established by the IES to prevent reckless extrapolation. It states that a manufacturer cannot claim a projected life ($L_p$) greater than six times the total duration of the LM-80 test data. For example, if a chip was tested for 6,000 hours, the maximum verifiable $L_{70}$ projection is 36,000 hours. To claim a 60,000-hour $L_{70}$ life, the manufacturer must provide LM-80 data spanning at least 10,000 hours.

Why the Six-Times Rule Exists

The limit is not a physics-based safety net but an empirically conservative policy rooted in statistical judgment. LED decay is rarely perfectly linear. Factors such as "monotonic lumen decay" and the "capped slope for the exponential fit" mean that as time passes, the rate of decay can change unpredictably. By limiting projections to 6x the test duration, the IES ensures a higher level of confidence in the reported numbers, protecting buyers from "marketing math" that ignores the volatility of long-term semiconductor performance.

Red Flags in High Bay Datasheets

When auditing a technical specification sheet for a warehouse or industrial project, several common oversights can signal a lack of technical credibility. Based on patterns identified in technical audits and compliance reviews (not a controlled lab study), specifiers should look for the following discrepancies:

1. The 100,000-Hour Myth

If a datasheet quotes "100,000 hours $L_{70}$" but the accompanying LM-80 report only shows 6,000 or 10,000 hours of testing, the claim is statistically unverified. Under TM-21 rules, 10,000 hours of testing only supports a 60,000-hour claim. Anything beyond that is a violation of the standard and should be treated as a marketing estimate rather than a performance guarantee.

2. Sample Size and Test Conditions

A valid TM-21 report requires a minimum of 20 samples per test temperature. We often observe reports based on as few as three samples, which significantly reduces the statistical confidence of the projection. Furthermore, if the LM-80 test was conducted at an unusually low temperature (e.g., 55°C) that does not reflect the internal ambient temperature of a high bay fixture (which can reach 85°C or higher), the resulting projection will be overly optimistic.

3. Missing TM-21 Calculation Sheets

True project-grade manufacturers provide the full TM-21 calculation sheet, including the alpha ($\alpha$) and beta ($\beta$) parameters of the exponential decay model. A simple summary page stating a number is insufficient for professional validation.

Metric	Industry Standard (IES/DLC)	Red Flag / Suspicious Claim
Test Duration	Min. 6,000 Hours (LM-80)	< 6,000 Hours
Extrapolation	Max 6x Test Duration	> 6x Test Duration (e.g., 100k hrs from 6k test)
Sample Size	20+ Units per Temp	< 10 Units
$L_{70}$ vs. $L_{90}$	$L_{70}$ for general lighting	Claiming $L_{70}$ as "Total Lifetime"
Documentation	Full TM-21 calculation sheet	Summary "Lifetime" statement only

Operations team reviewing lead time and buffer stock for LED High Bay fixtures in a warehouse planning meeting

Beyond the Chip: The "Product Lifetime" Fallacy

One of the most dangerous misconceptions in B2B lighting procurement is equating the $L_{70}$ projection with the total product lifetime. According to the Electronic Design analysis of LED reliability, TM-21 projections are strictly for lumen maintenance and do not account for the catastrophic failure of other critical components.

The Driver as the Weakest Link

While the LED chips might be projected to last 60,000 hours, the LED driver (the power supply) is often the first component to fail. Drivers are susceptible to heat, voltage surges, and component wear (such as electrolytic capacitor dry-out). A high bay light with a "100,000-hour chip" but a low-quality driver may fail completely within 20,000 hours. This is why verifying UL 8750 compliance for LED equipment and UL 1598 for the fixture is essential for safety and reliability.

Thermal Management Reality

The cold-forged aluminum housings common in high-performance fixtures are designed to keep junction temperatures within the limits of the LM-80 test data. However, in high-heat environments like foundries or non-climate-controlled warehouses in the Sun Belt, the actual operating temperature may exceed the test parameters. For planning maintenance cycles, we recommend a heuristic derating of 20-30% for fixtures operating in ambient temperatures above 40°C (104°F).

Modeling Note (Scenario A vs. B):

Scenario A (Standard Warehouse): Ambient 25°C. $L_{70}$ projection is likely to hold true to the TM-21 data.

Scenario B (Heavy Manufacturing): Ambient 45°C. Luminous flux maintenance will accelerate. A 50,000-hour $L_{70}$ should be treated as a 35,000-hour useful life for maintenance planning.

Validating Performance via Authoritative Databases

For facility managers and contractors, manual verification of every LM-80 report is time-consuming. Instead, use the industry's "gatekeeper" databases to ensure compliance.

The DLC Qualified Products List (QPL)

The DesignLights Consortium (DLC) QPL is the primary resource for verifying high-performance LED lighting. To achieve a "DLC Premium" listing, a product must meet strict efficacy (lm/W) requirements and provide verifiable LM-80 and TM-21 documentation. Furthermore, DLC certification is a prerequisite for most utility rebates in North America. According to the 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights, using the QPL to cross-reference manufacturer claims is the single most effective way to protect a project budget from misleading data.

Photometric Validation with IES Files

A lifespan claim means nothing if the light doesn't reach the work plane. Specifiers should always request IES LM-63-19 formatted photometric files (.ies). These files allow engineers to use software like AGi32 to simulate exactly how the light will perform in a specific space.

LED High Bay lights in a high‑ceiling warehouse with tablet displaying lighting layout and beam patterns

ROI Impact of Accurate Lifespan Data

Miscalculating the lifespan of a high bay lighting system can lead to significant financial "gotchas." If a facility manager plans a 10-year maintenance cycle based on a 100,000-hour claim, but the lights begin to dim significantly or fail at 40,000 hours, the ROI calculation is shattered.

The Cost of Premature Replacement

Labor Costs: In warehouses with 30-foot ceilings, changing a single fixture requires a scissor lift rental and a two-man crew.
Productivity Loss: Maintenance in active aisles disrupts logistics operations.
Energy Efficacy Drop: As LEDs age, their efficacy (lumens per watt) drops. Operating a "dim" LED fixture costs the same in electricity as a bright one, but the value delivered to the workspace is lower.

By adhering to the TM-21 Six-Times Rule, specifiers can set realistic expectations. A 36,000-hour verifiable life (based on 6,000 hours of testing) represents approximately 8 years of operation at 12 hours per day. This is a solid, defensible baseline for a B2B lighting project.

Checklist for Professional Specifiers

To ensure you are purchasing "Solid" and "Bright" lighting that meets the DOE FEMP purchasing requirements, follow this verification checklist:

[ ] Verify DLC Status: Search the model number on the DLC QPL. Check if it is listed as "Premium" or "Standard."
[ ] Request the LM-80 Report: Ensure the test was conducted by a recognized lab and covers at least 6,000 hours.
[ ] Check the TM-21 Extrapolation: Ensure the claimed $L_{70}$ life does not exceed 6x the LM-80 test duration.
[ ] Review UL/ETL Certification: Use the UL Product iQ Database or Intertek ETL Directory to confirm the safety listing.
[ ] Audit the Driver: Ask for the driver's brand and its rated life at the fixture's maximum operating temperature.
[ ] Confirm Color Consistency: Ensure the CCT (Correlated Color Temperature) falls within the ANSI C78.377 standard quadrangles for visual uniformity across the facility.

Technician inspecting machined aluminum housings for an LED High Bay fixture on a factory bench

Conclusion: Transparency as a Competitive Advantage

In an industry where "Value-Pro" positioning is defined by technical credibility, transparency regarding LED lifespans is not just a compliance requirement—it is a competitive advantage. By understanding the limitations of TM-21 projections and the necessity of the Six-Times Rule, B2B professionals can filter out exaggerated claims and select products that deliver verifiable, long-term performance.

Protecting your project budget starts with asking for the "unimpeachable evidence" of a UL listing and a DLC-validated TM-21 report. When the data matches the claim, you can be confident that your warehouse or industrial space will remain safely and efficiently illuminated for the duration of its intended life cycle.

Disclaimer: This article is for informational purposes only and does not constitute professional engineering, electrical, or financial advice. Always consult with a licensed electrical contractor or lighting engineer before beginning a commercial lighting retrofit or new construction project.

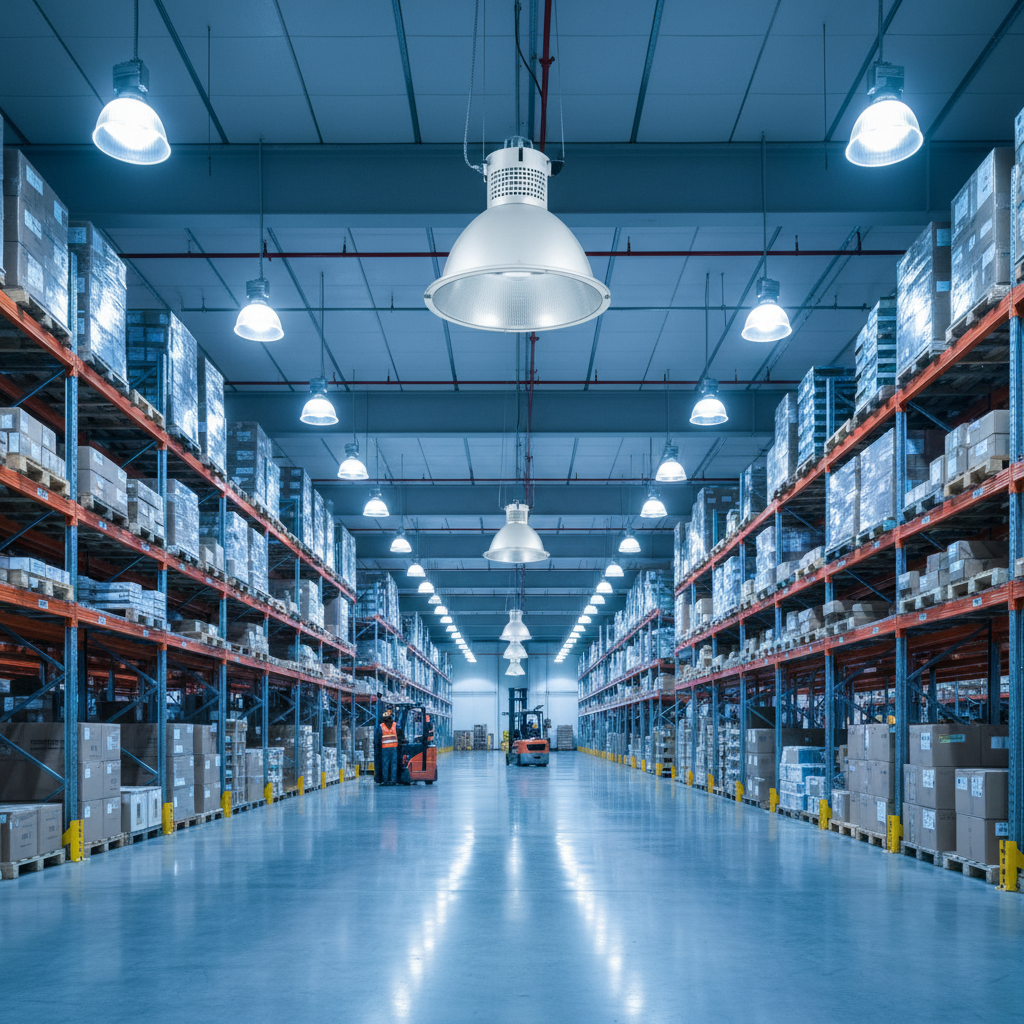

The TM-21 Six-Times Rule: Validating High Bay Lifespans
