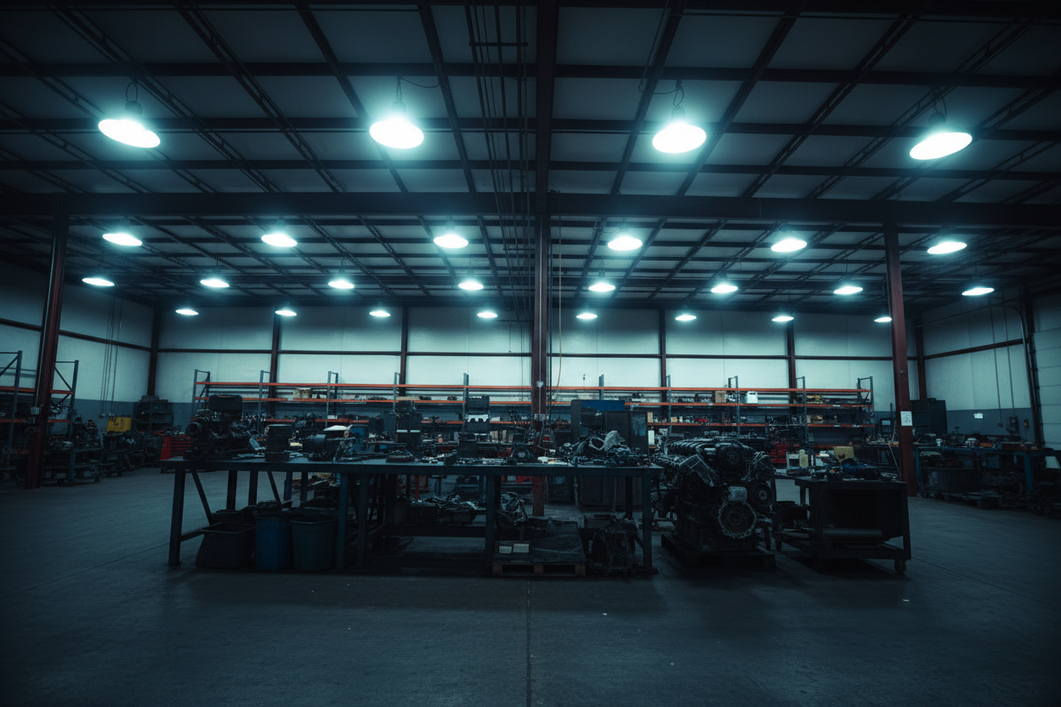

A commercial lighting upgrade can still feel dim when the fixtures are bright but the light misses the work area. Before adding fixtures, identify the affected zone, the normal task position, the operating mode, and whether people see the problem in person or only on camera. Start by measuring or comparing the place where the task occurs, not just the ceiling or floor beneath a fixture.
Use the symptom selector below to decide whether the next step is a task-plane check, a layout inspection, a controls check, or a project-specific photometric review.
Commercial Lighting Troubleshooting: Is the Space Actually Underlit, or Is the Light Missing the Work Area?
The location and timing of the dimness usually determine the best first check. Use the relevant task plane for the activity, because the correct reference depends on the space and task rather than one universal height. Measure at the task plane, then compare representative areas instead of judging a single bright-looking fixture.
| What you see | First thing to check | Result that points to the next step |
|---|---|---|
| Most of the room feels dim during normal work hours | Compare the intended operating mode with representative task locations | If the condition remains broad after checking controls and distribution, document measurements for a project review rather than assuming fixture count is the cause |
| Fixtures look bright, but work surfaces look dark | Compare the normal task position with an unobstructed position under the same operating condition | A difference at the task surface points toward a review of direction, obstructions, surfaces, or task position |
| Some zones are bright and others are dark | Map dark areas against fixture spacing, partitions, shelving, equipment, and sight lines | A pattern that follows the layout favors an adjustment or photometric review before fixture expansion |
| Shadows appear behind partitions, racks, or equipment | View the task from the normal occupant position and record what blocks the light | If the shadow follows a physical obstruction, document that local cause for the responsible project team |
| The room looks dim around dark walls, ceilings, or work surfaces | Compare the task with its surrounding contrast and surface conditions | Dark surroundings can change perceived brightness without proving that fixture output is too low |
| Brightness changes by time, occupancy, daylight, or zone | Record the schedule, sensor state, scene, and daylight condition | A changing pattern points first to controls or operating mode |
| The problem appears only in a camera view | Compare the footage with an in-person view from the same task position | Treat the footage as a clue. Judge human visibility separately before changing the lighting design |
If measurements are unavailable, record these results as screening observations rather than proof of inadequate illumination. A conclusion that output is broadly too low is strongest only after considering distribution, obstructions, surfaces, task position, and controls. For a practical record of fixture positions, affected areas, and site conditions, use lighting site measurements.
Check Distribution, Obstructions, Surfaces, and Task Height
A bright fixture can still leave a work area dark when its distribution, position, or surroundings do not match the task. Compare the affected area with an unobstructed area at the same operating time and from the normal task position before treating the symptom as a total-output problem.
Follow the Light Through the Space
- Observe the pattern. Note whether the dark zone follows a partition, shelving, equipment, fixture spacing, mounting position, beam direction, or a recurring shadow.
- Compare locations. Look at an open area and the affected area under the same operating condition. When the responsible team can measure safely, a representative multipoint check below and between fixtures can reveal variation that one convenient bright spot hides.
- Document the cause. Record fixture locations, affected zones, obstructions, task positions, and shadow direction. If the pattern follows a physical condition, route the next decision to a local adjustment or layout review.
Do not prescribe a relocation or access procedure for an unqualified person. The useful diagnostic result is the relationship between the dark area and the physical layout, not a self-directed electrical or installation change.
Check the Work Surface, Not Just the Ceiling
A room may look bright above a task while the desk, counter, production surface, or other work area remains dark. Record the actual task position, activity, surface finish, surrounding contrast, and shadow direction. The appropriate target depends on the visual task, surroundings, and project guidance, so a single brightness threshold would misclassify different commercial spaces.
Dark walls, ceilings, partitions, shelving, equipment, and work surfaces can reduce perceived brightness or change contrast. The lighting checklist connects surface brightness and wall or ceiling treatment with lighting quality. That does not mean repainting or adding output will automatically solve the problem. It means surface conditions belong in the diagnosis when the room feels dim despite bright fixtures.
Verify Controls and Separate Human Visibility From Camera Appearance
A changing symptom may be an operating-condition problem rather than a fixture-count problem. First establish what the system was supposed to do during the affected period, then separate what people see from what a camera records.
Check Dimming, Sensors, and Schedules
Use this short path during the reported condition:
- Record the zone, time, occupancy state, daylight condition, intended scene, and observed brightness.
- Compare the observed state with the schedule, dimming level, occupancy response, daylight response, and any selectable setting for that zone.
- Have an authorized person document the control result without bypassing safeguards or opening energized equipment.
- Correct or escalate a control-state issue before judging whether the installed fixture count is sufficient.
The control-state guidance supports checking control strategy, sensor location, compatibility, and commissioning. If the system flickers, cycles, or operates unstably, route electrical diagnosis to a qualified professional instead of treating the symptom as simple brightness loss. A separate resource on high bay flicker checks can help frame that issue without turning this diagnosis into a wiring procedure.
Compare What People See With What Cameras Capture
Judge the task from normal eye level and the actual work position during the period when the problem occurs. Then compare camera footage from the same area and viewpoint. Exposure, white balance, HDR processing, lens position, and viewing angle can alter the image.
Treat camera footage as a clue, not proof of inadequate illumination. Use it to identify a discrepancy or locate a zone for inspection, not to establish a lighting level. If people cannot see the task comfortably in person, keep that as the field condition even when the footage looks bright. If the issue is camera-only, investigate capture and viewing conditions before changing fixture count.
Decide Between a Local Adjustment and a Photometric Review
Choose a local adjustment when the dark pattern maps to one documented obstruction, spacing issue, task position, surface condition, or control state. Request a photometric review when basic checks do not explain the pattern, several layout variables interact, or the team needs documented analysis before changing fixture count or placement.
- Document the symptom and operating scenario. Record the affected zone, normal task position, operating time, control state, daylight condition, fixture locations, obstructions, surfaces, and representative observations or measurements.
- Address the confirmed local cause. Have the responsible project team reassess a documented obstruction, distribution pattern, task location, surface condition, or control issue. A different retrofit distribution can change where light lands, so review the lighting distribution before increasing fixture count.
- Escalate an unexplained or interacting pattern. A photometric review can test room geometry, fixture information and locations, mounting details, spacing, aiming, surface assumptions, task positions, and control conditions against the installed arrangement. These photometric review inputs make the review more useful than a fixture-lumen guess.
- Treat added fixtures as a design conclusion, not the starting assumption. Additional output belongs in the solution only when the review shows that layout and operating conditions are not the main cause and that more output is the remaining design need. A photometric layout review can provide background on the project information used in that process.
For commercial lighting projects, inspect the condition that matches the symptom, correct a confirmed local cause, and request project support when the pattern remains unexplained. We can help route a documented project record to the appropriate lighting-design or support team, but fixture expansion should follow the evidence rather than replace it.
FAQs
The answers below cover the main commercial lighting troubleshooting decisions, from fixture count and task-surface contrast to uneven distribution and project review.
Should I add more fixtures or check the layout first?
Check the affected task area, distribution pattern, obstructions, operating state, and controls first. Add fixtures only when those checks do not explain the condition and a project-specific review identifies additional output as the remaining need.
Why are my fixtures bright while the work surfaces are still dark?
Light may be directed away from the task plane, blocked by partitions or equipment, reduced by dark surroundings, or changed by controls. Compare the normal task position with an unobstructed area during the same operating mode, and record whether the difference follows a physical layout feature.
What is the difference between uneven brightness and dim work surfaces?
Uneven brightness usually follows zones, spacing, obstructions, or sight lines. A dim work surface can occur beneath a bright-looking fixture because of direction, shadows, task position, surfaces, or controls. Record where each symptom occurs and when so the project team can separate a layout pattern from an operating-state change.
When should I request a photometric lighting review?
Request one when basic field checks do not explain the dark or uneven areas, multiple layout variables interact, or the team needs documented coverage analysis before changing fixture count or placement. Include the room, fixture, task, obstruction, surface, and control information collected during the checks.
