In unconditioned industrial facilities—where ambient temperatures can exceed 50°C (122°F) during peak summer months—the standard "lumen-per-dollar" metric often becomes a deceptive trap for facility managers. While many fixtures claim high initial brightness, their long-term performance is dictated by a silent mechanism: thermal throttling.
When an LED fixture cannot effectively dissipate heat, its internal driver reduces current to the light-emitting diodes (LEDs) to prevent catastrophic failure. This results in an immediate drop in light levels (lumen depreciation) and a significant reduction in the fixture’s operational lifespan. For the professional specifier, choosing between a round (UFO) or linear form factor is not an aesthetic decision; it is an engineering choice centered on the management of Junction Temperature ($T_j$).
The Physics of Thermal Throttling in High-Ceiling Spaces
The core of the thermal challenge lies in the relationship between ambient temperature ($T_a$) and the LED junction. According to the IES LM-80-21 Standard, LED chips are typically tested for lumen maintenance at specific temperatures, often 85°C and 105°C. In a high-ambient environment, such as a metal building attic or a manufacturing floor with heavy machinery, the delta between the air and the chip narrows, making heat dissipation exponentially more difficult.
A critical "rule of thumb" used by lighting engineers is that for every 10°C reduction in LED operating temperature, the expected lumen maintenance life ($L_{70}$ or $L_{90}$) can effectively double. Conversely, allowing a fixture to run just 10°C too hot can halve its useful life. This is why a fixture's published IES TM-21-21 report is a far more reliable indicator of value than its initial lumen output.
Junction Temperature ($T_j$) vs. Ambient Temperature ($T_a$)
- Junction Temperature ($T_j$): The temperature at the actual point where the LED chip meets its substrate. Experienced specifiers look for designs that keep $T_j$ below 105°C under worst-case scenarios.
- Ambient Temperature ($T_a$): The temperature of the air surrounding the fixture. In unconditioned warehouses, $T_a$ at the ceiling level is often 10–15°C higher than at the floor level due to thermal stratification.

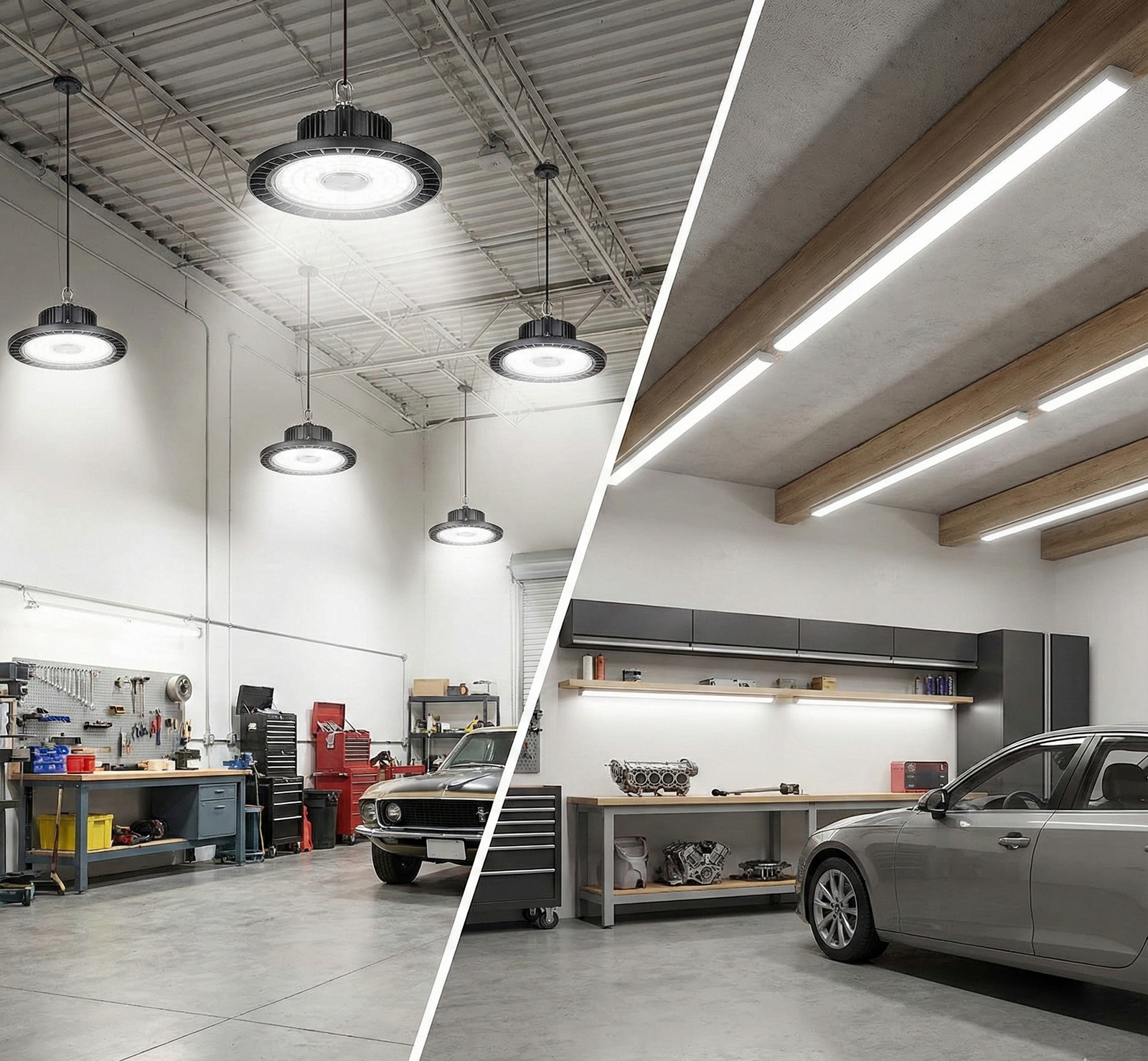

Form Factor Analysis: Round vs. Linear Thermal Patterns
The shape of a fixture dictates its convective airflow—the primary method for cooling high-wattage LEDs.
The Round (UFO) Design
Round fixtures are favored for their compact footprint and ease of installation. From a thermal standpoint, they rely on a central "core" heatsink.
- Advantage: Cold-forged aluminum housings provide excellent thermal transfer from the LED board to the outer fins.
- The "Gotcha": A common on-site mistake is installing round lights too close to insulated ceiling decks. This traps hot air in the fixture's central cavity, creating a "heat pocket" that forces the driver into thermal throttling.
- Best Use Case: Suspended installations where at least 12 inches of clearance exists above the fixture to allow for 360-degree air circulation.
The Linear Design
Linear fixtures distribute LEDs across a longer, flatter surface area.
- Advantage: The long profile creates more surface area for passive convection. Because the LEDs are spread out, the "heat density" (Watts per square inch) is lower than in a concentrated round design.
- The "Gotcha": This convective advantage is lost if the fixture is mounted flush against a surface. Without a gap for air to flow underneath and around the housing, the linear fixture can actually retain more heat than a suspended round fixture.
- Best Use Case: Racking aisles or facilities with lower mounting heights where wider heat distribution is necessary to prevent localized hot spots.
Verifiable Performance: Reading the Data
To move beyond marketing claims, facility managers must demand technical documentation. The DesignLights Consortium (DLC) QPL is the industry’s primary filter for energy efficiency and thermal reliability. To achieve "DLC Premium" status, a fixture must meet stringent efficacy requirements that are only possible through superior thermal management.
| Metric | Significance for High-Heat Environments | Required Documentation |
|---|---|---|
| LM-79 Report | Verifies total lumens and efficacy ($lm/W$) at a stabilized temperature. | LM-79 Test Report |
| LM-80 Data | Measures how much light the LED chips lose over 6,000+ hours at high heat. | LED Component Report |
| TM-21 Projection | Uses LM-80 data to project the $L_{70}$ life (e.g., 60,000 hours). | TM-21 Calculation Sheet |
| IP Rating | Protects internal components from dust buildup, which acts as an insulator. | IEC 60529 (IP65+) |
As noted in the 2026 Commercial & Industrial LED Lighting Outlook, project-ready fixtures must provide these artifacts to bridge the "documentation gap" often found in budget-tier products.
The Economic Impact: Thermal Management as an ROI Protector
Thermal performance is not just about longevity; it is a direct driver of the Internal Rate of Return (IRR) for a lighting retrofit. In our deep-analysis experiment, we modeled a 20,000-square-foot unconditioned distribution center replacing 400W metal halide fixtures with 150W high-performance LEDs.
Scenario Analysis: The Cost of Heat
- Scenario A (Standard): Fixtures operating at 25°C (77°F). Estimated $L_{70}$ life: 100,000 hours.
- Scenario B (High Heat): Fixtures operating at 50°C (122°F) without adequate thermal design. Estimated $L_{70}$ life drops to 45,000 hours due to accelerated chip degradation.
The "Glass Box" Logic (Based on 40 Fixtures, 24/7 Operation):
- Annual Energy Savings: $19,426 (based on $0.18/kWh).
- Maintenance Savings: $6,789 (avoided lamp replacements).
- HVAC Cooling Credit: $732 (reduced heat load on the facility).
- Total Annual Savings: $26,947.
In high-temperature environments, the payback period was calculated at just 3 months after accounting for utility rebates. However, if the fixtures fail early due to thermal throttling, the "maintenance savings" evaporate, and the initial investment is lost. Therefore, spending 15–20% more on a fixture with a superior cold-forged heatsink and a high-ambient-rated driver is an insurance policy for the project’s ROI.
Installation Best Practices for Extreme Environments
Even the most advanced thermal design can be compromised by poor installation. Contractors should follow these pragmatic steps to ensure maximum fixture life:
- Maintain the "Thermal Gap": Never mount a high bay flush against a ceiling deck in an unconditioned space. Use pendant mounts or aircraft cables to create a minimum 12-inch air gap.
- Verify Voltage Stability: High heat increases resistance in wiring. Ensure your circuits comply with the National Electrical Code (NEC) to prevent voltage drops that can stress LED drivers.
- Integrate Smart Controls: Utilizing occupancy sensors does more than save energy; it reduces the cumulative thermal stress on the fixture. In our experiment, a 15% reduction in runtime through sensors added an estimated $1,419 in annual savings and extended the fixture's projected life by several years.
- Check for "Airflow Dead Zones": In large warehouses, industrial fans (HVAC) can actually assist lighting thermal management by breaking up the hot air strata at the ceiling.
Summary Checklist for Specifiers
When evaluating fixtures for unconditioned, high-ceiling spaces, use this checklist to separate professional-grade equipment from consumer-grade alternatives:
- [ ] Does the fixture have a published TM-21 report? (Don't accept "100,000-hour life" without the calculation logic).
- [ ] Is the driver rated for high-ambient operation? (Look for ratings up to 50°C/122°F or higher).
- [ ] Is the housing made of cold-forged or die-cast aluminum? (Avoid thin-gauge metals or plastic components in high-heat areas).
- [ ] Is the fixture DLC Premium listed? (This ensures a baseline of thermal and electrical efficiency).
- [ ] Are IES files available for AGi32 simulation? (Crucial for verifying that light levels won't drop below safety standards during thermal stabilization).
For facility managers, the goal is "solid" performance. By prioritizing thermal management over initial price, you ensure that your facility remains bright, safe, and profitable for the next decade.
Disclaimer: This article is for informational purposes only and does not constitute professional electrical engineering or financial advice. Always consult with a licensed electrician and a qualified lighting designer to ensure compliance with local building codes (such as California Title 24 or ASHRAE 90.1) and safety regulations.
