The Magic of Adjustable Ambiance: Why Dimming Changes Everything
Picture this: It’s 6:00 AM on a Saturday. You step into your garage, coffee in hand, ready to crush a workout or start that woodworking project you’ve been planning for weeks. You flip the switch, and—BAM—15,000 lumens of crisp, 6500K daylight hits you like a stadium floodlight. It’s effective, sure, but maybe a bit much for your first set of deadlifts.
Now, imagine a different scenario. You flip that same switch, but the light is at a soft 20% glow—just enough to see your gear while you warm up. As you get into the zone, you tap a button, and the room gradually swells into a brilliant, shadow-free workspace. Later, when you’re just hanging out or showing off your car to a buddy, you dial it back to a comfortable 50% for that "showroom" vibe.
Adding dimming capabilities to your hexagon lighting isn't just about saving energy; it’s about taking control of your environment. Whether you are using your space as a high-octane gym, a precision detailing bay, or a weekend lounge, the ability to adjust brightness transforms a static garage into a dynamic, multi-purpose studio. In this guide, we’re going to walk through exactly how to set up dimming for your hexagon lights, from the simple "plug-and-play" methods to more advanced smart integrations.
Understanding Your Dimming Options: Step-Dimming vs. Smart Control
Before we grab the wire strippers, we need to identify which type of dimming your hardware supports. Not all LED setups are created equal, and forcing the wrong protocol can lead to flickering or driver failure.
1. Built-in Step-Dimming (The DIY Favorite)
Many modern aesthetic kits, such as the Gen 2 Dimmable Hexagon Garage Lights, come with a feature called "Step-Dimming." This is the most common solution we see in residential garages because it doesn't require extra control wires or expensive wall dimmers.
- How it works: You simply toggle your standard on/off switch. If you switch it off and back on within 3 seconds, the light "jumps" to the next brightness level.
- The Benefit: It’s incredibly easy to install because it uses your existing 110V wiring. It also features a memory function, so if you leave it at 50%, it stays at 50% the next time you walk in.
2. Smart Plug Integration (The "Automation" Route)
If your lights aren't natively dimmable but you want some level of control, smart plugs are a popular bridge. While a standard smart plug only offers on/off control, it allows you to integrate your lights into "scenes" (e.g., "Alexa, Gym Mode").
- Safety Check: Based on common patterns from customer support inquiries, users often mistake smart plugs for dimmers. A standard smart plug will not dim your lights. To achieve dimming via a plug, the plug itself must be rated as a "Smart Dimmer Plug" and your LED driver must be "TRIAC" compatible.
3. 0-10V Dimming (The Professional Standard)
In larger workshops using industrial-grade fixtures, you’ll often see 0-10V dimming. This requires a dedicated pair of low-voltage control wires (usually purple and grey).
⚠️ CRITICAL COMPATIBILITY CHECK: Before buying a 0-10V dimmer, inspect your LED driver.
- Check the Wires: Does the driver have a separate pair of thin Purple and Grey/Pink wires?
- Check the Label: Does it explicitly state "0-10V Dimmable"?
- The Risk: If you only see Black (Hot), White (Neutral), and Green (Ground), your kit is not 0-10V compatible. Connecting a 0-10V controller to the main AC input will damage the module and void your warranty.
The Technical Deep Dive: Why CRI and CCT Matter When Dimming
When we talk about "Pro-Grade" lighting, we’re looking at more than just brightness. We’re looking at the quality of the light.
- CRI (Color Rendering Index): Our dimmable hexagon kits feature a CRI >90 (based on manufacturer photometric reports). This is a critical metric for paint correction or wiring. When you dim the lights, a high-quality driver maintains this color accuracy, whereas lower-quality lights often "color shift" or look muddy at lower intensities.
- CCT (Correlated Color Temperature): At 6500K, these lights provide a cool, energetic blue-white light. Dimming is particularly useful here because 6500K at full blast can feel clinical. Dropping it to 30% creates a much more relaxed atmosphere without losing that modern, clean aesthetic.
Planning Your Setup: A DIY Checklist
Safety is paramount in any electrical project. If you are uncomfortable working with live circuits or local building codes, please consult a registered electrician.
| Material / Tool | Purpose | Why it Matters |
|---|---|---|
| Wago Connectors | Splicing wires | More secure and easier to use than traditional wire nuts in tight ceiling spaces. |
| Non-Contact Voltage Tester | Safety | Mandatory. Never touch a wire without verifying it’s "cold." |
| Nylon Cable Ties | Cable Management | Keeps the "honeycomb" look clean by hiding the power feed. |
| Compatible Dimmer Switch | Control | For Gen 2 kits, a standard high-quality toggle switch is all you need for step-dimming. |
Step-by-Step Installation: Adding the Dimmable Hexagon Kit
If you’re installing a kit like the Dimmable Hexagon Garage Lights Gen 2 - 14 Grid (12.5 x 7.3 ft), the process is streamlined for DIYers.
Step 1: Layout and Power Mapping
Measure your ceiling and find your power source. For a 14-grid setup, you’re looking at a roughly 12.5 x 7.3 foot footprint.
- Manufacturer Specification: According to product data sheets, one power cable can support a maximum of 62 tubes (approx. 440W). If your design exceeds this, you must distribute the input lines evenly to prevent voltage drop or overheating.
Step 2: Assemble the "Y" and "2-Way" Connectors
The magic of the hexagon shape comes from the 120° connectors. These snap together easily. Ensure every connection is fully seated; a loose connection is the most common cause of the "high-frequency buzz" users report.
Step 3: Mounting to the Surface
You can mount these directly to drywall using the provided clips or suspended from a grid. If you have a sloped timber ceiling, ensure your clips are aligned so the tubes don't "sag" over time.
Step 4: The Final Connection
Connect your power transformer to the main line. If you are hardwiring this into a wall switch, ensure you are following local codes aligned with the NFPA 70 – National Electrical Code (NEC).
The ROI of Smart Lighting: Is it Worth the Upgrade?
We often get asked if "aesthetic" lighting provides a real return on investment. To provide a transparent answer, we modeled a typical 600 sq ft garage workshop (the "Serious Hobbyist" scenario).
The Calculation Model
We use the following formula to determine annual energy savings:
Annual Savings = [(Legacy Watts - LED Watts) / 1000] × Annual Hours × Electricity Rate × Fixture Count
Assumptions & Parameters:
- Legacy System: 458W (400W Metal Halide + Ballast losses).
- LED System: 150W average per fixture.
- Electricity Rate: $0.14/kWh (US National Average).
- Usage: 4,000 Hours/Year (approx. 11 hours/day).
- Scale: 20 Fixtures.
The Step-by-Step Results:
- Watts Saved per Fixture: 458W - 150W = 308W.
- Annual kWh Saved per Fixture: (308W / 1000) × 4000h = 1,232 kWh.
- Annual Dollar Savings per Fixture: 1,232 kWh × $0.14 = $172.48.
- Total Annual Energy Savings (20 Fixtures): $172.48 × 20 = $3,449.60.
- HVAC Cooling Credit: LEDs emit significantly less heat. Based on standard COP (Coefficient of Performance) for garage AC units, we estimate an additional ~$180 in cooling savings.
- Simple Payback: With a typical project cost of ~$2,450 for this scale, the payback period is 0.68 years (approx. 8 months).
Sensitivity Analysis:
- If your electricity rate is higher (e.g., $0.20/kWh in CA or NY), the payback period drops to just 5.5 months.
- Running your lights at 50% brightness via dimming can extend the lifespan of the LED chips (rated for 30,000+ hours) by reducing thermal stress on the internal components.
Compliance and Safety: The "Solid" Foundation
When you buy lighting, you aren't just buying "tubes"; you’re buying a system that needs to be safe. We ensure our products are grounded in rigorous standards.
- UL Listed vs. ETL: Both are National Recognized Testing Laboratories (NRTL). Whether a product is in the UL Solutions Product iQ Database or the Intertek ETL Listed Mark Directory, it means the product has passed North American safety standards (UL 1598 for luminaires and UL 8750 for LED equipment).
- DLC Premium: For those looking for the absolute best efficiency (lm/W), check the DesignLights Consortium (DLC) Qualified Products List (QPL). Choosing fixtures that meet DLC standards can often qualify you for utility rebates—sometimes covering up to 50-80% of the project cost.
Troubleshooting Common Dimming Issues
Even with the best gear, DIY projects can hit snags. Here’s how to solve the "Gotchas":
- The High-Frequency Buzz: This is usually caused by a low-quality dimmer module or a loose connection. In our experience, ensuring you are using a branded dimmer (like Lutron or Leviton) rated for LED loads solves 90% of buzzing issues.
- Flickering: This often happens if you try to use an old "incandescent" dimmer. LEDs require a "Trailing Edge" or "ELV" (Electronic Low Voltage) dimmer. Check the packaging of your dimmer switch for the "LED Compatible" or "ELV" label.
- Uneven Brightness: If one section of your 14-grid is dimmer than the rest, you likely have "voltage drop." This happens if the "daisy chain" of tubes is too long. The fix? Run a second power feed to the opposite side of the grid.
What to Expect: Living with Your New Setup

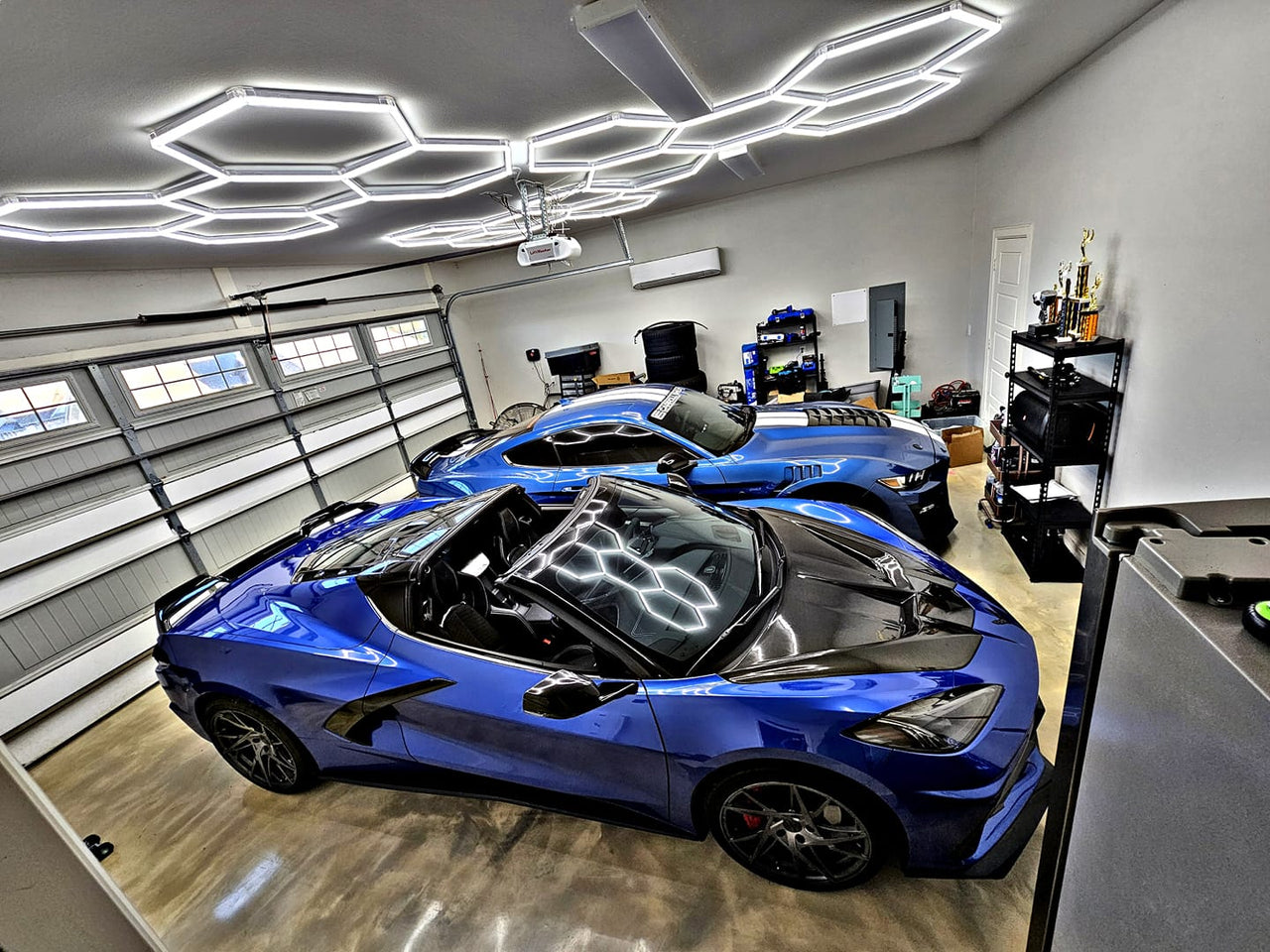

Once your Dimmable Hexagon Garage Lights Gen 2 are up and running, the first thing you’ll notice is the lack of shadows. Unlike a single center light, the grid pattern wraps light around objects—perfect for seeing under the hood of a car or into the corners of a cabinet.
With the dimming function, your garage becomes more than just a place to park. It becomes a studio. You’ll find yourself spending more time there because the environment is finally comfortable and adjustable to your specific tasks.
Frequently Asked Questions
Can I use a smart switch with these hexagon lights? Yes! If you use a standard smart switch (on/off), you can still use the "Step-Dimming" feature by programming a routine that toggles the power quickly.
How many tubes can I connect to one power supply? Based on manufacturer specifications for our Gen 2 kits, you can safely run up to 62 tubes on a single 440W-rated cable. For larger installations, you’ll need to split the power across multiple input lines.
Do these lights work in cold garages? Absolutely. Unlike old fluorescent tubes that flicker or take time to warm up, LEDs are "solid-state" and reach full brightness instantly, even in sub-zero temperatures.
What is the warranty on these kits? We offer a 5-Year Warranty and a 30-Day Return Policy. If a tube fails, we ship a replacement so you don't have to dismantle the entire grid.
Disclaimer: This article is for informational purposes only and does not constitute professional electrical advice. Always consult a licensed electrician and follow local building codes (NEC) before performing electrical work in your home or garage.
