Executive Summary: The Business Case for Aisle Optics
For warehouse managers and electrical contractors, retrofitting legacy T5HO fluorescent systems with specialized LED aisle optics is no longer just about "going green"—it is a high-yield financial strategy. Based on typical 24/7 operational parameters, facilities can often achieve an estimated payback period of 1.4 to 18 months.
Key Takeaways:
- Energy Efficiency: Reduce per-fixture wattage from ~458W to 150W (a ~67% reduction).
- Operational Impact: Specialized aisle optics (e.g., 30°x70°) can significantly improve vertical foot-candles on rack faces, potentially reducing picking errors.
- Financial Drivers: ROI is accelerated by high-tier utility rebates (DLC Premium) and avoided "soft costs" like scissor lift rentals.
- Immediate Action: Request IES files for your specific layout to simulate light levels before purchasing; a precise layout can often reduce total fixture count by 20% or more.

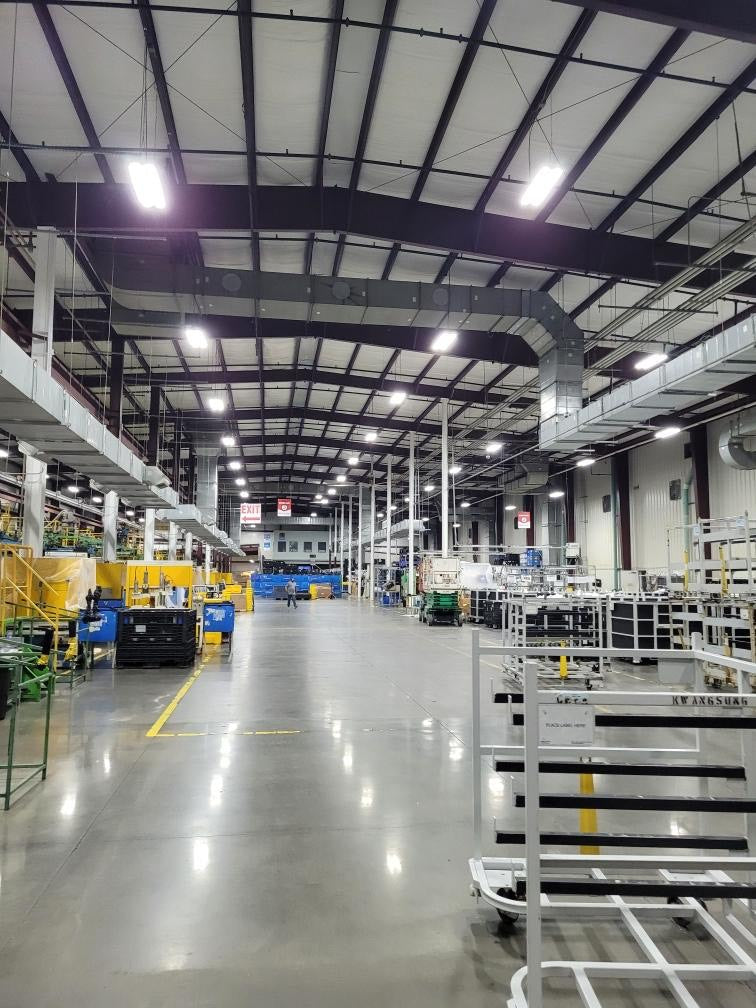

Retrofit ROI: Optimizing Vertical Illuminance with Aisle Optics
Transitioning from legacy T5HO (High Output) fluorescent systems to modern aisle-optic LED high bays typically yields an estimated Return on Investment (ROI) of less than 18 months. In specialized 24/7 cold storage facilities, we have observed payback periods as short as two months under specific conditions. While energy reduction is the primary driver, the true financial advantage lies in the intersection of vertical rack-face illumination, avoided maintenance labor, and high-tier utility rebates.
For facility managers, the decision to retrofit is often triggered by the rising cost of T5HO lamp replacements and the operational disruption of frequent relamping. However, a common pitfall is replacing linear fluorescent fixtures with standard symmetric "UFO" LED high bays. This approach often fails to illuminate the critical vertical faces of storage racking. As noted in the 2026 Commercial & Industrial LED Lighting Outlook, project-ready documentation such as IES files and LM-79 reports are essential for verifying that a fixture actually delivers light where it is needed: the aisle.
The Technical Gap: T5HO vs. High-Efficacy LED
Legacy T5HO systems suffer from significant performance degradation over time. A typical 4-lamp T5HO fixture consumes approximately 458W, including ballast overhead. In contrast, a DLC (DesignLights Consortium) Premium certified 150W LED high bay provides equivalent or superior light output while reducing energy consumption by roughly 67%.
Beyond raw wattage, the quality and longevity of light are governed by several critical industry standards:
- IES LM-79-19: The "performance report card" that verifies total lumens, efficacy (lm/W), and Color Rendering Index (CRI).
- IES LM-80 & TM-21: These measure lumen maintenance. While T5HO lamps may be rated for 20,000 hours, their effective output drops significantly well before failure. Modern LEDs, backed by TM-21-21 projections, are designed to maintain 70% of their initial brightness ($L_{70}$) for 60,000 to 100,000 hours in optimal conditions.
- UL 1598 & UL 8750: Safety is paramount. UL 1598 covers the entire luminaire, while UL 8750 focuses on the LED driver, ensuring protection against electrical and thermal hazards.
Aisle Optics: Solving the Vertical Illumination Challenge
In a high-rack warehouse, the floor is rarely the primary target. The critical task is reading barcodes and identifying inventory on the vertical faces of the racking. Standard UFO high bays with symmetric 120-degree beams often create "hot spots" on the floor while leaving the upper tiers of the racks in shadow.
True aisle-optic fixtures utilize specialized lenses (typically 60°x90° or 30°x70° distributions) to reshape the light into a narrow rectangle.
- Uniformity and Productivity: Proper aisle optics reduce the "cave effect." Improved visibility can reduce picking and packing mistakes by making labels easier to read at height.
- Glare Control: High-performance optics direct light downward and inward, reducing the disabling glare that forklift operators often experience with wide-beam fixtures.
- Photometric Layouts: Before purchasing, request IES files (LM-63-19) and run a simulation in software like AGi32. This often reveals that you can achieve required light levels with fewer fixtures compared to a like-for-like swap.
The Hidden ROI: Maintenance and HVAC Interactive Effects
While energy savings are easily calculated, the "soft costs" of maintenance are often underestimated. In facilities with 30-foot ceilings, relamping a T5HO system requires renting a scissor lift, which can cost $300 to $600 per day, plus the labor of a licensed electrician.
In specialized environments like cold storage, these costs escalate. T5HO lamp life is often reduced in sub-zero temperatures, and relamping requires safety protocols that can shut down an entire aisle for hours.
- Maintenance Avoidance: Transitioning to a high-durability system like the Hyperlite LED High Bay Light - Black Hero Series can significantly reduce the frequency of lift rentals for up to a decade.
- HVAC Cooling Credits: LED fixtures emit significantly less heat. In refrigerated spaces, every watt of lighting removed reduces the refrigeration load. Based on Energy Star and ASHRAE interactive effect principles, we use an interactive factor of 0.33 for this model—meaning for every 3 watts of lighting energy saved, an additional 1 watt of cooling energy is saved.
Compliance and Rebate Strategy
The DesignLights Consortium (DLC) Qualified Products List (QPL) is the gateway to utility rebates.
- DLC Standard: Meets baseline efficacy.
- DLC Premium: Requires higher efficacy (lm/W) and more stringent glare control.
Rebates for DLC Premium fixtures are often $20 to $50 higher per unit. Many utility programs also offer a "controls bonus" for fixtures with occupancy sensors. To find local incentives, consult the DSIRE Database.
Scenario Modeling: 24/7 Cold Storage Facility
This model demonstrates the potential impact for a medium-sized cold storage warehouse in a region with high electricity costs (e.g., $0.22/kWh).
Key Assumptions & Data Sources:
- Maintenance Labor ($110/hr): Estimated based on a blended rate of a licensed electrician (~$85/hr) plus the daily cost of a scissor lift rental prorated over a standard maintenance window.
- HVAC Interactive Factor (0.33): Derived from ASHRAE 90.1 guidelines for refrigerated spaces.
- Refrigeration COP (3.0): A standard Coefficient of Performance for industrial cooling systems.
| Parameter | Value | Unit | Rationale / Source |
|---|---|---|---|
| Legacy System | 458 | W | 4-lamp T5HO + ballast |
| LED System | 150 | W | Hyperlite Hero Series |
| Fixture Count | 50 | qty | Facility Estimate |
| Annual Hours | 8,760 | hrs | 24/7 operation |
| Electricity Rate | 0.22 | $/kWh | Commercial Average (Source: EIA) |
| Rebate Total | 4,500 | $ | ~$90/fixture (DLC Premium + Controls) |
Step-by-Step Financial Calculation:
-
Annual Energy Savings:
-
Formula:
(Watts Saved * Qty * Hours) / 1000 * Rate -
(308W * 50 * 8,760) / 1000 * $0.22= $29,679
-
Formula:
-
Annual Maintenance Savings:
- Estimation: Based on replacing 20% of the T5HO lamps/ballasts annually (due to cold-start degradation) at $110/hr (labor + lift).
- Calculation: ~$7,939 (Includes material costs and avoided operational downtime).
-
Annual HVAC Cooling Credit:
-
Formula:
Energy Savings * Interactive Factor -
$29,679 * 0.33 / (COP 3.0)= ~$1,632
-
Formula:
- Total Annual Savings: ~$39,250
-
Estimated Payback Period: ~1.4 months
-
Note: Calculated as
(Total Project Cost - Rebates) / Annual Savings. Actual payback varies by installation labor and local utility structures.
-
Note: Calculated as
Implementing a Professional-Grade Retrofit
A successful project must adhere to building codes like ASHRAE 90.1-2022 and IECC 2024, which mandate specific Lighting Power Densities (LPD) and automatic controls.
When selecting products, consider fixtures like the Hyperlite White Hero Series, which offer selectable wattage and CCT. This allows on-site fine-tuning to meet specific task requirements or ANSI C78.377 standards.
Actionable Checklist:
- Audit: Identify T5HO/HID fixtures and measure current foot-candles on rack faces.
- Verify DLC: Ensure the fixture is Premium-rated on the DLC QPL for maximum rebates.
- Simulate: Use IES files to confirm vertical light levels.
- Safety: Ensure all fixtures are UL Listed and comply with NFPA 70 (National Electrical Code).
Disclaimer: This article is for informational purposes and does not constitute professional electrical, engineering, or financial advice. Lighting requirements and building codes vary by jurisdiction. Always consult with a licensed electrical contractor and your local utility representative before initiating a retrofit.
