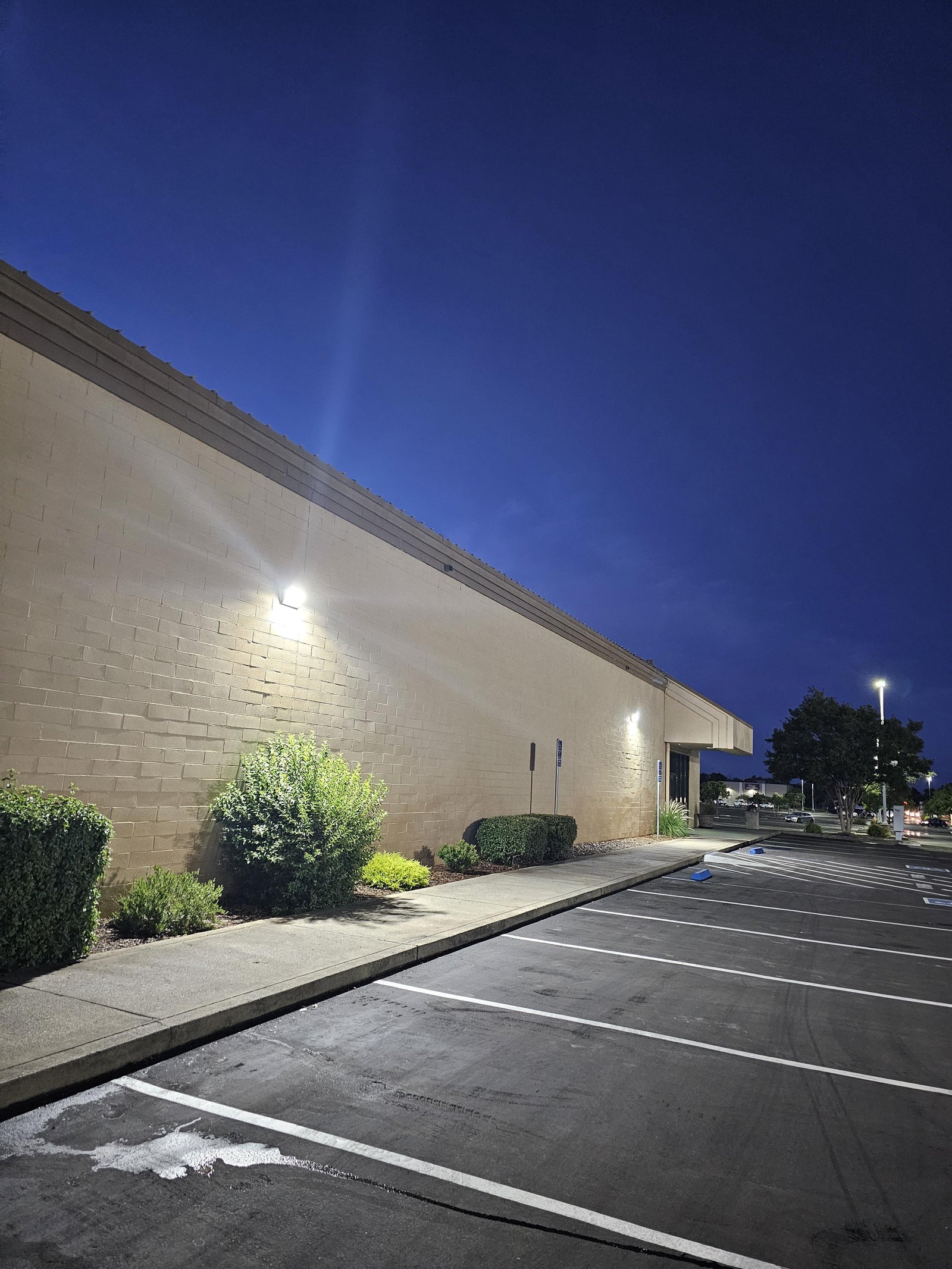

Reducing Glare in Parking Garages for Driver Safety

Glare in parking garages is not just a comfort issue; it directly affects driver reaction time, pedestrian visibility, and incident risk. This guide focuses on practical, code‑aware strategies to reduce glare using LED vapor tight and other enclosed fixtures, better optics, and smarter layouts tailored for contractors, specifiers, and facility teams.

1. How Glare Impacts Parking Garage Safety

1.1 Two types of glare you must control

For enclosed garages, both discomfort and disability glare matter:

• Discomfort glare: Light that feels harsh or painful, causing squinting and fatigue. It reduces driver confidence and can lead to slower decision‑making.
• Disability glare: Light that creates a “veil” over the retina and washes out contrast. According to research summarized in an SSRN paper on roadway safety, even modest increases in veiling luminance reduce recognition distances for night drivers.

In practice, disability glare is the bigger safety threat in garages because it hides pedestrians, columns, curbs, and other vehicles right when drivers need fine contrast.

1.2 Why garages are uniquely glare‑prone

Garage environments amplify glare compared to open lots:

• Short viewing distances: Drivers are often within 5–15 m of luminaires, so source luminance and candela at the eye are high.
• Reflective surfaces: Wet concrete, glossy car hoods, and glass windshields create multiple reflected images of each luminaire, multiplying veiling luminance.
• Adaptation gradients: Drivers frequently move from bright day exterior to relatively dim interior. Guidance in the IES parking facilities design documents notes that entry zones need careful control of luminance transitions to maintain safety.

Because of these factors, a layout that looks fine in a photometric printout can still feel dangerously “blinding” on ramps and at decision points.

1.3 Age and glare susceptibility

Older drivers are significantly more glare‑sensitive. A study on glare susceptibility and turning maneuvers reported in ResearchGate found that drivers with higher glare susceptibility had reduced temporal safety margins when crossing traffic in low‑sun conditions.

Translated to garages, this means:

• Seniors need larger contrast reserves and
• slower adaptation at ramps and portals

than a design based purely on average occupants will typically provide. Good glare control is therefore a demographic safety strategy, not just a comfort upgrade.

Key target: For general garage areas, a practical internal target is UGR ≤ 22, tightening to ≤ 19 at cashier, ticketing, and security points where drivers dwell and scan details.

2. Core Design Principles for Low‑Glare Parking Garages

2.1 Focus on luminance, not just illuminance

A common design mistake is to meet horizontal illuminance (lux/footcandle) targets while ignoring luminance (cd/m²) of visible sources and reflections.

The SSRN work on disability glare and veiling luminance makes it clear that what degrades visibility is light scattered in the eye from bright sources in the field of view, not simply the overall light level. This has practical implications:

• Limit visible source brightness in driver sightlines (small, high‑luminance LED arrays are more problematic than larger, diffused apertures).
• Manage reflections on wet floors and car hoods by controlling incident angles and ceiling/fixture positions.
• Use photometric plots and luminance renders from tools such as AGi32 (which relies on IES LM‑63 files) to evaluate glare from driver eye heights along approach paths.

2.2 Choose the right color temperature

High‑CCT (e.g., 5000–5700 K) LEDs are sometimes assumed to be “safer” because they look crisper. In reality, this can backfire in garages.

Analysis on disability glare summarized in Setick’s overview explains that increased short‑wavelength (blue) content in light can enhance intraocular scatter, which in turn worsens disability glare.

For garages this means:

• Neutral 3500–4000 K is usually a better balance of visibility and comfort.
• Use 4000 K as the default for general decks and ramps.
• Reserve 5000 K only for specific task zones (e.g., inspection bays) and keep those sources outside critical driver sightlines.

2.3 Beam control and full‑cutoff optics

Full‑cutoff or semi‑cutoff optics that block light above 90° from nadir are crucial in structures where drivers see luminaires at low angles.

Practical techniques include:

• Asymmetric distributions: Type III or similar patterns aimed away from drivers’ approach direction on ramps and drive lanes.
• Vapor tight linear fixtures with diffusers: These spread light over a larger area, reducing apparent source luminance compared with bare LED boards.
• Small louvers or micro‑prismatic lenses: These can cut peak luminance in the critical 65–85° zone with less than ~10% lumen loss in many designs.

3. Fixture Selection for Low‑Glare Parking Garages

3.1 Vapor tight vs. open fixtures

In damp, corrosive garage environments, vapor tight (vapor proof) fixtures are the starting point. But not all enclosed fixtures perform the same way with respect to glare.

Fixture type	Glare behavior	When to use	When to avoid
Open board LED with clear lens	High point luminance, strong reflections, high disability glare	Very high mounting heights with no direct sightlines	Low ceilings, ramps, near turning areas
Vapor tight with frosted diffuser	Lower apparent luminance, softer shadows, better visual comfort	General parking bays, pedestrian paths	Very high ceilings where output is insufficient
Vapor tight with specular reflector + shield	Controls high‑angle light, good vertical illumination	Ramps, perimeter bays near openings	Very low ceilings where shielding creates dark zones

For most garages with mounting heights between 2.7–4.6 m, frosted‑lens vapor tight fixtures strike the best balance between robustness, glare control, and efficiency.

3.2 IP and IK ratings for durability

To keep optics performing as designed over time, the housing and lens need to resist dust, moisture, and impact.

• IP rating: IEC 60529 defines IP codes for enclosure ingress protection. For garages, IP65 is a practical minimum, ensuring dust‑tight construction and protection against water jets, as described by the IEC IP ratings guide.
• IK rating: IEC 62262 (also published as EN 62262) specifies mechanical impact resistance. An IK08 rating corresponds to 5 J impact capacity, as summarized in the IK rating reference, making it suitable for areas prone to occasional knocks from equipment or vandalism.

Well‑sealed, impact‑resistant fixtures maintain clean lenses and stable photometrics, which prevents “glare creep” from dirt patterns and yellowing.

3.3 Photometric data and UGR screening

Low‑glare specification is impossible without solid photometric data:

• Require LM‑79 test reports for total lumen output, efficacy, and color characteristics. LM‑79, as described in the ANSI/IES LM‑79‑19 overview, defines how to measure output and color for LED luminaires under stabilized conditions.
• Ensure the LED packages are supported by LM‑80 and TM‑21 data for lumen maintenance so that the long‑term luminance profile of the fixture is predictable.
• Demand .ies photometric files in LM‑63 format so you or your lighting designer can run AGi32 simulations from driver eye positions.

Use UGR values from manufacturer data as a screening tool, but verify comfort through luminance visualizations and, whenever possible, mock‑ups in the field.

4. Layout Strategies to Reduce Glare and Improve Safety

4.1 Spacing, mounting height, and aiming

Experienced lighting designers see the same mistakes repeated in garages:

1. Over‑lighting with high‑candela fixtures at eye level
   Designers try to fix dark spots with very bright fixtures mounted low, often at or just above driver eye level.

   • Fix: Reduce mounted lumen density (fewer lumens per square meter) and switch to full‑cutoff or shielded optics rather than pushing individual fixture output.

2. Assuming lower mounting height always reduces glare
   This is a persistent myth. Guidance from the IES parking garage committee and field experience show that bringing bright LED arrays closer to eye level can actually increase apparent source luminance and specular reflections on vehicle surfaces.

   • Fix: For many garages, a slightly higher mounting height combined with better shielding is safer than low, exposed fixtures.

3. Ignoring beam control and cutoff
   Bare lens fixtures aimed straight down but located in direct sightlines still cause disability glare.

   • Fix: Use asymmetric optics and angle fixtures so that the bright zone is directed away from typical driver approach paths.

4. Poor aiming on ramps and curves
   Fixtures installed perpendicular to the deck on ramps often send high‑angle light straight into approaching drivers.

   • Fix: Stagger fixtures and offset them toward the outside of the curve; aim heads so the main candela distribution is downward and slightly away from traffic.

Target check: Keep maximum‑to‑average luminance ratios under ~10:1 along driver sightlines in photometric models. This keeps hot spots under control without forcing extreme uniformity.

4.2 Balancing uniformity and contrast

There is a second myth worth addressing: “Perfect uniformity always improves safety.”

The IES Lighting Handbook notes that for complex tasks, especially in three‑dimensional spaces, some contrast is helpful to reveal edges, obstacles, and vertical forms. Overly flat luminance can make pedestrians and bollards blend into the background.

For garages, practical experience shows that:

• A horizontal uniformity ratio (max to min) between 6:1 and 10:1 is typically adequate, as long as critical conflict points—pedestrian crossings, pay stations, speed ramps—receive slightly higher vertical illumination.
• Vertical illuminance on walls, columns, and pedestrians often contributes more to perceived safety than a few extra lux on the floor.

This is where vapor tight fixtures with wider, softer distributions help: they naturally lift vertical surfaces without harsh hot spots.

4.3 Entry, exit, and transition zones

Entry portals and ramps between levels need special treatment because they handle the largest adaptation shifts.

Best practices based on IES parking design guidance and broader visual adaptation research include:

• Higher luminance at entry zones during daytime, tapering into the interior over several mounting rows.
• Control of high‑angle light from fixtures visible from outside, to avoid drivers being “blinded” before they even enter.
• Separate control zones for entries and ramps so their levels can float based on exterior conditions while interior decks remain stable.

5. Controls, Sensors, and Glare

5.1 Motion sensors and bi‑level dimming

Controls are critical for energy performance and code compliance (e.g., IECC and ASHRAE 90.1), but they must be tuned to avoid glare‑related side effects.

A common pattern is bi‑level control where fixtures drop to a low standby level when no occupancy is detected and go to 100% when motion is sensed. The problem is how fast and how far they move between states.

According to the IES Design Guide for Parking Facilities Lighting, sharp jumps in luminance at low adaptation levels can startle drivers and temporarily wash out peripheral vision.

Practical settings that work well in garages:

• Standby level: 20–40% of full output, depending on minimum required light levels.
• Fade times: 3–5 seconds up and 5–10 seconds down to avoid abrupt changes.
• Grouping: Link fixtures in small zones (e.g., 3–6 units) so motion “waves” follow vehicles smoothly rather than random pools of brightness.

5.2 Daylight‑responsive controls

Where garages have open sides or skylights, daylight contributions vary significantly.

To avoid glare and patchiness:

• Use dedicated daylight zones within a few meters of openings.
• Cap the maximum dimming response so that electric lighting never drops completely off in those zones; a baseline of 30–50% provides stable adaptation.
• Avoid placing high‑luminance fixtures exactly at the edge of daylight openings, where they can appear as extremely bright spots against darker interiors.

6. Maintenance: Preventing “Glare Creep” Over Time

6.1 How dirt and aging change glare

Even if a garage is commissioned with excellent glare control, performance drifts over time:

• Dust and soot accumulate on lenses, creating uneven patterns and increasing perceived harshness.
• Lens yellowing shifts the color and can change perceived brightness.
• Lumen depreciation from LEDs, characterized via LM‑80 and projected with TM‑21, changes the balance between source and background luminance.

The IES maintenance guidance for parking facilities emphasizes that maintenance is part of the lighting design, not an afterthought. When lenses are dirty, some areas darken more than others, increasing contrast ratios and apparent glare.

6.2 Maintenance plan template

A simple, realistic maintenance plan for a mid‑size garage (e.g., 3–5 levels, 200–400 fixtures) looks like this:

Task	Interval	Notes
Visual inspection and aiming check	Every 6 months	Look for tilted fixtures, damaged shields, and mis‑aimed ramp lights
Lens cleaning	Every 12–18 months	Prioritize lower levels and areas near vehicle exhaust or open sides
Controls review and re‑tuning	Annually	Confirm sensor coverage, adjust timeouts and fade rates based on feedback
Photometric spot‑checks	Every 3–5 years	Verify that illuminance and uniformity still meet design targets

This schedule is typically enough to keep glare characteristics stable across a 50,000‑hour fixture life, assuming basic LM‑80/TM‑21 performance.

7. Pro Tips and Expert Warnings

Pro Tip: Use vapor tight fixtures to lift ceilings and calm the space

Vapor tight fixtures with wide, diffused optics do more than resist moisture. They:

• Create bright ceiling planes that keep overall adaptation levels stable.
• Reduce the “cave effect,” where dark ceilings make the space feel oppressive and amplify apparent glare from individual sources. The IES Lighting Handbook highlights this cave effect and its impact on brightness perception.
• Provide enough vertical illuminance on columns and walls to help drivers read the space quickly.

In practice, projects that switch from clear‑lens cans to vapor tight, frosted fixtures typically see a 15–25% subjective improvement in comfort in post‑occupancy feedback, even when measured average illuminance stays similar.

Expert Warning: Don’t treat office‑style UGR limits as a silver bullet

Unified Glare Rating was validated primarily for seated office workers looking at screens, as summarized by the CIE document on discomfort glare. Applying office‑style limits directly to garages is misleading because:

• Drivers are moving, not stationary.
• They constantly change viewpoint and adaptation level.
• They have to monitor a complex 3D environment, not a planar task.

Use UGR only as a preliminary filter. Final decisions should rely on:

• Luminance simulations along real driver paths.
• On‑site mock‑ups observed from inside vehicles.
• Feedback from a range of users, including older drivers and those with low vision.

8. Step‑By‑Step Checklist for Low‑Glare Garage Design

Use this checklist when designing or retrofitting a parking garage lighting system:

1. Define safety and comfort targets

   • Horizontal illuminance and uniformity ratios by area.
   • Internal glare targets (e.g., UGR screening values).
   • Critical zones: ramps, portals, pedestrian crossings, ticketing.

2. Select appropriate fixtures

   • Vapor tight, IP65+ fixtures with frosted or prismatic diffusers for general bays.
   • Higher‑shielding or asymmetric optics near ramps and openings.
   • Verify LM‑79, LM‑80/TM‑21, IP, and IK documentation.

3. Plan mounting heights and spacing

   • Avoid fixtures at direct eye level along main driver sightlines.
   • Use slightly higher mounting with shielding instead of low, exposed boards.
   • Keep luminance ratios under ~10:1 along main approaches.

4. Design for vertical illumination and ceiling brightness

   • Ensure walls, columns, and ceilings are lit sufficiently to avoid the cave effect.
   • Use vapor tight fixtures with wide distributions to lift verticals.

5. Integrate controls carefully

   • Set standby levels to 20–40%.
   • Use 3–5 second fade‑up, 5–10 second fade‑down.
   • Group fixtures into small, logical zones aligned with traffic flow.

6. Run driver‑eye simulations

   • Use AGi32 or similar with LM‑63 IES files to evaluate glare.
   • Check from 1.0–1.2 m eye height for seated drivers, along realistic paths.
   • Adjust aiming, shielding, and layout where high‑luminance sources are visible.

7. Field mock‑up and commissioning

   • Install a pilot bay or ramp segment.
   • Inspect from inside vehicles during both day and night transitions.
   • Collect feedback from a diverse group of users.

8. Document maintenance and review cycles

   • Schedule lens cleaning and aiming checks.
   • Plan for periodic re‑tuning of controls.
   • Keep LM‑79 reports, IES files, and maintenance logs accessible for inspections and future upgrades.

Wrapping Up: What Matters Most for Glare‑Safe Parking Garages

Reducing glare in parking garages is about managing luminance and contrast over time, not just hitting a lux target on day one. For contractors and facility teams, the most effective steps are:

• Choose vapor tight or otherwise well‑shielded fixtures with diffused optics, IP65+ and adequate IK ratings.
• Favor neutral 3500–4000 K color temperatures to balance visibility and comfort.
• Design layouts that keep luminance ratios under control, avoid direct sightlines to intense sources, and maintain bright ceilings and vertical surfaces.
• Configure motion and daylight controls so transitions are smooth, not startling.
• Commit to a realistic maintenance plan that keeps lenses clean, optics intact, and controls tuned.

When these elements are coordinated and verified with good photometric data (LM‑79, LM‑63 IES files) and driver‑eye simulations, garages feel calmer, drivers see pedestrians and obstacles sooner, and the facility operates with both higher safety and lower energy cost.

---

Frequently Asked Questions

Q1. What’s the simplest way to reduce glare in an existing parking garage without rewiring everything?
Start by replacing clear‑lens or bare‑board fixtures with vapor tight or shielded luminaires with frosted diffusers at the same mounting points. In many projects this single step dramatically reduces discomfort and disability glare while holding similar average illuminance. Tune existing controls so fixtures never jump from 0% to 100% instantly.

Q2. How do I know if my garage has a glare problem, not just “bright lights”?
Sit in a vehicle and drive typical paths at night. If you find yourself squinting, seeing streaks around lights, or losing sight of pedestrians or columns when passing under certain fixtures, you have a glare issue. Photometric modeling that shows high luminance ratios and strong hot spots in the 65–85° zone confirms it.

Q3. Are higher color temperatures (5000 K) always bad for garages?
Not always. They can be appropriate in specific task areas, such as inspection bays, where visibility of fine detail is critical. However, for general drive lanes and parking decks, neutral (3500–4000 K) whites usually provide better comfort and less disability glare, especially for older drivers.

Q4. How often should I clean lenses in a busy urban garage?
A 12–18 month interval is a practical starting point. In environments with heavy exhaust or open sides exposed to road dust, shorter intervals may be needed. Cleaning should be combined with visual checks for mis‑aimed fixtures and damaged shielding.

Q5. Do I need a full photometric study for a small two‑level garage?
For new builds or substantial retrofits, a photometric study is strongly recommended even for smaller garages. It allows you to check glare from driver eye positions, not just average illuminance. At minimum, ensure you have LM‑79 data and LM‑63 IES files for the selected fixtures so a designer or engineer can quickly run calculations if issues arise.

---

Safety Disclaimer: This article provides general lighting design information for educational purposes and does not constitute engineering, legal, or safety certification advice. Always consult a qualified professional engineer, licensed electrician, and the applicable local codes and standards when designing or modifying parking garage lighting systems. Field conditions vary, and designs should be validated through project‑specific analysis and on‑site testing.

Sources: Key guidance and data referenced here include the disability glare and veiling luminance work summarized in this SSRN paper, research on glare susceptibility and driver safety reported via ResearchGate, the ANSI/IES LM‑79‑19 method, the IEC IP ratings overview, the IK rating reference, the IES Design Guide for Parking Facilities Lighting, the IES Lighting Handbook, and the CIE guidance on discomfort glare.
