Map the garage before shopping for garage lights. Draw the door, tracks, opener, storage, ducts, vehicles, and work zones with the door both open and closed. Then choose fixture locations that keep clear paths to circulation areas, storage fronts, and work surfaces. If no mounting zone passes those checks, move to a more detailed lighting layout instead of guessing at fixture placement.
Start by Mapping Tracks, Storage, and Work Zones

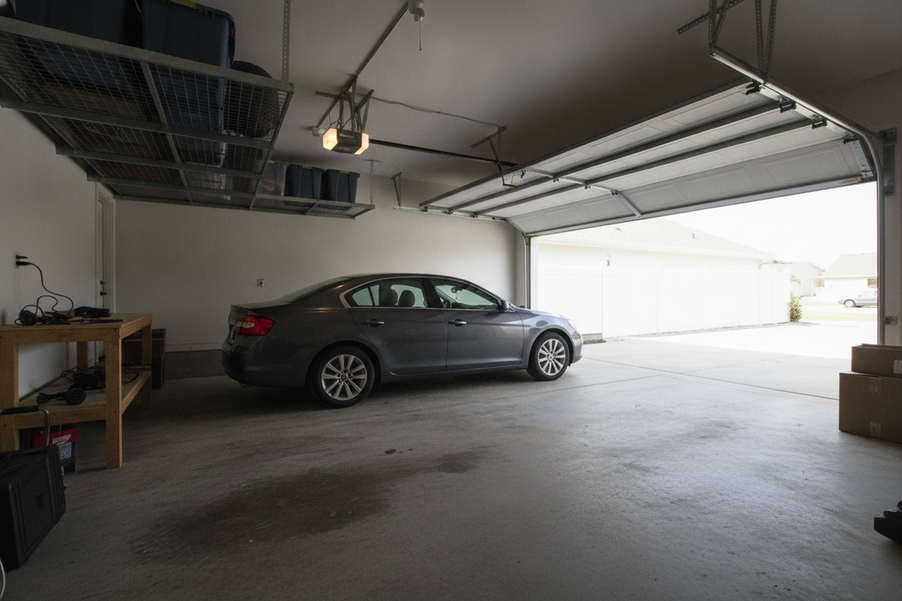

The first decision is whether a proposed fixture zone is genuinely usable. A ceiling area that looks clear may still conflict with the fully open door, tracks, opener, ductwork, racks, or vehicle roof.
- Draw the fixed geometry. Mark the perimeter, door opening, tracks, opener, sensor locations, beams, ducts, shelves, cabinets, and racks. Add the vehicle footprint, walking route, storage-access faces, bench, and any repair or hobby area. This creates the foundation for garage lighting around door tracks instead of a plan based only on empty ceiling space.
- Add the moving and changing positions. Draw the door open and closed, storage at its full expected depth, and the vehicle where it normally parks. Measure storage height and underside clearance. For the overhead area, measure from the top of the door opening to the lowest obstruction, whether that obstruction is the ceiling, a track, a duct, or storage.
- Label every candidate fixture zone. Mark each area as clear, blocked, or uncertain. A clear label means the location has a usable mounting surface and stays outside the moving-door or track envelope. Keep an uncertain area out of the shopping plan until its dimensions and mounting method are documented.
Treat the tracks and moving-door envelope as protected space. Horizontal door tracks should not be used as mounting points, even when they appear convenient for a light or storage item. For more help separating parking, storage, and work areas, use these garage zoning ideas after you have mapped the physical obstructions.
Check Where the Light Will Be Blocked
A proposed fixture location passes the clear-zone test only when it leaves a useful path to the areas you need to see. Test the room from the floor, not just from a ceiling plan, and repeat the test with the door open and closed.
Test the Door and Vehicle Positions
Use four viewing positions: the entry, the threshold, the parked-vehicle position, and the side of the vehicle where you get in, unload, or work. From each position, look toward the proposed fixture zone and note where the tracks, opener, open door, vehicle roof, or your own body would interrupt the path.
- Compare the proposed light path with the door open and closed. A zone that works with the door down may be blocked when the door is fully open.
- Look for shadow gaps at the threshold, beside the vehicle, and along the walking route. Record the specific area that loses useful light instead of assuming a brighter fixture will solve it.
- Keep fixtures, storage, and wiring clear of the opener's safety-sensor path and other protection components. The residential operator safety requirements define a boundary for the installed protection system, not proof that a particular fixture is compatible.
If a critical path remains blocked, move the proposed fixture zone or add a separate wall or task position. More output from one blocked location does not automatically improve visibility at the threshold or beside the vehicle. These low-ceiling lighting options provide planning context, but the site's clearance and the fixture's current mounting documentation control the decision.
Test Storage and Work Surfaces
Stand where the task actually happens. Inspect the front edge and underside of each deep shelf, rack, or cabinet, then stand at the bench or repair position with your hands and tools in front of you. This reveals whether the user, vehicle, shelf face, or open storage bin blocks the only useful path.
Use this short storage and work-surface check:
- Stand at the shelf, rack, cabinet, bench, or repair position where access normally occurs.
- Check the storage underside, front edge, and open doors or bins from that position.
- Note whether your body, tools, vehicle, or storage face blocks the proposed light path.
- Mark the exact surface that remains underlit or glare-prone, then assign it a separate zone if needed.
For lighting a garage with overhead storage, compare the storage underside and access face with the proposed fixture position. If shelves create a dark face or your body blocks the work surface, assign that area its own wall or task-light zone. General coverage can serve circulation and parking, while a defined task position handles a bench, repair area, or storage face. This is a planning method, not a promise of shadow-free illumination.
Choose Garage Lights by Usable Zone
Choose the location with the clearest documented path to the zone you need to see. Ceiling lighting is a starting point for an open mounting area, while wall and task positions become more useful when tracks, low clearance, storage, or vehicles block that path.
| Garage situation | Starting fixture location | Verify before purchase |
|---|---|---|
| Open ceiling with a clear door and vehicle path | Ceiling fixture for broad circulation and parking coverage | Mounting surface, fixture dimensions, distribution, glare, clearance, and electrical requirements |
| Low or obstructed ceiling | A documented close-to-ceiling or usable wall position | Headroom, door travel, wall-mount method, light direction, glare, and electrical requirements |
| Storage-lined wall or deep overhead rack | Wall position aimed at the access face, with general coverage elsewhere | Storage depth, shelf-face shadows, mounting surface, access, distribution, and clearance |
| Defined bench, repair area, or hobby surface | Task lighting for the specific work zone | Task position, body and tool shadows, control method, mounting, and electrical compatibility |
For a standard-height garage, a verified ceiling zone may provide the simplest broad coverage. For garage lighting ideas for low ceiling obstructions, start with surfaces that preserve headroom and leave the door's travel envelope clear. A wall position is conditional, not an automatic replacement for ceiling lighting. It needs a documented mounting method and a distribution pattern that reaches the intended area without creating a new glare or clearance problem.
Task lighting is the most direct choice when the problem is local, such as a bench, vehicle-side repair position, or shelf face. It supplements practical circulation lighting rather than replacing it. As a qualitative planning heuristic, distribute lighting across usable zones and add task lighting where storage depth, a vehicle, or the user's body blocks the main path. Do not turn that heuristic into a universal spacing or lumen rule.
Browse garage lighting options only after you have a usable zone. Match the current product documentation to the measured mounting surface, dimensions, distribution, controls, and electrical requirements. For low headroom, compare the site with these low-ceiling alternatives rather than assuming a high-output fixture is the right form.
Know When a Simple Sketch Is Not Enough
A simple sketch is useful when the door positions, fixture zones, circulation, storage access, and work surfaces each have a clear path. Request a more detailed layout when the map and sight-line test leave competing or unresolved conditions.
Use layout support when:
- several obstructions overlap in the same ceiling or wall area;
- no clear mounting zone survives both door positions and the vehicle test;
- the ceiling has little usable area or its height changes across the garage;
- one fixture is expected to serve parking, storage access, circulation, and detailed work, but those uses produce different blocked paths;
- glare, clearance, mounting, fixture fit, or electrical questions remain after the map; or
- a proposed change could affect door movement, the opener, or its protection components.
Bring the ceiling height, door and track positions, opener and sensor locations, storage height and depth, vehicle footprint, work zones, and candidate fixture specifications. If a fixture or storage change could affect operation, check the door and opener manuals before changing clearance or operating conditions. A lighting sketch can organize the decision, but it does not certify door safety, electrical suitability, code compliance, or final illumination.
When measurements and sight-line checks still leave no confident placement, pause product selection and request a lighting layout review. The practical next move is to bring the measured sketch and use it to resolve the remaining fixture-zone conflict.
Frequently Asked Questions
Use the map, floor-level sight-line test, and usable-zone comparison to answer these common garage-lighting questions without relying on a universal fixture size, spacing rule, or mounting location.
How Do I Plan Garage Lights Around a Garage Door Opener?
Map the opener, tracks, sensor locations, and both door positions before selecting a fixture zone. Keep the main fixture outside the moving and track envelope, then compare the proposed placement with the opener instructions. If a fixture, storage item, or wiring change could affect movement or the protection system, stop the layout and resolve that door-system question first.
Where Should Garage Lights Go With Overhead Storage?
Measure the storage underside and depth, then stand at the shelf or rack access face. If the storage blocks the main path, keep general lighting for circulation and assign a separate wall or task position to the storage face. The best location depends on the access position, storage depth, headroom, and documented mounting method.
Can I Use Wall-Mounted Garage Lights Instead of Ceiling Lights?
Yes, a wall position can be practical when the ceiling path is blocked or headroom is limited. Choose it only when the fixture has a documented wall-mount method and its distribution, glare, clearance, controls, and electrical requirements fit the site. Wall lighting may support a work or storage zone without replacing the need for usable circulation lighting.
When Should I Get a Lighting Layout for My Garage?
Request a detailed layout when multiple obstructions overlap, no clear mounting zone survives the door and vehicle tests, or parking, storage, and work tasks compete for the same light path. Bring a measured sketch with door hardware, storage depth, vehicle position, work zones, and candidate fixture information so the review can address the actual conflict rather than rely on a generic garage-lighting estimate.
