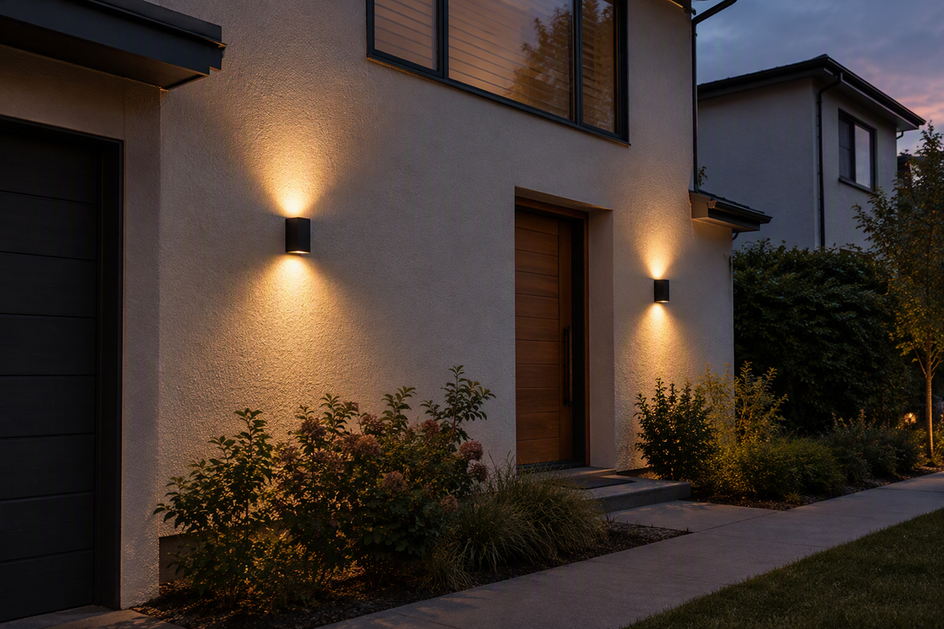

When installing exterior lights for house facades, start by identifying the exact wall area you want to graze, then check that any upward beam stays below second-story windows, balconies, or property lines. The trial mounting height and spacing come from the fixture's documented beam distribution, not a fixed inches rule that applies to every house.
Mark your target zone and no-light boundaries first, then confirm the layout after dark before you commit to permanent positions.
Key Takeaways
- Placement starts with the target wall area and marked sightlines, not a universal mounting height.
- Height, spacing, and wall distance are set by the exact fixture's documented beam distribution and intended orientation, not a copied number.
- Entry doors, broad facades, patios, and sightline-sensitive walls each shift the placement priority even though the underlying method stays the same.
- Coverage gaps, glare, or upward spill call for relocation, a different documented optic, or shielding, not a guessed tilt.
- A completed placement plan still needs an after-dark check and, when wiring or code questions come up, a qualified electrician or local authority.
Start With the Wall Surface and Sightlines
Before choosing a single mounting spot, define what the light should touch and what it must avoid. This section gets you from a blank wall to a marked candidate location.
- Photograph or sketch the wall elevation and outline the exact surface, feature, or path you want illuminated. A vague "light the house" goal makes every later decision harder.
- Walk the property and mark upper-floor windows, balconies, neighboring property edges, and the spots where you or a neighbor would normally stand or look up. These become no-light zones.
- Separate the target zone from the no-light zones on your sketch before picking a fixture location. If the two overlap, the location needs to move, not just the tilt.
- Apply the core outdoor-lighting principles: aim and shield the beam toward the target surface, use the lowest light level that still does the job, and add controls where they make sense. These practices come from targeted outdoor lighting guidance built around limiting spill rather than maximizing brightness.
- With the target zone and no-light zones marked, pick a provisional mounting rectangle and a trial height for each fixture. Treat this as a starting point, not a final answer, until you check the fixture's actual beam data in the next step.
Set Height and Spacing From the Fixture's Documented Beam
There is no single mounting height or spacing number that works for every up-and-down wall light, because fixture optics, wall dimensions, and sightlines all vary. Instead, treat height and spacing as outputs of four inputs: the wall target, the documented beam distribution, the mounting orientation, and the closest sensitive sightline.
- Pull the exact fixture's mounting instructions and any published optical or photometric data. Look specifically for beam angle, beam direction, and a stated mounting orientation.
- Set a provisional height where the documented upward and downward beams reach your target wall area without crossing the no-light boundary you marked earlier.
- Set provisional spacing from the documented beam spread and your wall's dimensions. Don't estimate spacing from lumen output, fixture size, or a category name like "wall washer" alone; none of those confirm how wide the beam actually throws.
- Keep the fixture in the orientation it was designed and tested in. Rotating or tilting a luminaire to stretch its coverage can meaningfully change uplight, glare, and the overall distribution pattern, according to tilted outdoor lighting guidance from a technical review of sky-glow contributors. If a fixture's designed beam doesn't reach the intended area, that's a signal to change the location, spacing, or fixture choice, not the mounting angle.
- If the beam data or mounting orientation isn't documented for your specific fixture, hold off on a final position. A guessed layout without that information is more likely to miss the wall or spill upward than one built from actual specs.
Adapt the Layout to the Scene
The underlying method stays the same across a house, but the priority shifts depending on what you're lighting. Below are four common scenes and what changes the decision in each one.
Entry Doors and Door Surrounds
When positioning exterior lights for house entrances, an entry light should frame the door and its surround without creating glare at eye level for anyone approaching. Because people stand close to entry fixtures, a beam that looks fine from across the yard can feel harsh right at the door. Only mirror a pair of fixtures on either side of an entry when the two openings, wall conditions, and documented beam behavior are genuinely comparable; mismatched walls or door widths make a mirrored layout look uneven rather than balanced.
Broad Blank Facades
Selecting exterior lights for house walls across a wide facade calls for a trial layout based on wall length, the position of the wall's ends, and the fixture's documented spread, not a fixed spacing formula copied from another project. Mount the fixtures at your provisional positions, then look for dark gaps between units, hot spots directly under a fixture, and light spilling past the wall's edges. Adjust spacing or fixture choice based on what you actually see rather than assuming even coverage will happen automatically.
Patios, Walkways, and Outdoor Living Areas
Here, useful illumination for the people using the space usually matters more than a purely decorative wall-wash look. Prioritize the seating or walking area and the viewpoints where glare would bother someone sitting or walking through. Because these areas often don't need light running all night, check whether the fixture supports a timer, photocell, motion sensor, or other control before you finalize wiring plans.
Second-Story Windows and Neighboring Properties
Treat any upper window, balcony, or neighboring property edge as a hard no-light boundary rather than a soft guideline. Rely on the fixture's documented beam control and its intended mounting orientation to keep the upward beam contained, instead of improvising an aim angle that "looks close enough." Once fixtures are temporarily mounted, review the layout from the affected window or balcony after dark, since that viewpoint reveals problems a daytime check can't. For lighting decisions around commercial entries, our guide to commercial entryway lighting covers how sconces, downlights, and step lighting work together on a building front.
Use the Placement Decision Table to Resolve Conflicts
Once a trial layout is mounted, compare what you actually see against the four common problems below. Each one points to a specific next action instead of a repeat of the general placement principles.
| Condition observed | What to check | Resulting action |
|---|---|---|
| Upward beam visible in an upper window or beyond the wall | Fixture aim, mounting orientation, and documented beam angle | Relocate the fixture, add documented shielding or a narrower optic, or lower the output, then retest after dark |
| Glare from a normal viewpoint (sidewalk, patio, doorway) | Fixture height and whether it sits at typical eye level | Change the mounting location, output, or shielding; don't try to fix glare by tilting the fixture |
| Dark gaps or hot spots on a broad wall | Trial spacing versus the fixture's documented spread | Revise spacing or choose a fixture with a documented distribution that matches the wall length |
| Beam distribution or mounting orientation isn't documented | Manufacturer manual, spec sheet, or photometric file for the exact model | Pause before finalizing the location until documentation is available |
None of these outcomes on their own confirm that a layout meets local lighting rules; they only tell you whether the visual result matches what you intended.
Verify the Layout and Installation Boundary
A placement plan isn't finished until the exact fixture's documentation supports it and you've checked the result after dark. This section separates what you can verify yourself from what needs a qualified electrician or your local authority.
Before Installation
- Confirm the exact model's optical or photometric data, mounting instructions, environmental rating, voltage, wattage, and any documented mounting-surface limits.
- Confirm the wall or surface you plan to mount to matches what the documentation allows.
- If the area doesn't need to run all night, check whether the fixture documents compatibility with a timer, photocell, or motion sensor; energy-efficient exterior lighting guidance notes that controls can cut unnecessary run time more reliably than relying on someone remembering to switch lights off, but exact compatibility still depends on the specific product and wiring.
- For general reference while comparing wall-light options, our guide on outdoor LED wall light selection covers factors worth checking before you settle on a specific fixture. A general outdoor rating on any product, including our own HPFD01 series floodlights, doesn't by itself confirm an up-and-down wall-wash beam pattern; verify the exact model's photometric documentation before treating it as a wall-wash fixture.
After Dark
- Inspect the target wall, the upward beam, and glare from the viewpoints you marked earlier, including any affected upper window or the neighboring side of the property if you can access it.
- If a visible problem remains, change the layout using the decision table above and repeat the review before treating the location as final.
When to Hand off Electrical and Code Questions
Placement planning stops short of high-voltage wiring, circuit design, breaker selection, and any local code determination. When your project reaches wiring decisions or you're unsure whether a proposed layout meets local outdoor-lighting requirements, after-dark lighting inspection guidance recommends checking your jurisdiction's specific rules rather than assuming compliance. Bring in a licensed electrician for the wiring and your local building authority for code questions once the placement itself is settled.
FAQs
Can I tilt an up-and-down wall light to reach more of the wall?
Tilting a fixture to stretch its coverage can change how much uplight and glare it produces, since the beam was tested in a specific orientation. If the documented beam doesn't reach your target wall, move the fixture, adjust spacing, or choose a different documented optic, then retest after dark instead of forcing the angle.
How should I space lights on a broad exterior facade?
There's no fixed spacing number that fits every wall. Set a trial layout from the fixture's documented spread and your wall's dimensions, mount it, and look for dark gaps or hot spots after dark. If either shows up, adjust the spacing or pick a fixture with a distribution that better matches the wall length rather than reusing a spacing figure from a different project.
Does an outdoor rating prove a wall light is suitable for my planned location?
No. An outdoor or weatherproof rating describes environmental durability, not beam shape. Before mounting any fixture as an up-and-down wall light, check that model's specific mounting instructions, optical or photometric data, voltage, and control options rather than assuming a general outdoor label covers the application.
