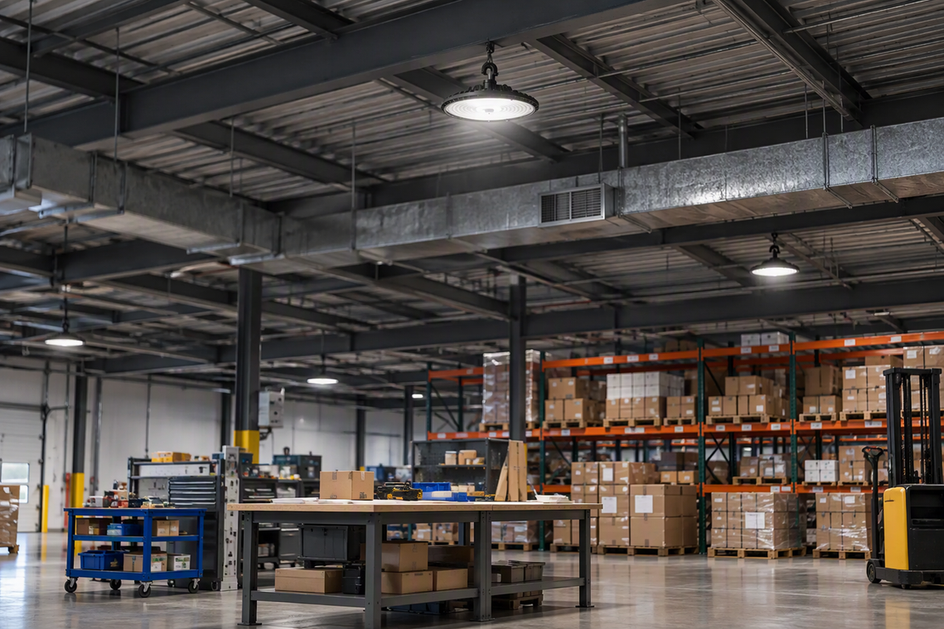

Map your work zones and overhead obstructions before you pick a hanging point. Once you know exactly where ducts and I-beams sit relative to the bench, vehicle bay, or aisle you need lit, you can choose a fixture position, a lateral offset, or a documented drop change that keeps the light path clear. The right adjustment depends on where the obstruction sits, not on how bright the fixture is.
Start With a Ceiling Survey and Mark the Shadow Path
Survey the ceiling before choosing a fixture. Sketch a simple plan view and mark every obstruction and work zone so later placement decisions have something real to check against.
Mark the task planes and obstruction edges
- Identify the bench, vehicle bay, aisle, or other work zone that must stay lit.
- Mark duct centerlines and edges, beam faces, and candidate fixture points.
- Note the direction the light would travel from each candidate fixture point to the work zone.
This list is an observation exercise, not a calculation. You're recording what's physically there so you can judge whether a duct or beam sits in the actual light path.
Turn the survey into a placement question
Once the plan view is marked, ask a simple question for each obstruction: does it sit between the fixture and the work zone, or does it only limit where you can attach the fixture? A duct hanging directly over a workbench affects the light path itself. A beam near the ceiling that doesn't cross that path mostly affects your mounting options. Carry this distinction into the placement decisions below, since it determines whether you're solving a lighting problem or a hardware problem. No single formula converts this sketch into an exact drop length or offset — that number depends on your ceiling height, fixture, and specific layout, so treat the marked plan as an input to a project-specific decision, not a finished calculation.
Choose the Placement Change for Each Obstruction
The right fix depends on where the obstruction sits relative to the fixture and the task plane. Proper light distribution profile influences where output lands, which is why the same fixture can solve one layout and fail another.
When a duct crosses the work-zone path
If a duct sits directly between a candidate fixture location and the bench or vehicle bay below, moving the fixture sideways is usually the first thing to test. A lateral shift changes the angle the light travels without touching the duct at all. Only consider changing the suspension drop if your fixture's mounting hardware and manufacturer documentation confirm that a longer or shorter drop is supported at that location.
When an I-beam divides the ceiling
Treat each side of the beam as its own lighting zone rather than trying to light across it with one fixture. This keeps the placement decision separate from the attachment decision. A beam being structural steel doesn't automatically make it an approved place to hang a fixture — that's a hardware and load question, covered in the next section.
When the installed fixture still casts a shadow
If a shadow shows up after installation, check the geometry first: where is the obstruction relative to the fixture and the task plane now that the fixture is actually hanging? Look at the fixture's distribution pattern next. Increasing wattage rarely fixes a blocked light path — it just makes the unaffected areas brighter while the shadow stays put.
Use Fixture Distribution and Mounting Options as Selection Inputs
Fixture selection comes after the layout decision, not before it. Match the beam distribution to the mapped task plane, then use current product documentation to narrow the choice.
Match distribution to the mapped task plane
- Review the fixture's beam angle against the obstruction-to-task geometry you already mapped.
- Treat higher lumen output as a secondary factor; it doesn't repair a blocked light path.
- Confirm the exact SKU's listed mounting types against your intended attachment point.
Use current product facts without assuming fit
The available product information for our HPHB01 series, 24,000-lumen configuration lists a 90-degree beam angle, selectable 60/90/120/150-watt settings, 120-277V input, and hook, optional U-bracket, or optional conduit-pendant mounting. Our HPHB01 series, 36,000-lumen configuration lists the same 90-degree beam angle and mounting options with adjustable 92/138/184/230-watt settings at the same voltage range. These listed attributes narrow which documents you should pull for a review, but they don't by themselves prove that a given mount will clear your duct or attach safely to your specific I-beam. Check the exact SKU and current mounting documentation before treating either configuration as a fit for your layout, and browse our high bay lights if you're still comparing distribution options for the mapped task plane.
Verify Structure, Hardware, and Compatibility Before Hanging
Proceed with hanging only when the attachment point, mounting hardware, support information, and current manufacturer instructions are all documented for your exact fixture. If any of those are missing, hold the installation and get qualified review before you drill or attach anything.
Verify the overhead support path
- Confirm the approved attachment point and hardware match the fixture's current installation instructions.
- Confirm support and load information for that specific attachment point, especially near an I-beam.
- Do not treat a structural member as an approved mounting point just because it's structural; our retrofit mounting checks walk through what to confirm before reusing an old attachment point.
- Never rely on the electrical cord as the fixture's structural support unless it's specifically designed for that use.
Keep electrical work outside the placement procedure
This guide covers where to hang the fixture, not how to wire it. Live wiring, energized-circuit testing, and circuit design belong to a licensed electrician. OSHA's investigation records a fatality after an employee was electrocuted during energized 277-volt circuit wiring, which is the kind of live work this guide does not cover. If your electrical setup isn't already documented and de-energized before you begin, stop and bring in qualified electrical help.
Diagnose Shadows and Uneven Task Lighting After Installation
If a fixture is already up and the work area still looks dim or shadowed, start with the geometry check below before touching wattage or adding a second fixture.
| Symptom | Likely cause | Safe next check | Resulting adjustment |
|---|---|---|---|
| Sharp shadow shaped like a duct | Duct sits between fixture and task plane | Re-check fixture position against the marked plan | Lateral relocation |
| Dark band along one side of a beam | I-beam blocks light to that side | Confirm each side is treated as its own zone | Add or reposition a fixture per zone |
| Bright ceiling, dim workbench | Distribution profile misses the task plane | Compare beam angle to task-plane location | Distribution or optical review |
| Uneven light after a fixture move | New position still shares an obstruction path | Re-mark the plan view at the new location | Repeat the lateral/drop decision |
Our dim work areas guide covers why a bright-looking ceiling can still leave a bench in shadow, if you want more detail on the geometry behind that second row.
Final Verification: Release Only a Documented Placement
Before drilling or hanging, record the planned fixture location alongside the chosen lateral shift, documented drop change, relocation, or optical review. Release the placement only when the exact SKU, approved mounting instructions, attachment hardware, and support information are fully verified.
If any drop length, lateral offset, I-beam attachment detail, or structural load rating remains unresolved, hold the installation and obtain qualified structural or electrical review before proceeding.
FAQs
Will a longer suspension drop always clear an HVAC duct?
No. A longer drop changes the fixture's height, but it doesn't by itself prove the light path to your task plane is clear. Compare the marked obstruction-to-task geometry with your fixture's documented mounting limits before assuming a longer drop solves the problem.
Can I attach a high bay directly to an I-beam?
Not automatically. An I-beam being structural steel doesn't make it an approved attachment point for a specific fixture. Confirm the exact fixture's permitted hardware and support/load information first, and get qualified structural review whenever those details aren't documented.
Can I suspend a high bay fixture using its power cord?
No. Overhead suspended fixtures must use an approved overhead support and mounting hardware specified by the manufacturer. Never rely on the electrical cord as the primary structural suspension method unless the equipment is explicitly listed and designed for that use.
