Explore the applications of LED floodlights for securing large outdoor areas. This topic covers beam pattern selection (e.g., Type II, III, IV), lumen output requirements, and mounting strategies for effective and non-intrusive security lighting.
Why Beam Control Matters for Outdoor Security Floodlights
For parking lots, loading docks, and building perimeters, the goal is simple: create a bright, predictable security envelope without blinding drivers, neighbors, or security cameras. The way you control the beam makes or breaks a project.
In practice, most problems I see on site—glare complaints, dark corners, light trespass over the property line—come from over‑lumened, poorly aimed floodlights rather than bad hardware. With modern LED outputs (120–150 lm/W and higher, as documented in the U.S. Department of Energy’s FEMP guidance on efficient luminaires), you often need fewer lumens and better optics, not “as bright as possible.”
This article gives you a structured way to:
- Match floodlight optics (NEMA and Type II/III/IV distributions) to real security applications.
- Size lumen packages for common outdoor security zones.
- Choose mounting locations and aiming angles that reduce glare and light trespass.
- Integrate controls and certifications to satisfy codes, rebates, and long‑term reliability.
Throughout, the focus is on practical decision frameworks you can use in bids and design narratives.
1. Security Lighting Outcomes: What You’re Actually Designing For
Before you look at NEMA beam codes or wattages, clarify the outcome for each exterior zone. In real projects, there are five recurring security objectives.
1.1 Deterrence and visibility
You want people and vehicles to be clearly visible so that:
- Staff and visitors feel safe walking to and from the building.
- Security staff and cameras can identify activity.
- Potential intruders know they are exposed.
The Illuminating Engineering Society’s industrial guidance in ANSI/IES RP‑7 cites typical outdoor working illuminance levels in the 5–20 lux (0.5–2 foot‑candle) range for general yard and loading areas. For pure security (not detailed tasks), staying near the lower end of that range often balances visibility and energy.
1.2 Safe vehicle movement
For parking lots and drive aisles, you need:
- Enough vertical illumination to recognize pedestrians.
- Reasonable uniformity so drivers’ eyes do not constantly re‑adapt.
- Controlled brightness to avoid direct glare.
According to U.S. General Services Administration guidance on outdoor LED lighting and controls for federal facilities, typical exterior parking areas are designed around minimum average illuminance with a max‑to‑min uniformity ratio of about 10:1 or better and a strong emphasis on glare control. That uniformity target drives both your pole spacing and your beam spread choice.
1.3 Camera performance
Security cameras are often the real “customer” of your floodlighting. For camera‑critical zones:
- Favor uniform vertical illuminance in the camera’s field of view.
- Avoid bright hot spots near the lens, which cause blooming and reduce detail.
- Keep color temperature in the 4000–5000 K range to balance color rendition with skyglow and neighbor comfort, consistent with chromaticity targets in ANSI C78.377.
1.4 Neighbor, sky, and code constraints
Modern energy codes such as ASHRAE 90.1‑2022 and IECC 2024 push you toward:
- Lower allowable lighting power density (W/m² or W/ft²) for exterior zones.
- Automatic controls (photocells, occupancy sensors, scheduled setbacks).
At the same time, many jurisdictions and corporate ESG policies restrict uplight and light trespass to protect neighbors and dark sky. Beam control is how you reconcile these.
1.5 Maintenance and resilience
Security lighting must survive:
- Weather: rain, dust, snow, coastal or industrial environments.
- Electrical events: surges, utility switching, and lightning.
Ingress protection ratings defined in IEC 60529 give you the shorthand: IP65/66 fixtures are resistant to water jets and dust; pairing that with 6–10 kV surge protection on the driver significantly reduces nuisance failures on exposed poles.
2. Beam Patterns 101: NEMA Codes vs. Type II/III/IV Distributions
For outdoor security floodlights and parking lot lights, you’ll encounter two overlapping ways to describe optics:
- NEMA beam spreads (for floodlights).
- IES roadway/area Types II/III/IV/V (for area/site luminaires).
Understanding both makes it much easier to control spill light.
2.1 NEMA beam spreads for floodlights
NEMA beam codes classify the horizontal and vertical beam angles into “narrow” through “very wide.” A simplified view:
| NEMA Code (approx.) | Beam Type | Typical Use for Security | Risk if Misused |
|---|---|---|---|
| 2×2, 3×3 | Very narrow | High‑mast, long‑throw targeting of far zones | Intense glare, tiny hot spots, hard to aim. |
| 4×4, 5×5 | Medium | Loading docks, building facades, mid‑height poles | Good balance of reach and control. |
| 6×6, 7×7, 8×8 | Wide to very wide | Small yards, general wash, low mounting heights | Easy to spill into windows and off site. |
When installers “just pick the highest lumen, widest beam,” they often create:
- Glare for drivers and pedestrians.
- Light trespass over the property line.
- Patchy, non‑uniform coverage.
A disciplined process starts with the required coverage width and throw distance, then picks the narrowest NEMA that reaches the target without overshooting.
2.2 IES Type II/III/IV for area and roadway optics
Many LED parking lot and site lights describe their distribution as Type II, III, or IV. These come from IES roadway classifications and describe the horizontal shape of the light on the ground.
- Type II – Oblong pattern for walkways and narrow lanes; good for small drive aisles and perimeters.
- Type III – Wider pattern intended for parking bays and wider drive aisles.
- Type IV – Very forward‑throw distribution, usually mounted near the perimeter to push light deep into a lot.
A quick spacing heuristic used by many lighting designers is the spacing‑to‑mounting‑height ratio (S/MH):
- Type II: S/MH ≈ 0.8–1.2.
- Type III: S/MH ≈ 1.2–1.8.
- Type IV: S/MH ≈ 1.8–2.5.
For example, at a 25 ft (7.6 m) pole height with Type III optics, a starting point for pole spacing would be 30–45 ft. You should always verify this with actual .ies photometric files in software such as AGi32, which relies on the IES LM‑63 data format described in IES LM‑63‑19.
2.3 Myth to avoid: “I’ll overspec lumens and tilt down later”
A common field practice is to install higher‑lumen fixtures than needed and then tilt them sharply downward to “tone it down.” This creates several problems:
- High aiming angles produce short, intense hot spots under the pole and darker areas between poles.
- Drivers experience harsh veiling luminance coming directly from the bright LED array.
- Light blasts into camera lenses at oblique angles, ruining video quality.
In practice, you get better, more uniform security lighting by:
- Selecting optics that match the geometry (Type II/III/IV or appropriate NEMA code).
- Reducing lumen output by 10–20% compared with a “guess high” approach.
- Keeping tilt modest (0–15°) so the optics perform as designed.
3. Matching Floodlight Optics to Security Applications
This section breaks down typical project zones and shows how to select beam patterns, lumen levels, and mounting.
3.1 Parking lots and general site lighting
Objective: Uniform, low‑glare illumination for drivers, pedestrians, and cameras.
Preferred optics and mounting:
- Area‑style luminaires with Type III distribution for interior poles.
- Type IV for perimeter poles along property lines.
- Mount heights 20–30 ft (6–9 m) for small to mid‑size lots; higher only where poles already exist.
- Tilt kept at 0–5° from horizontal to minimize uplight and maintain uniformity.
Lumen guidelines:
- Small lot (20–30 spaces): ~10,000–20,000 lumens per pole at 15–20 ft, with 2–4 poles.
- Mid‑size lot (50–80 spaces): ~20,000–30,000 lumens per pole at 20–25 ft, with 4–6 poles.
- Larger lots often use multiple fixtures per pole rather than single massive heads, to improve redundancy and distribution.
These levels usually achieve average illuminances in the 3–10 lux (0.3–1 fc) range, which aligns with security‑driven federal guidance summarized in the DOE FEMP SSL solutions overview while still meeting modern energy limits when using 120–150 lm/W luminaires.
Beam control pitfalls to avoid:
- Using very wide NEMA floodlights on tall poles; you end up lighting roofs and windows instead of the pavement.
- Tilting fixtures more than 15° and creating glare visible across the neighborhood.
- Ignoring camera views—if a camera is looking toward a pole, avoid mounting high‑lumen heads directly in that line of sight.
3.2 Building perimeters and façades
Perimeter security is about eliminating hiding spots along walls, fences, and loading areas.
Preferred optics and mounting:
- Wall‑mounted floodlights or wall packs with controlled forward throw, roughly analogous to Type II/III.
- Mounting heights 10–20 ft (3–6 m), depending on façade height.
- For façade‑mounted floods, trunnion mounts with lockable serrations make it much easier to fine‑tune aiming.
Aiming practices that work:
- Limit down‑tilt to about 15° for general wash; for higher walls, raise the mounting height rather than tilting more.
- When cameras are mounted under the eave, position floodlights laterally offset so the beam crosses the field of view rather than pointing into the lens.
Case example – perimeter of a small warehouse
- 200 ft × 100 ft building, cameras on two corners.
- Four wall‑mounted floodlights per long side and two per short side, at 16 ft mounting height.
- Narrow‑to‑medium beams aimed slightly outward to cover a 20–25 ft wide security zone.
This configuration typically maintains 5–10 lux along the building edge while avoiding direct glare into adjacent properties. When you model it in AGi32 using accurate IES files (per AGi32’s documentation on luminaire photometric data), you can demonstrate both the maintained illuminance and the low uplight fraction to stakeholders.
3.3 Loading docks and service yards
Loading docks are hybrid zones: part security, part task lighting.
Key requirements:
- Vertical illuminance on trailer doors and dock bumpers for drivers backing in.
- Clear visibility of dock edges, stairs, and bollards.
- Often, integration with occupancy sensors to dim or switch lighting when the dock is idle.
Optical choices:
- Medium NEMA (4×4, 5×5) floodlights on the building above the dock line.
- Supplemental narrow floods aimed directly at signboards or camera fields if needed.
Mounting and aiming:
- Mount floods above the highest truck opening (e.g., 16–20 ft) and tilt 10–15° down.
- Avoid placing fixtures directly above doors where open trailers create deep shadows; instead, shift laterally and cross‑aim.
The DOE’s Interior Lighting Campaign case studies show that pairing efficient luminaires with controls can deliver 50% or more energy savings while maintaining or improving safety in logistics environments. For security‑focused docks, use occupancy sensors to dim instead of fully shut off fixtures, so cameras retain enough light for motion‑based analytics.
3.4 Small business yards, garages, and alleys
Smaller sites—auto shops, rural barns, self‑storage—often rely on one or two high‑output floodlights rather than a full pole layout.
Practical guidance:
- Choose IP65 or better fixtures (per IEC 60529) when the luminaire is directly exposed to rain or snow.
- Keep mounting heights in the 12–20 ft range and use medium beams to avoid blasting neighboring properties.
- If you only have one mounting location (e.g., at a building corner), aim so that the edge of the beam aligns with the property line.
In these projects, a simple dusk‑to‑dawn photocell with a manual override switch gives the owner both security and control without a complex system.

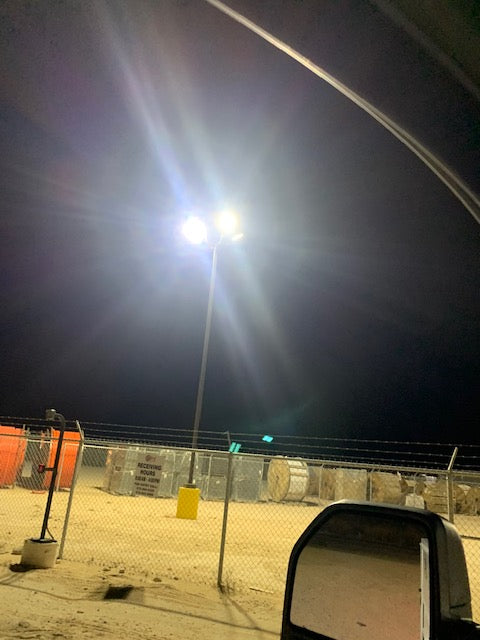

3.5 High‑mast yards and critical perimeters
For large distribution yards, equipment storage, or high‑security perimeters:
- Mounting heights can reach 40–80 ft.
- Optics are typically narrower NEMA beams, sometimes in multi‑head configurations.
Here, doing a full photometric layout using LM‑63 IES files is mandatory. Narrow beams aimed carefully from tall masts can provide broad coverage at 5–10 lux while keeping light within the fence line. Tilts remain conservative (often 0–10°) to prevent uplight.
4. Lumen Output, Efficacy, and Compliance
Modern exterior LED floodlights routinely achieve 120–150 lm/W. That efficiency is not just a selling point; it ties directly into codes and rebates.
4.1 Using LM‑79 data to compare floodlights
The IES LM‑79 standard defines how to measure total lumens, input watts, and color for LED products. An LM‑79 report is essentially the luminaire’s performance scorecard and underpins both:
- Efficacy claims (lm/W).
- DLC and energy‑code compliance.
The ANSI summary of LM‑79‑19 notes that the method applies to complete solid‑state lighting products and yields absolute photometry—exact lumens and power for the tested luminaire, not just the LED chips. When you compare floodlights, always confirm that:
- The reported lumens and power come from a full LM‑79 test.
- The IES photometric file used in layouts corresponds to the same test.
4.2 Tying into rebate programs and the DLC QPL
In many regions, security floodlight upgrades qualify for utility rebates. The DesignLights Consortium maintains the DLC Qualified Products List, which many utilities use as a prerequisite.
For outdoor area and floodlighting, DLC criteria generally require:
- Minimum luminaire efficacy (lm/W), often in the 130 lm/W+ range for premium tiers.
- Documented LM‑79 and LM‑80/TM‑21 data for lumen maintenance.
Many rebate programs summarized in resources like the DSIRE database explicitly pay per installed DLC‑listed luminaire. For B2B buyers, that transforms higher‑efficacy optics and good beam control into shorter payback periods, especially when paired with controls.
4.3 Lumen maintenance and lifetime claims
Security lighting is expected to run for long hours—often dusk‑to‑dawn every day.
- LM‑80 defines how LED sources are tested for lumen maintenance over 6,000+ hours at specific temperatures.
- TM‑21 provides the mathematical method to project longer‑term lumen maintenance (e.g., L70 at 50,000 hours) based on LM‑80 data, as laid out in IES TM‑21‑21.
The TM‑21 memo limits extrapolation to no more than six times the test duration. So, 10,000 hours of LM‑80 testing justifies projections out to 60,000 hours—but not 100,000 hours. When a floodlight advertises highly inflated lifetime numbers with no supporting LM‑80/TM‑21 data, treat it as a red flag.
4.4 Safety, IP, and electrical compliance
Beyond performance, exterior security luminaires must be safe in demanding environments.
Key checkpoints:
- UL or ETL listing to relevant luminaire standards (such as UL 1598 for general luminaires, as summarized in UL 1598’s scope overview).
- LED driver compliance with standards like UL 8750 for LED equipment, per the UL 8750 overview.
- Ingress protection of IP65/IP66 for direct weather exposure, per IEC 60529.
- EMI compliance with FCC Part 15 to prevent interference with radios, Wi‑Fi, and other electronics.
In B2B bids, referencing these standards in your submittals and linking to official directories (such as UL Product iQ or Intertek’s ETL directory) gives inspectors and risk managers confidence that your security lighting is fully compliant.
5. Mounting, Aiming, and Glare Control Best Practices
Good optics can be ruined by poor mounting. This section distills field lessons from dozens of exterior security projects.
5.1 Pole‑mounted vs. façade‑mounted floodlights
Pole‑mounted floodlights
- Provide consistent geometry and easier photometric modeling.
- Are ideal for parking lots and large open yards.
- Use slip‑fitter or tenon mounts set at 0–5° tilt for Type III/IV distributions.
Façade‑mounted floodlights
- Work best for perimeter security strips and smaller yards.
- Make power and control wiring simpler (no underground work).
- Benefit from trunnion or yoke mounts with clear degree markings and lockable serrations.
A practical approach is to use poles for primary site lighting and façade‑mounted floods or wall packs to fill in blind spots and doorways.
5.2 Aiming angles and glare control
From a beam‑control standpoint, two rules of thumb carry a lot of weight:
-
Keep floodlight down‑tilt ≤ 15°.
- Above this, you start to see excessive brightness at high viewing angles, which creates discomfort glare and increases uplight.
- Many projects see better results by combining a slightly higher mounting height with lower tilt.
-
Avoid putting the brightest fixtures in the camera’s direct line of sight.
- Offset lights so the camera views reflected light from the pavement and walls, not the LED array.
Real‑world example: On a logistics yard, the first installation used high‑output floods aimed steeply down over loading bays. Drivers complained about “headlight” glare when backing in, and cameras struggled. Reducing the tilt to around 10° and switching to optics with a slightly narrower forward throw reduced maximum luminance by roughly 25% at driver eye level while preserving average illuminance on the pavement.
5.3 Photocell placement and controls
Photocells and sensors are part of beam control because they determine when light is present.
- Mount photocells on the north side of poles or away from direct luminaire light to avoid false shutoff.
- For multi‑head poles, shield the photocell from direct beams with a small hood or use a remote photocell mounted on the building.
- In code‑driven projects (ASHRAE 90.1, IECC, or California Title 24), exterior luminaires typically need:
- Astronomical or photosensor control.
- Scheduling or automatic shutoff for non‑security zones.
- Occupancy sensors for rarely used areas.
The DOE’s wireless occupancy sensor guide notes that high‑bay and warehouse‑type spaces benefit significantly from properly aimed sensors; the same logic applies outdoors around docks and fenced yards. Ensure sensor mounting heights and detection patterns match your actual activity zones.
5.4 Electrical installation and torque
Even the best luminaire fails early if the mounting and wiring are poor.
- Follow NFPA 70 (National Electrical Code) or local equivalents for branch circuit sizing, grounding, and junction box fill. The NEC overview emphasizes its role as the minimum safety standard for electrical installations.
- For 0–10 V dimming control, keep low‑voltage conductors routed and classified correctly relative to line voltage, per NEC class 1/Class 2 guidance.
- Use the manufacturer’s recommended torque specs for slip‑fitters, trunnions, and mounting bolts. Under‑torqued heads can slip over time, wrecking carefully planned aiming.
For facilities managers, it pays to insist on documented torque and aiming records at closeout. That way, if future changes are made, technicians can restore original settings.
6. Using Photometric Files and Layouts to Prove Your Design
For B2B security projects, especially with stakeholders like risk management or corporate security, photometric evidence is often mandatory.
6.1 IES files as the starting point
IES files in LM‑63 format contain:
- Lumens.
- Candela distribution.
- Color characteristics.
Lighting software such as AGi32, which explicitly supports IES and other formats as documented in its luminaire data guide, reads these files to simulate real‑world performance.
Practical steps:
- Obtain IES files for each proposed luminaire.
- Import them into AGi32 or equivalent.
- Build a simple 3D model of the parking lot, dock, or yard.
- Test different beam types (e.g., Type III vs. Type IV) and mounting heights.
6.2 Quick decision framework for beam selection
Use this checklist when selecting optics for security zones:
-
Define the target zone.
- Width of pavement from pole or wall.
- Length of coverage along the drive or façade.
-
Choose mounting type and height.
- Pole vs. façade.
- Existing vs. new heights.
-
Select candidate optics.
- Narrow to medium NEMA for focused tasks or tall masts.
- Type II for walkways and narrow drive lanes.
- Type III for interior parking bays.
- Type IV for perimeter poles and deep throw.
-
Estimate S/MH ratio and layout.
- Check spacing vs. mounting height.
-
Run photometric plots.
- Evaluate average and minimum illuminance.
- Check uniformity and max‑to‑min ratios.
- Inspect vertical illuminance in camera fields.
-
Validate against constraints.
- Energy code power limits (ASHRAE 90.1, IECC, Title 24 where applicable).
- Neighboring property and light trespass restrictions.
- Internal security and safety standards.
If you already work with interior layouts, the same discipline applies outdoors; the inputs are just different (poles, fences, docks instead of aisles and racks). For warehouse interiors, a similar approach is used in high‑bay design, as covered in depth in the existing guide on designing a high bay layout for warehouse safety.
6.3 Communicating results to non‑technical stakeholders
Most facility owners and security managers do not speak in candelas; they react to visuals.
Deliverables that work:
- Plan views with isolux contours and notes like “5–10 lux in main parking field; 3–5 lux along perimeter fence.”
- 3D renderings from driver eye level or from camera positions, showing glare and visibility.
- Simple tables tying each pole to its mounting height, beam type, and aiming angle.
This level of documentation positions you as a consultant rather than just an equipment vendor.
7. Practical Case Studies and Trade‑Offs
7.1 Mid‑size retail parking lot with camera coverage
Scenario: 80‑space lot, 24 ft poles, cameras on building corners and at the main entrance.
Initial condition:
- Metal halide floods with wide beams, many tilted steeply.
- Average illuminance around 10 lux but with intense hot spots below heads.
- Cameras experiencing blooming from direct fixture views.
Redesign:
- Replace with LED area luminaires, Type III distribution, 20,000–25,000 lumens per pole.
- Poles at 24 ft, fixtures at 0–5° tilt.
- Add Type IV optics on perimeter poles near the entrance drive.
Results:
- Average illuminance: 6–8 lux with improved uniformity (max/min around 6:1).
- Peak luminance at driver eye level reduced by ~30%, fewer glare complaints.
- Camera images show more even brightness across the frame, improving analytics.
7.2 Distribution center loading yard
Scenario: 15 dock doors, 200 ft wide yard, occasional overnight operations.
Design choices:
- Wall‑mounted medium NEMA floods above docks at 18 ft.
- Supplemental narrow floods cross‑aimed to cover the far edge of the yard.
- Wireless occupancy sensors grouped by 3–4 docks, with dimming to 30% when idle.
Outcomes:
- Dock bumpers and stairs at 15–30 lux during active loading for high task visibility.
- Background yard at 5–8 lux for security.
- Energy savings exceeding 50% versus always‑on legacy lighting, consistent with ranges reported in the DOE’s SSL solutions and case study summaries.
7.3 Small business side yard next to residential property
Scenario: Auto repair shop with a narrow side yard bordering homes.
Constraints:
- Owner wants strong deterrent lighting.
- Neighbors have complained about glare from existing halogen floods.
Solution:
- Replace with IP65 LED floodlights using medium NEMA beams.
- Mount at 15 ft on the shop wall; aim so that the beam cutoff aligns with the property line.
- Use a photocell plus a timer that dims to a lower output late at night.
Results:
- Yard surface illuminance at 5–8 lux, enough for cameras and deterrence.
- Neighbors see a softer glow at upper window level instead of direct source glare.
- Owner reduces energy and avoids further complaints.
8. Key Takeaways for Beam‑Controlled Security Floodlighting
Security floodlighting is no longer about installing the biggest, brightest fixture you can find. With modern LED outputs and optical options, the winning strategy is:
- Define clear security outcomes for each zone—deterrence, camera needs, vehicle movement.
- Choose optics first, not lumens: NEMA codes and Type II/III/IV distributions give you the tools to shape light precisely.
- Keep aiming conservative—down‑tilt no more than about 15°, spacing guided by S/MH ratios, and fixtures kept out of direct camera sightlines.
- Back your design with data—LM‑79 reports, LM‑80/TM‑21 lifetime projections, DLC QPL listings, and IES files in LM‑63 format.
- Respect codes and neighbors—align with ASHRAE 90.1, IECC, and local ordinances, and use IP65/IP66, UL/ETL, and FCC Part 15 compliance as non‑negotiables.
When you treat beam control and photometrics as central design tools rather than afterthoughts, you deliver exterior security lighting that is safer, more comfortable, and more defensible to auditors and stakeholders.
Frequently Asked Questions
Q1. How do I quickly decide between Type II, III, and IV optics for a parking lot?
Use geometry as your guide. Type II is for narrow lanes and walkways, Type III for general parking fields, and Type IV for edge poles pushing light into the lot. Start from the drive or bay width, pick the type that matches, then verify with IES‑based layouts.
Q2. What mounting height is ideal for outdoor security floodlights?
For small to mid‑size lots and yards, 15–25 ft is a practical range. Lower heights can cause glare and short, intense hot spots; very high poles require narrow beams and careful aiming. Always combine mounting height with S/MH spacing guidelines and photometric checks.
Q3. Do I really need IP65 or IP66 floodlights?
If a luminaire is directly exposed to rain, snow, or wash‑down, IP65/IP66 (as defined in IEC 60529) is highly advisable. It ensures resistance to dust and water jets, which translates into longer, more reliable service in outdoor security roles.
Q4. How do controls affect security—won’t occupancy sensors create dark gaps?
When configured well, controls support security rather than undermining it. A common strategy is to dim luminaires to 20–30% output when areas are unoccupied, then ramp to full when motion is detected. This preserves a baseline of visibility for cameras while delivering large energy savings, consistent with DOE case study results.
Q5. What documentation should I keep for future audits or expansions?
Maintain LM‑79 reports, LM‑80/TM‑21 data, IES files, UL/ETL certificates, and photometric layout reports. These assets make it easy to justify current designs, troubleshoot issues, or extend the system later while matching existing performance.
Disclaimer: This article is for informational purposes only and focuses on lighting design, electrical, and safety concepts at a general level. It is not a substitute for professional engineering, electrical, or legal advice. Always consult qualified professionals and the applicable standards, codes, and local regulations before designing, installing, or modifying any lighting or electrical system.
