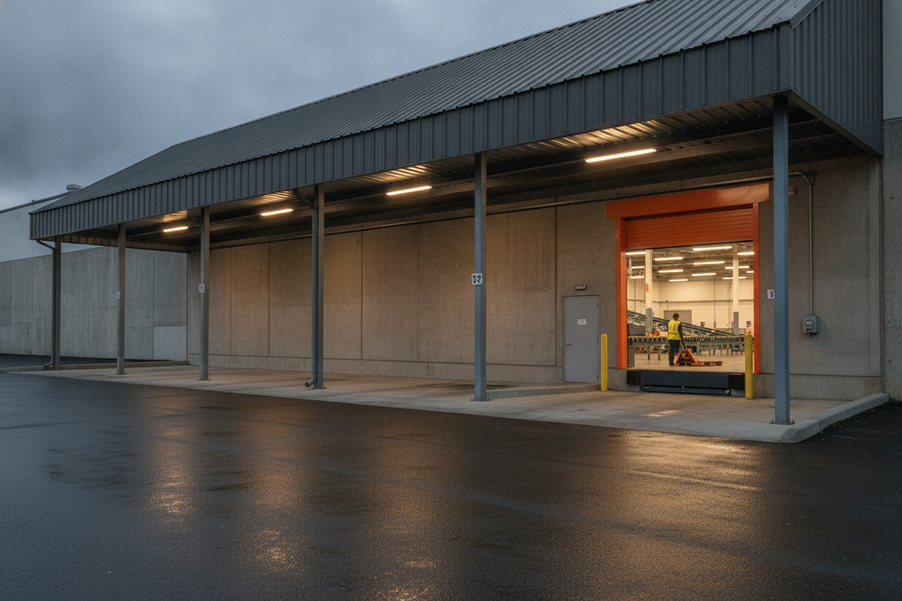

Loading dock lighting should be planned as a connected transition from the open trailer approach to the canopy edge, covered vehicle zone, dock threshold, and first interior handoff. Start by sketching those zones, then assign canopy, wall, flood, area, or combined roles based on each zone’s mounting plane and visual challenge. This helps identify a disconnected or glaring approach-to-door transition without treating the map as a guarantee.
Create the Transition-Zone Map Before Choosing Loading Dock Lighting
The first deliverable is a six-zone sketch, not a fixture count. For each zone, record the operating view, possible mounting plane, and unresolved review question. This map applies IES industrial-lighting factors, including glare, shadows, material characteristics, source/task/eye geometry, and outdoor lighting zones. It is a planning framework, not an IES-mandated template, photometric design, or code result.
| Zone | Visual risk to inspect | Likely lighting role | Verification question |
|---|---|---|---|
| Open trailer approach | Vehicles, people, pavement edges, or equipment may be separated from the covered zone by a bright-to-dark change. | Flood or area lighting may serve a defined exposed route; a coordinated plan may be needed. | Where does the active vehicle route begin, and which mounting plane can serve it without creating glare? |
| Canopy edge | The edge can become a strong visual boundary, especially when the open approach and underside differ in brightness or weather exposure. | Canopy lighting may serve the covered zone; supplemental coverage may address the edge. | Does the canopy role connect cleanly to the open approach and avoid a distracting source in the operator’s sightline? |
| Covered vehicle zone | The trailer path may be visible while side surfaces, equipment, or door hardware remain shadowed. | Canopy lighting is a conditional overhead role. | Does the underside mounting plane serve the active path, nearby vertical surfaces, and the actual trailer position? |
| Dock-facing wall or columns | Columns, door surrounds, and wall surfaces can create shadows or reflect light toward operators. | Wall lighting may address vertical surfaces; another role may serve the path. | Which surfaces need to be readable, and where will the source sit relative to driver and worker sightlines? |
| Threshold | A bright exterior can meet a darker threshold, door surround, or interior view. | Wall, canopy, or coordinated lighting may support the handoff. | What changes at the threshold, and can one mounting plane address both sides without an unresolved gap? |
| First interior handoff | The first interior area may appear disconnected from the exterior approach. | Exterior lighting may need to be reviewed with existing interior lighting, controls, and operations. | Which existing fixtures, controls, obstructions, and operating conditions affect the first interior view? |
Use the outdoor lighting options collection for category browsing only after recording the served zones and open questions. A collection can help you browse categories; it does not establish site fit.
Inspect Trailer Movement, Surfaces, and Weather Exposure Along the Path
Trace the actual trailer route, including reversing, turning, stopping, and door alignment. Mark canopy edges, columns, dock equipment, signs, doorways, and possible mounting points. A fixture or support that appears convenient on a drawing still needs to be reviewed against vehicle movement, sightlines, overhead conditions, and maintenance access.
Inspect horizontal and vertical surfaces together. Pavement, trailer bodies, wet surfaces, reflective doors, columns, wall faces, and door hardware can change how glare and shadows are perceived. OSHA’s marine-terminal guidance is not a warehouse-dock standard, but its bounded-visibility principle is useful: check whether light sources or shadows interfere with operators’ views of people, obstacles, hazardous surfaces, or route edges. Apply that principle to the actual site rather than importing maritime requirements.
The brightest point is not automatically the most readable handoff. Walk through the approach from relevant driver, forklift, worker, and pedestrian sightlines, where applicable. Look toward the canopy edge, dock surround, threshold, and first interior view. If a source is visible in a critical sightline or a shadow hides an edge or obstacle, address the issue in the layout review rather than simply choosing a brighter category.
Record rain, snow, wind-driven water, dirt, impact exposure, obstructions, controls, and maintenance access at each proposed mounting location. These conditions affect the product documentation and project review needed, but they do not by themselves prove that a particular rating, listing, voltage, or control arrangement is suitable.
Assign Canopy, Wall, Flood, and Area Lighting Distinct Roles
For loading dock lighting, compare categories by served zone, mounting plane, distribution, sightline, shadow behavior, material response, and exposure—not by brightness language alone. The IES comparison framework supports this conditional approach; it does not rank categories or identify a universally sufficient fixture.
Canopy Lighting for the Covered Vehicle Zone
Evaluate canopy lighting first when the canopy underside provides a practical mounting plane over the active trailer or vehicle path. Its natural boundary is the canopy footprint and edge. Canopy lighting alone may leave the open approach, side surfaces, or threshold handoff visually disconnected, so the map must show what happens beyond the underside.
Wall Lighting for Vertical Surfaces and the Door Surround
Evaluate wall lighting when a building wall or dock-side vertical surface can reveal the door surround, columns, or side of the approach without placing glare in an operator’s sightline. A wall-mounted fixture may not cover the open vehicle path, canopy underside, or opposite side of a trailer.
Flood Lighting for Exposed Approach Zones and Directional Gaps
Evaluate flood lighting when the approach extends beyond the canopy or a defined uncovered zone can be served from a suitable mounting point. Its directional flexibility may help address a gap, but aiming can also introduce glare, reflections, or shadows around trailers, wet pavement, reflective doors, and the canopy edge. Review LED flood-light options as category navigation for that exposed-zone question, not as a layout decision.
Area Lighting for Routes Beyond Practical Building Mounting
Evaluate area lighting when the vehicle route or staging space extends beyond practical canopy and wall mounting locations and needs coverage from a separate point. A remote or high mounting position may miss the canopy underside, door surround, or threshold and may introduce spill light, glare, or service-access concerns. Treat area lighting as a complement when the map contains separate open and covered zones, not as an automatic replacement for transition lighting.
A coordinated combination is worth evaluating when open and covered portions, vertical surfaces, or the exterior-to-interior handoff cannot be served cleanly from one mounting plane. That condition does not prove a combination is required; it means the unresolved zones should be reviewed together instead of assigning separate fixtures without checking the transition.
Turn the Map Into a Buy-or-Layout Review Brief
Take one practical first action: draw a one-page site sketch in route order and attach the information below. Choose a starting category only when the map shows a clear served zone and mounting plane. If trailer positions change, multiple planes are involved, the threshold remains unresolved, or a proposed mounting point conflicts with movement, pause the purchase and request a coordinated layout review.
- Site geometry and movement: Mark the vehicle route, reversing or turning areas, canopy edge, doorways, dock edges, threshold, first interior area, columns, equipment, signs, existing fixtures, and possible mounting points.
- Visual transition risks: Note bright-to-dark changes, glare sources, reflective surfaces, shadowed edges, door hardware, people or vehicle sightlines, and any area that appears disconnected when viewed from the operating route.
- Mounting and environment: Record mounting surfaces, exposure to rain, snow, wind-driven water, dirt, impact, obstructions, service access, and the maintenance approach for each proposed location.
- Electrical and controls: Supply the project’s available voltage and load information, existing controls, switching or sensor requirements, and any compatibility questions for qualified review.
- Product documentation: Request the applicable installation, rating, listing, mounting, distribution, and environmental documentation for the actual product under consideration.
- Project review: Record passage clearances where mechanical handling equipment operates and adequate headroom beneath overhead installations, including lights. Also record local requirements, current lighting criteria, and whether the area could be classified or otherwise subject to special review. OSHA clearance guidance can help identify these questions, but it does not establish a compliant lighting layout. For formal criteria, identify the applicable design basis rather than adopting a universal target; OSHA’s interpretation of ANSI/IES-RP-7 provides context for that review, not a project-specific lighting determination.
Electrical work, wiring, live testing, code determinations, hazardous-location determinations, and final layout decisions remain qualified-review tasks. Send the sketch, photos or site observations, existing-condition details, and unresolved questions to the project supplier, lighting designer, or other qualified reviewer before buying. If the map shows one clear zone and mounting plane, category browsing can begin; if it shows a gap between open, covered, vertical, or threshold conditions, request the coordinated review first.
FAQs
These questions address common choices after the transition map is drafted. Use the conditions in each answer to decide whether to continue category research or send the site brief for review.
How should a loading approach be lit?
Start with a six-zone sketch from the open approach through the canopy edge, covered vehicle zone, vertical surfaces, threshold, and first interior handoff. Then choose the category that addresses the uncovered or visually disconnected zone, not the category name that sounds brightest. Send unresolved sightline, clearance, environmental, and compatibility questions with the sketch.
Should I use canopy or flood lighting near a dock?
Use canopy lighting when the canopy underside is the practical mounting plane over the covered vehicle zone. Evaluate flood lighting for a defined exposed or directional gap outside that footprint. If both zones remain necessary, request a coordinated review; neither category proves complete approach-to-door coverage by itself.
How can I avoid a dark transition at the dock door?
Inspect the canopy edge, dock surround, threshold, and first interior view from actual operating sightlines. If one plane leaves a missing surface or abrupt exterior-to-interior change, address that distribution or mounting gap in the layout while checking glare, reflections, and shadows. Do not approve the plan solely because the pavement or canopy appears bright.
What should I verify before buying loading dock approach lights?
Prepare the route and dimensions, mounting points, existing fixtures and controls, visual risks, weather and maintenance exposure, product documentation, electrical information, passage and overhead clearances, local requirements, and any hazardous-location question. Have qualified personnel resolve electrical, installation, code, and classified-area issues before purchase.
