Executive Summary: The Strategic Shift to Linear Optics

For professional auto shop owners and detailers, lighting is more than a utility; it is a precision instrument. While traditional round (UFO-style) high bays are excellent for general warehouse illumination, the linear high bay has emerged as the gold standard for automotive paint correction and surface inspection. The core advantage lies in the elongated form factor, which creates continuous, unbroken reflection lines across a vehicle’s body panels. These "light bars" act as a visual straightedge, making it significantly easier to identify scratches, swirl marks, and "orange peel" (a stippled texture in paint) that stippled highlights from point-source lights often mask.

To achieve a professional-grade result, a shop must move beyond simple lumen counts. A high-performance detailing environment requires a Color Rendering Index (CRI) of at least 90 (ideally >95), a correlated color temperature (CCT) of 5000K to simulate daylight, and a uniformity ratio of at least 0.7 on the work plane. Furthermore, for B2B facility managers, every fixture must be backed by verifiable compliance artifacts—specifically DesignLights Consortium (DLC) Premium listing and IES LM-79 reports—to ensure energy rebate eligibility and long-term reliability.

1. The Physics of Surface Inspection: Linear vs. Point Sources

In a detailing bay, the goal is to see the surface through the reflection. When you use a point source, such as a round high bay, the light hits the curved surface of a car and reflects back as a small, intense dot or "stipple." This creates high-contrast glare but leaves large areas of the panel in relative darkness, where defects can hide.

The "Linear Advantage" in Defect Detection

Linear fixtures provide a long, rectangular light source. When oriented parallel to the length of the vehicle, these fixtures create a long reflection line that follows the body's contours. As a detailer moves along the car, any deviation in that straight reflection line immediately signals a surface defect:

Wavy lines: Indicate a dent or poor bodywork.
Blurred edges: Indicate "orange peel" or heavy oxidation.
Interrupted lines: Reveal deep scratches or swirl marks.

According to the IES RP-7-21 (Lighting Industrial Facilities), industrial spaces requiring high-precision visual tasks must prioritize the reduction of direct and reflected glare. Linear optics naturally distribute light over a larger surface area, reducing the "hot spot" intensity that causes eye fatigue during 8-hour paint correction sessions.

Bright LED High Bay shop lights illuminating a high-ceiling automotive workshop with lifted cars and workbenches

2. Technical Performance Specs for Professional Detailing

For a B2B project to be successful, the lighting must meet specific technical thresholds. We categorize these into "Visual Performance" and "Operational Compliance."

Visual Performance: CRI and CCT

CRI (Color Rendering Index): For general repair, a CRI of 80 is sufficient. However, for detailing and paint matching, you must target a CRI >90. Research indicates that a CRI of 95 or above is the benchmark for the most accurate assessment of vehicle finishes.
CCT (Correlated Color Temperature): To simulate natural daylight for color accuracy, the ideal color temperature for paint booths and detailing is between 5000K and 6500K. 5000K (Daylight White) is generally preferred as it provides a crisp, neutral light that does not lean too blue, which can distort certain metallic flakes in modern paints.

Operational Compliance: The "Paper Trail" of Quality

A professional shop owner should never take a manufacturer's word for "50,000-hour life." Instead, demand the following documentation:

IES LM-79-19: This is the fixture's "performance report card." It verifies the actual lumen output, efficacy (lm/W), and CCT.
IES LM-80 & TM-21: LM-80 measures the lumen depreciation of the LED chips over 6,000+ hours. IES TM-21 then uses that data to mathematically project the $L_{70}$ life (the point at which the light drops to 70% of its original brightness). If a brand claims "100,000 hours" without a TM-21 report, it is likely a marketing exaggeration.
UL 1598: This is the core safety standard for luminaires. As specified in the UL Solutions Product iQ Database, fixtures must be "UL Listed" to ensure they meet North American electrical and fire safety codes—a requirement for most commercial insurance policies.

3. Engineering the Layout: Spacing and Uniformity

A common mistake in auto shop lighting is focusing solely on brightness (lumens). In detailing, uniformity is more critical. Uniformity is the ratio of the minimum illuminance to the average illuminance across the work plane. For high-end shops, you should target a uniformity ratio of at least 0.7.

The Spacing-to-Height Rule

To achieve this uniformity without "dark aisles" or shadow zones, we recommend a spacing-to-height (S/H) ratio of 1.2 to 1.5.

Ceiling Height (ft)	Recommended Fixture Spacing (ft)	Target Lux (Work Plane)
12 ft	14 – 18 ft	800 – 1000 lux
15 ft	18 – 22.5 ft	1000 – 1200 lux
20 ft	24 – 30 ft	1200 – 1500 lux

Note: For paint booth specific work, the Department of Energy (DOE) FEMP guidelines suggest maintaining 1000–1500 lux at the working height to ensure no defect goes unnoticed.

LED shop lights and LED High Bay fixtures illuminating a high‑ceiling automotive workshop/garage with vehicles and shelving

Photometric Planning with IES Files

Before purchasing, professional installers should request .ies files (standardized photometric data). These files are imported into software like AGi32 to simulate exactly how the light will distribute in your specific shop dimensions. This eliminates guesswork and ensures the fixtures are positioned to create those critical parallel reflection lines. As noted in the 2026 Commercial & Industrial LED Lighting Outlook, utilizing IES-backed simulations is the only way to guarantee project-ready performance for B2B facilities.

4. Energy Efficiency and the ROI of "DLC Premium"

For many shop owners, the decision to upgrade is driven by the bottom line. This is where the DesignLights Consortium (DLC) QPL becomes essential.

Understanding DLC 5.1 Standards

The DLC sets the "Premium" vs. "Standard" benchmarks for efficacy. A "DLC Premium" fixture typically provides >130 lm/W, significantly higher than the baseline. This is not just about saving electricity; it is the prerequisite for utility rebates. In many jurisdictions, a DLC Premium certified linear high bay can qualify for rebates ranging from $45 to $80 per fixture.

The Economic Impact: A 6000 Sq Ft Case Study

We simulated a high-end detailing shop (6000 sq ft, 15 ft ceilings) upgrading from 400W metal halide fixtures to high-performance linear LEDs.

Metric	Metal Halide (Baseline)	High-Performance Linear LED
Total Energy Consumption	10,800 kWh/yr	2,400 kWh/yr
Annual Energy Cost (@$0.18/kWh)	$1,944	$432
Maintenance Cost (Bulb/Ballast)	$350/yr	$0 (5-yr warranty)
Annual Savings	-	$1,862
Estimated Payback Period	-	0.6 Years (7.2 Months)

Calculations based on 4,000 operating hours/year and inclusion of estimated utility rebates via the DSIRE Database. Actual results vary by local utility rates and available incentives.

LED High Bay shop lights illuminating an automotive fabrication garage with a turbocharged project car on a lift

5. Advanced Controls: 0-10V Dimming and Sensors

In a professional detailing environment, "one brightness fits all" is a myth.

Final Inspection: Requires 100% brightness to catch the finest micro-scratches.
Washing & Prepping: Requires reduced levels (approx. 50-60%) to avoid harsh glare from wet surfaces, which can be blinding to the technician.

The 0-10V Dimming Mechanism

To achieve this, ensure your fixtures utilize 0-10V dimming drivers. Unlike traditional triac (wall) dimmers, 0-10V systems provide a smooth, flicker-free transition. This is vital because flickering—even if imperceptible to the naked eye—can cause headaches and eye strain during long shifts. Always verify that any added occupancy sensors are compatible with the driver to prevent "ghosting" or strobing when the lights are at low levels.

Compliance with ASHRAE 90.1

For new construction or major retrofits, ASHRAE Standard 90.1-2022 mandates the use of lighting controls, such as occupancy sensors and daylight harvesting, in commercial spaces. Implementing these controls can increase energy savings by an additional 20-30% in areas like storage bays or offices that are not constantly occupied.

6. Common Pitfalls and "Gotchas" in Shop Lighting

As patterns emerge across thousands of installations, several "friction points" consistently appear:

The "Marketing Lumen" Trap: Some low-end brands report "theoretical lumens" based on the LED chip's maximum capacity, not the "delivered lumens" that actually leave the fixture. Always trust the LM-79 report over the box art.
Class 1 vs. Class 2 Wiring: For 0-10V dimming, electricians must be aware of National Electrical Code (NEC) requirements regarding the separation of high-voltage power lines and low-voltage dimming wires to prevent interference.
IP Ratings for Wash Bays: If your detailing involves heavy pressure washing, a standard linear high bay is not enough. You must look for an IP65 or IP66 rating (per IEC 60529), which certifies the housing is dust-tight and protected against powerful water jets.

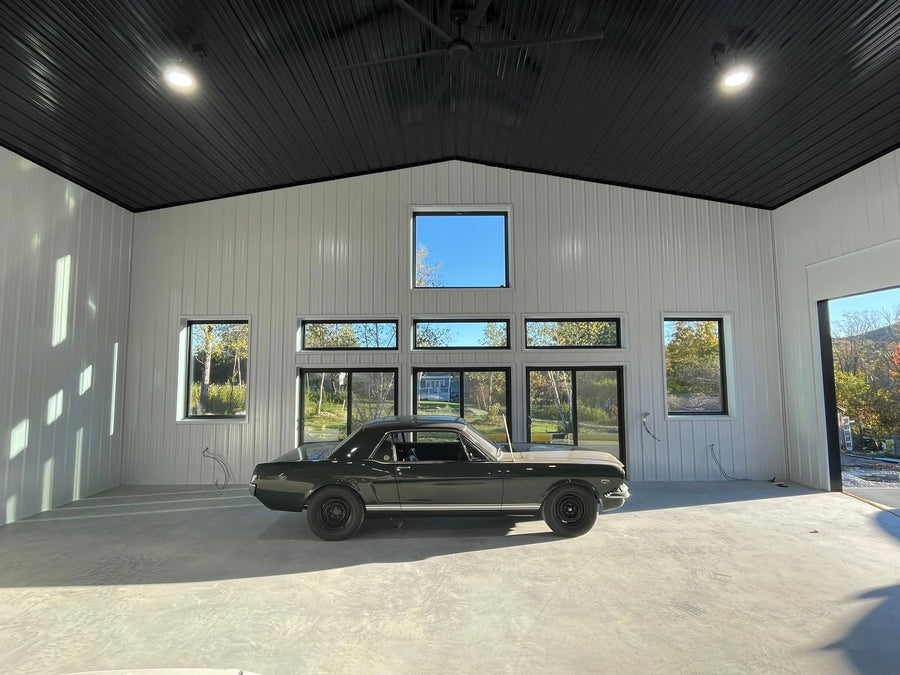

High-ceiling metal garage lit by LED High Bay shop lights with a classic car parked inside

Professional Installation Checklist

Before finalizing your shop's lighting design, run through this technical checklist to ensure E-E-A-T compliance and maximum ROI:

Verify DLC Listing: Check the DLC QPL for the exact model number to guarantee rebate eligibility.
Confirm UL/ETL Certification: Ensure the fixture has a valid file number in the UL Product iQ or Intertek ETL directory.
Check the CRI: Insist on CRI >90 for detailing bays; CRI 80 is only for general storage.
Review the TM-21 Report: Ensure the projected life is based on the 6x rule (e.g., a 6,000-hour test can only claim a 36,000-hour projected life with high certainty).
Calculate Uniformity: Aim for an S/H ratio of 1.2–1.5 to maintain a 0.7 uniformity ratio.

Disclaimer

This article is for informational purposes only and does not constitute professional electrical, legal, or financial advice. All electrical installations must be performed by a licensed professional in accordance with the National Electrical Code (NEC) and local building regulations. Energy savings and rebate amounts are estimates and vary by location and utility provider.
