LED flood lights should be selected based on the target’s width and height, the distance from the fixture to the target, mounting height, and the lighting goal—not lumens alone. First decide whether the area is bounded and sensitive to spill or broad and focused on coverage. Then use a preliminary narrow, medium, or broad beam spread, compare the distribution with the site geometry, and verify the complete configuration before ordering.
Match Beam Spread to the Target Geometry
For a preliminary choice, use controlled or relatively narrow coverage for bounded targets such as signs, building edges, and targeted security zones. Use a broad beam spread as a starting point for yards, loading areas, and large outdoor spaces, but confirm the width, throw, mounting position, overlap, delivered lumens, and uniformity in the fixture documentation. NEMA categories provide a shared narrow-to-wide vocabulary, but the fixture’s actual distribution still needs to be available in the NEMA beam-spread categories reference.
Record the target width and height, distance from the fixture to the target, mounting height, and lighting goal before using this selector. The table’s beam-spread guidance is preliminary, not a guaranteed beam angle or product recommendation.
| Application and target geometry | Preliminary direction and aiming priority | Detail needed to confirm fit |
|---|---|---|
| Building edges, especially tall or narrow facades | Controlled or narrow beam spread; aim at the facade while limiting spill above, behind, or beyond the property | Facade width and height, setback, mounting height, nearby windows, aiming range, and distribution information |
| Signs with a defined face | Controlled or narrow beam spread; prioritize even sign coverage and precise aiming | Sign width and height, fixture distance, sign orientation, mounting location, and horizontal-by-vertical distribution |
| Targeted security zones | Controlled or narrow-to-medium beam spread when the zone is bounded; balance reach with glare and spill control | Zone dimensions, camera or entry locations, property-line concerns, mounting geometry, aiming, and outdoor optical data |

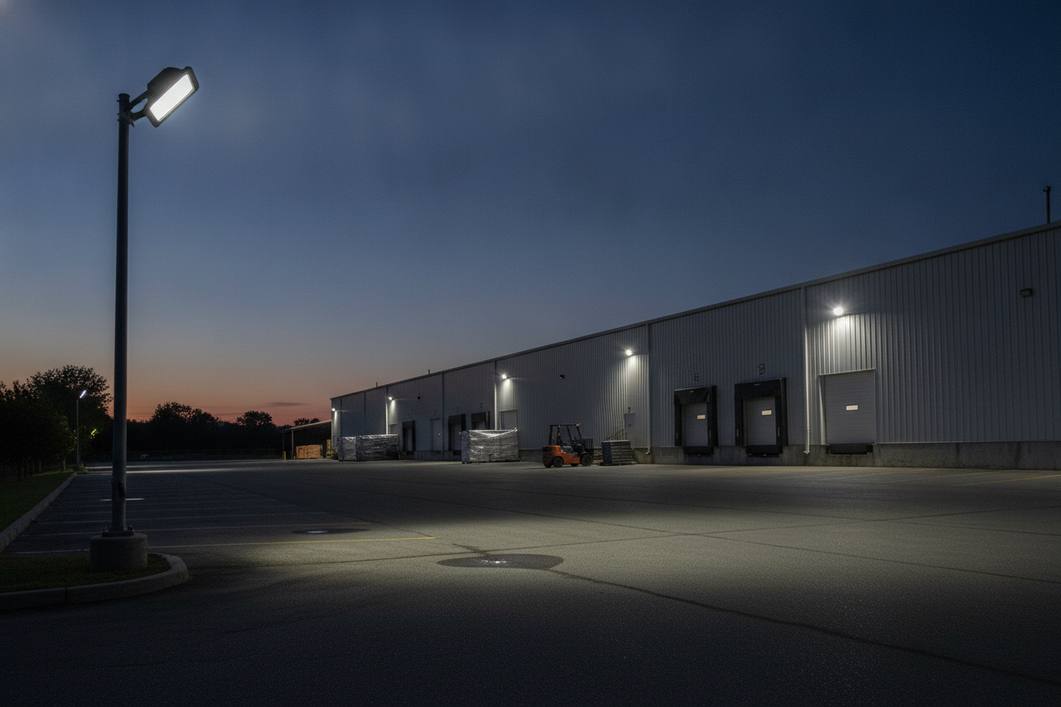

| Loading areas | Broad beam spread as a starting point when the target is wide; compare throw, mounting positions, overlap, and delivered output | Area width and length, mounting height and locations, vehicle and pedestrian paths, desired uniformity, and photometry |
| Yards | Broad beam spread for a wide target only after checking the fixture layout and throw | Yard dimensions, fixture setbacks, mounting heights, overlap, aiming, nearby homes or roads, and distribution information |
| Large outdoor areas | Broad beam spread may be a preliminary comparison, but multiple fixtures and modeled coverage often matter more than a beam label | Full site dimensions, mounting locations, target areas, fixture count, delivered lumens, uniformity goal, spill concerns, and a photometric review |
Review outdoor optical distribution for forward and back light, uplight, glare, and spill when the target is a sign, facade, security zone, or property boundary. The documented outdoor optical distribution is more useful than a broad beam description alone. Before ordering or installing, have a qualified professional verify the voltage, total load, controls, mounting conditions, and the manufacturer’s instructions for the specific configuration.
Preliminary Beam-Spread Direction by Target Geometry
A preliminary, qualitative selector only: 1 = narrow/controlled direction, 2 = medium direction, and 3 = broad direction. Confirm target geometry, aiming, spill control, delivered lumens, and exact-luminaire distribution before ordering; the encoding is not a performance score or beam-angle guarantee.
View chart data
| Category | Coverage tier (1=narrow, 2=medium, 3=broad) |
|---|---|
| Building edges | 1.0 |
| Signs | 1.0 |
| Targeted security zones | 1.0 |
| Loading areas | 3.0 |
| Yards | 3.0 |
| Large outdoor areas | 3.0 |
Read LED Flood Light Fixtures as One System
Similar lumen claims can produce different coverage because output is only one part of the optical result. Mounting height, setback, distance from the fixture to the target, target dimensions, beam distribution, and aiming all affect the footprint and concentration at the target, so evaluate them together.
An aiming point does not show by itself where useful light will land. For an outdoor LED flood light, compare the distribution with the actual target and mounting geometry. An IES file for the exact luminaire provides distribution data that lighting software or a design review can use when coverage or uniformity matters. The modeled result informs the design; it does not guarantee field performance.
For large areas, compare mounting locations, throw, overlap, delivered output, and the desired uniformity together. For bounded targets, give controlled distribution, aiming range, and spill management as much weight as reach. If aiming cannot keep light on the intended area, consider documented shielding, relocation, or another distribution rather than compensating with more lumens alone.
Voltage, total load, controls, environmental exposure, and mounting method can change whether the same optical comparison applies to the project. Consider those conditions alongside the optical information when assessing commercial LED flood lights.
Verify the Project Inputs Before Ordering
Start by writing down the lighting goal and site measurements, then compare them with the fixture’s configuration information. If a required input is missing, record the open question instead of filling it with a generic lumen, height, or beam rule.
- Define the lighting goal. Identify whether the project needs bounded visibility, sign or facade emphasis, loading-area coverage, yard coverage, targeted security coverage, or reduced spill and glare.
- Measure the target and fixture position. Record the target width and height, distance from the fixture to the target, mounting height and location, setback, mounting surface, and intended aiming direction. Note nearby windows, roads, occupied areas, or property-line concerns.
- Record configuration constraints. Gather the available voltage, total load, controls, environmental exposure, mounting method or hardware, access conditions, and installation-documentation requirements. Use feet and other US customary measurements consistently in the project record.
- Request current documentation for the exact configuration. Include delivered lumens, horizontal and vertical distribution information, aiming details when documented, voltage, controls, environmental information, mounting details, and the manufacturer’s instructions. Ask for an IES file when modeled coverage or uniformity matters.
- Compare the documents with the site inputs. Check whether the distribution and aiming options address the target shape, throw, mounting position, spill concerns, and lighting goal. A headline lumen figure cannot tell you whether the distribution matches the site.
- Flag unresolved fit questions. Stop treating a generic comparison as sufficient when coverage, uniformity, spill, glare, voltage, load, controls, environmental conditions, or mounting conditions could change the selection. Send the completed input set for a design review or qualified professional review when needed.
Choose the Collection or Request Free Lighting Design
Browse the LED Flood Lights collection when the target geometry, mounting constraints, and lighting goal are known and the available fixture information lets you compare the configuration with those project inputs. The collection is a category path; its label does not determine a fixture’s distribution, output, controls, environmental fit, or compatibility.
Request a photometric layout or request free lighting design before selecting a configuration when exact coverage or uniformity matters, the site is large or complex, multiple fixtures must coordinate, spill or glare is a concern, or mounting and electrical conditions remain unresolved. Send the target width and height, distance from the fixture to the target, mounting height and locations, intended aiming, lighting goal, spill or glare concerns, and known voltage, load, controls, environmental, and mounting constraints.
Use the completed input set to choose between the two paths. If a material placement, coverage, spill, uniformity, or configuration question remains, choose a design review before ordering; otherwise, compare the documented options in the collection.
Frequently Asked Questions
These answers distinguish a preliminary LED flood light comparison from a project-specific selection.
How many lumens do I need for an outdoor LED flood light?
You cannot choose a lumen quantity from the area alone. For a yard, loading area, sign, building edge, or security zone, start with the target dimensions, fixture position, mounting height, distribution, aiming, and desired visibility or uniformity. Delivered lumens are one part of that comparison; use exact-model photometry or a layout when the coverage result matters.
What beam angle is best for a flood light?
The right beam spread depends on the target’s width and height, distance, mounting height, aiming needs, and spill limits. A narrow or controlled spread often helps with bounded targets, while a broad spread can be a starting point for large outdoor areas. Use the beam spread to narrow the search, then compare the fixture’s full distribution with the target geometry.
How does mounting height change an LED flood light choice?
Mounting height changes throw, footprint, concentration, aiming, glare, and the output needed at the target. An existing mounting point can therefore change the preliminary beam-spread choice even when the target itself stays the same. Record the mounting point and target dimensions before comparing fixtures.
When should I request a photometric layout for commercial outdoor lighting?
Request one when exact coverage or uniformity matters, the area is large or complex, multiple fixtures must coordinate, property-line spill or glare matters, or mounting and configuration conditions remain unresolved. Provide the measured geometry, fixture locations, aiming, lighting goal, and known configuration constraints. Use the review to inform the purchase and choose a configuration that matches those inputs.
