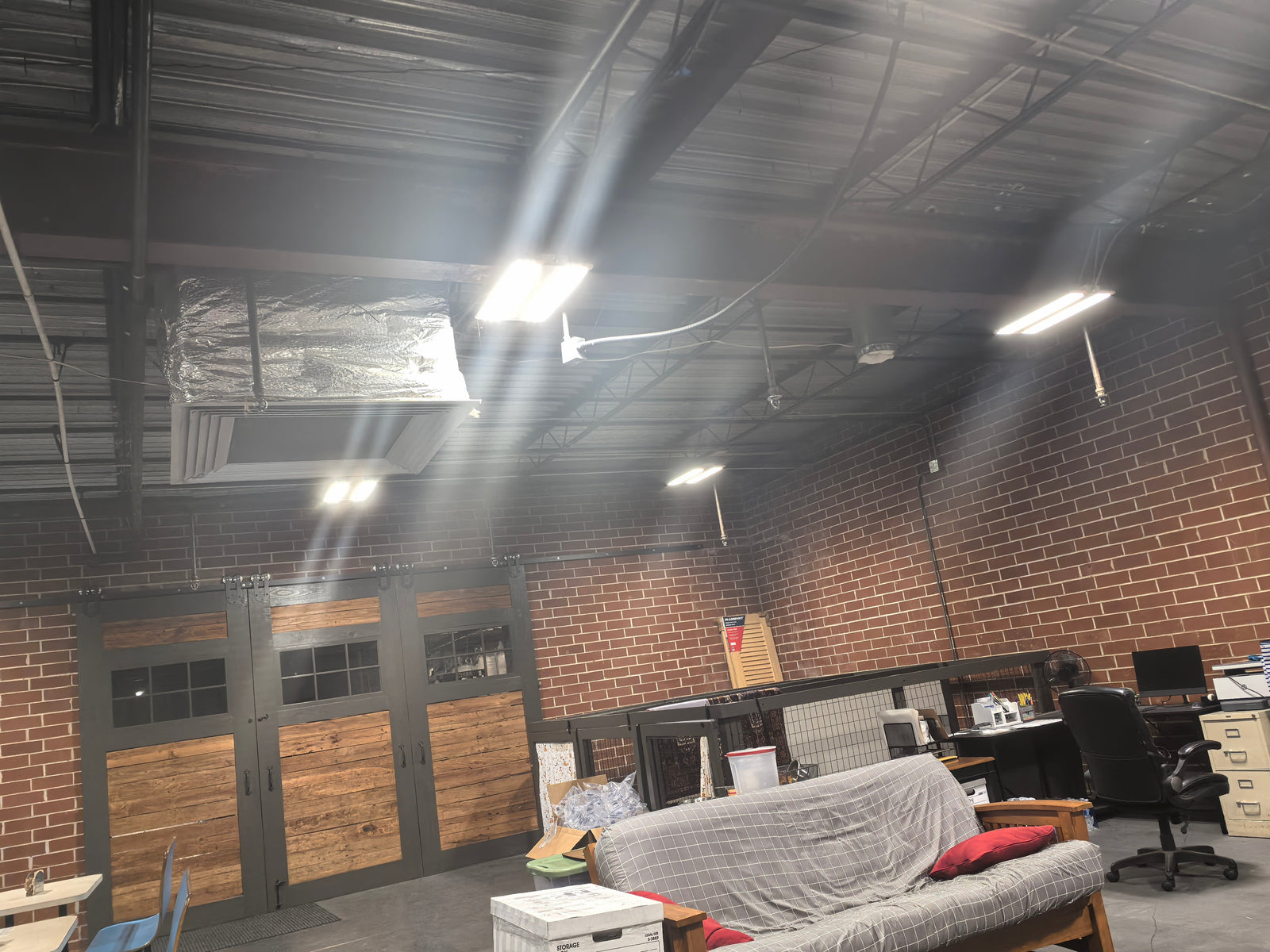

In manufacturing and quality control, what you can't see can directly impact your bottom line. Subtle product defects, color mismatches, and surface imperfections often go unnoticed under poor lighting, leading to increased customer returns, rework costs, and a damaged reputation. For any facility where visual inspection is a critical step, the quality of light is not an operational expense—it is a core component of your quality assurance system. UFO high bays with a high Color Rendering Index (CRI) are the specific solution for this challenge, engineered to render colors with near-perfect accuracy, ensuring that your team can identify issues with confidence.
This article provides a technical guide for facility managers, specifiers, and quality control supervisors on selecting, installing, and verifying high-CRI UFO high bay lighting systems. We will move beyond generic advice to cover the specific metrics, design principles, and common pitfalls associated with creating a lighting environment optimized for precision visual tasks.
Key Lighting Metrics for Quality Control
When specifying lighting for inspection zones, three metrics are paramount: Color Rendering Index (CRI), illuminance, and uniformity. Getting these right is foundational to a successful installation.
Color Rendering Index (CRI) and R9: Seeing True Colors
The Color Rendering Index measures how accurately a light source reveals the colors of objects in comparison to a natural light source. Measured on a scale of 0 to 100, a higher CRI means better color accuracy. For general warehousing, a CRI of 70 or 80 is often sufficient. However, for quality control areas, a CRI of 90 or higher is the professional standard.
Within the CRI score, the R9 value, which measures the light's ability to accurately reproduce strong red tones, is critically important. Many standard LEDs struggle with reds, causing them to appear dull or brownish. In applications like automotive paint inspection, electronics (identifying red-coated wires), or textile manufacturing, a poor R9 value can completely mask defects.
Practitioner Insight: Technicians in visual inspection zones report that specifying fixtures with not just CRI≥90 but also an R9 value greater than 50 significantly reduces false-rejection rates on finished goods. Always request the full photometric report to verify the R9 value, as it is not always listed on the primary spec sheet.
| Metric | Standard Lighting (CRI 80) | High-CRI Lighting (CRI 90+) |
|---|---|---|
| Visual Effect | Colors may appear washed out or shifted. | Colors appear vibrant, saturated, and true to life. |
| Red Rendering (R9) | Often low or even negative. Reds look dull. | High (R9>50). Reds are rich and accurately rendered. |
| Application | General storage, corridors. | Paint booths, print shops, textile inspection, final assembly. |
| Error Potential | High risk of missing subtle color/texture defects. | Low risk; inspectors can clearly identify subtle flaws. |
Illuminance and Uniformity
Illuminance is the amount of light falling on a surface, measured in lux (lx) or foot-candles (fc). According to the IES Recommended Practices for Lighting Industrial Facilities (RP-7), different tasks require different light levels. For detailed inspection work, a maintained illuminance of 500 to 1,000 lux (50 to 100 fc) at the task plane is a reliable target.
Uniformity is just as important. A poor uniformity ratio—the ratio of maximum to minimum illuminance—creates distracting hot spots and shadows, causing eye strain and making it harder to spot defects across a large surface. Aim for a uniformity ratio of 1.5:1 or better in the primary inspection zone. This prevents inspectors from missing a flaw simply because it was in a darker part of the workspace.
Selecting the Right High-CRI UFO High Bay
Choosing the right fixture requires looking past marketing claims and digging into verifiable performance data. A professional-grade fixture should have a complete documentation package to back up its performance.
Hyperlite LED High Bay Light - Black Hero Series, 29000lumens, Selectable Wattage&CCT, AC 120-277V
How to Read a Specification Sheet
When evaluating a UFO high bay like the Hyperlite LED High Bay Light - Black Hero Series, focus on independently verified data. Look for downloadable files that confirm the manufacturer's claims.
- Performance Data (IES LM-79): This is the industry-standard report that documents a fixture's total lumen output, efficacy (lumens per watt), CCT, and CRI. If a manufacturer cannot provide an LM-79 report, you cannot trust their performance claims.
- Lumen Maintenance (IES LM-80/TM-21): These reports are used to project the fixture's long-term light output. A projection like "L70 @ 60,000 hours" indicates the point at which the light output has degraded to 70% of its initial level. This is a key indicator of LED quality and thermal management.
- Safety Certification (UL/ETL): Ensure the fixture is listed by a Nationally Recognized Testing Laboratory (NRTL) like UL or ETL. The certification to UL 1598 covers the entire luminaire, while UL 8750 applies to the LED driver and components. This is non-negotiable for safety and code compliance.
- Rebate Eligibility (DLC): Check if the product is on the DesignLights Consortium (DLC) Qualified Products List (QPL). A DLC Premium listing not only ensures high efficacy and long life but is often a prerequisite for securing utility rebates.
Debunking a Common Myth: "More Lumens is Always Better"
A common mistake is to select fixtures based on nominal lumens alone. A 30,000-lumen fixture is not automatically better than a 25,000-lumen one. The real measure of performance is delivered illuminance, which is determined by the fixture's photometric distribution—how it directs light.
A fixture with a wide 120° beam angle is great for open areas but may be inefficient for illuminating vertical surfaces on a rack. A narrow 60° or 90° beam angle will punch light down from a high ceiling more effectively, delivering higher foot-candles on the task surface. Always use the fixture's IES file in lighting design software to model performance before purchasing.
Design and Layout Best Practices
A proper layout is essential for achieving uniform, glare-free illumination.
Spacing-to-Mounting Height (S/H) Ratio
The S/H ratio is a simple rule for ensuring even coverage. It is the distance between fixtures divided by their height above the work plane. For most UFO high bays with a standard 120° beam angle, a S/H ratio between 1.0 and 1.5 provides excellent uniformity. Mounting fixtures too far apart (S/H > 1.5) creates dark spots, while mounting them too close (S/H < 1.0) wastes energy and can create excessive brightness.
For a 20-foot mounting height over a 3-foot work plane (MH = 17 feet), fixtures should be spaced approximately 17 to 25.5 feet apart.
Checklist for Specification and Design
Use this checklist to ensure you cover all bases during the design and procurement phase:
- [ ] Define Required Illuminance: Set a target (e.g., 750 lux / 75 fc) for the primary task area.
- [ ] Confirm CRI Requirement: Specify CRI ≥ 90 and R9 > 50 for all fixtures.
- [ ] Obtain Photometric Files: Request IES files for every potential fixture.
- [ ] Model the Layout: Use lighting software (like AGi32) to verify illuminance and uniformity before purchasing.
- [ ] Verify Certifications: Confirm UL/ETL listing and check for DLC QPL status for rebate eligibility.
- [ ] Specify Controls: Ensure all fixtures have 0-10V dimming drivers to comply with energy codes like ASHRAE 90.1 and enable sensor integration.
- [ ] Avoid Mixing: Do not mix fixtures with different CRI or CCT ratings in the same visual space to avoid distracting color shifts.
Verification and Maximizing ROI
Your work isn't done after installation. Verification ensures you got what you paid for, while rebates and operational savings deliver the return on investment.
Commissioning and On-Site Measurement
Once installed, use a calibrated light meter to take illuminance readings across the work plane. Create a grid and compare the real-world measurements to your software model. This step verifies the design and provides a baseline for tracking lumen depreciation over time. It also ensures the contractor has met the project specifications.
Rebates and Long-Term Value
High-CRI, high-efficacy fixtures are a capital investment, but the ROI is multi-faceted.
- Utility Rebates: DLC-qualified products can receive significant rebates from local utilities. Use databases like DSIRE to find incentives in your area.
- Reduced Errors: Improved visual acuity directly translates to fewer defects, less wasted material, and lower rework labor.
- Energy Savings: High-efficacy LEDs paired with 0-10V dimming and occupancy sensors can reduce lighting-related energy consumption by over 70% compared to legacy HID systems.
Key Takeaways
Upgrading to high-CRI UFO high bays in quality control areas is a strategic investment in accuracy and productivity. Success depends on moving beyond basic specs and focusing on what truly matters for visual inspection: certifiable color quality (CRI 90+), sufficient and uniform light levels (500-1000 lux), and a design process rooted in photometric data. By specifying fixtures with verifiable performance, modeling the layout with IES files, and commissioning the final installation, you can create a work environment where no defect can hide.
Frequently Asked Questions (FAQ)
What is the difference between CRI and CCT? CCT (Correlated Color Temperature) describes the color appearance of the light itself (e.g., warm yellow to cool blue), measured in Kelvin (K). CRI (Color Rendering Index) describes how accurately that light reveals the colors of objects. You can have a 5000K light with a low CRI and a 5000K light with a high CRI; they will have the same cool white appearance, but the high-CRI light will show object colors much more accurately.
Are high-CRI lights less efficient? Historically, there was a trade-off between high CRI and high efficacy (lumens per watt). However, modern LED technology has significantly closed this gap. Many DLC Premium listed fixtures now offer both CRI 90+ and efficacies well over 140 lm/W, meaning you no longer have to sacrifice energy efficiency for color quality.
Do I need a special dimmer for 0-10V fixtures? Yes, 0-10V dimming requires a compatible low-voltage wall dimmer or integration with a lighting control system. It uses a separate pair of low-voltage wires (typically purple and gray) to carry the dimming signal, independent of the main AC power lines.
