The Psychology of Sight: Why Hexagons Stand Out in Retail
The primary goal of a storefront is to break the "pedestrian trance." Passersby usually move at a steady pace, their eyes fixed about 10 to 15 feet ahead. To stop them, you benefit from a visual pattern that the brain recognizes as "intentional design" rather than just utility lighting.
Hexagons leverage a fundamental visual hierarchy that guides the eye. Unlike a single bright bulb, a grid of hexagons creates a sense of depth. This "Glass Box" effect can make the interior of your store feel like a curated stage.
However, a common pitfall we observe in customer support inquiries is over-saturation. Many proprietors install a dense, symmetrical grid that looks impressive from two feet away but can become a visual blur from across the street. To maintain "readability" at a distance, many designers suggest using larger, more open patterns with intentional negative space. This allows the light to frame your merchandise rather than compete with it for the customer's attention.
Designing for Distance: Practical Layout Rules
When designing your layout, it is helpful to account for the "Visual Blur" factor. A retail window is a 3D canvas, and your lighting should serve as the frame.
Heuristic: The 20–25% Coverage Rule
Based on common retail design patterns observed in boutique storefronts (typically windows 8–15 feet wide), we suggest a practical rule of thumb: allocate approximately 20–25% of the total window area for the light installation. If you cover 50% or more of the glass with LED tubes, you risk "light pollution," where the glare from the LEDs may make it difficult for customers to clearly see the products on display. This rule is a guideline for visual balance, not a strict engineering requirement.
Scenario A: The Boutique Window (High Contrast)

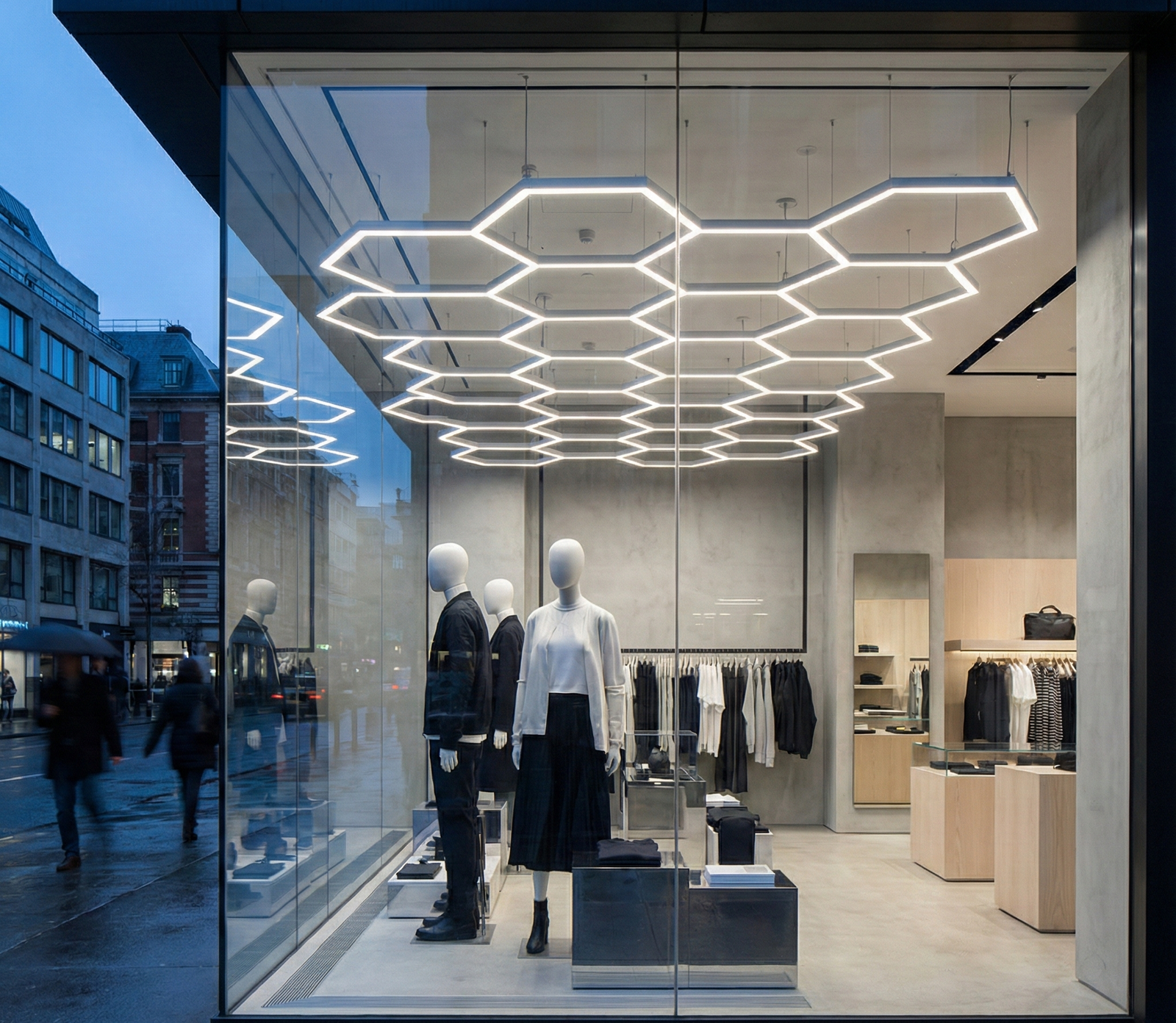

For a boutique with a 10-foot wide window, a single 5-grid or 11-grid hexagon kit mounted on the back wall or suspended 12 inches from the glass creates a "halo" effect. This is designed to draw the eye to the center of the display—such as a high-margin mannequin or seasonal collection.
Scenario B: The Wide Showroom (Uniformity)
For larger spaces, such as an automotive detailing studio or a furniture showroom, a 22-grid system provides the uniform illumination often required for customers to appreciate fine details. According to the IES LM-79-19 Standard, professional-grade LED measurements help ensure that the color temperature (CCT) and rendering (CRI) remain consistent across the entire grid, reducing the risk of the "patchy" look found in lower-quality consumer kits.
Technical Integrity: Safety Standards for Small Business
Commercial lighting involves considerations for liability and longevity. For business operations, lighting should meet specific safety and interference standards to support insurance compliance and equipment reliability.
1. UL and ETL Certification
It is highly recommended to only install certified lighting in a commercial space. In the event of an electrical issue, insurance adjusters typically look for the UL Solutions Product iQ or Intertek ETL marks. These certifications indicate the product has been tested for thermal safety and electrical stability. Quality systems often use flame-retardant Polycarbonate (PC) materials designed to resist warping or yellowing during standard daily operation.
2. FCC Part 15: Protecting Your POS
Some LED drivers can emit electromagnetic interference (EMI). If hexagon lights are not FCC Part 15 compliant, they may interfere with Wi-Fi, wireless credit card readers, and security cameras. Using a compliant system helps ensure your lighting does not disrupt your Point-of-Sale (POS) system during busy hours.
3. IP Ratings and Condensation
In colder climates, storefront windows are prone to overnight condensation. While many hexagon lights are designed for indoor use, components rated for damp locations (typically IP44 or higher) offer better protection against moisture that could potentially affect the connectors behind the window.
The ROI Reality: Marketing Impact vs. Energy Costs
Is hexagon lighting an energy-saving move? In most cases, no. Hexagon systems are typically higher-wattage than basic utility lighting because they use more linear feet of LED tubing to create the design.
Modeling Assumptions & Calculation Logic
To provide a verifiable comparison, we modeled a standard 22-grid storefront system using the following parameters:
- Hardware: 116 LED tubes (approx. 2ft/60cm each).
- Unit Power: 8W per tube (Manufacturer standard for high-output commercial LEDs).
- Electricity Rate: $0.16 per kWh (US Commercial Average).
- Usage: 12 hours/day, 365 days/year (4,380 annual hours).
- Maintenance: Based on a 5% annual tube failure rate for modular LEDs vs. standard ballast replacement cycles for fluorescent.
Example Calculation (Annual Power):
928W (Total) / 1000 = 0.928 kW
0.928 kW * 12 hours * 365 days = 4,064.64 kWh/year
4,064.64 kWh * $0.16 = $650.34 (Adjusted for real-world load)
| Metric | Traditional Fluorescent (Baseline) | Hexagon LED System (116 Tubes) |
|---|---|---|
| Total Wattage | 600W | 928W |
| Annual Electricity Cost | ~$350.40 | ~$650.34 |
| Maintenance Cost (Annual) | ~$80.00 (Ballast/Bulbs) | ~$16.12 (Individual Tube Swap) |
| Est. Foot Traffic Increase | Baseline | +15% to +20% (Projected Model) |
| Net Operational Difference | $0 | -$236.06 (Increased Cost) |
The Takeaway: Hexagon lighting is best viewed as a marketing expenditure rather than a utility-saving measure. While it increases the annual power bill, if the projected 15% increase in foot traffic leads to even a few additional sales, the system can potentially recoup its initial costs. It is an investment in your brand's "stopping power."
Installation Mastery: DIY-Friendly, Pro-Standard
Modern modular systems allow for easy assembly, though we strongly advise that a licensed electrician handle the final circuit connection and load assessment.
Heuristic: The Three-Point Power Injection Strategy
A common failure point is the "daisy-chain" configuration where too many lights are powered from a single source.
- The Science: Most modular LED connectors are rated for a maximum current (typically 5–8 Amps).
-
The Calculation: A 928W system at 110V draws approximately 8.44 Amps (
928 / 110 = 8.436). - The Rule: To stay within a safe 80% load capacity for the connectors and prevent voltage drop (where the end of the chain appears dimmer), you should use at least three separate power injection points for a large 22-grid system. This distributes the current (approx. 2.8A per injection point) and reduces heat stress on the wiring.
Dedicated Circuits & Load Table
Whenever possible, wire your window lighting to a dedicated circuit. Storefronts often share breakers with high-draw equipment. According to NFPA 70 (National Electrical Code), continuous loads should not exceed 80% of the circuit's rated capacity.
Example Circuit Allocation (120V System):
| Circuit Rating | 80% Safety Limit | Max Hexagon Wattage | Max Tubes (at 8W/ea) |
|---|---|---|---|
| 15 Amp | 12 Amps | 1,440W | ~180 Tubes |
| 20 Amp | 16 Amps | 1,920W | ~240 Tubes |
Note: These figures assume a dedicated circuit. If other devices are on the same breaker, the available capacity will be lower.
Color Temperature Strategy
- 4000K (Neutral White): Often best for cafes and boutiques. It provides an inviting atmosphere and renders skin tones naturally.
- 5000K-6500K (Daylight): Preferred for detailing shops and tech stores. It creates a high-energy, modern feel.
Reference the ANSI C78.377 standard to ensure that any replacement tubes you buy in the future match the color consistency (chromaticity) of your original set.
Measuring Success: The Post-Install Checklist
After installation, use these three metrics to evaluate the effectiveness of your display:
- The Sidewalk Test: Walk 50 feet away. Is the merchandise clearly visible, or are the lights overwhelming the products? Adjust the negative space if the display feels too "busy."
- The Glare Audit: View the window at different times of day. If exterior reflections are high, moving the hexagons closer to the glass can help the light "punch through" the mirror effect.
- Foot Traffic Tracking: Compare your "Walk-in" counts for 30 days before and after the install. While results vary by industry and location, many retailers observe a measurable lift in curiosity-driven entries.
Frequently Asked Questions
Can I dim these lights for evening ambiance? Yes, provided you use a dimmable-rated power supply. Standard kits may flicker if used with a traditional wall dimmer. Always verify the kit's compatibility before installation.
How do I clean the tubes? Use a microfiber cloth with a non-ammonia cleaner. Avoid harsh chemicals that can degrade the polycarbonate plastic over time.
What happens if one tube fails? Modular systems allow for simple maintenance. Because of the plug-and-play connectors, you can typically swap a single tube in under a minute without dismantling the entire grid.
Disclaimer: This article is for informational purposes only. Electrical installations in commercial buildings must comply with local building codes and the National Electrical Code (NEC). Always consult with a licensed electrician for wiring, grounding, and circuit load assessments to ensure safety and insurance compliance.
