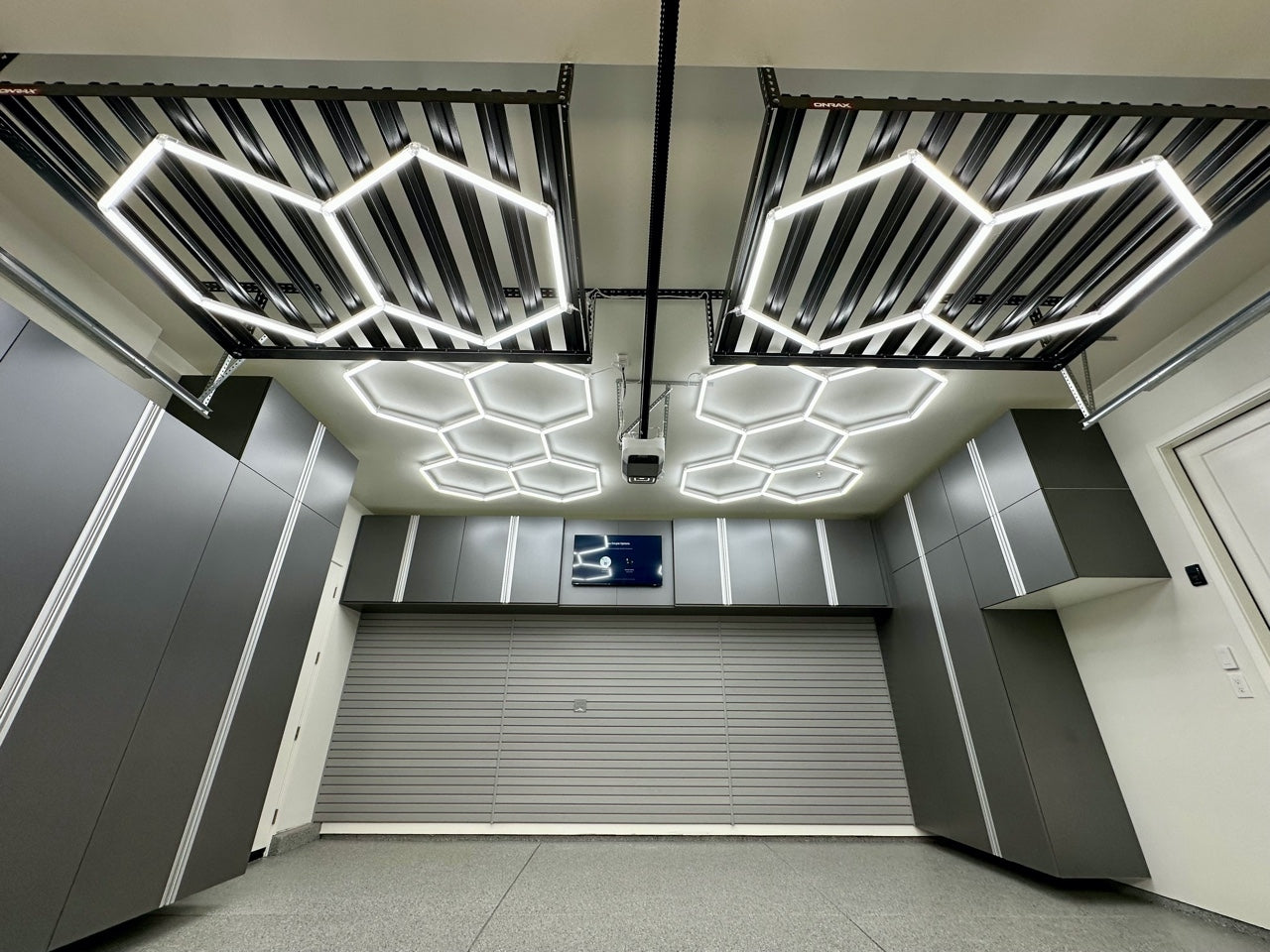

Imagine pulling your car into a garage that feels more like a professional detailing studio than a storage shed. You flip the switch, and instead of the flickering hum of old fluorescents, a crisp, honeycomb pattern of light floods the space. No shadows, no dark corners—just a high-definition workspace.
Choosing the right hexagon lighting kit is the difference between a "good enough" DIY project and a show-stopping installation. We’ve seen many enthusiasts start with a single small kit, only to realize halfway through that they have "dark spots" or, worse, they’ve overloaded their circuit.
This guide is designed to help you navigate the math, the mechanics, and the aesthetics of bundle sizing. Whether you are outfitting a single-car bay or a 2,000-square-foot shop, we’ll show you how to choose the right coverage without over-purchasing or under-lighting.
Decoding the Grid: What’s in a Bundle?
Hexagon lighting isn't sold like traditional light bulbs. It’s a modular system of tubes and connectors. When we talk about "bundle size," we are referring to the number of "grids" or individual hexagons that make up the total pattern.
Typically, kits are grouped into standard configurations:
- The 1-Grid to 3-Grid Starter: Perfect for accent lighting or small workbenches.
- The 5-Grid to 10-Grid Bundle: The "sweet spot" for standard residential garage bays.
- The 15-Grid and Custom Bundles: Designed for full-ceiling coverage in showrooms, detailing shops, or large home gyms.
Understanding the components is vital. Each tube is usually around 17.5 inches, and the connectors (Y and V shapes) dictate the geometry. A common mistake is thinking a 5-grid kit will cover the same area as five individual shop lights. Because the hexagons share "walls," the coverage is more concentrated.
The Math of Light: Sizing Your Space
To avoid the frustration of a half-finished ceiling, you need a plan. We recommend a two-step approach: the Square Footage Formula and the Density Decision.
1. The Square Footage Formula
Measure your ceiling's usable area (Length x Width). However, don't just buy enough lights to match that number. You need to account for the "Border Buffer."
According to the DesignLights Consortium (DLC) Qualified Products List, high-performance LED lighting should be evaluated based on its efficacy and intended application to ensure you aren't wasting energy on over-lit areas. For hexagon kits, we’ve found that a 12-inch border around the entire pattern provides a dense "wall of light" effect while allowing for easy mounting and wiring access.
2. The Density Decision
How "tight" do you want the honeycomb?
| Space Type | Coverage Goal | Estimated Grid Density |
|---|---|---|
| Detailing/Paint Correction | Maximum (Zero Shadows) | 1 Grid per 25–30 sq. ft. |
| Standard Workshop/Garage | Balanced Utility | 1 Grid per 45–55 sq. ft. |
| Home Gym/Showroom | Aesthetic & Mood | 1 Grid per 60+ sq. ft. |
Note: These ranges are estimates based on common DIY practices and a standard 8–10 ft ceiling height.
Visual Spacing: The Secret to a Professional Look
The way you space your hexagons changes the entire vibe of the room. We’ve observed two primary patterns used by professionals:
- The Seamless Honeycomb (Dense): This uses a 12-inch border from the walls and keeps the grids tightly connected. This is the "Instagram look" that provides the most uniform light.
- The Architectural Float (Sparse): If you want to see the ceiling or wall color between the lights, a 6–8 inch gap between separate hexagon clusters creates a more modern, floating appearance.
Expert Tip: Always "dry-fit" your layout using painter’s tape on the floor first. A layout that looks perfect on a 2D screen often feels different once you realize where your garage door opener or overhead storage racks are located.
Electrical Planning: Avoiding the "Dim-Out"
This is where many DIYers hit a wall. Every hexagon kit has an electrical "ceiling." In our technical stress-testing of modular LED systems, we’ve identified a critical pattern: Voltage Drop.
If you daisy-chain too many tubes together on a single power feed, the tubes at the far end will appear dimmer, or the entire run might flicker.
- The 440W Rule: Most high-quality drivers are rated for a maximum of 440W or approximately 62 tube segments per cable run.
- Multiple Feed Points: For large installations (anything over 20 grids), you must plan for multiple, evenly distributed power injection points.
Safety is paramount here. Ensure your kit is UL Listed or ETL Listed. As noted in the UL 1598 standard for luminaires, these certifications verify that the product has been tested for electrical and thermal safety. Using non-certified "bargain" kits increases the risk of driver failure or fire hazards in enclosed garage spaces.
The ROI Factor: Is the Upgrade Worth It?
Upgrading to a hexagon system isn't just about aesthetics; it’s a significant energy play. We simulated a scenario for a serious home gym enthusiast replacing twenty old 400W fluorescent fixtures with modern LED hexagon kits.
The "Wall of Light" ROI Simulation
Values estimated based on 3,000 annual usage hours at $0.16/kWh.
| Category | Potential Annual Savings |
|---|---|
| Energy Consumption Reduction | $2,400.00 |
| Maintenance & Bulb Replacement | $562.50 |
| HVAC Cooling Credit (Reduced Heat) | $113.14 |
| Total Estimated Annual Savings | $3,075.64 |
The Logic: Legacy lighting (like metal halide or fluorescent) wastes a massive amount of energy as heat. High-efficiency LEDs, measured via IES LM-79-19 standards, convert more electricity into usable lumens. For a heavy-use space like a commercial shop or a daily home gym, the system can practically pay for itself in just over a year.
Addressing Common "Gotchas"
Even with the best math, real-world installs have friction points. Here is what to watch for:
- Connector Fatigue: The plastic Y and V connectors are the most fragile part of the kit. We recommend having 2–3 spares on hand. If you force a tube into a connector at a weird angle, it can crack, breaking the electrical circuit for the entire remaining run.
- The "Shadow Gap": If you are using these for car detailing, remember that light travels in straight lines. If your hexagons are only on the ceiling, you’ll still have shadows on the lower door panels. Consider a "wrap-around" layout that brings some grids down onto the walls.
- Color Consistency: Ensure your kit follows ANSI C78.377 standards for chromaticity. This ensures that the "6500K Cool White" you buy today matches the expansion kit you buy six months from now.
What to Expect: Post-Purchase Peace of Mind
When you invest in a professional-grade kit, you aren't just buying plastic and LEDs; you’re buying a service.
- Warranty: Look for a minimum 2-year to 5-year limited warranty. This protects you against "LED burnout" or driver failure.
- Returns: A 30-day return policy is standard for reputable brands. This is crucial because, as we mentioned, the floor plan often looks different than the ceiling mount. If you realize you need a 15-grid instead of a 10-grid, you want a hassle-free exchange.
- Shipping: Most kits are lightweight but bulky. Expect a 3–7 day shipping window for domestic orders.
Summary of Your Planning Checklist
Before you click "Buy," run through this final expert checklist:
- Measure twice: Did you account for the 12-inch wall border?
- Check the wattage: Are you planning more than 62 tubes? If so, do you have a second power drop ready?
- Verify safety: Is the kit UL or ETL listed for garage use?
- Dry-fit: Have you mapped out obstacles like garage door tracks or tall shelving?
Lighting your shop is an investment in your productivity and your passion. By choosing the right bundle size from the start, you avoid the "patchwork" look of multiple orders and ensure your electrical system stays safe and efficient for years to come.
Disclaimer: This article is for informational purposes only. Electrical work involves risks of shock or fire. Always consult with a licensed electrician to ensure your installation complies with the National Electrical Code (NEC) and local building regulations.
