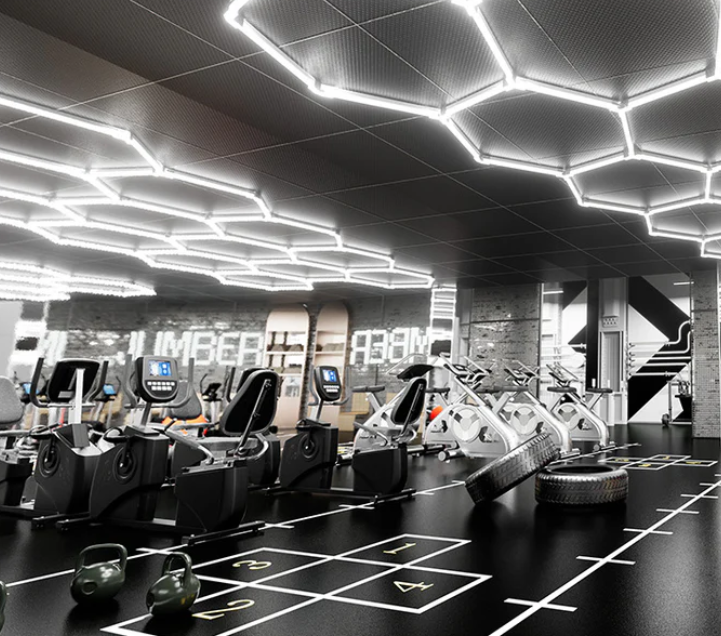

A professional-grade home gym installation is defined by what remains invisible. While high-performance hexagon lighting kits provide the "wow factor" and uniform illumination required for safe, high-intensity training, the most common aesthetic failure is the presence of bulky, exposed LED drivers and messy wiring. Achieving a "floating" light effect requires a pragmatic approach to concealment that balances visual purity with the strict safety requirements of the National Electrical Code (NEC).
To elevate a gym's design from a basic DIY project to an architectural feature, you must plan for driver placement before the first tube is snapped into place. This guide details the technical mechanisms of driver concealment, the thermal realities of "joist-tucking," and the electrical load calculations necessary to prevent premature system failure.
The Anatomy of the Hexagon Driver: Why Concealment is Complex
Every hexagon lighting system relies on external drivers to convert high-voltage alternating current (AC) into the low-voltage direct current (DC) required by LED tubes. These components are not merely power supplies; they are sophisticated thermal management hubs. According to UL 8750 - LED Equipment for Use in Lighting Products, drivers are subject to specific electrical and thermal safety standards because they generate significant heat during the conversion process.
The "clutter" problem arises because a single driver cannot power an infinite number of tubes. Most high-quality kits have a daisy-chain limit (typically 440W or approximately 62 tubes). For a standard 20x30ft home gym, you may require up to six separate power injection points. If these drivers are simply strapped to the ceiling surface, the resulting "wall of boxes" destroys the clean, modern aesthetic.
Pre-Installation Planning: The "Glass Box" Electrical Analysis
Before cutting into drywall or tucking drivers into attics, you must perform a load analysis. A common mistake among DIYers is assuming that because LEDs are "low power," they can all run on a single garage circuit. Our simulation of a 600-square-foot premium gym reveals a different reality.
Table 1: Electrical & Economic Analysis (600 sq. ft. Gym Layout)
| Metric | Traditional LED Shop Lights | High-Density Hexagon System |
|---|---|---|
| Total Tube Count | N/A (Linear Fixtures) | ~330 Segments |
| Total System Wattage | ~1,200W | ~2,310W |
| Amperage Draw (120V) | 10.0A | 19.25A |
| NEC Circuit Limit (20A Breaker) | 16.0A (80% Load) | Exceeded |
| Annual Operating Cost ($0.18/kWh) | $394.20 | $693.90 |
| Annual Maintenance Savings | Baseline | +$65.62 |
| Net ROI (Energy Only) | Positive | Negative |
Note: Values are estimated based on common industry rates and a 6-hour daily usage profile.
As demonstrated above, a large-scale hexagon installation is an aesthetic luxury, not an energy-saving retrofit. The high density of tubes means the system may draw over 19 amps, exceeding the safe continuous-load limit of a standard 20A residential circuit. For professional results, we recommend dedicated circuits and multiple power injection points to maintain brightness consistency and prevent breaker trips.
Concealment Technique 1: The Joist-Tuck (Ceiling Cavity)
For gyms with finished drywall ceilings, the most common concealment method is tucking the driver into the joist bay. However, this is where most "hidden" installs fail due to overheating.
The 1-Inch Air Gap Rule Experienced installers never allow a driver to make direct contact with wood joists or insulation. Trapping a driver in an enclosed, unventilated space triggers a mechanism known as thermal runaway. As the driver heats up, its efficiency drops, causing it to draw more current and generate even more heat. According to the DesignLights Consortium (DLC) Technical Requirements, maintaining optimal operating temperatures is critical for the "L70" lifespan—the point at which a light retains 70% of its original brightness.
- Pragmatic Step: Secure the driver to a metal mounting bracket or a non-combustible surface within the joist bay.
- The Gap: Ensure a minimum of 1 inch of air space on all sides of the driver.
- Insulation Warning: If your ceiling is insulated, you must use an "IC-Rated" (Insulation Contact) enclosure or create a "dam" around the driver to prevent insulation from smothering it.
Concealment Technique 2: The Attic Remote Placement
If your gym is located beneath an unfinished attic, remote placement is the gold standard for both aesthetics and serviceability. By moving the drivers to the attic, you remove the heat load from the gym environment and provide easy access for future maintenance.
Vibration and Noise Mitigation Drivers can sometimes produce a high-frequency "hum" or vibration, especially when dimmed. To prevent the ceiling from acting as a sounding board, never rest the driver directly on the drywall or loose insulation. Instead, secure the driver to a vertical joist or a dedicated equipment board.
Voltage Drop Constraints While remote placement is ideal, distance is your enemy. Low-voltage DC current suffers from "voltage drop" over long distances. If your DC cable run from the attic to the hexagon grid exceeds 15 feet, the tubes farthest from the power source will appear dimmer.
- Heuristic: For runs over 15 feet, upgrade from standard 18-gauge wire to 14-gauge or 12-gauge "low-voltage landscape" or "CL2-rated" in-wall wire to maintain 6500K color consistency across the entire grid.
The Serviceability Mandate: Avoiding the "Drywall Trap"
The most significant mistake a DIYer can make is burying a driver behind a permanent drywall patch. Electrical components fail; it is a matter of when, not if. If a driver fails and it is trapped behind finished drywall, you will be forced to cut into your ceiling, leading to costly repairs and gym downtime.
The Access Panel Solution According to the NFPA 70: National Electrical Code (NEC), all junction boxes and power supplies must remain "accessible." This does not mean they must be visible, but they must be reachable without damaging the building structure.
- Spring-Loaded Access Panels: Use a paintable, flush-mount plastic access panel. These can be installed in an inconspicuous corner of the gym or inside an adjacent closet.
- Wago Lever Nuts: When making connections inside tight joist cavities, replace traditional twist-on wire nuts with Wago-style lever nuts. They are more reliable under vibration, require less space, and provide a more secure connection for the stranded wire often found in LED driver leads.
- Labeling: Use a label maker to identify which driver powers which section of the grid. This 30-second task saves hours of troubleshooting three years down the road.
Thermal Management and HVAC Interaction
Because a large hexagon system generates more heat than traditional shop lights (see Table 1), it interacts with your gym’s climate control. In a 600-square-foot space, the extra 1,100W of lighting acts like a small space heater.
In climate-controlled gyms, this results in a "negative cooling credit." During the summer, your HVAC system must work harder to offset the heat generated by the lights. This is why the "1-inch air gap" and proper ventilation are not just about driver longevity—they are about preventing the ceiling cavity from becoming a heat reservoir that radiates warmth back into your workout space.
Compliance and Quality Assurance
When selecting a kit for a hidden-driver install, look for verifiable evidence of quality. Authoritative sources like the UL Solutions Product iQ Database allow you to verify that a product’s safety certifications are current. Furthermore, for those looking to maximize their investment, check the DSIRE Database of State Incentives to see if your local utility offers rebates for high-efficiency LED upgrades. While hexagon lights are primarily aesthetic, kits that meet DLC Premium standards often qualify for significant "utility midstream" rebates that can offset the higher cost of professional installation.
Summary of Hidden-Driver Best Practices
To ensure your home gym lighting is as durable as it is beautiful, adhere to this expert checklist:
- Calculate Total Load: Ensure your total wattage does not exceed 80% of your circuit's breaker capacity (1,920W for a 20A circuit).
- Prioritize Airflow: Maintain a 1-inch clearance around all hidden drivers to prevent thermal shutdown.
- Plan for Access: Never bury a driver behind drywall without a removable access panel.
- Manage Voltage Drop: Use 14AWG or thicker wire for DC runs exceeding 15 feet to ensure uniform brightness.
- Verify Safety: Only use drivers that carry a UL 1598 or ETL certification for the specific application.
By treating the "invisible" side of your lighting installation with the same rigor as the visible grid, you create a workout environment that is safe, serviceable, and professionally polished.
YMYL Disclaimer: This article provides general information regarding electrical installation and is not a substitute for professional electrical advice. Electrical work carries a risk of fire or shock. Always consult with a licensed electrician and comply with your local building codes and the National Electrical Code (NEC) before performing any wiring.
