Imagine pulling into your driveway after a long day. The sun has already set, and your property is a blanket of shadows. Usually, you’d have to fumble for a remote or step into a dark garage to flip a manual switch. But tonight is different. As your vehicle turns the corner 300 feet from your house, your driveway floodlights and high-ceiling garage fixtures snap to life, bathing your workspace in a crisp, 5000K daylight glow. This isn't just a scene from a high-end architectural digest; it is the reality of geofenced automation paired with industrial-grade LED technology.
We have spent years troubleshooting large-scale lighting projects, and the most common frustration we hear from homeowners and small business owners isn't about the brightness of the lights—it’s about the friction of using them. By integrating geofencing with high-performance UFO LED high bays, you bridge the gap between "industrial power" and "residential convenience." This guide breaks down the financial, technical, and safety protocols required to build a "welcome home" lighting system that pays for itself in months, not years.
The Financial Blueprint: Why Smart Upgrades Are a No-Brainer
For many small business owners operating out of a workshop or large garage, the transition to high-efficiency LED is often viewed as a "someday" project. However, when we look at the numbers, delaying the upgrade is actually more expensive than the installation itself.
In our recent analysis of a cost-conscious small business setup—replacing four legacy 400W metal halide fixtures with modern 150W LED high bays—the results were staggering. In a high-electricity-rate region like California or New England ($0.22/kWh), the simple payback period was just over six months.
Table 1: ROI and Payback Analysis (4-Fixture Setup)
| Metric | Legacy System (400W MH) | Modern LED System (150W) | Net Impact |
|---|---|---|---|
| Total System Wattage | 1,832W (inc. ballasts) | 600W | 1,232W Saved |
| Annual Energy Cost | $1,209.12 | $396.00 | $813.12 Savings |
| Maintenance Savings | $127.50 | $0.00 | $127.50 Savings |
| HVAC Cooling Credit | $0.00 | $44.72 | $44.72 Savings |
| Total Annual Savings | - | - | $985.34 |
| Net Project Cost | - | $520.00 (post-rebate) | Payback: 6.3 Months |
Note: Calculations based on 3,000 annual operating hours and a $200 utility rebate. HVAC credit assumes 1,500 cooling hours where reduced lighting heat lowers AC load.
According to the DesignLights Consortium (DLC) Qualified Products List (QPL), choosing "DLC Premium" certified fixtures is the primary gateway to these utility rebates. These fixtures aren't just efficient; they are verified to maintain their performance over time, ensuring your ROI doesn't fade with the lumens.
Establishing the Hardware Backbone: Safety and Standards
When you’re automating high-output lighting, you can’t just use any off-the-shelf smart plug. A 150W high bay light draws significant current, and the "inrush current" when the driver first kicks on can fry a cheap controller.
1. Safety Certifications (UL vs. ETL)
Every component in your system must be "Listed," not just "Recognized." According to UL Solutions, a "UL Listed" mark means the entire fixture has been tested for safety in its final form, whereas "UL Recognized" only applies to internal components like the driver. For insurance purposes and local building codes, always verify your fixtures via the UL Product iQ Database or the Intertek ETL Listed Mark Directory.
2. Performance Verification (LM-79 and LM-80)
Don't trust the numbers on the box; trust the IES LM-79-19 Standard report. This report acts as a performance "report card," measuring total lumens and efficacy (lm/W). To ensure your lights last the promised 50,000 hours, look for LM-80 data, which tracks lumen maintenance (how fast the light dims over years of use).
The Setup Protocol: Implementing Geofenced Logic

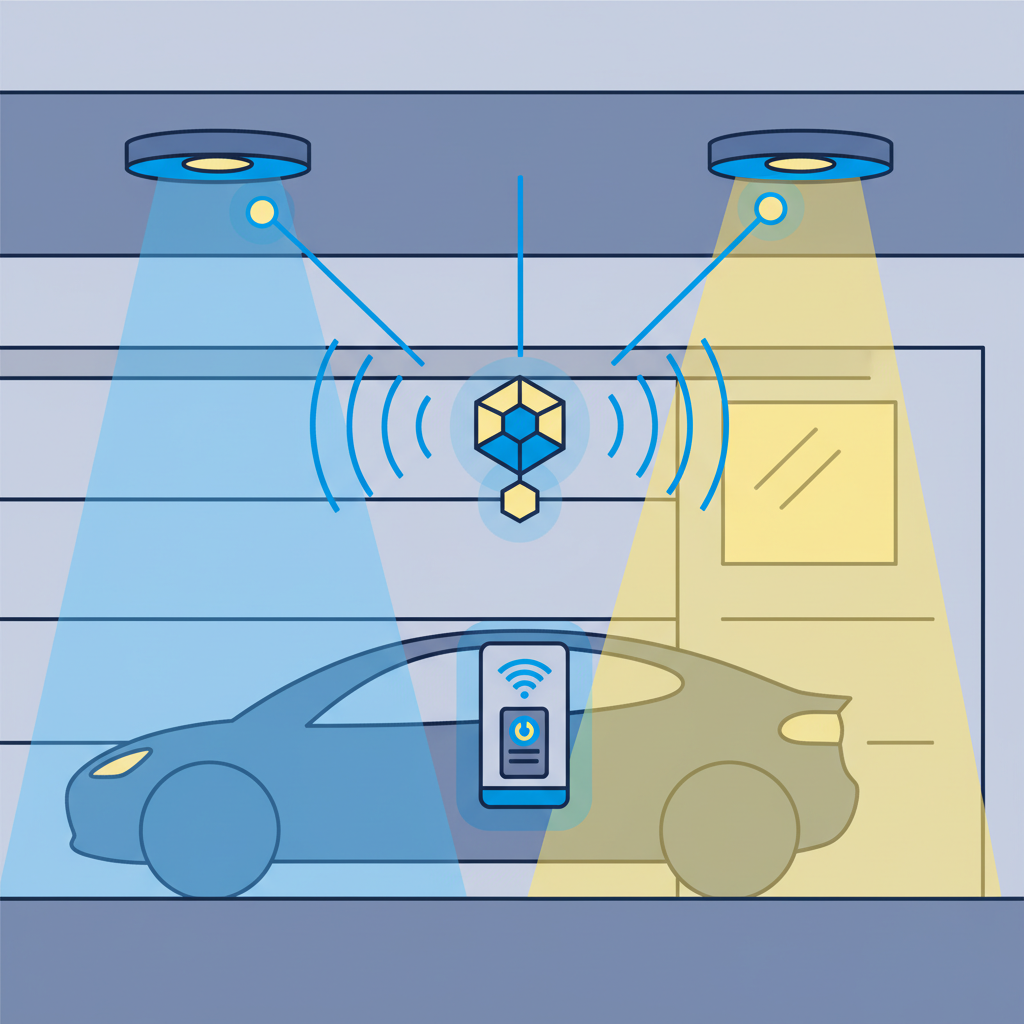

Geofencing uses your smartphone's GPS to create a virtual boundary around your property. When you enter this "fence," a signal is sent to your smart home hub (Alexa, Google Home, or HomeKit) to trigger a "Scene."
The "GPS Drift" Gotcha
One of the most common mistakes we see is setting a trigger radius that is too small. In urban or wooded areas, GPS "drift" can cause your phone to appear as if it’s jumping around. If your radius is only 50 feet, your lights might not trigger until you’re already in the garage, or they might flicker on and off while you're sitting in your living room.
Expert Recommendation: Set a trigger radius of at least 200 to 300 feet. This provides enough lead time for the smart plug or switch to respond and ensures the lights are at full brightness by the time you reach the driveway.
Integration Strategy: Scenes Over Triggers
Instead of setting a simple "When I arrive, turn on Light A," create a dedicated "Welcome Home Scene." This allows you to synchronize your high-output UFO high bays with exterior area lights and even your smart garage door opener. This improves reliability because the smart hub manages the sequence of commands as a single packet, reducing latency.
Electrical Load Planning and Installation
Automating industrial-grade lighting requires a different approach than setting up a smart lamp in a bedroom. High-performance fixtures, like those discussed in the 2026 Commercial & Industrial LED Lighting Outlook, demand careful electrical planning.
The Daisy-Chain Limit
While many modern LED fixtures allow for daisy-chaining (plugging one light into another), there are strict limits. Most manufacturers cap the load at 440W per power injection point. If you are installing four 150W fixtures (600W total), you cannot run them all off a single daisy chain.
In our 4-fixture experiment, we required 3 power injection points to stay within safety margins on a standard 120V/15A circuit. Overloading these points doesn't just trip breakers; it creates heat at the connection points, which can lead to premature failure of the LED drivers.
Dimming Compatibility
If you plan to dim your lights (highly recommended for late-night arrivals to avoid blinding glare), ensure your smart controller supports 0-10V dimming. This is the industry standard for commercial LEDs and is far more stable than the "Phase Dimming" used in residential light bulbs. According to the NEMA Lighting Systems Division, using the wrong dimming protocol is the #1 cause of audible buzzing and flickering.
Advanced Automation: Adding Occupancy Sensors
Geofencing is perfect for arrival, but what about when you’re actually working in the garage? GPS isn’t accurate enough to keep the lights on while you’re stationary. This is where Occupancy Sensors come in.
For a typical 800 sq. ft. garage, adding smart occupancy sensors adds about $300 to the project cost but generates an additional $60 in annual savings. More importantly, it ensures the lights turn off automatically if you forget to flip the switch after a long project.
Pro Tip: Look for sensors that comply with ASHRAE Standard 90.1-2022. This ensures the sensors have the sensitivity required for "minor motion" (like typing or fine assembly work) so you aren't left in the dark while working under a car hood.
Maintenance and Long-Term Reliability
A smart lighting system is only as good as its weakest link. To maintain "Pro-Grade" reliability, follow this maintenance checklist:
- Firmware Updates: Check your smart plugs and hubs quarterly. Manufacturers often release patches to improve GPS accuracy and security.
- IP65 Integrity: If your garage is unheated or prone to dust, ensure your fixtures carry an IP65 rating. As defined by IEC 60529, IP65 means the fixture is "dust-tight" and protected against water jets. This is critical for longevity in workshop environments.
- Check the Rebate Map: Incentives change frequently. Use the DSIRE Database to see if new rebates have been added for smart controls in your area.
Common Questions from the Field
Can I use a standard smart plug for a 250W high bay? In most cases, no. Many residential smart plugs are rated for 10A or 15A "resistive" loads, but LED drivers are "inductive" loads. We recommend using a smart relay or a heavy-duty outdoor smart plug specifically rated for high-wattage lighting to prevent the internal contacts from welding shut.
Why do my lights flicker when they first turn on via geofencing? This is often caused by "undervolting." If your smart controller isn't providing a clean signal or if your circuit is overloaded, the LED driver may struggle to initialize. Check your total circuit load and ensure you aren't exceeding the 80% continuous load rule for your breaker (1,440W for a 15A circuit).
What color temperature is best for a "Welcome Home" scene? For visibility and safety, 5000K (Daylight) is the standard. However, if your garage is attached to your home, some prefer 4000K (Cool White) for a slightly softer transition. Refer to ANSI C78.377-2017 to ensure color consistency across different brands of fixtures.
The Result: A Seamless Transition
"I used to fumble for my keys in the dark; now the garage lights up like a stadium before I even pull into the driveway," says one of our recent workshop clients. By combining the raw power of high-lumen UFO high bays with the intelligence of geofencing, you aren't just buying lights—you're buying an experience.
With a payback period of roughly six months and a lifespan that stretches over a decade, the question isn't whether you can afford to upgrade—it's whether you can afford the cost of staying in the dark.
Disclaimer: This article is for informational purposes only. Electrical work involves risks of fire and shock. Always consult a licensed electrician and adhere to the National Electrical Code (NEC) and local building regulations before modifying your electrical system.
