The Strategic Necessity of Professional Farm Security Lighting

Securing a modern farm or ranch requires moving beyond simple "floodlights" toward a strategic, data-driven lighting plan. For facility managers and ranch owners, the primary objective is to eliminate dark spots that harbor trespassers while maintaining operational efficiency after sundown. The most effective approach leverages a combination of high-output LED area lights and full-cutoff wall packs, governed by automated dusk-to-dawn photocells and motion sensors.

From a pragmatic standpoint, professional-grade lighting is defined by its ability to withstand the unique rigors of agricultural environments—corrosive fertilizers, heavy dust, and extreme temperature swings—while delivering a verifiable Return on Investment (ROI). According to the 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights, the transition to high-efficacy LED systems is no longer just about visibility; it is about infrastructure longevity and regulatory compliance.

Key Decision Metric: To achieve effective security deterrence, aim for a minimum of 2–5 foot-candles (20–50 lux) at ground level along fence lines and building entries. Achieving this requires precise photometric planning rather than simply increasing raw lumen output.

Technical Foundations: Verifying Durability and Performance

In the B2B lighting sector, "reliability" is not a marketing term; it is a set of measurable standards. When selecting fixtures for a farmstead, three certifications are non-negotiable: UL/ETL for safety, DLC for efficiency, and IP/IK ratings for environmental resistance.

1. Safety and Compliance (UL vs. ETL)

Every fixture installed on a commercial agricultural property should carry a mark from a Nationally Recognized Testing Laboratory (NRTL). The UL Solutions Product iQ Database and the Intertek ETL Listed Mark Directory are the two primary authorities.

A common point of confusion for buyers is the difference between "UL Listed" and "UL Recognized." For a finished security light, you must insist on a UL Listed mark. This indicates the entire fixture has been tested as a complete unit for safety. "UL Recognized" usually applies to internal components (like a driver) and does not guarantee the safety of the final assembly in a wet outdoor environment.

2. Efficiency Standards (DLC Premium)

To qualify for utility rebates, fixtures must appear on the DesignLights Consortium (DLC) Qualified Products List (QPL). DLC Premium certification is the "gold standard," requiring higher efficacy (lumens per watt) and stricter limits on lumen maintenance (how well the light stays bright over time).

3. Environmental Ingress (IP65+) and Impact (IK Ratings)

Agricultural environments are notoriously harsh. The IEC 60529 (IP Ratings) standard defines the protection level against solids and liquids.

IP65: Dust-tight and protected against water jets. This is the minimum requirement for farm security lights.
IP66: Protected against powerful water jets—ideal for areas where fixtures might be hit by high-pressure wash-down equipment.

Additionally, consider the IEC 62262 (IK Ratings) for mechanical impact. An IK08 or IK10 rating ensures the fixture can survive accidental strikes from equipment or debris during high winds.

Photometric Planning: Lighting the Farmyard for Security

Raw power is useless if the light is directed into the sky or onto a neighbor's property. Professional security lighting relies on controlled beam patterns and uniform distribution.

The 2-5 Foot-Candle Rule

Security experts generally agree that a minimum of 2 foot-candles is necessary for basic facial recognition on security cameras. For high-risk areas like fuel tanks or equipment sheds, 5 foot-candles is preferred.

Logic Summary: Our lighting layouts assume a mounting height of 15–25 feet to maximize the horizontal "throw" of the beam while minimizing glare that can blind security cameras.

Application Area	Target Illuminance (Foot-candles)	Recommended Fixture Type
Fence Lines / Perimeters	1–2 FC	LED Area Light (Type III or V)
Driveways / Access Points	2–3 FC	LED Parking Lot Light
Building Entries / Loading Bays	5 FC	Full Cutoff Wall Pack
Fuel Tanks / Chemical Storage	5+ FC	Adjustable Floodlight

Using IES Files for Layout Accuracy

Before purchasing, request the .ies files for the fixture. These files, standardized by the IES LM-63-19, allow lighting designers to use software like AGi32 to simulate exactly how much light will hit the ground. This prevents the common mistake of over-lighting the center of the yard while leaving the corners in shadow.

Bright LED security light mounted on a barn illuminating a gravel driveway with parked cars

Automation and Controls: Photocells and Motion Sensors

Automation is the key to balancing security with energy costs. For most farms, a "Dusk-to-Dawn" strategy is the baseline, but intelligent controls can significantly enhance deterrence.

Dusk-to-Dawn Photocells

A photocell automatically energizes the fixture when ambient light levels drop. This ensures the property is never dark if you forget to flip a switch. When selecting fixtures, look for integrated photocells that are field-replaceable. If a photocell fails due to a lightning strike, you shouldn't have to replace the entire fixture.

Motion Sensor Strategy

Motion sensors are excellent for "surprise" deterrence. However, in agricultural settings, wildlife and wind-blown debris can cause "nuisance tripping."

The 3-5 Second Rule: Experienced installers recommend a 3–5 second delay before the light shuts off. This prevents the fixture from "stuttering" during intermittent movement and extends the life of the LED driver.
Zoning: Do not put the entire yard on one sensor. Zone your lighting so that movement near the equipment shed only triggers the lights in that specific area.

Regulatory Alignment: ASHRAE and Title 24

In many jurisdictions, including California, lighting controls are now a legal requirement for commercial and agricultural buildings. California Title 24, Part 6 mandates multi-level dimming or occupancy sensing for most outdoor area lights to reduce light pollution and energy waste.

Installation Realities: Protecting Your Investment

Installing high-performance lighting on a farm requires more than just a ladder. Agricultural buildings, particularly metal pole barns, present specific challenges.

Preventing Galvanic Corrosion

When mounting aluminum fixtures to corrugated metal siding, a chemical reaction called galvanic corrosion can occur, leading to structural failure of the mount.

Practitioner Tip: Always use a rubber or neoprene gasket between the fixture housing and the metal wall. This creates a physical barrier that prevents moisture-driven corrosion.

Pest-Proofing the System

Rodents are a leading cause of electrical failure on farms. While a fixture might be IP65 rated, the conduit entry points are often vulnerable.

The Solution: Use pest-proof putty or silicone sealant at every conduit entry point. Ensure all wiring is housed in rigid or liquid-tight flexible conduit (LFMC) to prevent wire-stripping by pests.

Grounding and Surge Protection

Rural electrical grids are prone to voltage spikes and lightning strikes. While many professional fixtures include 4kV surge protection, we recommend an external 10kV or 20kV surge protector for fixtures mounted on tall poles. This is a small insurance policy for a fixture that may cost several hundred dollars.

The Business Case: ROI and TCO Analysis

For a ranch owner, lighting is a capital investment. To demonstrate the value, we modeled a typical 100-acre cattle ranch operation in the Midwest.

Scenario: Upgrading Legacy Lighting

We compared 25 legacy 1000W High-Pressure Sodium (HPS) fixtures against 25 high-efficacy 300W LED Area Lights.

Modeling Note (Reproducible Parameters):

Legacy Power: 1000W + 100W ballast = 1100W total.

LED Power: 300W.

Operation: 12 hours/day (4,380 hours/year).

Utility Rate: $0.16/kWh (Rural commercial rate).

Maintenance: HPS bulb replacement every 12,000 hours (~2.7 years).

Metric	Legacy HPS System	Modern LED System	Annual Savings
Annual Energy Consumption	120,450 kWh	32,850 kWh	87,600 kWh
Annual Energy Cost	$19,272	$5,256	$14,016
Maintenance Labor/Parts	$2,601	$0 (5-Year Warranty)	$2,601
Total Annual Cost	$21,873	$5,256	$16,617

Payback Period: Under this model, the project pays for itself in approximately 7.5 months after factoring in an average $100/fixture utility rebate sourced from the DSIRE Database.

Environmental Impact

Beyond the ledger, the energy reduction is significant. This upgrade reduces annual CO2 emissions by approximately 38 metric tons—the equivalent of planting over 600 tree seedlings and letting them grow for 10 years, based on EPA Greenhouse Gas Equivalencies.

Selecting the Right Fixture for the Job

To execute this plan, you need fixtures that match the technical specs discussed.

For Perimeters and Driveways

Large open areas require a "Shoebox" style area light. The Hope Series is a prime example, offering 150 lumens per watt (lm/W) and Type III distribution, which is optimized for broad, forward-throwing light. For even greater durability, the Cobra Series provides a rugged die-cast aluminum housing and an optional photocell sensor that can be enabled or disabled by simply removing a cap.

For Building Exteriors and Entries

Wall packs are the standard for illuminating the immediate vicinity of a barn or shop.

The Moon Series: A classic semi-cutoff design providing 13,000 lumens. Its 120-degree beam angle is ideal for general area illumination around personnel doors.
The Wall E Series: A full-cutoff, adjustable-angle wall pack. This is essential for meeting "Dark Sky" compliance and Title 24 requirements, as it allows you to aim the light precisely downward, preventing light pollution and neighbor complaints.

Logic Summary: We recommend full-cutoff fixtures like the Wall E series for any installation within 50 feet of a property line or residential dwelling to avoid "light trespass" issues.

Summary of Best Practices

Building a secure farmstead is a matter of layering the right technology with practical installation techniques.

Prioritize DLC Premium: Ensure your fixtures are listed on the DLC QPL to maximize energy savings and rebate eligibility.
Verify Safety: Only install UL Listed or ETL Listed fixtures to ensure electrical safety in wet environments.
Automate Smartly: Use integrated photocells for dusk-to-dawn operation and motion sensors with a 3–5 second delay to minimize nuisance cycling.
Protect the Mount: Use rubber gaskets on metal buildings to prevent galvanic corrosion.
Plan for 2-5 Foot-Candles: Use IES files and layout software to ensure uniform coverage without dark spots.

By adhering to these professional standards, farm and ranch owners can transform their outdoor lighting from a simple utility into a robust security asset that pays for itself through energy and maintenance savings.

Disclaimer: This article is for informational purposes only and does not constitute professional electrical, legal, or financial advice. Always consult with a licensed electrician and check local building codes and utility rebate requirements before beginning a lighting project.

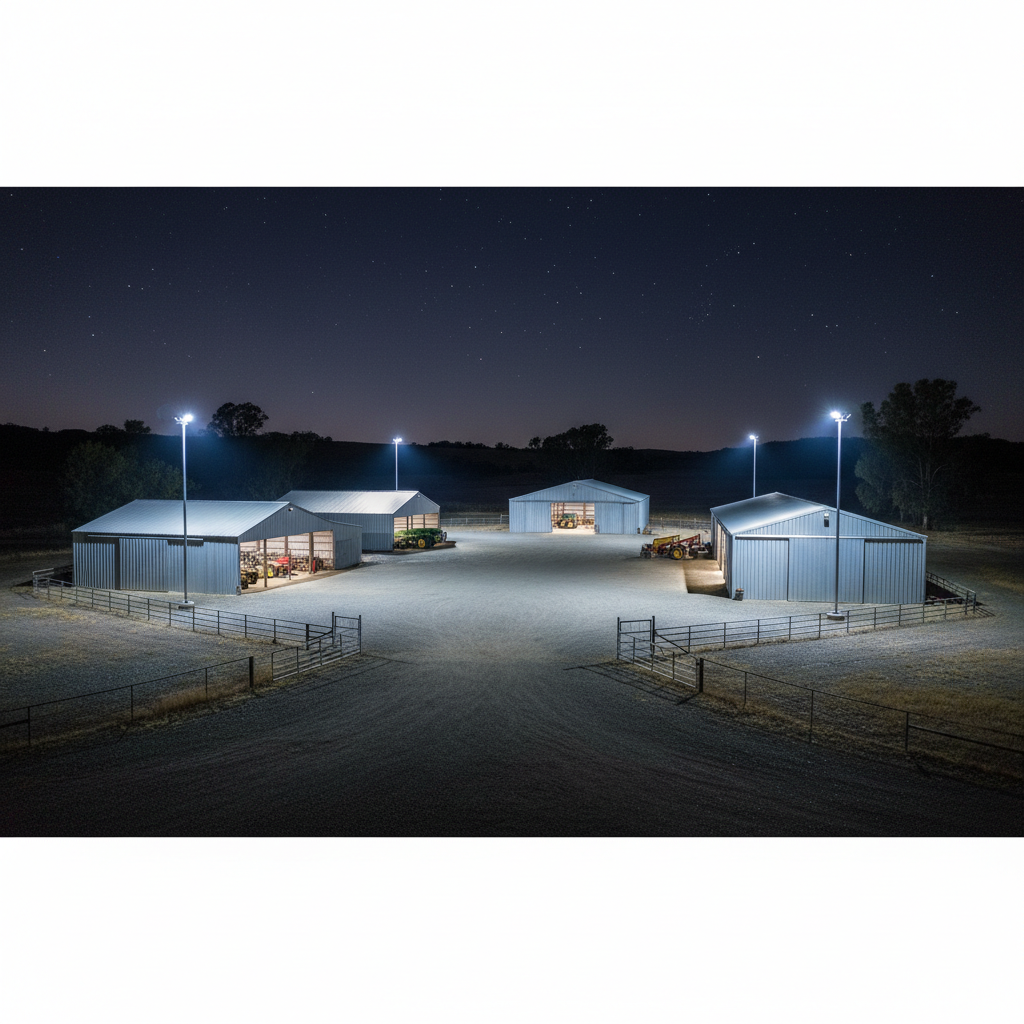

A Guide to Outdoor Security & Area Lighting for Farms and Ranches
