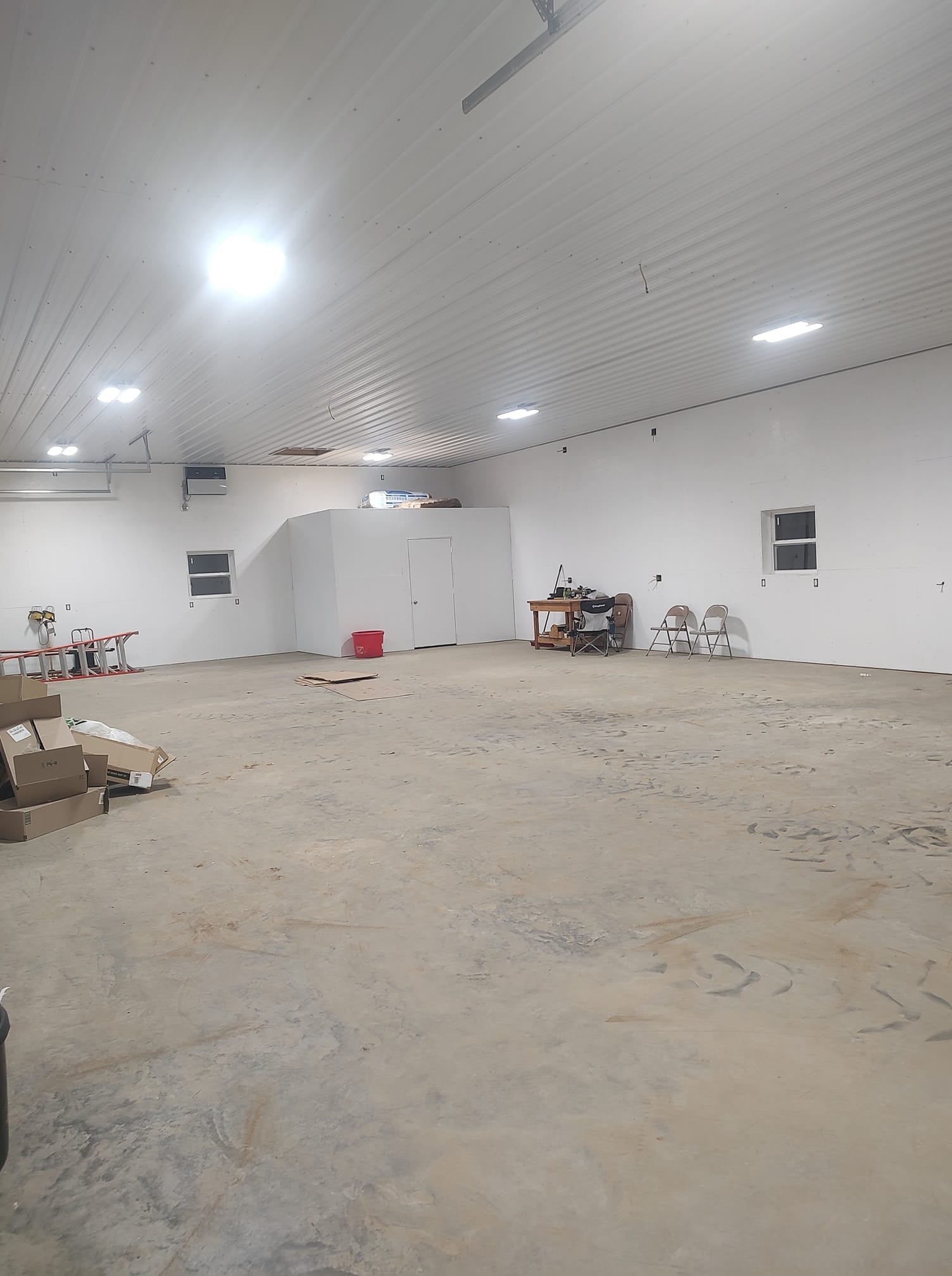

The Foundation of a Safe Warehouse Lighting Layout
A proper lighting design is one of the most critical yet overlooked aspects of warehouse safety. It moves beyond simply flooding a space with light; it involves strategically planning for visual clarity, eliminating hazards, and supporting the specific tasks performed by your team. An effective layout directly reduces the risk of accidents, from trips and falls to forklift incidents, by ensuring every corner of your facility is visible and free from visual distortion.
Beyond Brightness: Key Metrics for Safety
Many facility managers focus on lumens, a measure of total light output. However, raw brightness alone does not guarantee a safe environment. True safety is achieved by balancing three core photometric principles.
- Illuminance (Foot-Candles/Lux): This is the amount of light that actually reaches a surface. Different tasks require different light levels. According to the Illuminating Engineering Society (IES) recommended practice for industrial facilities (RP-7), light levels must match the task's complexity. Aisleways used for simple transit need less light than a quality control station where detailed inspection occurs.
- Uniformity: This measures the evenness of light across a space. A poor uniformity ratio creates a dangerous pattern of bright spots and dark shadows. These shadows can obscure objects on the floor, hide the edges of a loading dock, or make it difficult for a forklift operator to judge distances. A good target for most warehouse applications is an average-to-minimum uniformity ratio of 2.5:1 or better (which translates to a value of 0.4), meaning the darkest spot is no more than 2.5 times dimmer than the average.
- Glare (Unified Glare Rating - UGR): Glare is the visual discomfort caused by excessive or uncontrolled brightness. In a warehouse, glare from a poorly aimed high bay can momentarily blind a worker, causing them to misjudge a step or not see an approaching vehicle. Selecting fixtures with quality optics and positioning them correctly is crucial to minimize this hazard.
Adhering to Authoritative Standards
To ensure both safety and performance, your lighting design and product selection should be grounded in established industry standards. These certifications are not just labels; they are proof that a product has been independently tested to perform as specified.
- Safety Certifications (UL/ETL): Products listed by UL Solutions (Underwriters Laboratories) or Intertek (ETL) have been tested to meet rigorous North American safety standards like UL 1598, which covers luminaires. This certification is non-negotiable and is often required by electrical codes and insurance policies, confirming the fixture is protected against fire and electrical shock.
- Performance & Efficiency (DLC): The DesignLights Consortium (DLC) Qualified Products List (QPL) is the benchmark for commercial LED lighting performance and energy efficiency. A DLC-listed high bay has verified lumen output, efficacy (lm/W), and lumen maintenance. This is your assurance that the fixture will perform efficiently and is often a requirement for securing valuable utility rebates.
Step-by-Step Guide to Planning Your High Bay Layout
Creating a safe and effective lighting plan is a systematic process. By following these steps, you can move from basic requirements to a detailed, verifiable layout that maximizes safety and operational efficiency.
Step 1: Define illuminance Targets by Warehouse Zone
First, map your warehouse and identify the primary tasks performed in each area. This allows you to set appropriate illuminance targets. Using a light meter to measure your existing levels can provide a useful baseline, but your new design should be based on IES recommendations.
Here is a practical table of recommended light levels for common warehouse zones:
| Warehouse Zone | Primary Tasks | Recommended Illuminance (Foot-Candles) | Recommended Illuminance (Lux) |
|---|---|---|---|
| Open Storage / Bulk Aisles | Forklift transit, general movement | 5 - 10 fc | 50 - 100 lux |
| Pallet Racking Aisles | Loading/unloading pallets, reading labels | 15 - 20 fc | 150 - 200 lux |
| Packing & Shipping Stations | Labeling, scanning, packing boxes | 20 - 50 fc | 200 - 500 lux |
| Inspection / Quality Control | Detailed visual inspection, color checking | 30 - 50 fc | 300 - 500 lux |
| Loading Docks | Staging, vehicle loading/unloading | 20 - 30 fc | 200 - 300 lux |
Step 2: Select the Right UFO High Bay Fixture
With your targets defined, you can select a fixture. Look beyond wattage and focus on performance specifications that align with your safety goals.
- Lumens & Efficacy: Choose a fixture with sufficient lumen output to meet your targets, but prioritize high efficacy (lumens per watt, lm/W). A more efficient fixture uses less energy to produce the same amount of light.
- Color Temperature (CCT): For most warehouse environments, a CCT of 4000K or 5000K is ideal. 5000K provides a crisp, daylight-like white that enhances alertness and contrast, which is excellent for active work areas. 4000K is slightly warmer and can be more comfortable in spaces with longer dwell times.
- Color Rendering Index (CRI): CRI measures how accurately a light source reveals colors. A CRI of 80+ is a good standard for warehouses, ensuring that safety warnings, color-coded wiring, and product labels are easily distinguishable.
- Flexibility: Fixtures with selectable wattage and CCT, such as the Hyperlite LED High Bay Light - Black Hero Series, offer valuable flexibility. They allow you to fine-tune the light output and color on-site to perfectly match the needs of a specific zone, simplifying procurement and future adjustments.
Step 3: Debunking a Common Myth: Beyond Lumen Counts
A pervasive myth in lighting design is that you can determine fixture count by simply dividing the total lumens needed by the fixture’s lumen output. This approach is dangerously flawed because it completely ignores how light is distributed.
This is where two key concepts come into play:
- Beam Angle: This determines the shape of the light pattern. A wide beam angle (e.g., 120°) is good for open areas, while a narrower angle (e.g., 60° or 90°) is better for concentrating light down long, narrow aisles.
- Spacing-to-Mounting-Height (S/MH) Ratio: This is a quick heuristic to guide fixture placement. A typical UFO high bay with a wide beam has an S/MH ratio around 1.2 to 1.5. This means if your fixtures are mounted at 20 feet, they should be spaced approximately 24 to 30 feet apart to achieve good overlap and uniformity. Using a fixture outside its recommended S/MH ratio will result in dark spots or excessive overlap (wasted energy).
Step 4: Verify Your Design with IES Files
The only way to truly predict how a lighting layout will perform is to use photometric simulation. Manufacturers of professional-grade fixtures provide IES files, which are standardized text files that describe exactly how a luminaire distributes light. An IES LM-63-19 file is the industry standard format for this data.
By loading these IES files into lighting design software (like AGi32 or RELUX), a lighting designer can build a 3D model of your warehouse and accurately predict illuminance, uniformity, and potential glare issues before a single fixture is purchased. Insisting on IES files is a critical step that separates a professional, safe design from a guesswork-based one. It allows you to verify that your plan will eliminate shadows in racking aisles and provide sufficient vertical illuminance for reading labels on upper shelves.
Mitigating Common Lighting Hazards
A robust design anticipates and mitigates specific visual hazards common in a dynamic warehouse environment.
Reducing Glare
Direct glare from high bay fixtures can be a serious safety issue. To control it:
- Positioning: Avoid placing fixtures directly in the typical line of sight for key tasks. For example, in racking aisles, position the fixtures so they are centered over the aisle, not directly over the area where an operator might be looking up.
- Optics and Accessories: Use fixtures with high-quality lenses designed to cut off light at high angles. Adding a reflector or diffuser can also soften the light source and reduce direct glare, creating a more comfortable and visually safe environment.
Ensuring Uniformity to Eliminate Shadows
As discussed, shadows are trip-and-fall magnets. Achieving excellent uniformity is a direct result of proper planning:
- Correct Spacing: Adhere to the S/MH ratio recommended for your chosen fixture. Spacing them too far apart is the most common cause of poor uniformity.
- Appropriate Beam Angle: In open areas, a wide beam angle provides the smooth overlap needed for great uniformity. In aisles, a narrower, more focused beam prevents light from being wasted on the tops of racks and directs it to the floor where it’s needed.
- Maintenance Factor: Account for light loss over time due to dirt accumulation and lumen depreciation. A typical maintenance factor of 0.7 to 0.8 should be used in initial calculations. This ensures that even after several years of operation, your light levels will still meet safety minimums.
Integrating Controls for Safety and Efficiency
Modern lighting controls are not just for saving energy; they are powerful safety tools.
- Occupancy Sensors: Installing occupancy sensors in low-traffic aisles or storage areas ensures that lights are on when someone enters the space, preventing them from walking into a dark, potentially hazardous area. Zoning sensors to cover one or two aisles is a common and effective strategy.
- Daylight Harvesting: For areas near skylights or large windows, daylight harvesting sensors can automatically dim the electric lights when sufficient natural light is present. This not only saves energy but also prevents over-lighting, which can cause glare and eye strain.
- 0-10V Dimming: Specifying fixtures with 0-10V dimming drivers is essential. It gives you the granular control needed to set task-appropriate light levels and is almost always a prerequisite for qualifying for utility rebates, which can significantly lower the project's upfront cost.
Final Verification and Compliance
Your responsibility for safety doesn’t end after the design is complete. Verifying compliance and performance is the final, critical step.
The Importance of Certified Products
Always double-check that the fixtures you intend to purchase are listed on the DLC Qualified Products List and have a valid UL or ETL certification. Ask the manufacturer for PDF copies of the LM-79 and LM-80 test reports. These documents provide independent verification of the fixture’s performance and lifespan claims. Submitting a rebate application with non-qualified products is a common and costly mistake.
Post-Installation Audit
Once the installation is complete and the fixtures have been operating for 30-60 days, conduct an on-site audit. Use a calibrated light meter to measure the illuminance levels at task height in each of your defined zones. Compare these real-world readings to the predictions from your photometric simulation.
Check the average-to-minimum uniformity. If you find dark spots or areas that don't meet your specified levels, you may need to adjust fixture aiming or add supplemental lighting. This final check closes the loop, confirming that your design has successfully created a safer warehouse.
Key Takeaways
Designing a high bay lighting layout for warehouse safety is a science. It requires moving beyond simple brightness and focusing on the quality and precision of illumination. By establishing clear illuminance targets for each zone, selecting certified, high-performance fixtures, and using professional photometric tools to validate your design, you can create a lighting system that actively prevents accidents.
Remember to control for glare and maximize uniformity to eliminate hidden hazards. Finally, verify your results with a post-installation audit to ensure your facility not only meets but exceeds safety standards, protecting your team and your operations for years to come.
Frequently Asked Questions (FAQ)
What is the best color temperature for a warehouse? For most warehouses, 5000K is an excellent choice. It provides a crisp, daylight-like light that improves concentration and makes it easier to see details. 4000K is a slightly warmer alternative that can also be effective, especially in areas where employees may be stationed for longer periods.
How many high bay lights do I need? The number of lights depends on your ceiling height, the area's dimensions, the fixture's lumen output and beam angle, and the required foot-candle level for the tasks being performed. The best way to determine the exact number is to create a photometric layout using IES files.
What is the difference between UL and DLC certification? UL (or ETL) is a safety certification, ensuring the product is protected from electrical and fire hazards. DLC is a performance and efficiency certification, verifying the manufacturer's claims for light output, efficacy, and lifespan. For commercial projects, you should always select products that have both.
How does a 0-10V dimmer work? A 0-10V dimming system uses a low-voltage DC signal to control the light output of the driver. A controller sends a voltage between 0 and 10 volts; at 10V, the light is at 100% brightness, and at 1V (or 0V, depending on the driver), it is at its minimum level or off. This allows for smooth, flicker-free dimming.
This article is for informational purposes only and does not constitute professional engineering or electrical advice. Always consult a qualified lighting designer, engineer, and a licensed electrician to ensure your lighting plan complies with all local building and electrical codes.
