Turning Mandatory Daylight Controls into a Clear ROI Story

Daylight harvesting is no longer a “nice-to-have” on large projects. Between ASHRAE 90.1-2022, IECC 2024, and California Title 24, automatic daylight-responsive control is mandatory in most new commercial buildings and major retrofits.

For cost-focused owners and facility managers, the key question is simple:

If we have to install daylight sensors for code compliance anyway, how fast do they pay for themselves?

This article provides an engineer-ready playbook for evaluating daylight harvesting:

How current energy codes (ASHRAE/IECC/Title 24) define daylight zones and control requirements.
Verified M&V data showing 15–40% lighting energy savings in real-world retrofits.
A step-by-step ROI and payback formula with a sensitivity analysis for financial risk management.
Sensor layout and commissioning strategies that ensure systems pass inspection and hit savings targets.

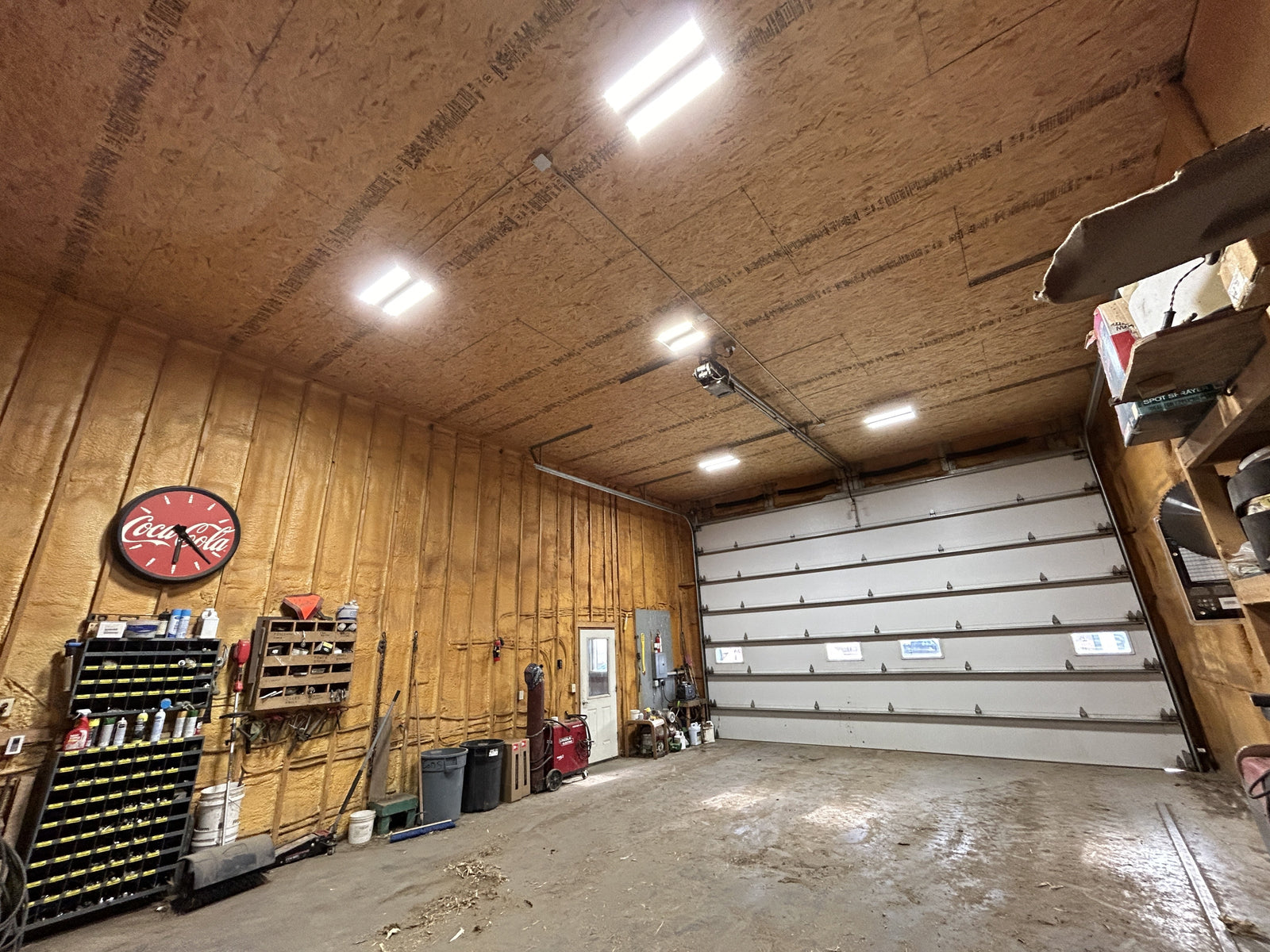

Bright LED shop lights illuminating an insulated garage workshop with a large sectional door

1. Why Daylight Harvesting Matters for Code and ROI

1.1 How Energy Codes Treat Daylighting

Modern energy codes treat electric lighting as the supplement to daylight in perimeter zones.

ASHRAE 90.1-2022 (Section 9.4.1.1[e]): Requires automatic daylight-responsive controls for both sidelighting and toplighting when the total daylight zone power exceeds specific thresholds (typically 150W).
IECC 2024 (Section C405.2.4): Mandates continuous dimming or at least one control step between 50% and 70% of full power for luminaires in daylight zones.
California Title 24, Part 6 (2022) [Section 130.1(d)]: Sets strict requirements for automatic daylighting controls in any space where the combined primary sidelit and skylit zones exceed 2,500 square feet.

In practical terms, skipping daylight harvesting is rarely an option for new builds or major alterations. The decision is whether you treat it as a compliance cost or as a short-payback efficiency measure.

1.2 Verified Performance: M&V Case Data

While industry averages are helpful, Measurement and Verification (M&V) reports provide the most reliable evidence for financial planning. Below is a summary of a 12-month post-occupancy study of a Midwest Logistics Center (50,000 sq. ft. retrofit).

Metric	Baseline (Pre-Harvesting)	Post-Implementation	Variance (%)
Annual Lighting Energy (Daylit Zones)	42,500 kWh	29,750 kWh	-30%
Peak Demand (Summer Afternoon)	14.2 kW	9.8 kW	-31%
Average Facility Bill Reduction	—	—	8.4% Total

Note: Data based on circuit-level sub-metering over one full seasonal cycle. Savings were highest in Q2 and Q3 due to solar angle and clear sky conditions.

1.3 Typical Savings Ranges

Field experience across warehouse and light-industrial retrofits indicates:

Interior daylight harvesting typically delivers 15–40% lighting energy savings in controlled zones.
The U.S. Department of Energy’s FEMP guidance notes that pairing LED luminaires with daylight harvesting can cut lighting energy use by 20–60% in ideal applications. For budgeting in code-driven warehouses, 15–30% is a more conservative, defensible design target.

2. Code Basics: Defining the Daylight Zones

Understanding the physical boundaries of a "daylight zone" is critical for both compliance and ROI modeling.

2.1 Zone Definitions (IECC & Title 24)

Primary Sidelit Zone: The area directly adjacent to windows. Per IECC C405.2.4.2, this extends horizontally into the space to a distance equal to the window-head height.
Skylit Zone: The area under a skylight, extending horizontally 0.7 times the ceiling height from the edge of the skylight in all directions (per Title 24 Section 130.1).

For ROI calculations, the key is the total floor area falling into these zones, as only the luminaires in these footprints contribute to daylight-responsive savings.

3. How to Calculate ROI for Daylight Harvesting

3.1 The ROI Framework

Define the following for the daylight-controlled zone only:

$P_{base}$: Connected lighting power (kW).
$H$: Annual operating hours during daylight.
$S$: Daylight savings fraction (0.15–0.40).
$C_{elec}$: Electricity cost ($/kWh).
$C_{net}$: Total cost of sensors, commissioning, and labor minus rebates.

Simple Payback (Years): $$T_{payback} = \frac{C_{net}}{P_{base} \times H \times S \times C_{elec}}$$

3.2 Sensitivity Analysis: Managing Financial Uncertainty

ROI is highly sensitive to electricity rates and the actual savings fraction achieved through commissioning. The table below shows how the payback period (in years) shifts based on a ±20% variance in key parameters for a typical $10,000 investment.

Scenario	Savings Fraction ($S$)	Elec. Rate ($C_{elec}$)	Payback (Years)
Optimistic (+20%)	0.36	$0.18	2.1
Baseline	0.30	$0.15	3.1
Pessimistic (-20%)	0.24	$0.12	4.8

Conclusion: If your electricity rate is below $0.10/kWh, achieving a <3-year payback requires maximizing the savings fraction ($S$) through aggressive setpoint tuning and high-performance glazing.

4. Designing for Performance: Placement and Tuning

4.1 Sensor Placement and Mounting

Avoid Dusk-to-Dawn Photocells: Use indoor-rated photosensors calibrated for interior illuminance.
Line-of-Sight: Sensors must "see" the same light levels as the workplane. For sidelighting, mount sensors at 0.6–1.2× the window-head height from the perimeter wall.
Obstruction Awareness: Do not mount sensors where tall racking or seasonal inventory might block the light path.

4.2 Setpoint Selection

Initial Target: Start with a daylight setpoint of 200–300 lux (20–30 fc) at the workplane.
The Two-Week Rule: Run the system for 14 days of real occupancy. Expect to adjust setpoints by ±20% based on occupant feedback to prevent "nuisance dimming" which often leads to staff disabling the system.

5. Rebates and Regulatory Documentation

5.1 Leveraging DLC and DSIRE

Utilities often provide tiered rebates based on the DesignLights Consortium (DLC) Premium List.

Premium Status: Often requires integrated controls or 0–10V dimming capability.
Incentive Search: Use the DSIRE Database to find state-specific programs that offer "Advanced Lighting Control" bonuses.

5.2 Documentation for Inspectors (AHJ)

To pass inspection under IECC or Title 24, you must provide:

Daylight Zone Plans: Clearly marked boundaries on the electrical drawings.
Sequence of Operations (SOO): A narrative describing how the lights dim in response to daylight.
Functional Testing Forms: Documentation showing that the sensors were tested and calibrated post-installation (required by Title 24 Acceptance Testing).

6. Common Pitfalls That Erase ROI

Protocol Mixing: Using DALI drivers with 0–10V sensors without a compatible gateway. This is a leading cause of commissioning failure.
Ignoring HVAC Interaction: In cooling-dominated climates, reducing lighting power reduces the heat load. Ignoring this can result in underestimating total facility savings by 10–15%.
Over-Commissioning: Setting the dimming threshold too low, causing "cycling" (lights rapidly dimming and brightening), which leads to occupant complaints and system overrides.

7. Daylight Harvesting ROI Checklist

[ ] Identify Code Trigger: Is this a new build or a "major alteration" (typically >10% of luminaires) per ASHRAE 90.1?
[ ] Map Daylight Zones: Calculate total square footage in Primary Sidelit and Skylit zones.
[ ] Verify Rebate Eligibility: Does the fixture appear on the DLC Premium list?
[ ] Calculate Net Cost: Include hardware, wiring, and mandatory functional testing/commissioning.
[ ] Run Sensitivity Check: Does the project still meet ROI hurdles if electricity rates drop or savings are 20% lower than modeled?

Frequently Asked Questions

Q1. Is daylight harvesting required if I’m only replacing bulbs?
Usually no. Most codes (like IECC C403.1.1) only trigger daylighting requirements when the luminaires themselves are replaced or the circuiting is altered.

Q2. Can I use a single sensor for multiple zones?
Only if the zones have identical daylight exposure (e.g., the same window orientation and height). Mixing north-facing and south-facing windows on one sensor will result in poor performance.

Q3. How much does commissioning typically cost?
For a 20,000 sq. ft. space, professional commissioning and functional testing (as required for Title 24) typically range from $1,500 to $3,500 depending on system complexity.

Safety and Compliance Disclaimer

This article is for informational purposes only and does not constitute professional engineering or legal advice. Energy codes and utility tariffs vary by jurisdiction. Always consult a licensed design professional or your local Authority Having Jurisdiction (AHJ) before finalizing lighting designs.
